PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox

PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox

PLF120 planetary reduction gearbox

120mm planetary reduction gearbox

4000rpm planetary gearbox reducer

Place of Origin:

Guangdong, China

Brand Name:

Lichuan

Certification:

ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321

Model Number:

PLF120

Contact Us
Request A Quote
Product Details
Gearing Arrangement:
Planetary
Input Speed:
4000rpm
Output Speed:
Based
Output Torque:
30
Applicable Industries:
Hotels, Building Material Shops, Farms, Printing Shops, Food & Beverage Shops
Customized Support:
OEM, ODM, OBM
Material:
/
Mount Position:
Flange Mounted
Reduction Ratio:
Customized
Type:
Planetary Gearbox, PLF120
Warranty:
1 Years
Weight (KG):
4
Voltage:
220V
Application:
Electric Motor Speed Gearbox
Ratio:
1:3~100:1
PRM:
4800
Highlight:

PLF120 planetary reduction gearbox

,

120mm planetary reduction gearbox

,

4000rpm planetary gearbox reducer

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$200 / set
Packaging Details
Eco-friendly paper packaging
Delivery Time
15 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier
Product Description

Planetary Reducer Gearbox 120mm Frame PLF120 servo stepper motor


Packing List
PLF120 1:3~10:1 ------------ 1 pcs
Instruction book---1 pcs
Products Description

Gearbox PLF120 Information


PLF 120 series of precision planetary reducer, work well, cost-effective high. All models of the 110 and 130 series stepper motors and servo motors are available on the market, and are designed to be customized according to the different size of the machine. The main function of the reducer is to slow down the motor speed, magnify the torque, increase the role of inertia, in a variety of motion control applications and automation equipment is very common.

PLF120 Series Gearbox Specifications


PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 0
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 2

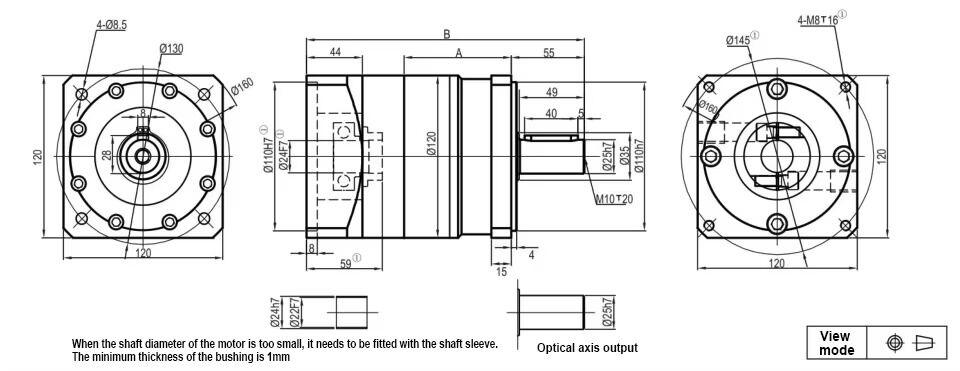

PLF120 Series Reducer Installtion Size


PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 4
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 6
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 8

PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 10
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 12
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 14
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 16
Company Profile
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 18
R&D Design
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 20
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 22
Certifications
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 24
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 26
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 28
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 30
FAQ
PLF120 120mm Frame Servo Stepper Motor Planetary Reduction Gearbox 32
