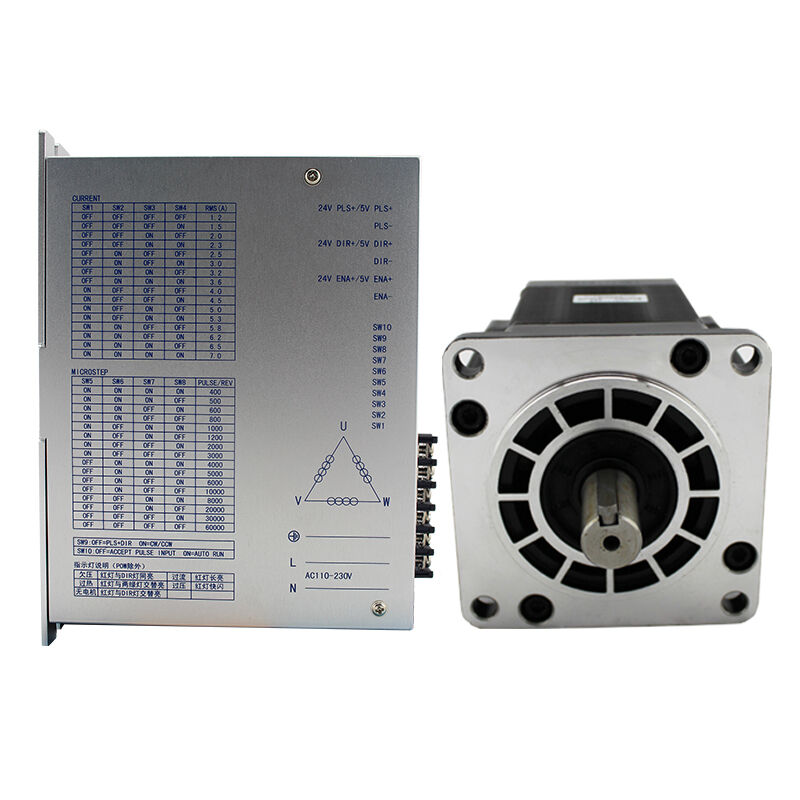

311mm Stepper Driver Kit 3 Phase 130st 50Nm Stepper Motor For CNC Machine

Driver description:

LC3722A is a three-phase hybrid stepper motor driver based on DSP control, which is a new generation of digital stepper motor drives that combine advanced DSP control chips with three-phase inverter drive modules. The drive voltage is AC110V ~ 220, the adaptation current is below 7.0A, the outer diameter is 57-130MM various kinds of three-phase hybrid stepping motor.  Positioning accuracy up to 60000 steps / turn.

Features:

1. High performance, low price
  2. With 16 scales constant torque moment subdivision, the maximum resolution of 60000 steps / turn
  3. The highest response frequency up to 200KPPS
  4. When the stepping pulse stops more than 1.5S, the coil current is automatically reduced to half of the set current
  5. Optical isolation signal input / output
  6. Drive current 1.3A / phase to 7.0A / phase 16 files adjustable
  7. Single power input, voltage range: AC110V-220V
  8 phase memory function (Note: the drive stops for more than 3 seconds after the drive automatically memorizes the motor phase at the time,

  re-  power or When the WF signal goes from low to high, the drive automatically recovers the motor phase)

Subdivision settings:

The drive subdivisions are set by the D5-D8 terminals for a total of 16 files and D9 and D10 for the function settings. For example, the number of subdivisions (pulse / turn)

3phase Nema52/130mm hybrid stepper motor specification:

Three-phase 130 series hybrid stepping motor, the selection of high-quality raw materials and high-standard permanent magnet silicon steel, with high positioning accuracy, output torque, fast response, low noise operation, more stable operation and other characteristics, quality and reliable. Motor length between 154mm ~ 311mm, torque range: 15N.m ~ 50N.m, motor shaft diameter 24mm.

Motor Specification:

Application Area:

Suitable for all kinds of motion control automation equipment and instruments, such as: electronic processing and testing, semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machine, marking machine, cutting machine, garment plotter, CNC machine tools, automation Assembly equipment and so on. Is the user expect low noise, high-speed performance and cost-effective competition in the field of choice.
