Place of Origin:
Guangdong, China
Brand Name:
Lichuan
Model Number:
LC31332+LC3522A
Video
Video
Video
Video
|
NO.
|
Product name
|
Model / Description
|
Quantity
|
|

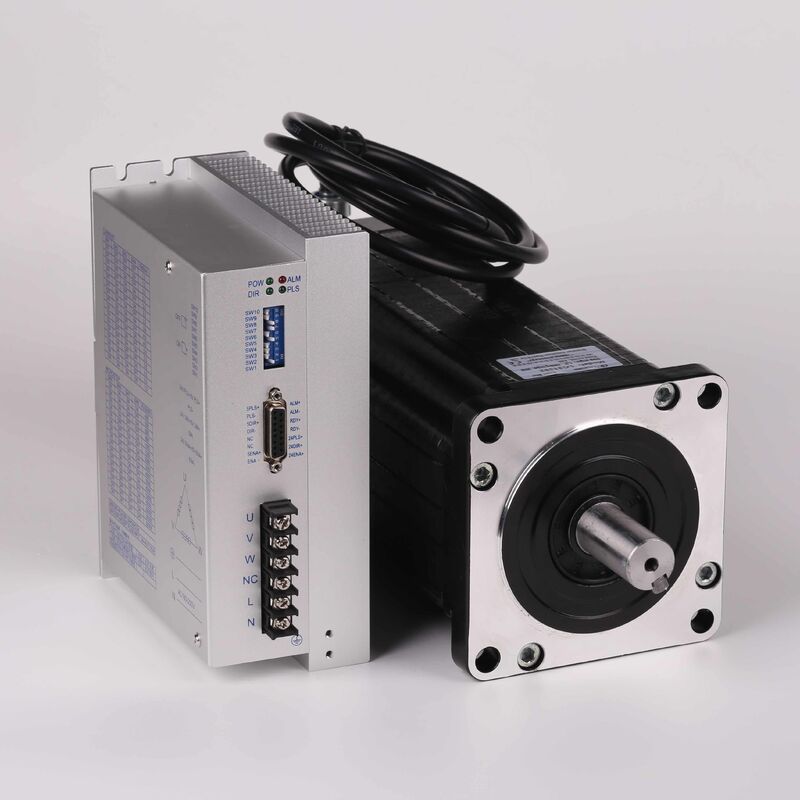

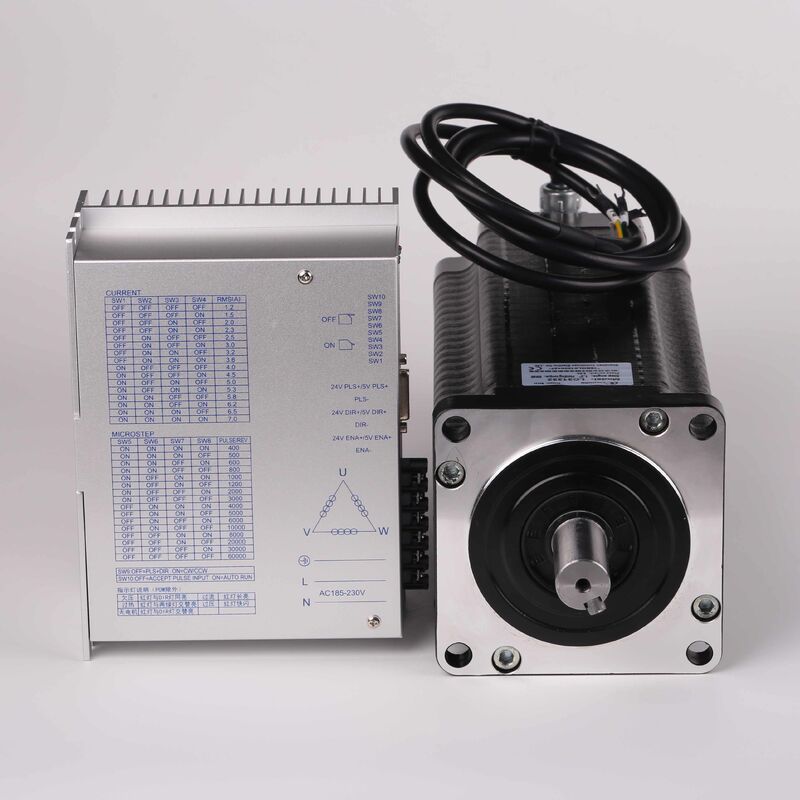

1
|
Lichuan Nema42 hybird stepper motor
|
LC31332
|
1
|
|
2
|

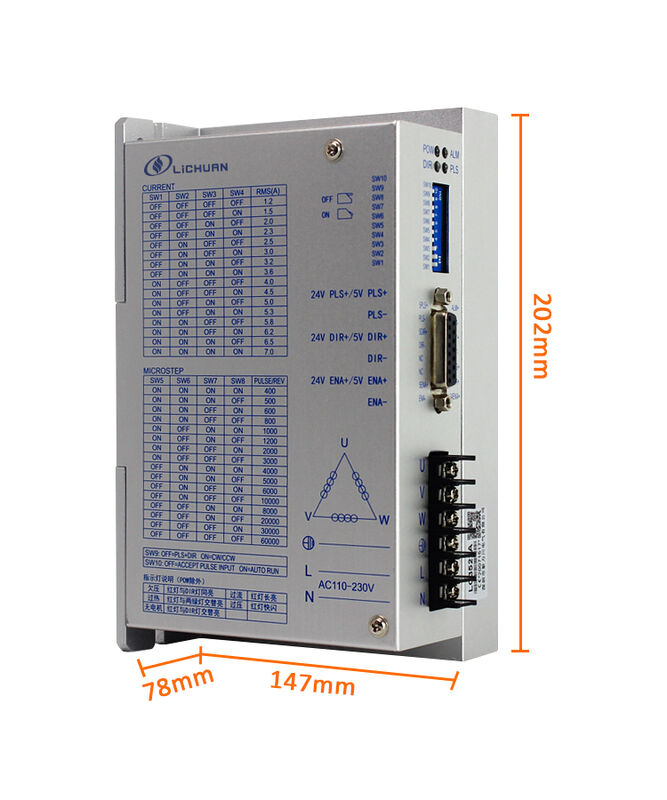

Lichuan Nema42 hybird stepper motor driver
|
LC3522A
|
1
|
|

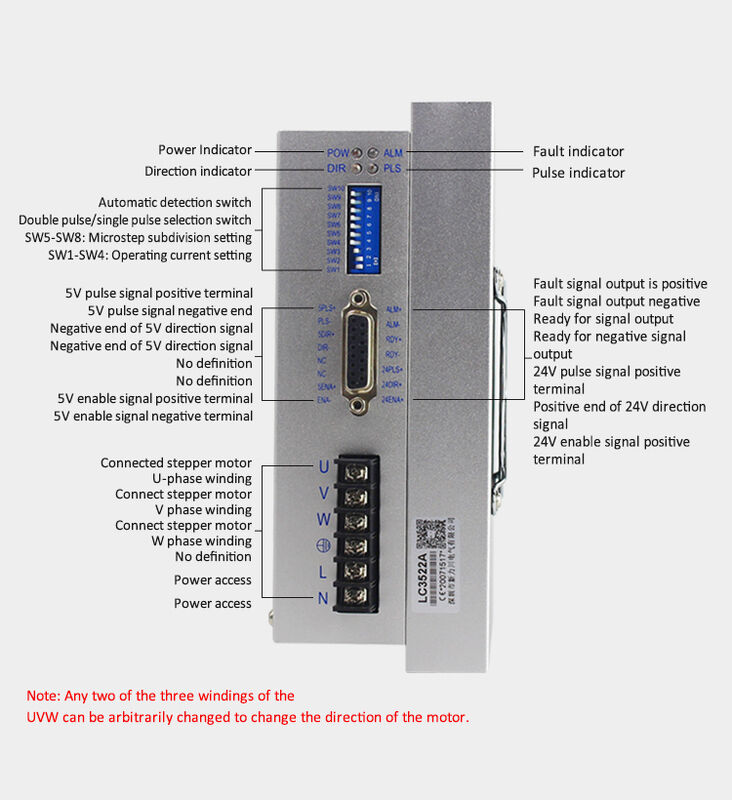

Technical parameter
|
|
Voltage input range: AC180V～230V
|
|
Maximum peak current: 7.0A
|
|
Subdivision range: 400～60,000ppr
|
|
Pulse form: pulse + direction, double pulse
|
|
Impulse response frequency: 0～200KHz
|
|
The pulse stops for 1.5S, and the coil current is automatically reduced to half of the set value
|
|
It has the functions of overvoltage, overcurrent and motor lack of equal protection
|
|
Phase memory function: When the pulse input stops for more than 3 seconds, the drive automatically
remembers the current motor phase, and automatically restores the phase when the power is turned on again or the ENA signal changes from low to high. |
|
Series
|
Step Angle(°)
|
Holding Torque(N.m)
|
Rated Current(A)
|
Motor Length(mm)
|
Motor Weight (Kg)
|
|
LC31112
|
1.2
|
8
|
4.3
|
128
|
5.0
|
|
LC31115
|
1.2
|
12
|
6.0
|
152
|
6.6
|
|
LC31118
|
1.2
|
16
|
6.4
|
186
|
9.0
|
|
LC31122
|
1.2
|
20
|
6.9
|
219
|
11
|
|
LC31315
|
1.2
|
15
|
6.9
|
154
|
11
|
|
LC31318
|
1.2
|
20
|
6.9
|
185
|
14.1
|
