Home > Products > Closed Loop Stepper Motor Driver >

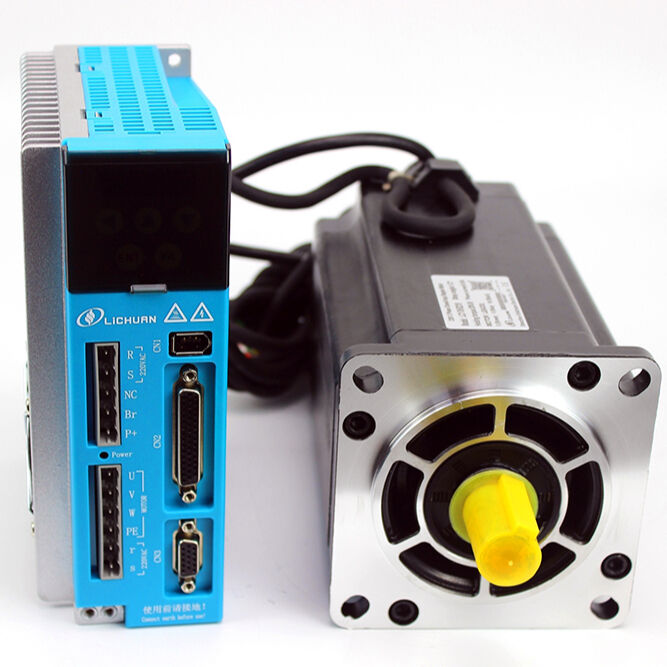

Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter

Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter

nema 34 closed loop stepper motor driver

lcda2260e closed loop stepper motor driver

lcda2260e nema 34 closed loop stepper motor

Place of Origin:

Guangdong, China

Brand Name:

LICHUAN

Model Number:

LC86H3114+LCDA2260E

Contact Us
Request A Quote
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter
Product Details
Phase:
3, 3-Phase
Type:
Hybrid
Current / Phase:
3A
Warranty:
3 Months ~ 1 Year
Voltage:
AC220V
Application:
High Speed CNC Machine
Torque:
6.8N.M
Name:
Nema34 Closed Loop Stepper Motor Kit
Motor Current:
3A
Motor+drive Item:
LC86H3114+LCDA2260E
Shaft Diameter:
14mm
Shaft Length:
40mm
Highlight:

nema 34 closed loop stepper motor driver

,

lcda2260e closed loop stepper motor driver

,

lcda2260e nema 34 closed loop stepper motor

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$151.20-157.50 / set
RELATED PRODUCTS
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description

Packing List
NO.
Product Name
Model / Description
Quantity
1
Lichuan 3 phase closed loop stepper motor
LC86H3114
1
2
Lichuan 3 phase closed loop digital stepper drive
LCDA2260E
1
3
Encoder Cable
Standard (3m)
1
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 0
Products Description

3 phase Closed-loop Stepper Drive LCDA2260E

LCDA2260E adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. When continuous overload of motor occurs, the Driver will timely output alarm signal, it is as reliable as AC servo system. Applies to motor installation dimensions which are fully compatible with Nema34/42 series stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 2
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 4
Lichuan 3-phase digital stepper drive
Product Model
LCDA2260E
Product Size
202 x 139 x 75mm
Product Weight
1.33KG
Alarm Output
stand by
Power Range
AC:220V
Subdivision Range
Adjustable on the drive
Current Range
Peak current 6A
Pulse Forml:Pulse + direction
Drice Motor:Three-phase 86 closed-loop stepper motor
Max Pluse Response Frequency:200KHZ(Pulse Width Greater than 2.5μs)
Signal voltage:Default + V5,connected to +V12/V24 requires series resistor
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 6
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 8
Three-phase 86mm closed-loop stepper motor
Model
LC86H3114
Weight(kg)
4.2KG
Length(mm)
140mm
Holding Torque(N.m)
6.8N.m
Phase Current(A)
3A
Rotational Inertia(g.cm²)
3600
Phase Resistance(Ω)
0.98
Step Angle(°)
1.2
Shaft Diameter(mm)
φ14
Shaft Extension(mm)
Keyway 5 x 5 x 15
Shaft Length(mm)
40mm
Phase Inductance(mH)
7.0
Lead wire(No.)
3
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 10
Application Area
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 12
Recommend Products
Certifications
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 14
Our Advantages
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 16
FAQ
Lichua Nema 34 Closed Loop Stepper Motor Driver 6.8NM 1.2 Angle Step LCDA2260E+LC86H3114 Current 3A with 14mm Shaft Diameter 18
