Place of Origin:
Guangdong, China
Brand Name:
Lichuan
Certification:
ce
Model Number:
LC110H3219+LCDA2260H
Video
Video
| NO. | Item No. | Description | QTY |
| 1 | LCDA2260H | 3 phase closed loop digital stepper motor driver | 1PC |
| 2 | LC110H3219 | 3 phase 20NM NEMA42 Closed-loop stepper motor | 1PC |
| 3 | Encoder cable | 3M Encoder cable (Longer cable available) | 1PC |
>>>3 phase 20NM NEMA42 Closed-loop stepper motor/ LC110H3219 information
Three-phase 110 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 151mm ~ 219mm between the torque range: 12N.m ~ 20N.m, motor shaft diameter 19mm
Lichuan 3 phase 20NM NEMA43 Closed-loop stepper hybrid motor specification:
3 phase 20NM NEMA43 Closed-loop stepper motor size and wiring:
>>>Lichuan 3 phase NEMA43 digital Closed-loop stepper motor drive /LCDA2260H information
LCDA2260H using the latest dedicated motor control DSP chip and vector closed-loop control technology, completely overcome the open-loop stepper motor stepped the problem, while significantly enhance the motor high-speed performance, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy, Machine energy consumption. This drive is suitable for motor mounting size compatible with 86/110 series stepper motor, to facilitate the traditional step-by-step drive program upgrade, significantly reduce costs.
3 phase NEMA43 digital Closed-loop stepper motor driver /LCDA2260H specification:
Features:
1. Voltage input range: 150 ~ 230VAC
2. Quiescent current and dynamic current can be set at 0 ~ 6A
3. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring the motor does not lose step
4. Built-in sub-sub-low-speed low-level operation can also be very smooth
5. Parameter automatic setting function
6. Current dynamic control greatly reduces the motor heat, ultra-low vibration noise
7. External digital debugging panel for easy parameter setting and monitoring
8. Sub-adjustable range of 200 ~ 51200ppr, impulse response frequency up to 200KHZ
9. Serial communication function, current, subdivision can be adjusted, signal edge, alarm output logic and other functions adjustable
10. Closed-loop vector control to ensure that the motor high-speed high-torque output,
while ensuring that the motor is not lost step with over-voltage, over-current, tracking error tolerance
Main parameter :
1. Electrical indicators
|
Parameter/Vaule |
LCDA2260H |
|||
|
Minimum |
Typical |
Maximum |
Unit |
|
|
Max peak current |
- |
- |
6 |
A |
|
Input voltage |
150 |
220 |
230 |
VAC |
|
Logic input current |
7 |
10 |
16 |
mA |
|
Pulse frequency |
- |
- |
200 |
KHZ |

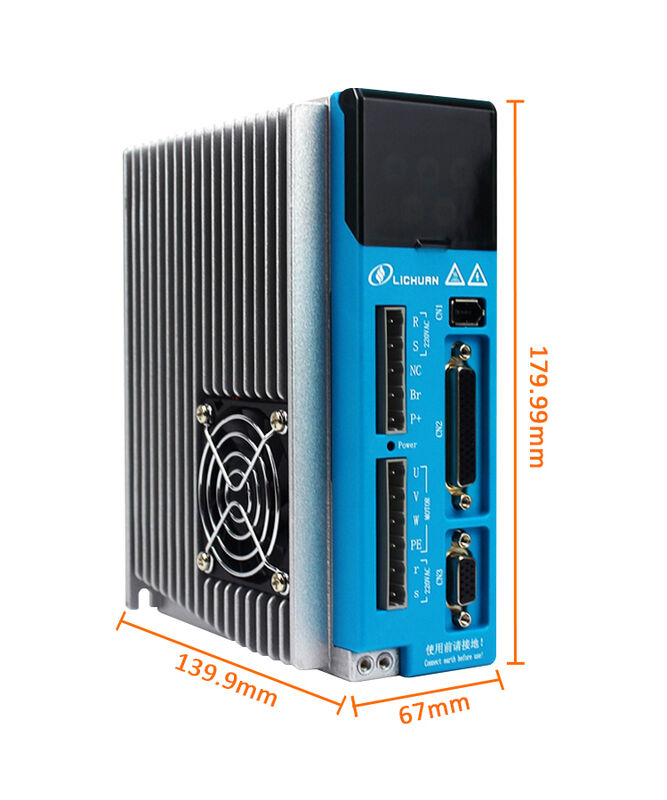

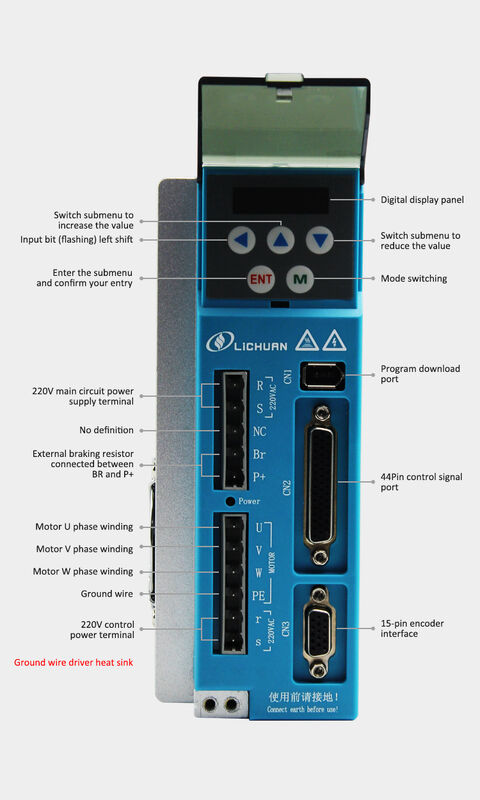

3 phase NEMA43 digital Closed-loop stepper motor driver /LCDA2260H size and wiring:
Lichuan Closed loop speed control system for 3phase Nema42 220V 20NM digital step motor drive

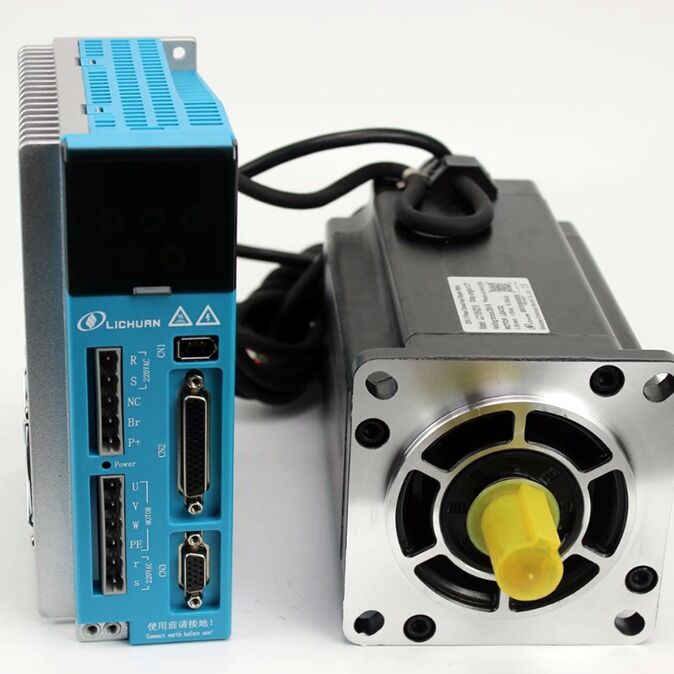

LCDA2260H+LC110H3219 pictures:
Shenzhen Xinlichuan Electric Co., LTD, which was founded in 2009, is a high-tech enterprise integrating product R&D, manufacturing and sales of industrial automation control system. Our main products include servo motor and drivers, stepper motor and drivers, closed loop driver, precision planetary reducer, etc. All of our products have passed CE certification, with good quality can competitive price. We are also the offical distributor of weinview HMI, Hitech HMI, Fatek PLC. Welcome to be our partners.
Our factory:
Our Office:
Our Team:
Our Certificate:
Our Exhibition
1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver and planetary reducer for more then 10 years in China. Lichuan is our registered brand.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/EMS), by sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
7. How about warranty?
One year warranty, technical support available, we always try our best to help customers to solve problems in time.
8. What are payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), Western Union, ALIBABA assurance order accept.
Thanks for your visiting for Nema 42 hybird closed loop stepper motor driver kit for 3phase AC220V 20NM with digital display
