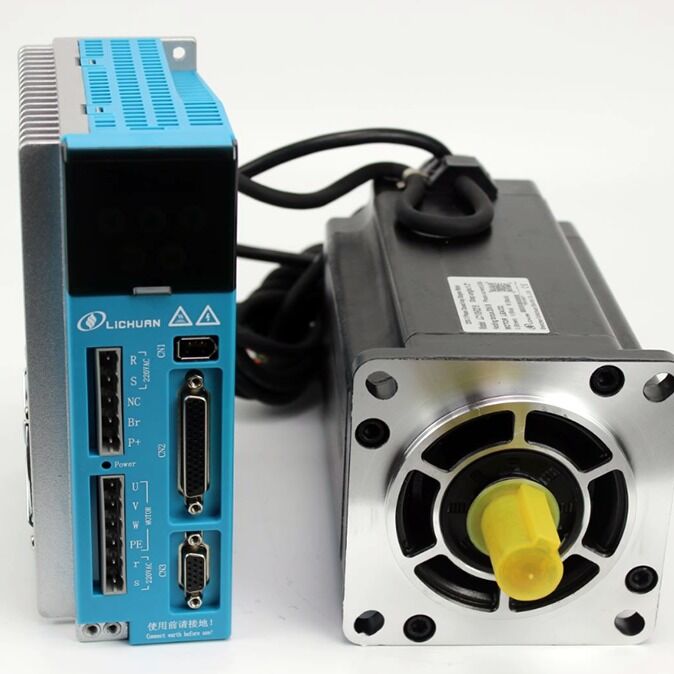

Lichuan LCDA2260E 10Nm 3 Phase Stepper Motor Driver Kit For Cnc Machine

Product Name: 110 Nema42 closed loope hybrid motor
Three-phase 110 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 151mm ~ 219mm between the torque range: 12N.m ~ 20N.m, motor shaft diameter 19mm

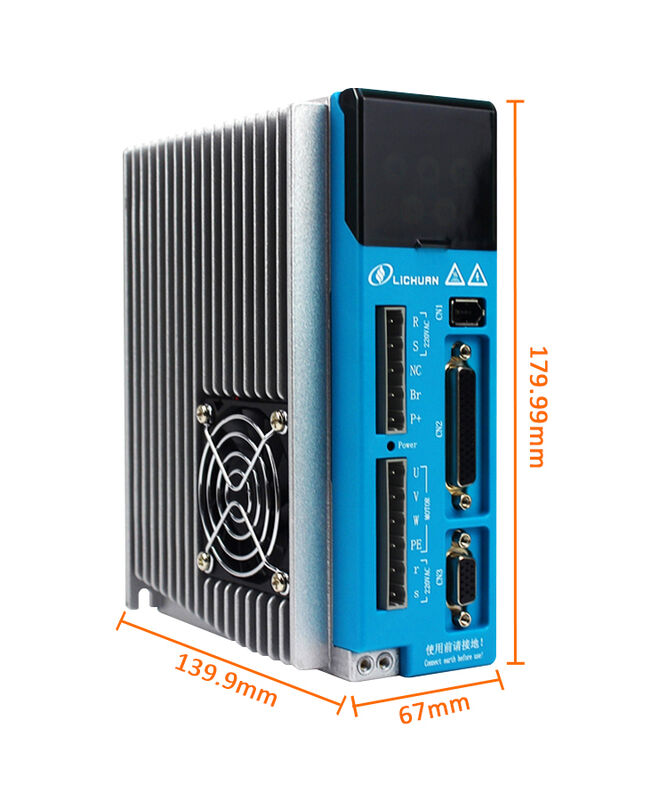

Product Name: LCDA2260H 3 Phase Nema42 stepper digital servo driver
LCDA2260H using the latest dedicated motor control DSP chip and vector closed-loop control technology, completely overcome the open-loop stepper motor stepped the problem, while significantly enhance the motor high-speed performance, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy, Machine energy consumption. This drive is suitable for motor mounting size compatible with 86/110 series stepper motor, to facilitate the traditional step-by-step drive program upgrade, significantly reduce costs.

LCDA2260H driver Features:
1. Voltage input range: 150 ~ 230VAC
2. Quiescent current and dynamic current can be set at 0 ~ 6A
3. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring the motor does not lose step
4. Built-in sub-sub-low-speed low-level operation can also be very smooth
5. Parameter automatic setting function
6. Current dynamic control greatly reduces the motor heat, ultra-low vibration noise
7. External digital debugging panel for easy parameter setting and monitoring
8. Sub-adjustable range of 200 ~ 51200ppr, impulse response frequency up to 200KHZ
9. Serial communication function, current, subdivision can be adjusted, signal edge, alarm output logic and other functions adjustable
10. Closed-loop vector control to ensure that the motor high-speed high-torque output,while ensuring that the motor is not lost step with over-voltage, over-current, tracking error tolerance

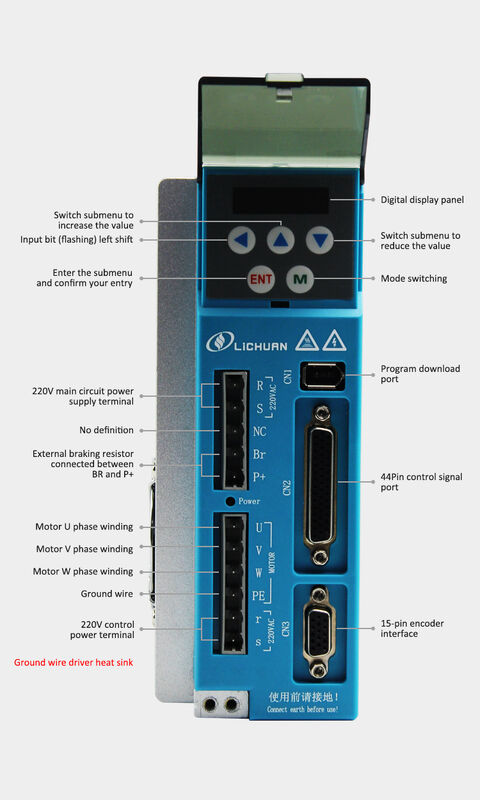

Electrical indicators

 1.Power terminal definition

2.Driver encoder CN3 terminal definition(LCDA2260H encoder signal terminal with 15Pin DP header, pin defined as follows :)

3.Driver control terminal definition (44 pin DB plug)

LCDA2260H driver

Suitable for all kinds of small and medium-sized automation equipment and equipment, such as: engraving machine, stripping machine, marking machine, cutting machine, laser machine, medical equipment, CNC machine tools, automatic assembly equipment, electronic processing equipment. In the user expectations of low noise, high speed equipment in the application of special results

LC110H3151 stepper motor

Suitable for all kinds of motion control automation equipment and instruments, such as: electronic processing and testing, semiconductor packaging, laser cutting and welding, laser phototypesetting, packaging machinery, engraving machine, marking machine, cutting machine, garment plotter, CNC machine tools, automation Assembly equipment and so on. Is the user expect low noise, high-speed performance and cost-effective competition in the field of choice.

1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver and planetary reducer for more then 10 years in China. Lichuan is our registered brand.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/EMS), by sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
7. How about warranty?
One year warranty, technical support available, we always try our best to help customers to solve problems in time.
8. What are payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), Western Union, ALIBABA assurance order accept
