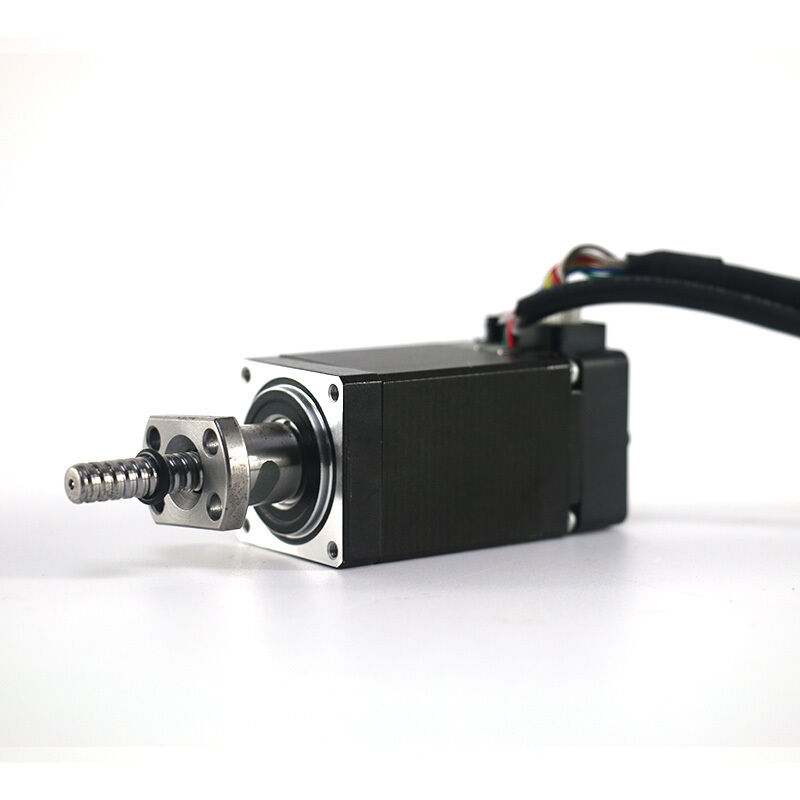

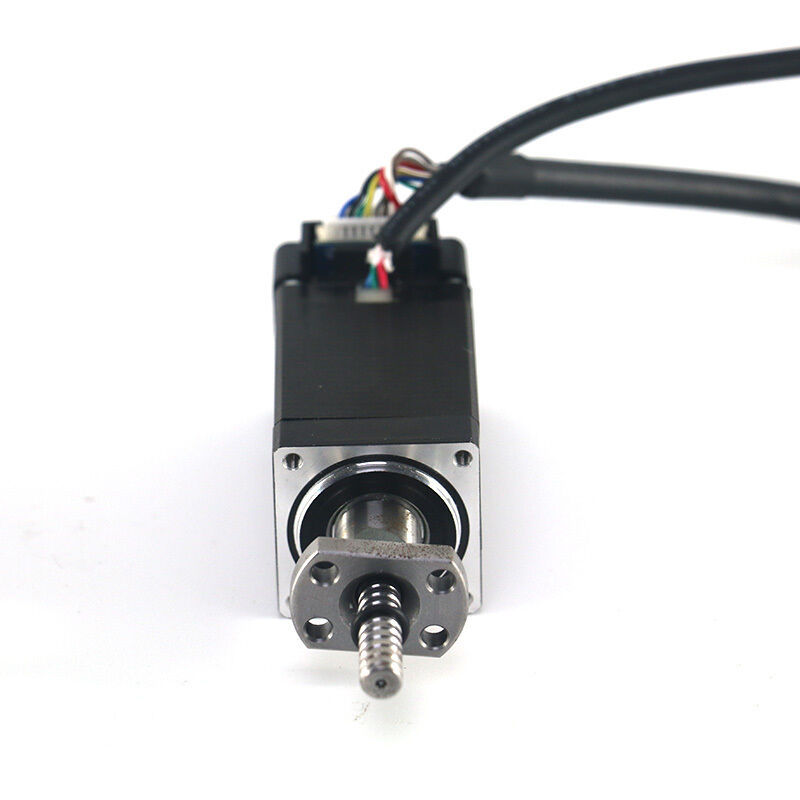

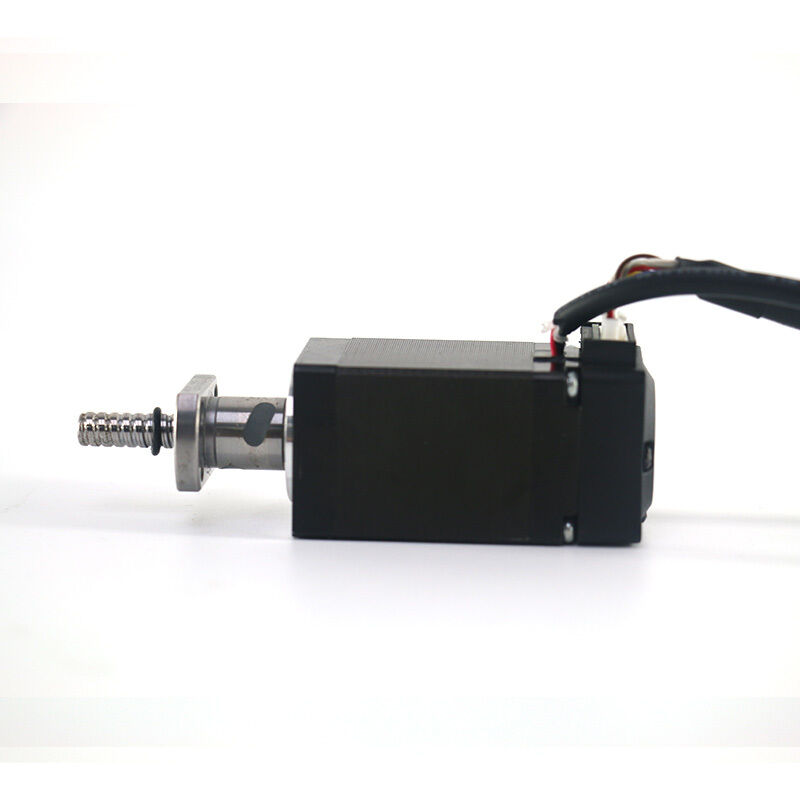

Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm

Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm

57mm ball screw stepper

Nema23 ball screw stepper

150mm nema23 stepper motor

Place of Origin:

Guangdong, China

Brand Name:

Lichuan

Model Number:

Nema23 1204

Contact Us
Request A Quote
Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm
Product Details
Phase:
2
Type:
Hybrid
Current / Phase:
2.5A
Warranty:
3 Months ~ 1 Year
Product Name:
Ball Screw Stepper Motor
Model:
LC57HS41
Motor Frame:
Nema23
Screw Type:
1204
Shaft Extension:
100mm-150mm
Motor Length:
41mm/56mm/76mm/82mm/100mm/112mm
Holding Torque:
0.6Nm/1Nm/2Nm/2.2Nm/2.6Nm/3Nm
Rated Current:
2.5A
Phase Resistance:
1.2 Ohm
Phase Inductance:
1.8 MH
Highlight:

57mm ball screw stepper

,

Nema23 ball screw stepper

,

150mm nema23 stepper motor

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$53.95-72.31 / piece
RELATED PRODUCTS
Good price Nema34 Hybrid SFU1204 Ball Screw Stepper Motor 4.5Nm-12Nm 100mm-150mm online

Nema34 Hybrid SFU1204 Ball Screw Stepper Motor 4.5Nm-12Nm 100mm-150mm

Get Best Price
Good price Nema 34 Stepper Motor With Lead Screw 1610 Open Loop Lathe Lead Ballscrews Motors Torque 4.5Nm-12Nm 100mm-150mm online

Nema 34 Stepper Motor With Lead Screw 1610 Open Loop Lathe Lead Ballscrews Motors Torque 4.5Nm-12Nm 100mm-150mm

Get Best Price
Good price Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm online

Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm

Get Best Price
Good price Nema17 1002 ball screw stepper motor Open Loop 42mm Lead Screw Motors Shaft Length 100mm-150mm online

Nema17 1002 ball screw stepper motor Open Loop 42mm Lead Screw Motors Shaft Length 100mm-150mm

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description
Packing List
SPECIFICATE
Product Name
Product Name
Ball Screw Stepper Motor
Model
LC57HS41
Motor Frame
Nema23
Screw Type
1204
Shaft Extension
100mm-150mm
Motor Length
41mm/56mm/76mm/82mm/100mm/112mm
Holding Torque
0.6Nm/1Nm/2Nm/2.2Nm/2.6Nm/3Nm
Rated Current
2.5A
Phase Resistance
1.2 Ohm
Phase Inductance
1.8 MH
Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm 0
Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm 2
Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm 4
Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm 6
Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm 8
Nema23 57mm Ball Screw Stepper With SFU1204 Lead Screw Motor Assembly 0.6Nm-3Nm 100mm-150mm 10
