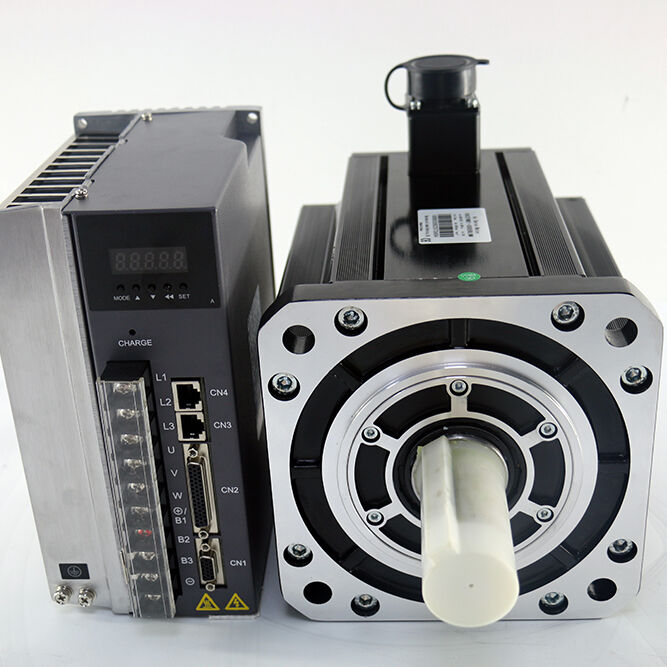

Large Servo Motor 10KW 11KW 12KW 380V 1500RPM 70N.M 23bit 3 Phase 180M70015 +M1534P

10KW large servo motor

11KW large servo motor

12KW cnc servos

Place of Origin:

Guangdong, China

Brand Name:

LICHUAN

Model Number:

180M70015 +M1534P

Request A Quote

Product Details

AC Voltage:

380V

Phase:

Three-Phase

Efficiency:

IE 2

Frequency:

50/60Hz

Protect Feature:

Waterproof

Type:

Servo Motor, 180M70015 +M1534P

Warranty:

3 Months ~ 1 Year

Product Name:

3Phase AC Servo Motor Kit

Application:

General Machinery

Rated Power(KW):

Rated Voltage(V):

380

Rated Current (A):

Rated Speed(rpm):

1500

Holding Torque(N.m):

Bit:

23 Bit Incremental

Weight(Kg):

Highlight:

10KW large servo motor

11KW large servo motor

12KW cnc servos

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$1,571.94 / set

Large Servo Motor 10KW 11KW 12KW 380V 1500RPM 70N.M 23bit 3 Phase 180M70015 +M1534P

Get Best Price

PU Aluminum Alloy Elastic Single And Double Diaphragm Laminated Coupling

Get Best Price

Aluminum Alloy Coupling Elastic High Torque Motor Encoder Screw Stepper Motor

Get Best Price

13613049632

rony@xlichuan.com

Contact Now

Product Description

Packing List

NO.	Product Name	Model / Description	Quantity
1	Lichuan 11KW 180M70015 Servo Motor	180M70015	1
2	Lichuan 11KW AC Servo Driver	LCDA-11026C23-M1534P	1
3	Motor Cable	Standard (3m)	1
4	Encoder Cable	Standard (3m)	1
5	Servo Driver Instruction Book	Standard	1

Products Description

Lichuan 180 series AC servo motor includes 2.3KW-11KWpower specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications.

Technical requirements
Motor Name	180M70015
Rated power	11KW
Rated torque	70N.m
Rated voltage	380V
Rated speed	1500r/min
Insulation grade	Grade F
Protection grade	IP65
Ambient temperature	-20°C--+50°C
