Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65

Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65

Place of Origin:

China

Brand Name:

Lichuan

Certification:

ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321

Model Number:

MZ630+11KW 70N.m

Document:

380V High Power AC Servo Mo...rs.pdf

Contact Us
Request A Quote
Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65
Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65 Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65 Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65 Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65 Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65 Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65
Product Details
Brand Name:
LICHUAN
Product Name:
AC380V HIGH POWER AC Servo Motor Drivers Kit
Rated Power(W):
11KW
Holding Torque (N.m):
70N.m
Rated Speed(rpm):
1500/2000RPM
Rated Voltage(V):
AC380V
Rated Current (A):
16.6/19.1/24.6A
Encoder Line Number (PPR):
17/23-bit Incremental, 17/23-bit Absolute Encoder
Motor Insulation Grade:
Grade F
Protection Level:
IP65
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Eco-friendly paper packaging
Delivery Time
15 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier
RELATED PRODUCTS
Good price Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC220/380V 7.5/10.3/12.5/17.5A 1500/2000RPM IP65 online video

Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC220/380V 7.5/10.3/12.5/17.5A 1500/2000RPM IP65

Get Best Price
Good price Lichuan AC Servo Motor Drivers Kit HIGH POWER 35N.m 7.5KW 7500W AC380V 7.5/10.3/12.5/17.5A 1500/2000RPM IP65 online video

Lichuan AC Servo Motor Drivers Kit HIGH POWER 35N.m 7.5KW 7500W AC380V 7.5/10.3/12.5/17.5A 1500/2000RPM IP65

Get Best Price
Good price Lichuan AC Servo Motor Drivers Kit HIGH POWER 48N.m 7.5KW 7500W AC380V 7.5/10.3/12.5/17.5A 1500/2000RPM IP65 online video

Lichuan AC Servo Motor Drivers Kit HIGH POWER 48N.m 7.5KW 7500W AC380V 7.5/10.3/12.5/17.5A 1500/2000RPM IP65

Get Best Price
Good price Lichuan AC Servo Motor Drivers Kit HIGH POWER 48N.m 7.5KW 7500W AC220V 7.5/10.3/12.5/17.5A 1500/2000RPM IP65 online video

Lichuan AC Servo Motor Drivers Kit HIGH POWER 48N.m 7.5KW 7500W AC220V 7.5/10.3/12.5/17.5A 1500/2000RPM IP65

Get Best Price
Contact Us
13613049632
rony@xlichuan.com
Contact Now
Product Description

Lichuan AC Servo Motor Drivers Kit HIGH POWER 70N.m 11KW 11000W AC380V 19.1A 1500/2000RPM IP65


Lichuan AC Servo Motor Drivers Kit HIGH POWER 54/70/96N.m 11KW 15KW AC380V 16.6/19.1/24.6A 1500/2000RPM IP65
Welcome to Lichuan Industrial Automation — your trusted partner for high-performance motion control solutions. Our Lichuan AC Servo Motor Drivers Kit is engineered for high-power industrial applications, combining a high-efficiency servo driver and a rugged AC servo motor to deliver exceptional torque, precision, and reliability. Designed to meet the demands of modern manufacturing, this kit supports 11KW-15KW power output, 54-96N.m rated torque, and operates at AC380V, making it ideal for heavy-load, high-precision automation scenarios.

Product Overview

TheLichuan AC Servo Motor Drivers Kit is a fully integrated motion control solution, tailored for industrial environments that require stable high-power output and precise positioning. This all-in-one kit includes a high-performance servo driver and a matching AC servo motor, pre-calibrated for seamless compatibility and easy installation. With rated currents of 16.6A, 19.1A, and 24.6A, rated speeds of 1500RPM and 2000RPM, and an IP65 protection rating, this kit excels in harsh industrial conditions, ensuring long-term stable operation even in dusty, humid environments.
Whether you’re upgrading an existing production line, building a new automated system, or replacing outdated servo equipment, the Lichuan AC Servo Motor Drivers Kit delivers the power, precision, and durability you need to maximize operational efficiency and reduce downtime.

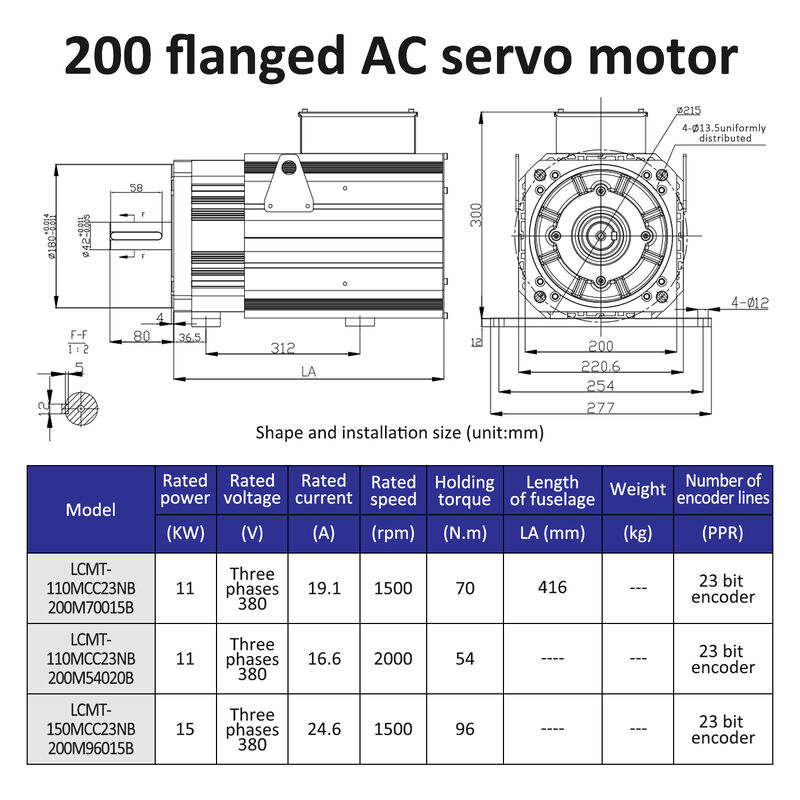

Key Specifications & Parameters

Below is the detailed parameter table of the Lichuan AC Servo Motor Drivers Kit, covering all core technical indicators to help you make accurate selection and integration:
Item
Specification
Range/Details
Product Name
Lichuan AC Servo Motor Drivers Kit
High Power Series
Rated Power
High Power
11KW, 15KW
Rated Torque
High Torque Output
54N.m, 70N.m, 96N.m
Input Voltage
Three-Phase AC
AC380V
Rated Current
Operating Current
16.6A, 19.1A, 24.6A
Rated Speed
Rotational Speed
1500RPM, 2000RPM
Protection Rating
Environmental Protection
IP65 (except shaft extension end)
Control Modes
Motion Control
Position/Speed/Torque/Hybrid Control
Encoder Type
Position Feedback
23-bit Absolute Encoder
Communication Protocols
System Integration
RS232/RS485/Canopen/Modbus/EtherCAT
Insulation Class
Safety Standard
Class F (155℃)

Product Features & Core Advantages

1. High Power & High Torque Performance

The Lichuan AC Servo Motor Drivers Kit is optimized for high-power applications, supporting 11KW-15KW rated power and 54-96N.m rated torque, with peak torque up to 145N.m. This powerful output ensures stable operation even under heavy loads, making it suitable for large-scale industrial equipment such as CNC machine tools, industrial robots, and heavy-duty conveyor systems.

2. Precise Motion Control

Equipped with a 23-bit absolute encoder, the Lichuan AC Servo Motor Drivers Kit provides ultra-high resolution position feedback, achieving sub-micron level positioning accuracy. The 32-bit high-speed digital controller (168MHz) ensures fast response (millisecond-level) and minimal control error, meeting the strict precision requirements of high-end manufacturing processes.

3. Rugged IP65 Protection

With an IP65 protection rating (except shaft extension end), the Lichuan AC Servo Motor Drivers Kit is dustproof and waterproof, capable of withstanding harsh industrial environments such as dusty workshops, humid production lines, and outdoor installations. This design significantly extends the product’s service life and reduces maintenance costs.

4. Flexible Compatibility & Easy Integration

Supporting multiple industrial communication protocols (RS232/RS485/Canopen/Modbus/EtherCAT), the Lichuan AC Servo Motor Drivers Kit can be seamlessly integrated with PLCs, HMIs, and other industrial control systems. The kit also supports 6 control modes (position/speed/torque/hybrid), adapting to diverse application scenarios from high-precision positioning to constant torque control.

5. Energy Efficiency & Long Service Life

The servo motor adopts high-quality permanent magnetic silicon steel sheets, minimizing energy loss and improving operating efficiency. The optimized heat dissipation structure ensures stable operation even in high-temperature environments, while the industrial-grade electronic components and rigorous production processes guarantee a long service life and reliable performance.

Product Applications

The Lichuan AC Servo Motor Drivers Kit is widely used in various industrial automation fields that require high power, high precision, and high reliability. Its versatile design makes it suitable for:
  • CNC Machine Tools: Milling machines, turning machines, and machining centers for high-precision metal processing.
  • Industrial Robots: Robotic arms, handling robots, and automated assembly lines that require heavy-load operation.
  • Packaging Machinery: High-speed carton sealing, labeling, and filling equipment.
  • Textile Machinery: High-speed looms, knitting machines, and fabric processing equipment.
  • Laser & Engraving Machines: High-precision cutting, engraving, and marking systems.
  • Heavy-Duty Conveyor Systems: Automated sorting lines, mining equipment, and large-scale material handling systems.


Working Principle

TheLichuan AC Servo Motor Drivers Kit operates as a closed-loop motion control system, consisting of three core components: the servo driver, the AC servo motor, and the 23-bit absolute encoder. The driver receives control commands (position, speed, or torque) from an upper controller (PLC/HMI) via communication protocols or pulse signals. It then converts the AC380V input power into precise three-phase AC current, driving the motor’s stator to generate a rotating magnetic field and rotate the permanent magnet rotor.
The encoder continuously feeds back the rotor’s position and speed to the driver, which compares the feedback signal with the command signal and adjusts the output current in real time to eliminate errors. This closed-loop control ensures the motor runs at the desired position, speed, or torque, achieving high-precision and stable motion control.

Installation & Operation Guide

Basic Installation Steps

  1. Mount the servo driver and motor in a well-ventilated, dry area, ensuring the installation surface is flat and stable. Maintain a spacing of ≥50mm above and below the driver, and ≥10mm on both sides for heat dissipation.

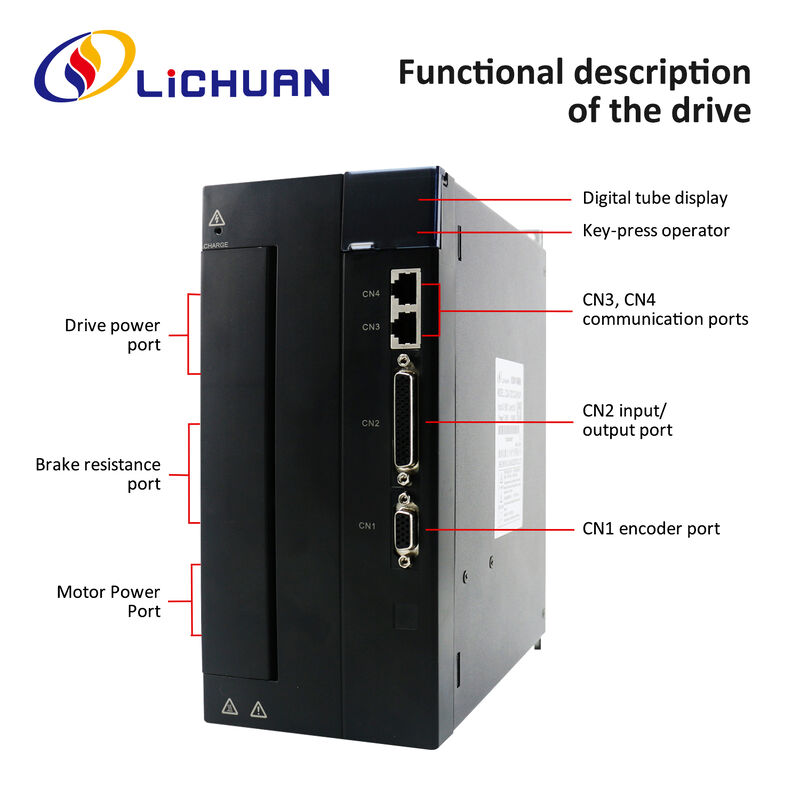

  2. Connect the three-phase AC380V power supply to the driver’s L1/L2/L3 terminals, ensuring correct wiring and reliable grounding (grounding resistance ≤100Ω).
  3. Connect the motor’s power lines (U/V/W) and encoder lines to the corresponding ports on the driver.
  4. Connect the control signal lines (PLC/HMI) to the driver’s I/O or communication ports according to the selected control mode.
  5. Check all wiring for correctness, then power on the system and perform parameter configuration and debugging.


Basic Debugging Process

  1. Power on the Lichuan AC Servo Motor Drivers Kit and confirm that the driver display is normal (no alarm codes).
  2. Set the motor model and basic parameters via the driver panel or debugging software.
  3. Perform automatic gain adjustment to optimize the speed loop and current loop parameters, ensuring stable motor operation.
  4. Test the jog mode to confirm the motor’s rotation direction and operation status.
  5. Connect the upper controller and test the selected control mode (position/speed/torque) to verify the command response accuracy.


Precautions

  • Do not operate the Lichuan AC Servo Motor Drivers Kit in high-temperature, high-humidity, corrosive, or explosive environments.
  • Ensure the input voltage is stable within AC380V±10%; avoid voltage fluctuations that may damage the driver.
  • Separate power lines and signal lines during wiring (spacing ≥30cm) to avoid electromagnetic interference.
  • Do not exceed the motor’s rated torque, speed, or current during operation to prevent overheating or equipment damage.
  • After power failure, wait for 5 minutes (to allow the internal capacitor to discharge) before performing wiring or maintenance operations.
  • Regularly clean the motor and driver to remove dust and debris, ensuring good heat dissipation.

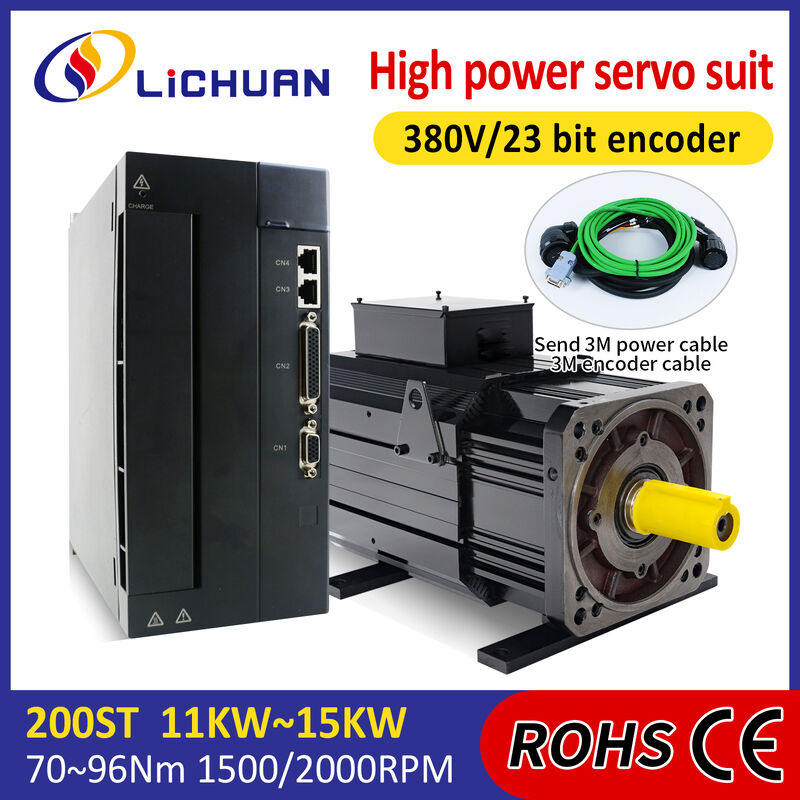

Product Package & Service

Package Contents

  • 1 x Lichuan AC Servo Driver
  • 1 x AC Servo Motor (matching power/torque/speed)
  • 1 x 3m Motor Power Cable
  • 1 x 3m Encoder Cable
  • 1 x Debugging Cable
  • 1 x User Manual (English)
  • 1 x Installation Accessories Kit


Quality Assurance & Customer Service

AllLichuan AC Servo Motor Drivers Kit products are manufactured in accordance with ISO9001 quality management system standards and have passed CE certification, ensuring compliance with international industrial safety standards. We provide a 12-month warranty period from the date of delivery, covering manufacturing defects and performance failures.
Our professional technical team provides 24/7 technical support, including pre-sales consultation, scheme design, parameter selection, on-site debugging, and after-sales maintenance. We also offer customized services to meet your specific application requirements (e.g., special voltage, power, or installation size).

FAQ

Q1: What control modes does the Lichuan AC Servo Motor Drivers Kit support?

A1: It supports 6 control modes: position control, speed control, torque control, torque+speed control, speed+position control, and hybrid control, which can be switched via parameters.

Q2: Can this kit be integrated with my existing PLC system?

A2: Yes. The Lichuan AC Servo Motor Drivers Kit supports multiple communication protocols (RS232/RS485/Canopen/Modbus/EtherCAT), which is compatible with most industrial PLCs. We can provide technical guidance for integration.

Q3: What is the service life of this servo kit?

A3: Under normal operating conditions and regular maintenance, the service life of the Lichuan AC Servo Motor Drivers Kit is more than 5 years. The motor and driver adopt high-quality components and optimized design to ensure long-term stable operation.

Q4: What should I do if the motor fails to start?

A4: Common reasons include incorrect wiring, poor encoder connection, wrong parameter settings, overload, or driver failure. Please check the wiring first, then verify the parameters and load, and contact our technical support if the problem persists.

Q5: Is the IP65 protection rating suitable for outdoor use?

A5: The IP65 rating means the kit is dustproof and waterproof (protected against low-pressure water jets), making it suitable for outdoor use in non-extreme weather conditions. Avoid direct exposure to heavy rain or submersion in water.

About Lichuan

Lichuan is a professional manufacturer of industrial motion control products, focusing on R&D, production, and sales of AC servo motors, servo drivers, and integrated automation solutions. With advanced production lines, a professional R&D team, and strict quality control systems, we are committed to providing high-quality, cost-effective AC Servo Motor Drivers Kit and customized solutions for global industrial customers. Our products are widely used in manufacturing, robotics, textiles, packaging, and other fields, winning the trust and recognition of customers worldwide.
