Place of Origin:
China
Brand Name:
Lichuan
Certification:
ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321
Model Number:
LC10ELC20E-1000W
Document:
Video
Video

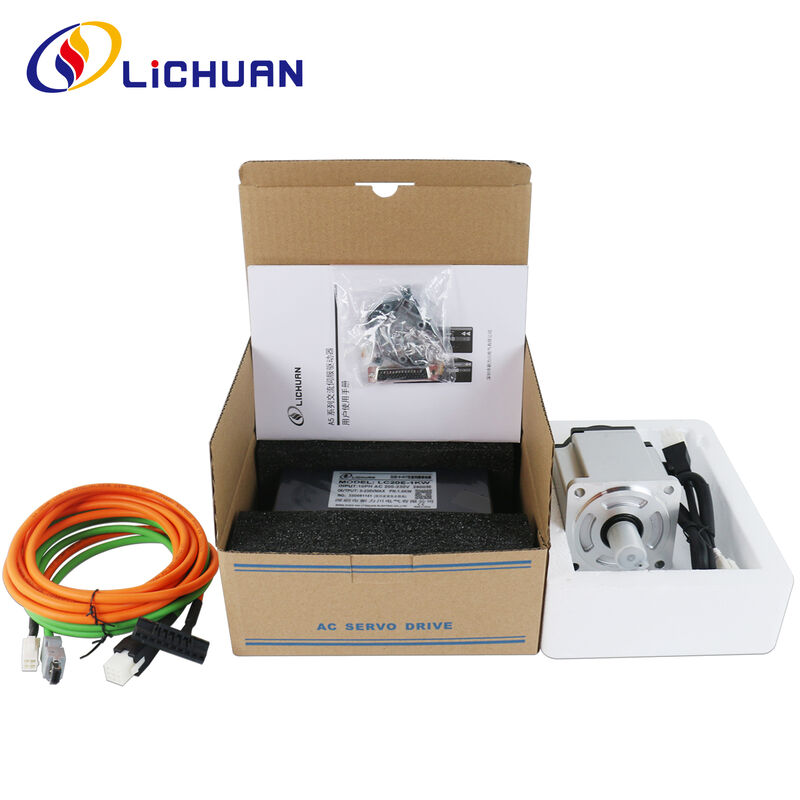

Lichuan AC Servo Motor Drivers Kit LC10E20E Series EtherCAT 3.2N.m 1000W 1KW AC220V 4.5A/5.8A/4.6A 2500/3000RPM IP65
Lichuan AC Servo Motor Drivers Kit LC10E20E30E50E Series
The Lichuan AC Servo Motor Drivers Kit LC10E20E30E50E Series is a high‑performance EtherCAT motion control solution designed for industrial automation systems that demand high precision, fast response, and long‑term reliability. This AC Servo Motor Drivers Kit integrates a matched AC servo motor and servo driver, providing stable and accurate control for multi‑axis and high‑speed applications.
The AC Servo Motor Drivers Kit LC10E20E30E50E Series supports EtherCAT real‑time communication, ensuring ultra‑low latency and precise synchronization between multiple axes. With torque options of 2.39 N·m, 3.2 N·m, and 4.0 N·m, and power ratings from 750 W to 1000 W, this series is ideal for OEM equipment manufacturers and system integrators.
This AC Servo Motor Drivers Kit is engineered with advanced digital control algorithms and high‑resolution encoder feedback to deliver smooth motion, high dynamic performance, and excellent positioning accuracy. The IP65‑rated motor design ensures reliable operation in harsh industrial environments, including dust‑prone and humid conditions.
Product Name: AC Servo Motor Drivers Kit
Series: LC10E / LC20E / LC30E / LC50E
Communication Protocol: EtherCAT
Rated Voltage: AC 220V
Protection Class: IP65
Application Type: Industrial Motion Control
The AC Servo Motor Drivers Kit LC10E20E30E50E Series is optimized for precision control and industrial durability.
| Model Series | Rated Power | Rated Torque | Rated Current | Rated Speed |
|---|---|---|---|---|
| LC10E | 750W | 2.39 N·m | 4.5A | 3000 RPM |
| LC20E | 1000W | 3.2 N·m | 5.8A | 2500 RPM |
| LC30E / LC50E | 1000W | 4.0 N·m | 4.6A | 2500–3000 RPM |
All specifications are for the AC Servo Motor Drivers Kit and may vary based on configuration.
Real‑time EtherCAT communication for multi‑axis synchronization
High precision closed‑loop control with the AC Servo Motor Drivers Kit
Strong overload capability and fast dynamic response
IP65 motor protection for industrial environments
Easy integration with PLC and motion controllers
Integrated AC servo motor and matched servo driver
High‑resolution encoder feedback
Position, speed, and torque control modes
Built‑in protection: over‑current, over‑voltage, overheating
Compact structure and efficient heat dissipation
The AC Servo Motor Drivers Kit uses advanced DSP control technology combined with vector control algorithms. Real‑time feedback from the encoder allows the servo driver to continuously adjust current and voltage, ensuring precise torque output, smooth motion, and minimal vibration.
The AC Servo Motor Drivers Kit LC10E20E30E50E Series operates by comparing command signals from the EtherCAT master with encoder feedback. The servo driver performs real‑time closed‑loop control, dynamically regulating motor current and speed to achieve accurate positioning and stable operation under varying loads.
Industrial automation production lines
CNC machines and machining centers
Packaging and labeling equipment
Robotics and automated handling systems
Electronics and semiconductor manufacturing
All applications benefit from the accuracy and reliability of the AC Servo Motor Drivers Kit.
The AC Servo Motor Drivers Kit is widely used for precise positioning, speed control, and torque regulation in automated machinery, helping manufacturers improve productivity, product quality, and operational efficiency.
High positioning accuracy and repeatability
Stable performance in continuous operation
Reduced system wiring with EtherCAT networking
Long service life and low maintenance cost
Flexible customization for OEM projects
We provide full technical support for the AC Servo Motor Drivers Kit, including product selection guidance, parameter configuration, commissioning assistance, and after‑sales service for global customers.
Each AC Servo Motor Drivers Kit is produced under a strict quality management system, including component inspection, precision assembly, functional testing, and aging tests to ensure consistent and reliable performance.
Install the servo motor and driver securely.
Connect power supply, EtherCAT communication, and encoder cables.
Set parameters via the servo software or PLC.
Perform trial operation and fine tuning.
Proper installation ensures optimal performance of the AC Servo Motor Drivers Kit.
Ensure correct wiring and grounding before power‑on
Do not exceed rated voltage, current, or speed
Maintain proper ventilation for the servo driver
Regularly inspect connectors and cables
The AC Servo Motor Drivers Kit LC10E20E30E50E Series complies with international standards and can be supplied with CE, RoHS, and ISO certifications upon request.
All AC Servo Motor Drivers Kit products undergo strict inspection and performance testing before shipment, ensuring high quality, stable operation, and long service life.
Our professional technical team provides fast response and continuous support for the AC Servo Motor Drivers Kit, including online consultation, technical documentation, and remote troubleshooting for international customers.
Lichuan is a professional manufacturer specializing in industrial motion control products. With years of experience in servo drive and motor technology, we provide reliable and cost‑effective AC Servo Motor Drivers Kit solutions for global automation markets.
Q1: What control modes are supported by the AC Servo Motor Drivers Kit?
A: The kit supports position, speed, and torque control modes.
Q2: Is EtherCAT mandatory for this series?
A: Yes, the LC10E20E30E50E Series is designed specifically for EtherCAT‑based motion control systems.
Q3: Can the parameters be customized?
A: Yes, power rating, encoder type, and motor configuration of the AC Servo Motor Drivers Kit can be customized.
