Place of Origin:
Guangdong, China
Brand Name:
LICHUAN
Model Number:
180M48015B+M1534P

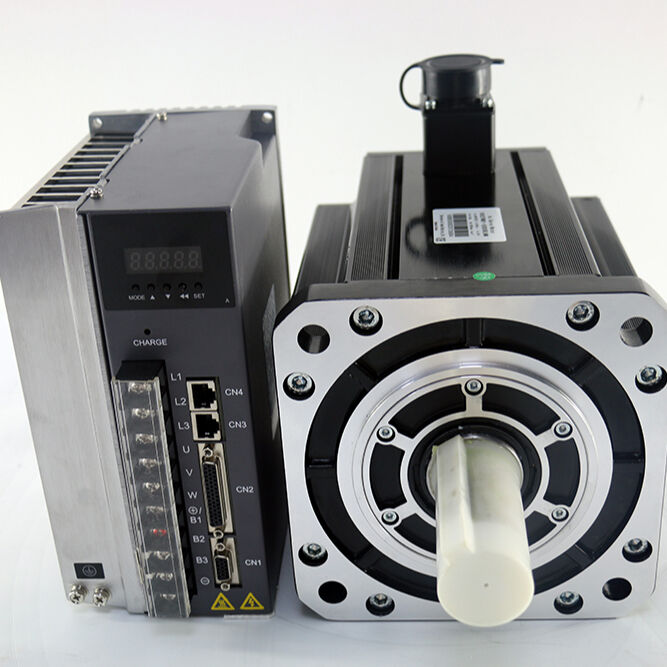

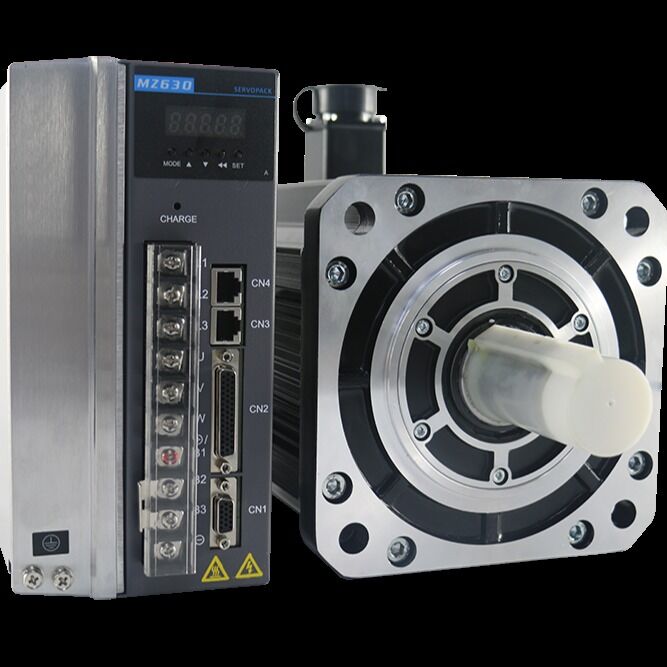

Lichuan180M48015B servo motor 7.5KW 1500rpm 48nm 380V 7.5KW ac servo motor driver with brake for cnc machine
| NO. | Item No. | Description | QTY |
| 1 | LCMT-75MCC23NB-180M48015 | Lichuan 7.5KW Servo Motor Driver | 1PC |
| 2 | LCDA-7521C23-M1534P | 180 Motor, 48N.m, 7.5KW, 1500rpm, 3phase 380v | 1PC |
| 3 | Lichuan Power cable | 3M servo power cable (Longer cable available) | 1PC |
| 4 | Lichuan Encoder cable | 3M servo encoder cable (Longer cable available) | 1PC |
| 5 | Lichuan Instruction book | Instruction book | 1PC |
>>>Lichuan 3Phase 380V 7.5KW AC servo motor Flange 180 series information
Lichuan 180 series AC servo motor includes 2.7KW, 2.9KW, 3KW, 3.7KW, 4.3KW, 4.5KW, 5.5KW, 7.5KW 6.7KW-41KWpower specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications
Lichuan 3phase 380V 6.7KW AC servo motor Flange 180 series specification:
Product Name: 180 series AC servo motor
Lichuan 180 series AC servo motor includes 2.7KW, 2.9KW, 3KW, 3.7KW, 4.3KW, 4.5KW, 5.5KW, 7.5KW-41KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications
180mm Series Servo motor parameter specification :
| Encoder Plug | Signal lead wire | 5V | 0V | A+ | B+ | Z- | A- | B- | Z- | U+ | V+ | W+ | U- | V- | W- | PE |
| Plug serial number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 |
| Encoder Plug | Signal lead wire | 5V | 0V | A+ | B+ | Z- | A- | B- | Z- | U+ | V+ | W+ | U- | V- | W- | PE |
| Plug serial number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 |
Lichuan Flange 180mm 3phase 380V Series Servo motor parameter specification :
Suitable for a variety of sports control automation equipment and equipment, such as: mechanical arm, cutting machine, fuel injection machine, ultrasonic equipment, feeding equipment, printing equipment, medical equipment, packaging equipment, lithium battery equipment, CNC lathes, spraying equipment, Equipment and so on.
