Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine

Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine

3 Phase servo motor driver kit

21.5Nm servo motor driver kit

Lichuan ac servo motor driver

Place of Origin:

China

Brand Name:

LICHUAN

Certification:

ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321

Model Number:

180M21520B+M2034P

Contact Us
Request A Quote
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine
Product Details
Phase:
Three-Phase
Rated Power ( W ):
4.5KW
AC Voltage:
380V
Efficiency:
IE 2
Frequency:
50/60Hz
Protect Feature:
Waterproof
Type:
Servo Motor
Warranty:
3 Months ~ 1 Year
Rated Votage ( V ):
380V
Rated Current( A ):
9.5A
Rated Speed (rpm):
2000
Holding Torque(N.m):
21.5
Bit:
23 Bit Incremental
Motor Size:
Flange 180
Ambient Temperature:
-20℃-50℃
Weight (kg):
22.2KG
Application:
CNC Machine
Highlight:

3 Phase servo motor driver kit

,

21.5Nm servo motor driver kit

,

Lichuan ac servo motor driver

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$675-793 / piece
Packaging Details
Eco-friendly paper packaging
Delivery Time
15 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier
RELATED PRODUCTS
Good price Lichuan AC Servo Motor Driver 600W 0.6KW 1.91N.M 220V 3.3A 3000RPM IP65 online Video

Lichuan AC Servo Motor Driver 600W 0.6KW 1.91N.M 220V 3.3A 3000RPM IP65

Get Best Price
Good price Lichuan AC Servo Motor Driver 400W 0.4KW 1.27N.M 220V 2.5A 3000RPM IP65 online Video

Lichuan AC Servo Motor Driver 400W 0.4KW 1.27N.M 220V 2.5A 3000RPM IP65

Get Best Price
Good price Lichuan 1000W 1.0KW AC Servo Motor Driver 4.0N.M 220V 4.6A 2500RPM IP65 online Video

Lichuan 1000W 1.0KW AC Servo Motor Driver 4.0N.M 220V 4.6A 2500RPM IP65

Get Best Price
Good price Lichuan AC Servo Motor Drivers Kit A5 LC10P 750W 0.75KW 2.39N.m 220V 4.5A 3000RPM IP65 online Video

Lichuan AC Servo Motor Drivers Kit A5 LC10P 750W 0.75KW 2.39N.m 220V 4.5A 3000RPM IP65

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description

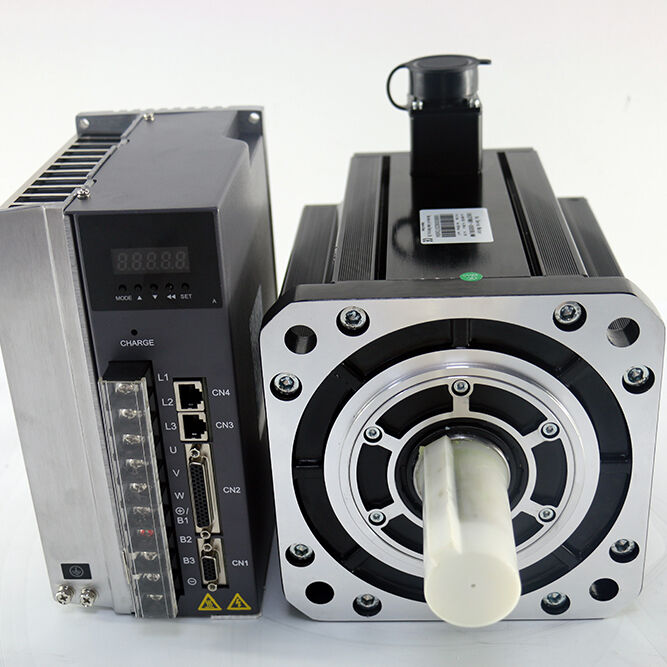

Lichuan 180M21520B+M2034P 4.5KW 380V 23Bit 21.5Nm 3 Phase Servo Motor with Driver Set Servo Motor Driver Kit for Cnc Milling Machine



Packing List
NO.
Product Name
Model / Description
Quantity
1
Lichuan 4.5KW 180M21520B Servo Motor
180M21520B
1
2
Lichuan 4.5KW AC Servo Driver
LCDA-4512C23-M2034P
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 0
Products Description
Product Name
3 Phase Servo Motor Drive Kit
Type
180M21520B+LCDA-4512C23-M2034P
Rated voltage(V)
380
Rated current (A)
9.5
Rated speed(rpm)
2000
Holding torque(N.m)
21.5
Peak torque(N.m)
53
Weight(Kg)
22.2
Bit
23 bit incremental
Safety class
IP66
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 2
Lichuan 180 series AC servo motor includes 2.7KW, 2.9KW, 3KW, 3.7KW, 4.3KW, 4.5KW, 5.5KW, 7.5KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 4
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 6
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 8
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 10
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 12
Application Area
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 14
Recommend Products


VR
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 16
Certifications
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 18
Our Advantages
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 20
FAQ
Lichuan 380V 23Bit 4.5KW 3 Phase 21.5Nm Servo Motor Driver Kit For CNC Milling Machine 22
