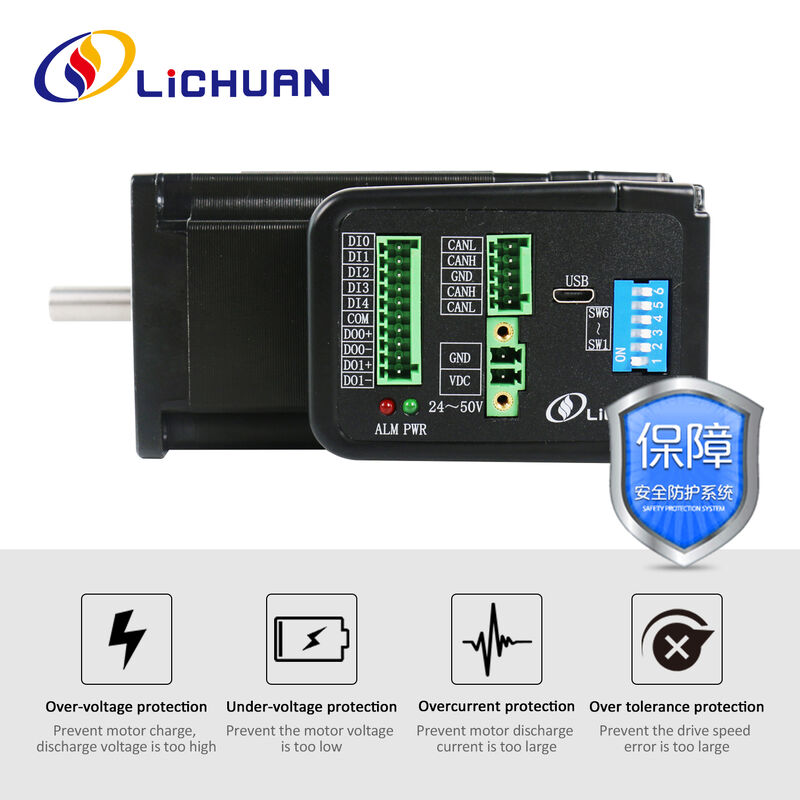

Lichuan Open Loop Integrated Stepper Motors Driver 4.0N.m 2Phase Nema24 36V 4.0A
Lichuan L Shaped Open Loop & Closed Loop Integrated Stepper Motors Driver
The Lichuan L Shaped Open Loop & Closed Loop Integrated Stepper Motors Driver is a compact, high-performance motion control solution that integrates a stepper motor, driver, and control electronics into a single L-shaped housing. Designed for industrial automation and intelligent equipment, this Open Loop Integrated Stepper Motors Driver series supports both open-loop and closed-loop configurations, providing flexible choices for different accuracy and budget requirements.
With torque options ranging from 0.4N·m to 12N·m, multiple frame sizes, and wide voltage compatibility, the Lichuan integrated solution significantly reduces wiring complexity, shortens installation time, and improves overall system reliability.

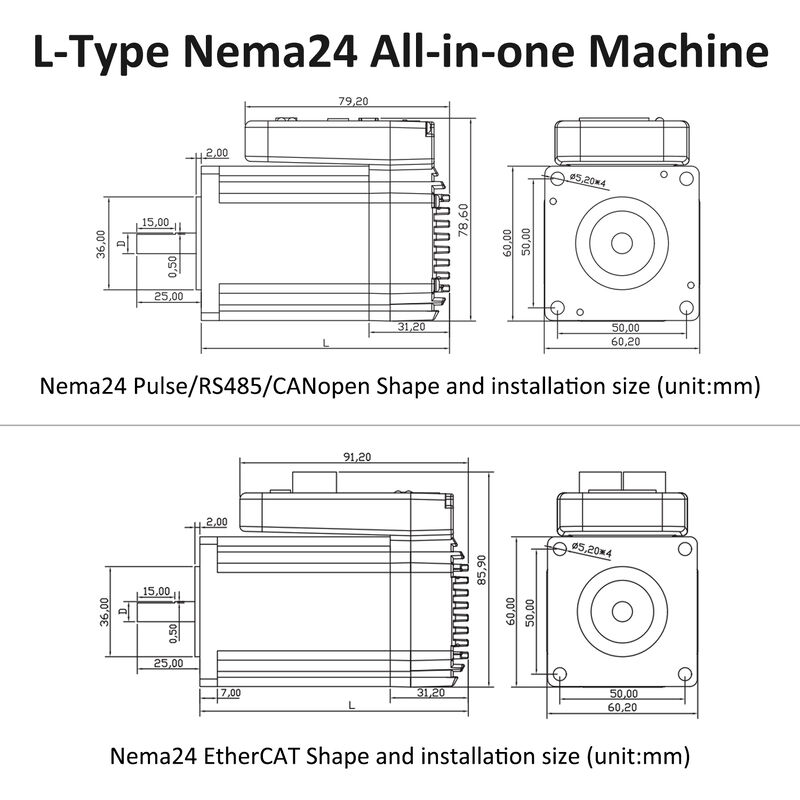

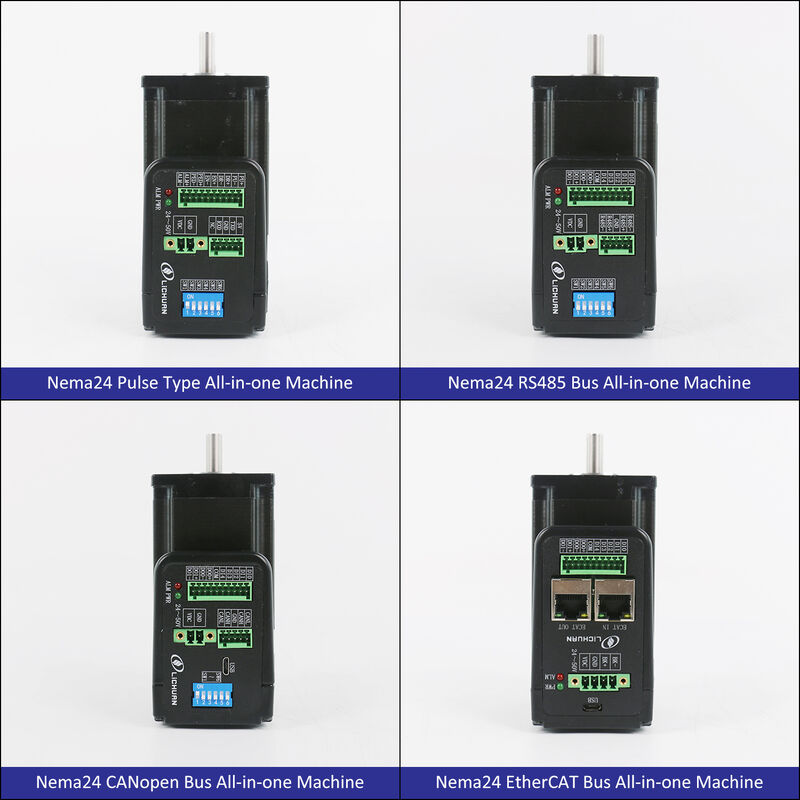

The Lichuan L Shaped Open Loop Integrated Stepper Motors Driver series is available in 2-phase configurations with standard NEMA17, NEMA23, NEMA24, and NEMA34 mounting sizes. Both open-loop and closed-loop (1000PPR encoder) versions are supported, making this product ideal for OEM manufacturers, system integrators, and automation equipment builders.
The Open Loop Integrated Stepper Motors Driver from Lichuan combines a high-torque stepper motor with a built-in driver in an L-shaped compact structure. The integrated design minimizes external wiring and improves electromagnetic compatibility. For applications requiring higher positioning reliability, the closed-loop version with 1000PPR encoder feedback effectively eliminates step loss.
This product line is engineered for long-term stable operation in industrial environments.
| Parameter | Specification |
|---|---|
| Control Mode | Open Loop / Closed Loop Integrated Stepper Motors Driver |
| Phase | 2 Phase |
| Frame Size | NEMA17 / 23 / 24 / 34 |
| Rated Voltage | DC 24V / 36V / 48V |
| Rated Current | 2.5A / 4.0A / 6.0A |
| Holding Torque | 0.4–12 N·m |
| Encoder | 1000PPR (Closed Loop) |
| Protection | Over-voltage / Over-current / Over-temperature |
Brand: Lichuan
Product Type: Open Loop & Closed Loop Integrated Stepper Motors Driver
Motor Type: 2-Phase Stepper Motor
Housing Design: L-Shaped Integrated Structure
Frame Sizes: NEMA17 / NEMA23 / NEMA24 / NEMA34
Control Mode: Open Loop or Closed Loop (1000PPR)
The Open Loop Integrated Stepper Motors Driver series supports multiple electrical and mechanical configurations to match various automation applications.
L-shaped compact integrated design
Supports Open Loop Integrated Stepper Motors Driver and closed-loop options
Wide torque range from 0.4N·m to 12N·m
Encoder feedback (1000PPR) available for closed-loop models
Reduced wiring and faster installation
Integrated motor and driver in one unit
Stable torque output and smooth motion
Low noise and low vibration
Strong anti-interference performance
High reliability for continuous industrial operation
The Open Loop Integrated Stepper Motors Driver adopts advanced micro-stepping control technology and optimized current regulation algorithms. Closed-loop versions use a 1000PPR incremental encoder to provide real-time position feedback, ensuring accurate motion control and preventing step loss.
The Open Loop Integrated Stepper Motors Driver receives pulse and direction signals from an external controller. In open-loop mode, the driver converts pulse commands into phase currents to drive the motor. In closed-loop mode, encoder feedback continuously corrects position errors, ensuring precise motion and higher system stability.
The Open Loop Integrated Stepper Motors Driver is widely applied in:
Industrial automation equipment
Packaging and labeling machines
CNC engraving and cutting machines
Robotics and linear modules
Medical and laboratory automation systems
Typical applications include XY positioning platforms, conveyor systems, rotary tables, automated assembly lines, and smart manufacturing equipment using Open Loop Integrated Stepper Motors Driver solutions.
One-stop integrated motion solution
Flexible selection between open-loop and closed-loop
Proven Open Loop Integrated Stepper Motors Driver stability
Reduced system cost and maintenance effort
Easy installation and replacement
We provide comprehensive services for Open Loop Integrated Stepper Motors Driver products, including technical consultation, model selection, OEM customization, and long-term after-sales support.
The Open Loop Integrated Stepper Motors Driver is manufactured through precision machining, automated winding, SMT driver assembly, encoder calibration, and full-load aging tests.
Connect DC power supply (24V / 36V / 48V).
Connect pulse and direction signals.
Set current and micro-step parameters.
Power on and perform trial operation.
Use recommended voltage for the Open Loop Integrated Stepper Motors Driver.
Ensure correct wiring before powering on.
Avoid operation in excessive dust or high humidity environments.
Lichuan is a professional manufacturer of Open Loop Integrated Stepper Motors Driver and motion control products. With strong R&D capability and strict quality management, Lichuan provides reliable automation solutions to global customers.
The Open Loop Integrated Stepper Motors Driver complies with CE, RoHS, and other international standards. Certification documents are available upon request.
Each Open Loop Integrated Stepper Motors Driver undergoes strict inspection, including electrical testing, encoder verification, and aging tests to ensure stable performance.
Our professional service team provides fast response, technical guidance, and after-sales support for all Open Loop Integrated Stepper Motors Driver products.
Q1: What is the difference between open-loop and closed-loop integrated stepper motors?
A: Open-loop systems operate without feedback, while closed-loop Open Loop Integrated Stepper Motors Driver alternatives use encoder feedback to prevent step loss.
Q2: What encoder is used in the closed-loop version?
A: A 1000PPR incremental encoder is integrated.
Q3: Can voltage and torque be customized?
A: Yes, customization is available based on application requirements.
