Lichuan Open Loop Integrated Stepper Motors Driver 8.5N.m 2Phase Nema34 48V 6.0A

Lichuan L Shaped Closed Loop / Open Loop Integrated Stepper Motors Driver
2Phase Nema17 / Nema23 / Nema24 / Nema34 | 0.4N.m–12N.m | 24V/36V/48V | 2.5A/4.0A/6.0A | 1000PPR

Product Introduction

Lichuan L Shaped Closed Loop Open Loop Integrated Stepper Motors Driver is a high-performance integrated stepper motor solution designed for industrial automation and precision motion control. This product supports both open loop integrated stepper motors driver and closed-loop configurations, providing high torque options from 0.4N.m to 12N.m and covering NEMA sizes Nema17, Nema23, Nema24, and Nema34.

The integrated design combines the motor and driver into one compact L-shaped unit, simplifying installation and saving space. It is ideal for CNC machines, robotics, 3D printers, packaging equipment, and automated production lines.

Product Description

The Lichuan L Shaped Closed Loop Open Loop Integrated Stepper Motors Driver integrates motor and driver into a single compact unit, offering high torque and precision. With torque options from 0.4N.m to 12N.m, it suits both light-duty and heavy-duty applications. The open loop integrated stepper motors driver design reduces wiring complexity, improves system reliability, and lowers installation costs.

The L-shaped form factor provides flexible installation in tight spaces and special mechanical layouts, making it suitable for modern automation equipment.

Product Information

Core Keyword: Open Loop Integrated Stepper Motors Driver

Basic Information

• Product Type: Integrated Stepper Motor Driver

• Control Mode: Open Loop / Closed Loop

• Structure: L-shaped integrated

• Voltage: 24V / 36V / 48V

• Current: 2.5A / 4.0A / 6.0A

• Torque: 0.4N.m – 12N.m

• Resolution: 1000PPR

• Phase: 2Phase

• Size: NEMA standard (17/23/24/34)

Specifications

Product Highlights

• Wide torque range: 0.4N.m to 12N.m

• Integrated L-shaped design for space-saving installation

• Supports Open Loop Integrated Stepper Motors Driver

• High precision 1000PPR for accurate positioning

• Multiple voltage options: 24V/36V/48V

• Multiple current options: 2.5A/4.0A/6.0A

• Suitable for both open loop and closed loop systems

Product Features

1. Open Loop Integrated Stepper Motors Driver design

2. Optional closed-loop control for higher accuracy

3. 2Phase structure ensures stable operation

4. Supports Nema17~Nema34 sizes

5. Voltage options: 24V/36V/48V

6. Torque options: 0.4N.m–12N.m

7. 1000PPR high-resolution encoder (optional)

8. Efficient heat dissipation and protection functions

Product Technology

• Digital stepper motor control technology

• High precision step control algorithm

• Automatic current adjustment

• Low noise and vibration design

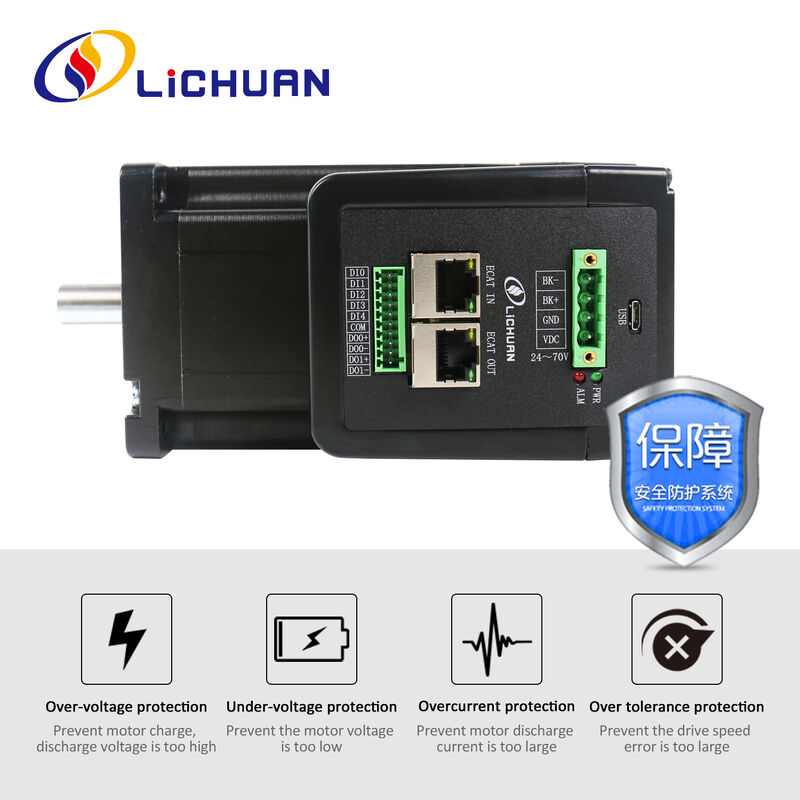

• Reliable over-current, over-voltage, overheat protection

Working Principle

The Open Loop Integrated Stepper Motors Driver controls the stepper motor via pulse signals. The driver converts pulses into precise motion, controlling speed through pulse frequency and position through pulse count. The open-loop mode eliminates the need for external feedback devices, simplifying the system and reducing costs.

Application Areas

• CNC machines (milling, engraving, cutting)

• 3D printers and laser engraving machines

• Industrial robots and robotic arms

• Automated assembly lines and conveyor systems

• Packaging and printing equipment

• Textile machines and medical devices

Product Use

• Precise positioning and motion control

• Improve stability of automation equipment

• Core actuator for mechanical transmission systems

• Replacement for traditional split-stepper motor systems

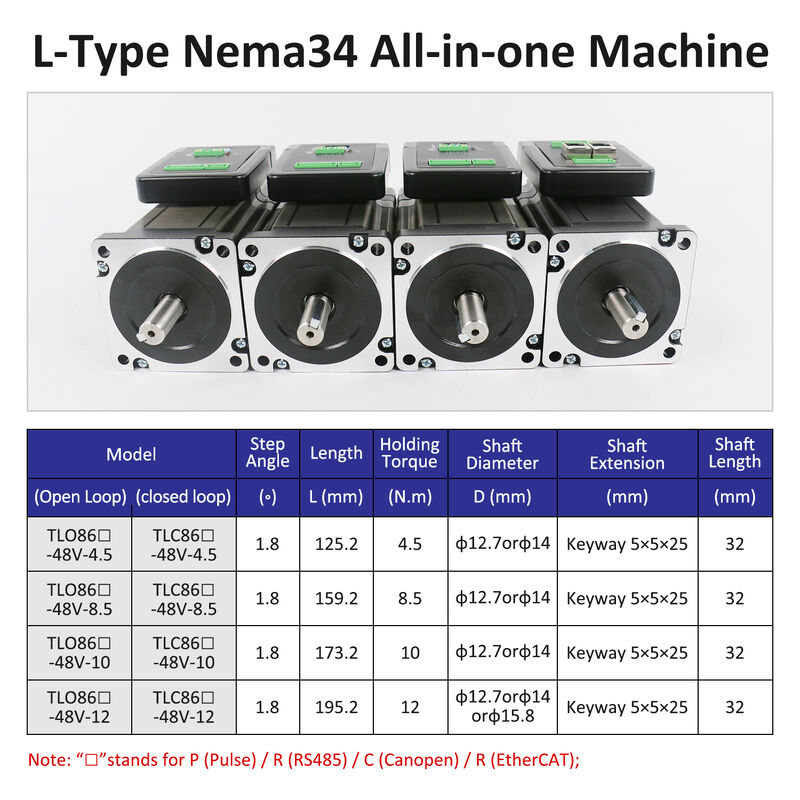

Product Parameter Table

Product Advantages

• Higher integration reduces wiring complexity

• Strong compatibility with multiple NEMA sizes

• Industrial-grade stability and protection

• Cost-effective open loop control

• Easy expansion and system integration

Product Services

• Free product selection and solution consultation

• Wiring and parameter setting support

• OEM / ODM customization services

• 12 months warranty and technical support

• Provide technical documents and application cases

FAQ

Q1: Does this product support Open Loop Integrated Stepper Motors Driver?
A1: Yes, it supports open-loop integrated driver mode, suitable for most automation applications.

Q2: Can I customize torque or voltage?
A2: Yes, we provide OEM/ODM customization based on your requirements.

Q3: Is 1000PPR standard?
A3: 1000PPR is available for certain models. Please confirm when ordering.

Manufacturing Process

1. Raw material procurement: high-strength magnetic steel, pure copper coil, aluminum housing

2. Precision machining and assembly

3. Automated production line to ensure consistency

4. Strict testing: voltage, temperature, lifetime

5. Final inspection: 100% full inspection before shipment

Operating Instructions

1. Confirm the power voltage matches the motor (24V/36V/48V)

2. Connect controller to the driver input interface

3. Set pulse frequency and direction

4. Test run and monitor temperature and stability

5. Power off after use

Precautions

• Ensure power is off during installation

• Do not exceed rated current

• Avoid long-time overheating

• Avoid humid or corrosive environments

• Use filter and stable power supply for better performance

Product Certificates

• ISO9001 Quality Management System

• CE Certification

• RoHS Compliance

• UL (optional)

Quality Assurance

• 100% inspection before shipment

• 12-month warranty for quality defects

• Professional technical support and after-sales service

Customer Service Information

• Email: support@lichuanmotor.com

• Phone: +86-XXX-XXXX-XXXX

• Service Hours: Mon–Fri 9:00–18:00

• Support: Online technical support, installation guidance, and parameter debugging

Company Introduction

Lichuan is a professional manufacturer specializing in stepper motors and integrated drivers. We are committed to providing high-performance motion control solutions and advanced Open Loop Integrated Stepper Motors Driver products for global customers.
