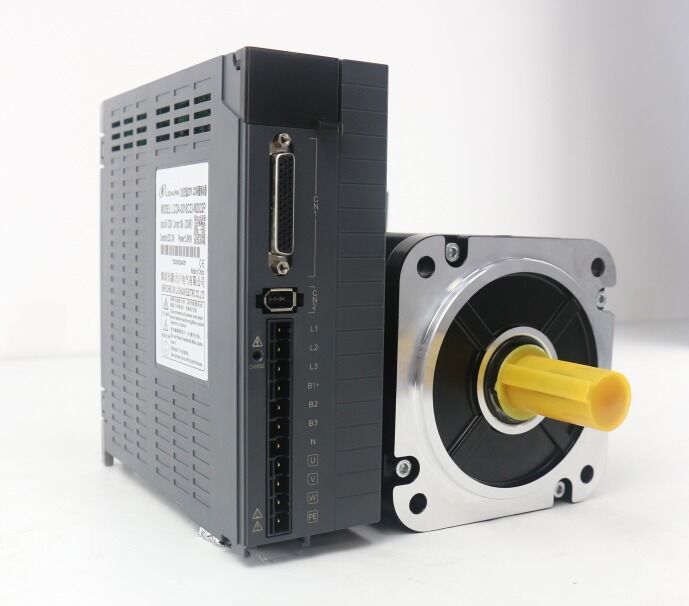

Lichuan 130M15015B+M1534P 380V 2500RPM 15N.m 23bit 2.3KW Three-Phase AC Servo Motor Driver Kit for CNC
LiChuan 380V 2.3KW 15N.m 23bit Three-Phase AC Servo motor 130M15015B+M1534P 2500RPM Servo Motor with Drive for Sewing Machine
Packing List
| No. | Product | Model / Description | Qty |
| 1 | Lichuan 2.3KW 130M15015B Servo Motor | LCMT-23MCC23NB-130M15015B | 1 |
| 2 | Lichuan 2.3KW AC Servo Driver | LCDA-2308C23-M1534P | 1 |
| 3 | Motor Cable | Standard (3m) | 1 |
| 4 | Encoder Cable | Standard (3m) | 1 |
| 5 | Servo Driver Instruction Book | Standard | 1 |
»» LICHUAN 2.3KW 130ST-M15015B Servo Motor Information
Lichuan 130 series AC servo motor contains 1KW, 1.3KW, 1.5KW, 2KW, 2.3KW, 2.6KW, 3.8KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and high temperature permanent magnet material , Servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high precision control applications.
LICHUAN AC Servo Motor Naming Rules
LCMT - 10 L 02 N B - 130 M040 25 B
LICHUAN 130mm Series AC Servo Motor Specification
|
130 Servo Motor model |
130M04025 | 130M05025 | 130M06025 | 130M07725 | 130M10010 | 130M10015 | 130M10025 | 130M15015 | 130M15025 |
|
Rated power (KW) |
1.0 | 1.3 | 1.5 | 2.0 | 1.0 | 1.5 | 2.6 | 2.3 | 3.8 |
|
Rated voltage (V) |
220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
|
Rated current (A) |
4.0 | 5.0 | 6.0 | 7.0 | 4.5 | 6.0 | 10 | 9.5 | 13.5 |
|
Rated speed (rpm) |
2500 | 2500 | 2500 | 2500 | 1000 | 1500 | 2500 | 1500 | 2500 |
|
Holding torque (N.M) |
4.0 | 5.0 | 6.0 | 7.7 | 10 | 10 | 10 | 15 | 15 |
|
Peak torque (N.M) |
12 | 16 | 18 | 22 | 20 | 25 | 25 | 30 | 30 |
|
Torque Coefficient (N.m/A) |
1.0 | 1.0 | 1.0 | 1.03 | 2.2 | 1.67 | 1.0 | 1.58 | 1.11 |
|
Rotor Inertia (Kg.m2) |
0.85X10-3 | 1.06X10-3 | 1.26X10-3 | 1.53X10-4 | 1.94X10-3 | 1.94X10-3 | 1.94X10-3 | 2.77X10-3 | 2.77X10-3 |
|
Voltage constant (V/1000r/min) |
72 | 68 | 65 | 68 | 140 | 103 | 70 | 114 | 67 |
|
Phase Resistance (Ω) |
2.76 | 1.84 | 1.21 | 1.01 | 2.7 | 1.29 | 0.73 | 1.1 | 0.49 |
|
Phase Inductance (mH) |
6.42 | 4.9 | 3.87 | 2.94 | 8.8 | 5.07 | 2.45 | 4.45 | 1.68 |
|
Machanical Time-constant (Ms) |
2.32 | 2.66 | 3.26 | 3.80 | 3.26 | 3.93 | 3.36 | 4.05 | 3.43 |
|
Encoder line Number (PPR) |
2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Insulation Class | Class B(130℃) | ||||||||
| Safety Class | IP66 | ||||||||
Motor Pictures
»» LICHUAN 2.3KW 380V AC Servo Driver Information
LICHUAN 380V servo driver is a new generation of high performance, high stability products, support speed, position, torque and three mixed mode, increase the semi-automatic and automatic gain automatic tuning function, built-in MODBUS communication control function, can match more domestic servo Motor. Servo main IC using the United States Industry Instruments DSP all-digital chip, very low failure rate, adaptive drive 0.1KW ~ 3.8KW servo motor.
LICHUAN AC Servo Motor Naming Rules
LCDB2 - 10 20 02 - L B 13 32
Features
1. Power Range: 2.3kw
2. Input Voltage: AC 380V , 3 phases
3. Position / Speed control mode
4. With MODBUS communication performance(RS-485 / RS-422 / RS-232),ASCII and RTU communication protocol
5. Encoder: 2500ppr
6. Articles made to order: drag ,oil seal
7. Axis: Circular shaft / keyway
Product Show
Send your inquiry directly to us
