Place of Origin:
China
Brand Name:
LICHUAN
Certification:
ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321
Model Number:
180M19015B+M1534P
|
NO.
|
Product Name
|
Model / Description
|
Quantity
|
|
1
|

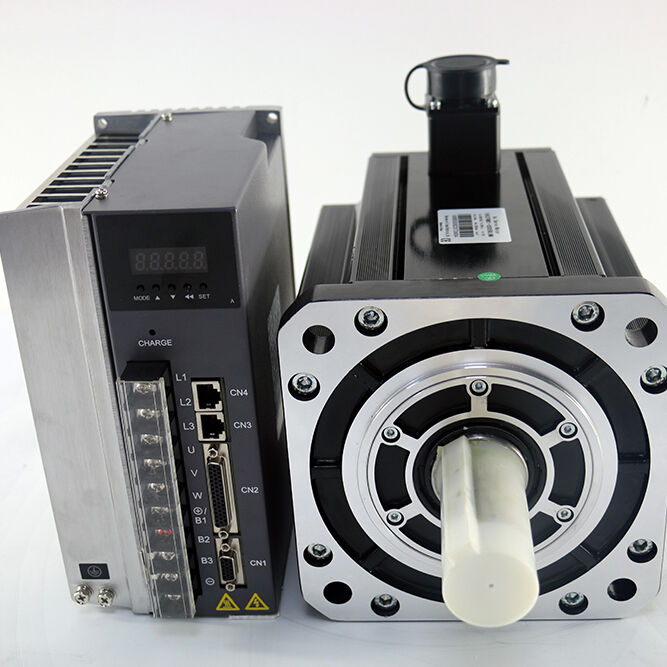

Lichuan 3KW 180M19015B Servo Motor
|
180M19015B
|
1
|
|
2
|
Lichuan 3KW AC Servo Driver
|
LCDA-3008C23-M1534P
|
1
|
|
3
|
Motor Cable
|
Standard (3m)
|
1
|
|
4
|
Encoder Cable
|
Standard (3m)
|
1
|
|
5
|
Servo Driver Instruction Book
|
Standard
|
1
|
|
Product Name
|
3 Phase Servo Motor Drive Kit
|
|
Type
|
180M19015B+M1534P
|
|
Rated voltage(V)
|
380
|
|
Rated current (A)
|
7.5
|
|
Rated speed(rpm)
|
1500
|
|
Holding torque(N.m)
|
19
|
|
Peak torque(N.m)
|
47
|
|
Weight(Kg)
|
20.5
|
|
Bit
|
23 bit incremental
|
|
Safety class
|
IP66
|
