Name: 15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P
Brand: Shenzhen Xinlichuan Electric Co., Ltd.
SKU: 200M96015B +M1534P
Price: 113.00 USD
Availability: InStock

Home > Products > AC Servo Driver >

15KW 380V 1500RPM 96N.M 23bit 3 Phase AC Servo Motor Kit 200M96015B+M1534P

23bit ac servo motor kit

3 Phase ac servo motor kit

15KW lichuan servos

Place of Origin:

Guangdong, China

Brand Name:

LICHUAN

Model Number:

200M96015B +M1534P

Request A Quote

Product Details

AC Voltage:

380V

Phase:

Three-Phase

Rated Power:

15KW

Rated Speed:

1500 RPM

Efficiency:

IE 2

Frame:

200mm

Frequency:

50/60Hz

Motor Mounting Type:

Flange

Protect Feature:

Waterproof

Type:

Servo Motor, 200M96015B +M1534P

Warranty:

3 Months ~ 1 Year

Product Name:

3Phase AC Servo Motor Kit

Application:

General Machinery

Rated Power(KW):

Rated Voltage(V):

380

Rated Current (A):

Rated Speed(rpm):

1500

Holding Torque(N.m):

Bit:

23 Bit Incremental

Weight(Kg):

Highlight:

23bit ac servo motor kit

3 Phase ac servo motor kit

15KW lichuan servos

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$2,224 / set

Lichuan AC Servo Motor Driver 600W 0.6KW 1.91N.M 220V 3.3A 3000RPM IP65

Get Best Price

Video

Lichuan AC Servo Motor Driver 400W 0.4KW 1.27N.M 220V 2.5A 3000RPM IP65

Get Best Price

Video

Lichuan 1000W 1.0KW AC Servo Motor Driver 4.0N.M 220V 4.6A 2500RPM IP65

Get Best Price

Video

Lichuan AC Servo Motor Drivers Kit A5 LC10P 750W 0.75KW 2.39N.m 220V 4.5A 3000RPM IP65

Get Best Price

13613049632

rony@xlichuan.com

Contact Now

Product Description

Packing List

NO.	Product Name	Model / Description	Quantity

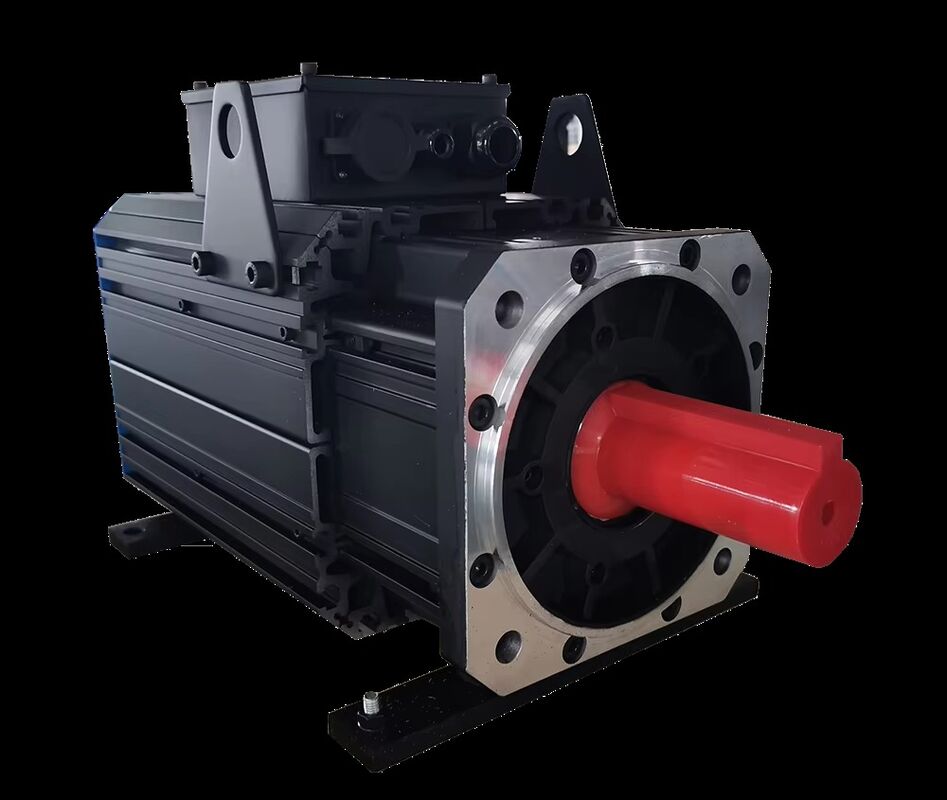

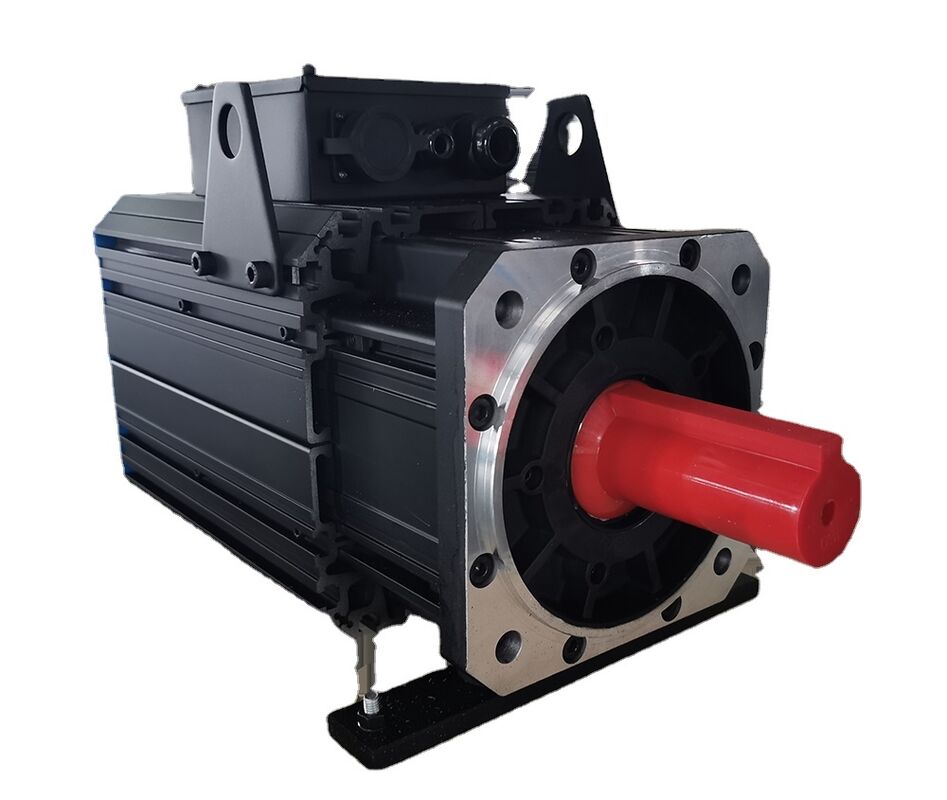

1	Lichuan 15KW 200M96015B Servo Motor	200M96015B	1

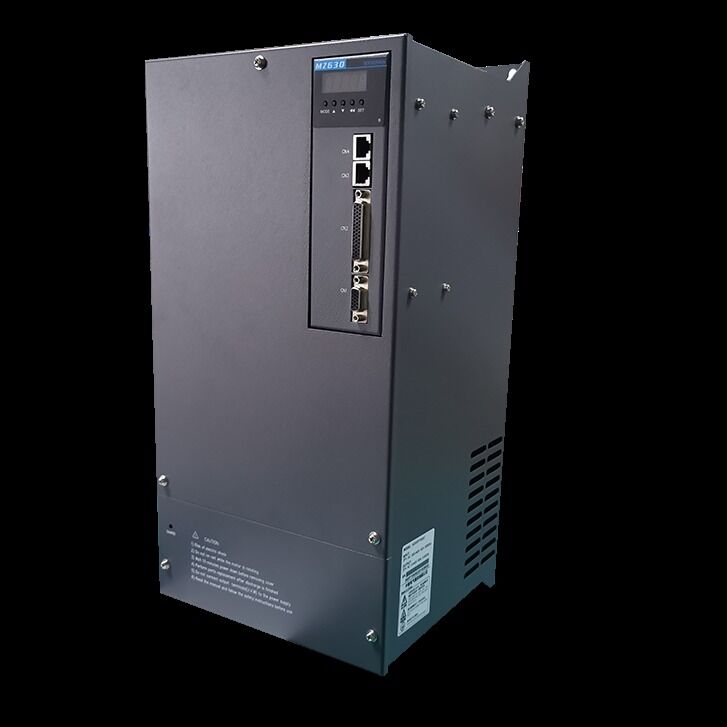

2	Lichuan 15KW AC Servo Driver	LCDA-15032C23-M1534P	1
3	Motor Cable	Standard (3m)	1
4	Encoder Cable	Standard (3m)	1
5	Servo Driver Instruction Book	Standard	1

Products Description

Lichuan 200 series AC servo motor includes 11KW, 15KW, 18.5KW,22KW, 30KW, 37KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications.

Technical requirements
Motor Name	200M96015B
Flange	200
Rated power	15KW
Rated Current	30A
Rated torque	96N.m
Rated voltage	380V
Rated speed	1500r/min
Insulation grade	Grade F
Protection grade	IP65
Ambient temperature	-20°C--+50°C
