200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW

200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW

380V servo motor driver

1500RPM servo motor driver

30KW ac servo drive

Place of Origin:

China

Brand Name:

LICHUAN

Certification:

ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321

Model Number:

200M191015B+M1534P

Contact Us
Request A Quote
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW 200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW
Product Details
Product Name:
3Phase AC Servo Motor Kit
Phase:
Three-Phase
AC Voltage:
AC 380V
Rated Power(KW):
30
Efficiency:
IE 2
Frequency:
50/60Hz
Type:
Servo Motor, 200M191015B +M1534P
Warranty:
3 Months ~ 1 Year
Application:
General Machinery
Rated Voltage(V):
380
Rated Current (A):
50
Rated Speed(rpm):
1500
Holding Torque(N.m):
191
Bit:
23 Bit Incremental
Weight(Kg):
90
Protect Feature:
Waterproof
Highlight:

380V servo motor driver

,

1500RPM servo motor driver

,

30KW ac servo drive

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$4,366 / set
Packaging Details
Eco-friendly paper packaging
Delivery Time
15 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier
RELATED PRODUCTS
Good price Lichuan AC Servo Motor Driver 600W 0.6KW 1.91N.M 220V 3.3A 3000RPM IP65 online Video

Lichuan AC Servo Motor Driver 600W 0.6KW 1.91N.M 220V 3.3A 3000RPM IP65

Get Best Price
Good price Lichuan AC Servo Motor Driver 400W 0.4KW 1.27N.M 220V 2.5A 3000RPM IP65 online Video

Lichuan AC Servo Motor Driver 400W 0.4KW 1.27N.M 220V 2.5A 3000RPM IP65

Get Best Price
Good price Lichuan 1000W 1.0KW AC Servo Motor Driver 4.0N.M 220V 4.6A 2500RPM IP65 online Video

Lichuan 1000W 1.0KW AC Servo Motor Driver 4.0N.M 220V 4.6A 2500RPM IP65

Get Best Price
Good price Lichuan AC Servo Motor Drivers Kit A5 LC10P 750W 0.75KW 2.39N.m 220V 4.5A 3000RPM IP65 online Video

Lichuan AC Servo Motor Drivers Kit A5 LC10P 750W 0.75KW 2.39N.m 220V 4.5A 3000RPM IP65

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description
LICHUAN 200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.m 23bit 3Phase CNC 30KW AC SERVO Motor Driver Kit for CNC Machine

Packing List
NO.
Product Name
Model / Description
Quantity
1

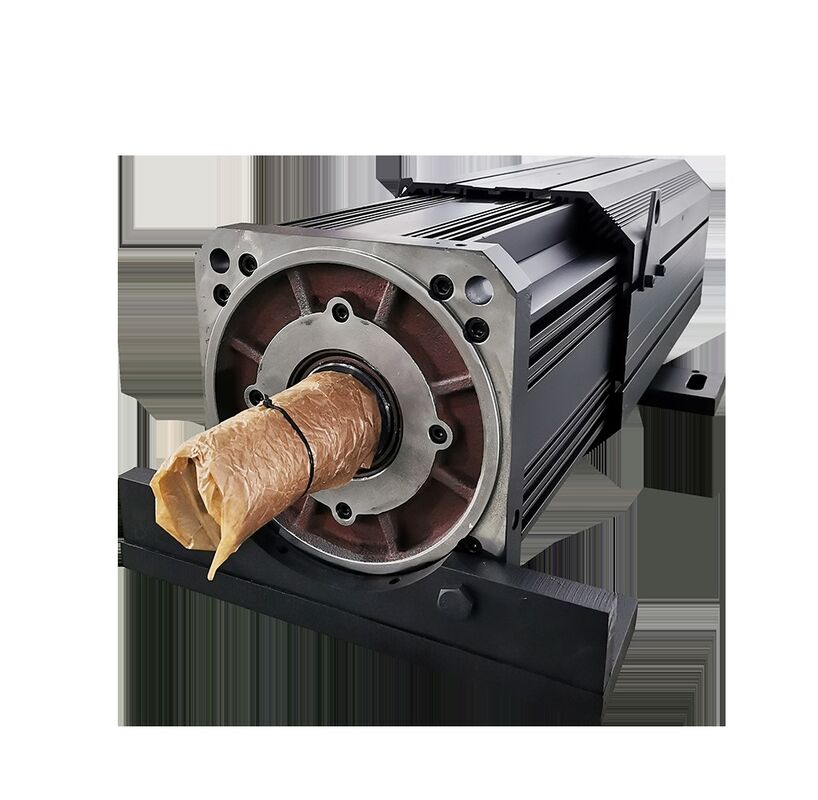

Lichuan 30KW 200M191015B Servo Motor
200M191015B
1
2

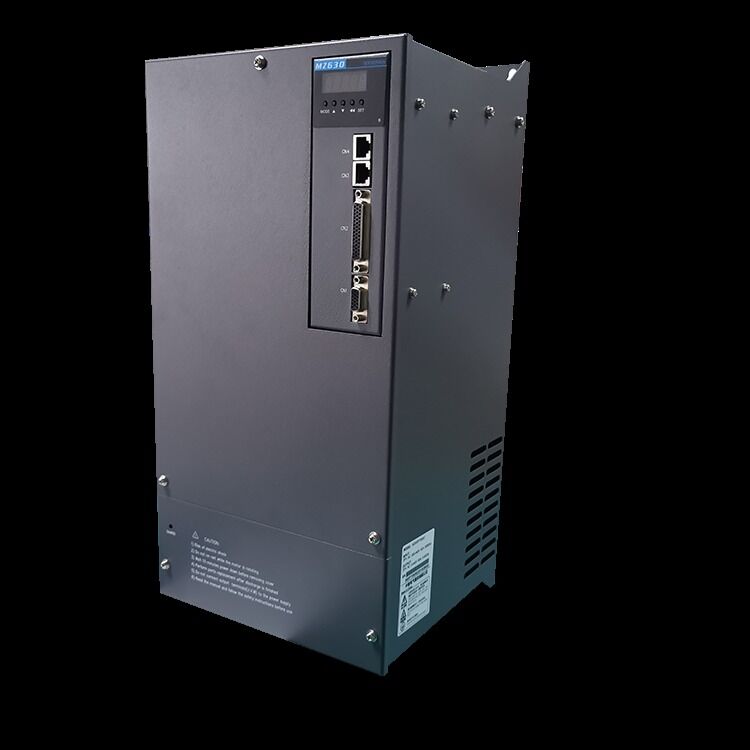

Lichuan 30KW AC Servo Driver
LCDA-30075C23-M1534P
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1



Products Description



Lichuan 200 series AC servo motor includes 11KW, 15KW, 18.5KW,22KW, 30KW, 37KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and resistance High-temperature permanent magnet materials, servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high-precision control applications.
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW 0
Technical requirements

Motor Name
200M191015B
Flange
200
Rated power
30KW
Rated  Current
48A
Rated torque
191N.m
Rated voltage
380V
Rated speed
1500r/min
Insulation grade
Grade F
Protection grade
IP65
Ambient temperature
-20°C--+50°C
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW 2
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW 4
Application Area
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW 6
Recommend Products


VR
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW 8
Certifications
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW 10
Our Advantages
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW 12
FAQ
200M191015B+M1534P 380V 1500RPM Servo Motor Driver 30KW 191N.M 23bit 3 Phase CNC 30KW 14
