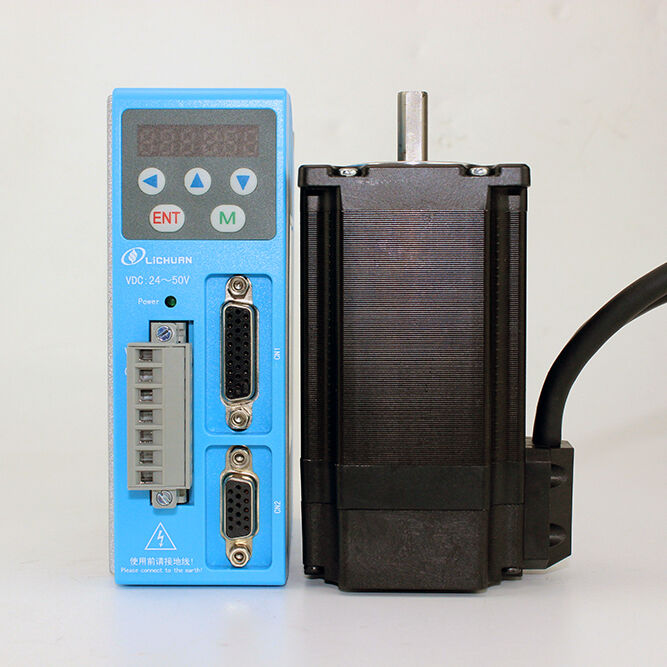

Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276

Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276

Nema 23 closed loop stepper motor kit

1000rpm closed loop stepper motor kit

2 Phase stepper motor driver kit

Place of Origin:

guangdong

Brand Name:

LICHUAN

Model Number:

LCDA606S+LC57H276

Contact Us
Request A Quote
Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276
Product Details
Phase:
2
Type:
Permanent Magnet
Warranty:
3 Months ~ 1 Year
Brand:
Lichuan
Speed:
1000rpm
Holding Torque (N.m):
2n.m
Phase Current (A):
3.0
Voltage:
DC24V~50V
Encoder Resolution(PPR):
1000
Shaft Diameter(mm):
8
Shaft Length(mm):
21
Length (mm):
98
Weight (kg):
1.2
Highlight:

Nema 23 closed loop stepper motor kit

,

1000rpm closed loop stepper motor kit

,

2 Phase stepper motor driver kit

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$65.97-70.65 / set
RELATED PRODUCTS
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description

Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 0
Products Description
Product Name
2 Phase digital hybrid stepper motor driver kit
Type
LC57H276+LCDA606S
Brand Name
LICHUAN
Holding Torque (N.m)
2.0
Phase Current (A)
3.0
Weight (kg)
1.2
Encoder Resolution(PPR)
1000
Length (mm)
98
Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 2

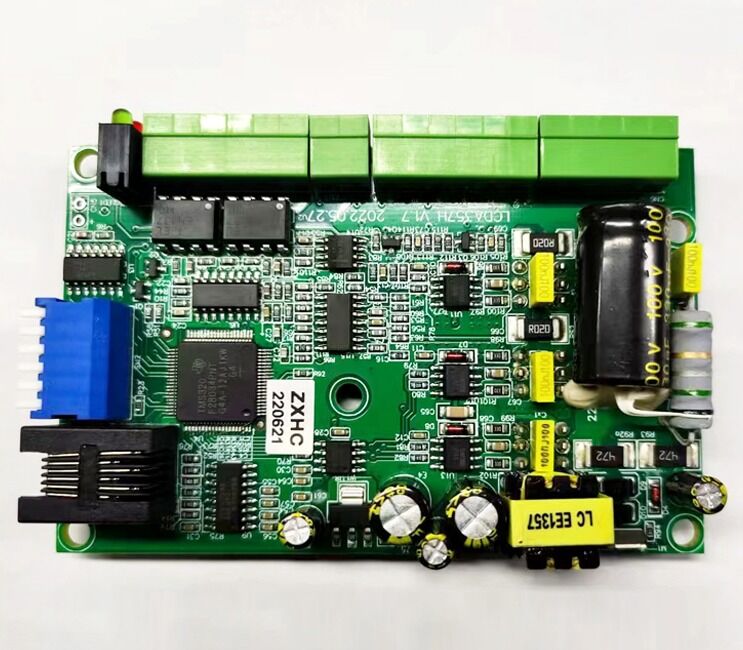

LCDA606S is a mature and stable hybrid servo driver , it adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to 2 phase Nema23/24 closed loop motors,has both stepper and servo advantages.

Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 4
Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 6
Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 8
Functional Characteristics
Voltage input range: DC24V~50V Max peak current: 7A Subdivision range: 200~51200ppr Pulse input form: PULS + DIR, CW + CCW Encoder feedback: 1000 pA, incremental encoder External digital debugging panel, easy parameter setings and monitoring. Serial port communication function, current, subdivision, signal edge and alarm output logic functions can be adjusted. Over-voltage, over-current, tracking error and out of error protection functions. Closed loop vector control, assure high-speed large-torque output and no step missing of motor.

Application Industry
Apply to various small and medium-sized automation equipment and devices, such as: engraving machine, wire decoating machine, marking machine, cutting machine, laser machine, plotting instrument, medical equipment, CNC, automatic assembly equipment, electronic processing equipment and etc. Excellent application effects for low-noise and high-speed equipment.
Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 10
Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 12
Application Area
Lichuan Nema 23 Closed Loop 1000rpm 2.0n.M 4.0A DC24V-50V 2 Phase LCDA606S+LC57H276 14
