Lichuan LC86H280+LCDA808F AC50~80V 8A 4.5Nm Stepper Motor Driver 2 Phase Nema34 Hybrid Stepper Motor Drivers Kit with Encoder
Packing List
Motor: LC86H280
Driver: LCDA808H
Encoder cable: 3m,1pcs
Motor LC86H280 Information
Lichuan’s LC-H2 series 2 phase closed loop stepper motors,they are are designed to match with Lichuan’s 2 phase easy servo drivers including the LCDA257S,LCDA86H and LCDA808H. They are available from NEMA23 to NEMA34 (57,60mm and 86mm) with holding torque from 2Nm to 12Nm. LC86H280 is NEMA34 4.5Nm closed loop stepper motors.1000-line optical incremental encoders.They all have encoder feedback, high speed, high precision.
2 Phase Nema34 Closed-loop Stepper Motor Specifications
|
Motor model |
Step/angle |
Length |
Holding torque |
Current |
Rotor inertia |
Encoder line |
Lead wire |
Weight |
|
° |
mm |
N.M |
A |
g.cm2 |
PPR |
NO. |
Kg |
|
|
LC86H260 |
1.8 |
60+22 |
3 |
6 |
1100 |
1000 |
4 |
2.0 |
|
LC86H268 |
1.8 |
68+22 |
3.5 |
6 |
1400 |
1000 |
4 |
2.2 |
|
LC86H280 |
1.8 |
80+22 |
4.5 |
6 |
1800 |
1000 |
4 |
2.5 |
|
LC86H298 |
1.8 |
98+22 |
6.5 |
6 |
2800 |
1000 |
4 |
3.3 |
|
LC86H2120 |
1.8 |
120+22 |
8.2 |
6 |
3600 |
1000 |
4 |
4.0 |
|
LC86H2128 |
1.8 |
130+22 |
10 |
7.5 |
4200 |
1000 |
4 |
4.5 |
|
LC86H2160 |
1.8 |
156+22 |
12 |
7.5 |
5400 |
1000 |
4 |
5.4 |
2 Phase Nema34 Closed-loop Stepper Motor Size and Wiring Method

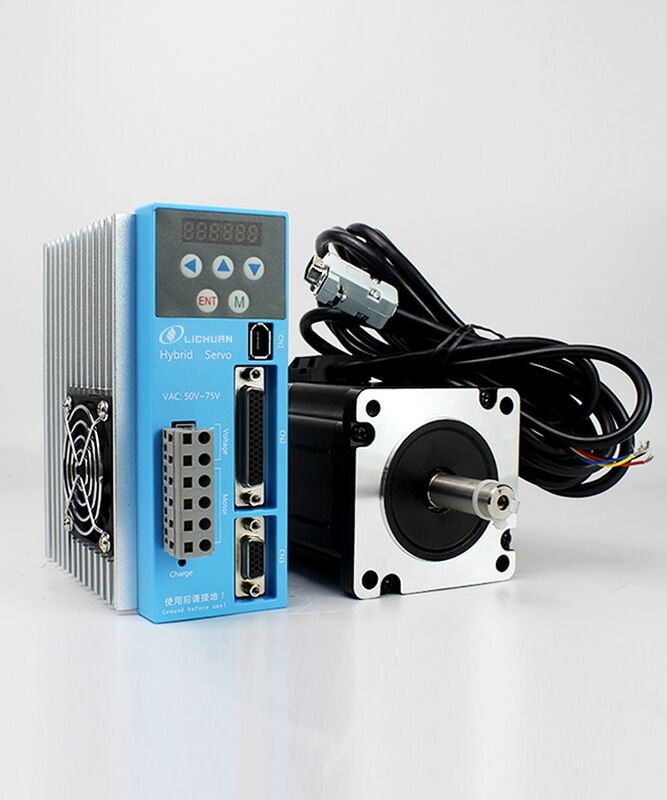

Motor Pictures
Driver LCDA808H Information
Lichuan's LCDA808H easy servo drives are based on the latest DSP technology and advanced control algorithm of combing brushless servo and stepper systems. They are featured with closed position loop, offering huge torque, excellent acceleration & quick response, no torque reservation, high standstill stiffness, extra low noise & heating, smooth motor movement, no hunting, no overshooting for almost zero settling time, and no tuning for almost all applications.
Features
1. Voltage input range: 50V ~ 80VAC
2. Maximum peak current: 8A
3. Subdivision range: 200 ~ 51200ppr
4. Signal input: differential / single-ended, pulse / direction
5. Impulse response maximum frequency: 200KHZ
6. External digital debugging panel for easy parameter setting and monitoring
7. Serial communication function, current, subdivision can be adjusted, signal edge, alarm output logic and other functions adjustable
8. Closed-loop vector control to ensure that the motor high-speed high-torque output,while ensuring the motor does not lose step, with over-voltage, over-current, tracking error tolerance

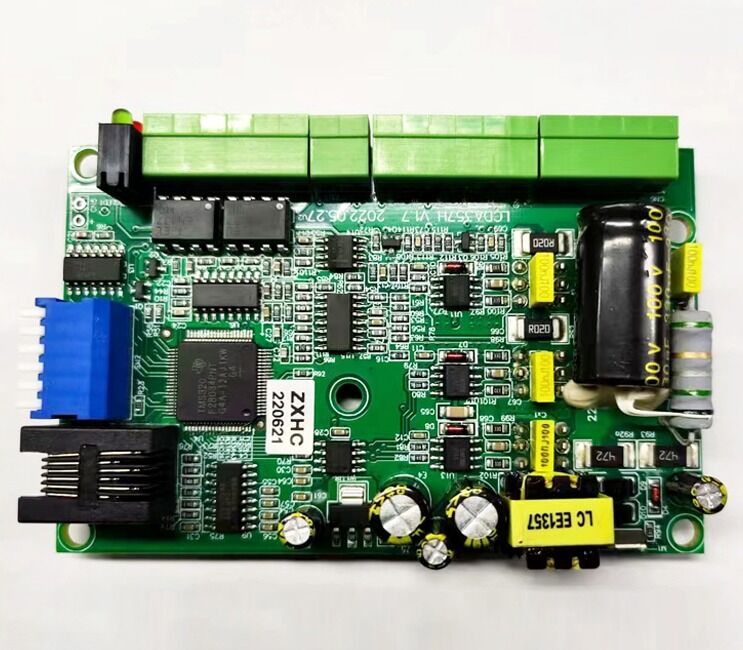

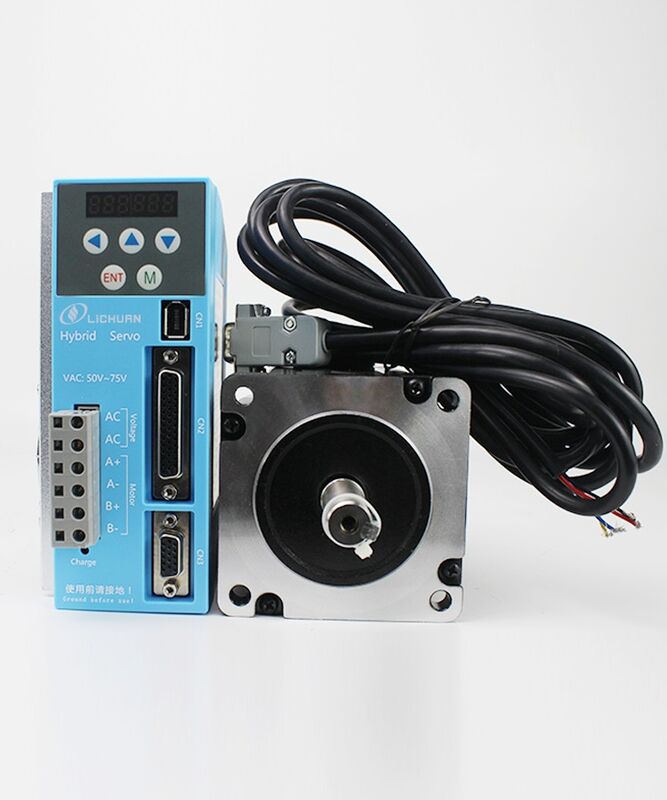

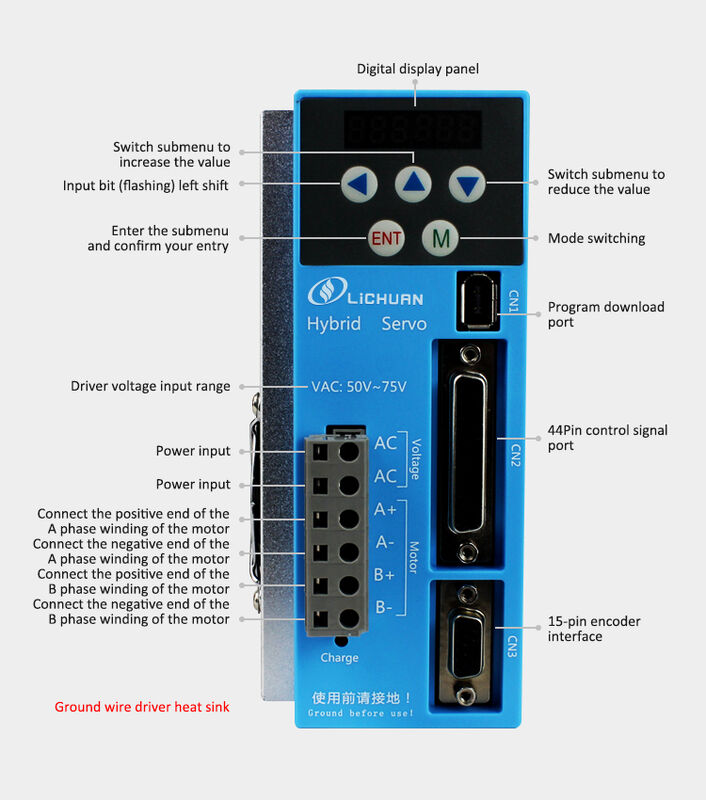

Driver Pictures
Packaging
Packing Details : Packing, foam protection
Delivery Details : 3-30 days after order confirmed,delivery date for bulk order depends on order quantity.
1. Special logistics packaging 2. Bulk products waiting to be test 3. Complete package
Shipping Method
1.For sample orders ,we usually send the goods by International Business Express as above.
2.For bulk products,we will send by sea or air,customer designated forwarders is also available.
3.For Russian customers generanlly send by CDEK or PONY,less than 20 days delivery,no tax fee.
4.Brazil,Argentina,Peru,India customers please give us your tax number after payment.
Shenzhen Xinlichuan Electric Co., LTD, which was founded in 2009, is a high-tech enterprise integrating product R&D, manufacturing and sales of industrial automation control system in Shenzhen,China. Our main products include:
AC Servo Motor System
Closed Loop Stepper Motor Kit
Hybrid Stepper Motor and Stepper Motor Driver
High-precision Planetary Gearbox
We are the offical distributor of weinview HMI, Hitech HMI, Fatek PLC, welcome to be our partners!
