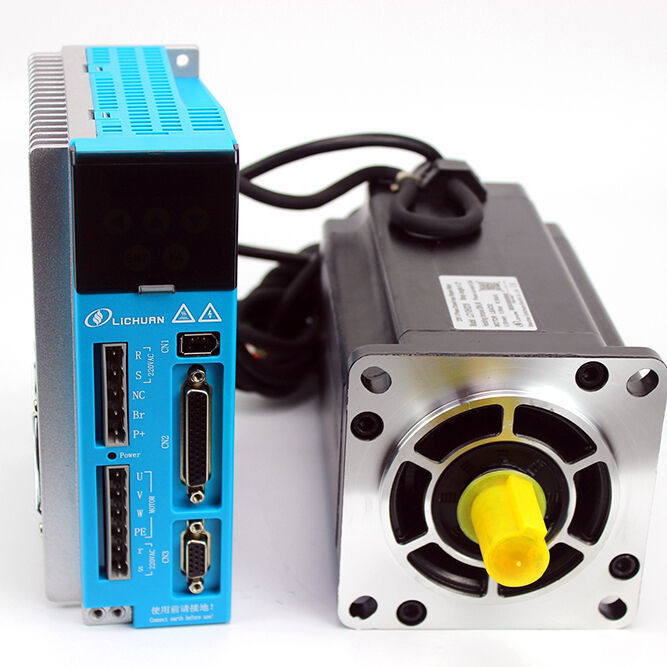

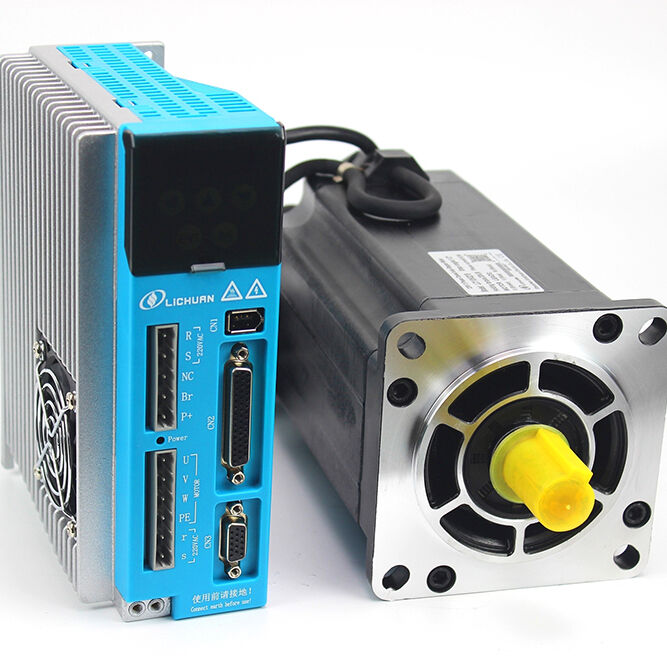

Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E

Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E

lichuan closed loop motor

lichuan closed loop stepper motor

220v closed loop motor

Place of Origin:

Guangdong, China

Brand Name:

LICHUAN

Model Number:

Nema34 LC86H3129+LCDA2260E

Contact Us
Request A Quote
Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E
Product Details
Phase:
3, 3-Phase
Type:
Permanent Magnet, LC86H3129+LCDA2260E
Current / Phase:
3A
Warranty:
3 Months ~ 1 Year
Name:
Nema34 Closed Loop Stepper Motor Kit
Voltage:
AC220V
Application:
High Speed CNC Machine
Torque:
10N.M
Motor Current:
3A
Motor Length:
154mm
PPR:
1000
Usage:
Cnc Machine
Highlight:

lichuan closed loop motor

,

lichuan closed loop stepper motor

,

220v closed loop motor

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$162.80-173 / set
RELATED PRODUCTS
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description

Packing List
NO.
Product Name
Model / Description
Quantity
1
3ph Nema34 closed loop stepper motor
LC86H3129
1
2
3phase closed loop stepper drive
LCDA2260E
1
3
Encoder Cable
Standard (3m)
1
Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E 0
Products Description

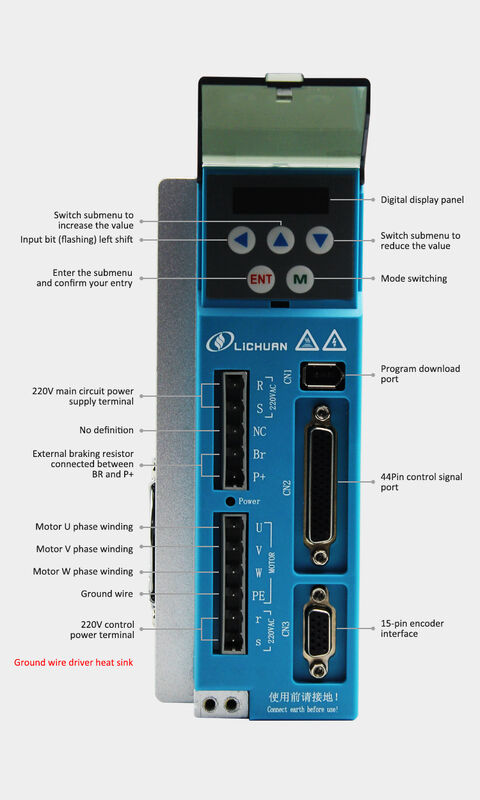

3 phase Closed-loop Stepper Drive LCDA2260E

LCDA2260E adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. When continuous overload of motor occurs, the Driver will timely output alarm signal, it is as reliable as AC servo system. Applies to motor installation dimensions which are fully compatible with Nema34/42 series stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.
Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E 2
Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E 4

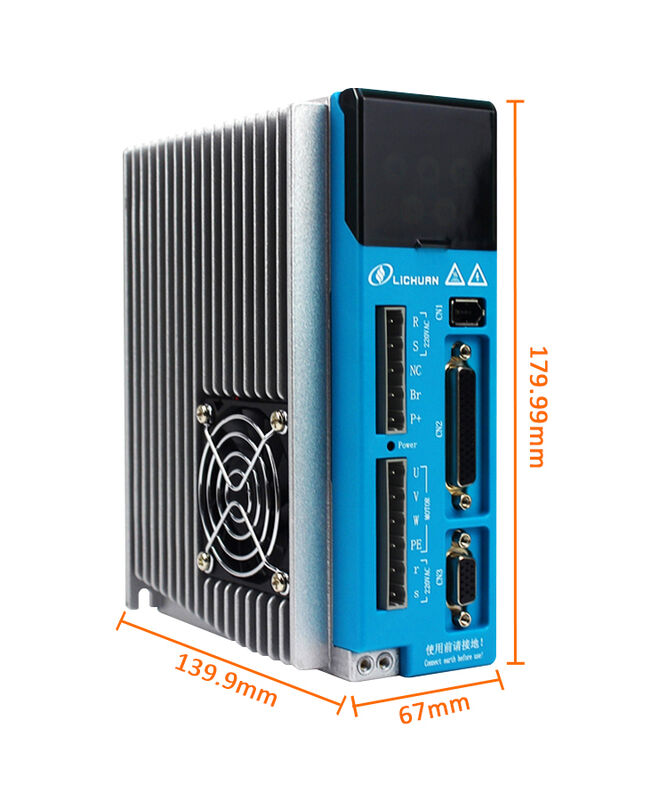

Lichuan 3-phase digital Stepper Drive
Product Model
LCDA2260E
Product Size
202 x 139 x 75mm
Product Weight
1.33KG
Alarm Output
stand by
Power Range
AC:220V
Subdivision Range
Adjustable on the drive
Current Range
Peak current 6A
Pulse Forml:Pulse + direction
Drice Motor:Three-phase 86 closed-loop stepper motor
Max Pluse Response Frequency:200KHZ(Pulse Width Greater than 2.5μs)
Signal voltage:Default + V5,connected to +V12/V24 requires series resistor
Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E 6
Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E 8
Three-phase 86mm closed-loop stepper motor
Model
LC86H3129
Weight(kg)
4.8KG
Length(mm)
154mm
Holding Torque(N.m)
10N.m
Phase Current(A)
3A
Rotational Inertia(g.cm²)
3800
Phase Resistance(Ω)
2.45
Step Angle(°)
1.2
Shaft Diameter(mm)
φ14
Shaft Extension(mm)
Keyway 5 x 5 x 15
Shaft Length(mm)
40mm
Phase Inductance(mH)
16
Lead wire(No.)
3
Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E 10
Application Area
Lichuan Nema 34 Stepper Motor Driver Ac 220v 10 N.m 3-Phase Closed Loop Motor Stepper Driver Kit Cnc LC86H3129+LCDA2260E 12
