3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E

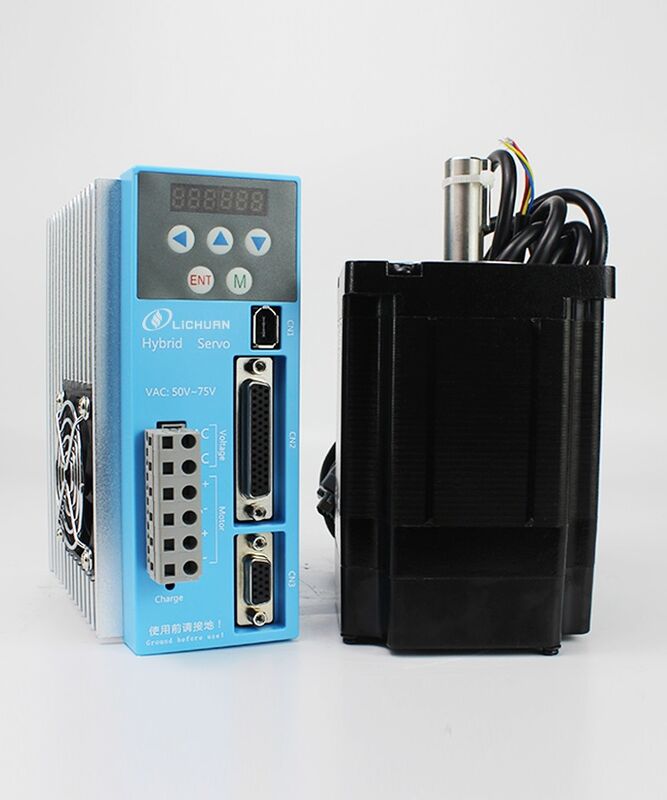

3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E

220V nema 34 closed loop stepper motor kit

10N.M nema 34 closed loop stepper motor kit

3 Phase closed loop nema 34

Place of Origin:

Guangdong, China

Brand Name:

LICHUAN

Model Number:

LC86H3129+LCDA2260E

Contact Us
Request A Quote
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E
Product Details
Phase:
3
Type:
Hybrid
Current / Phase:
3A
Warranty:
3 Months ~ 1 Year
Product Name:
Nema34 Closed Loop Stepper Motor Kit
Motor+drive Item:
LC86H3129+LCDA2260E
Voltage:
AC 220V
Application:
High Speed CNC Machine
Torque:
10N.M
Holding Torque(N.m):
10
Phase Current(A):
3
PPR:
1200
Length (mm):
154
Weight (kg):
4.7
Highlight:

220V nema 34 closed loop stepper motor kit

,

10N.M nema 34 closed loop stepper motor kit

,

3 Phase closed loop nema 34

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$146.52-155.34 / set
RELATED PRODUCTS
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description




Packing List
NO.
Product Name
Model / Description
Quantity
1
Nema 34 closed loop stepper motor
 LC86H3129
1
2
Nema 34 closed loop stepper driver
LCDA2260E
1
3
Driver encoder cable
Standard (3m)
1
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 0
Products Description



3 phase 10NM NEMA34 Closed-loop stepper motor driver/ LC86H3129 information
LCDA2260E adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor,obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. When continuous overload of motor occurs, the Driver will timely output alarm signal, it is as reliable as AC servo system. Applies to motor installation dimensions which are fully compatible with Nema 34/42 series stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 2
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 4
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 6

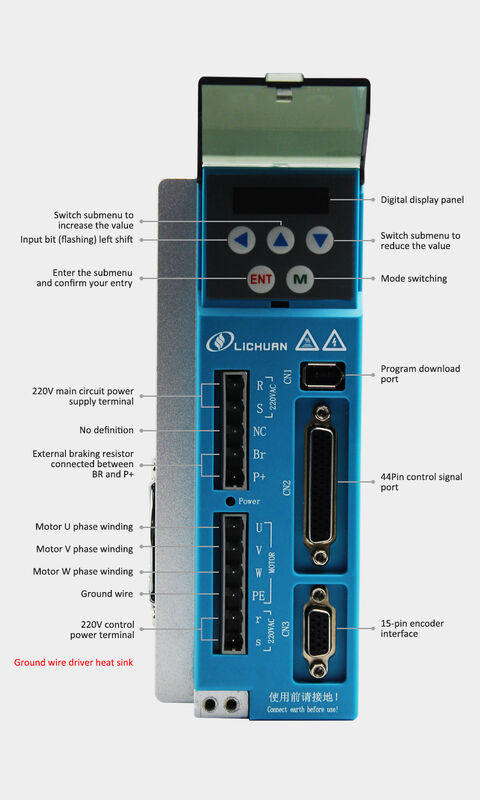

Lichuan 3 Phase Digital Hybrid Servo Driver

Product Model
LCDA2260E

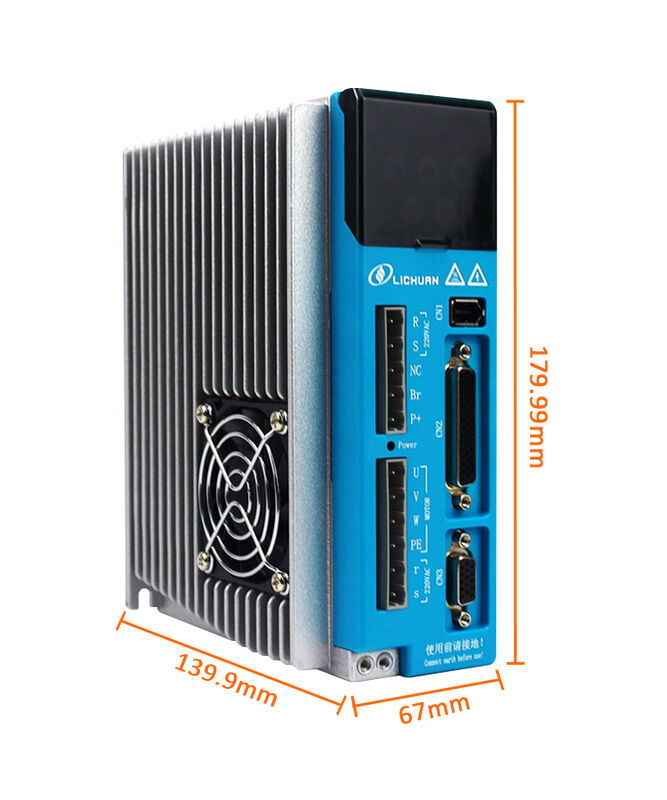

Product Size
179.99*139.9*67mm
Product Weight
1.22KG
Voltage input range
AC  150V~230V
Maximum output current
6A
Pulse form
Pulse + direction,CW/CCW
Logic input current
10~20mA
Pulse corresponding frequency
0~200kHz
insulation resistance
500MΩ
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 8
3 Phase Nema 34 Closed Loop Stepper Motor





Series
Step Angle(°)
Holding  Torque(N.m)
Phase Current(A)
Length  (mm)
Weight  (kg)
LC86H398
1.2
6.0
3.0
123
3.5
LC86H3114
1.2
6.8
3.0
140
4.2
LC86H3129
1.2
10
3.0
154
4.7
LC86H3156
1.2
12
3.0
182
5.5
Application Area
3 Phase 220V 10N.M Nema 34 Closed Loop Stepper Motor Kit LC86H3129+LCDA2260E 10
