Place of Origin:
Guangdong, China
Brand Name:
Lichuan
Model Number:
LCDA2260E+LC110H3185
Video
Video

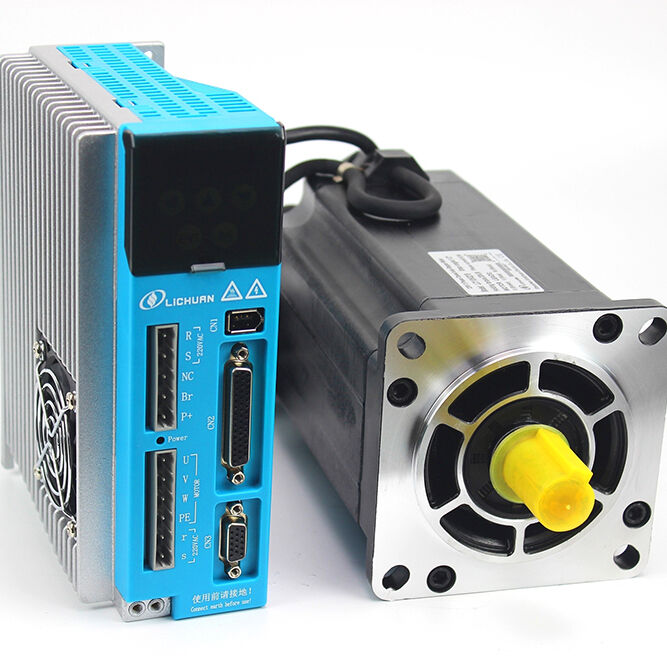

AC220V nema42 16Nm closed loop stepper motor LC110H3185+ driver LCDA2260E 6A 1phase 220VAC hybrid servo kit with 3M cable
| NO. | Item No. | Description | QTY |
| 1 | LCDA2260E | 1Phase AC220V closed loop digital stepper driver | 1PC |
| 2 | LC110H3185 | 3 phase 16NM NEMA42 Closed-loop stepper motor | 1PC |
| 3 | Encoder cable | 3M Encoder cable (Longer cable available) | 1PC |
>>>3 phase 16NM NEMA42 Closed-loop stepper motor/ LC110H3185 information
Three-phase 110 series closed-loop stepper motor, the use of high-quality raw materials and high-standard permanent magnet silicon steel, with 1000-line high-precision encoder, completely overcome the open-loop stepper motor stepping problems, while significantly enhance the motor high-speed performance, To facilitate the traditional step-by-step drive program upgrade, cost reduction compared to servo motor to reduce more than 50%. Motor length 129mm ~ 156mm between the torque range: 12N.m ~ 20N.m
Lichuan 3 phase 16NM NEMA42 Closed-loop stepper hybrid motor specification:
>>>Lichuan 3 phase NEMA42 digital Closed-loop stepper motor drive /LCDA2260E information
LCDA2260E using the latest dedicated motor control DSP chip and vector closed-loop control technology, completely overcome the open-loop stepper motor stepped the problem, while significantly enhance the motor high-speed performance, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy, Machine energy consumption. This drive is suitable for motor mounting size compatible with 86/110 series stepper motor, to facilitate the traditional step-by-step drive program upgrade, significantly reduce costs.
3 phase NEMA42 digital Closed-loop stepper motor driver /LCDA2260E specification:
Features:
1. Voltage input range: 220 ~ 230VAC
2. Quiescent current and dynamic current can be set at 0 ~ 6A
3. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring the motor does not lose step
4. Built-in sub-sub-low-speed low-level operation can also be very smooth
5. Parameter automatic setting function
6. Current dynamic control greatly reduces the motor heat, ultra-low vibration noise
7. External digital debugging panel for easy parameter setting and monitoring
8. Sub-adjustable range of 200 ~ 51200ppr, impulse response frequency up to 200KHZ
9. Serial communication function, current, subdivision can be adjusted, signal edge, alarm output logic and other functions adjustable
10. Closed-loop vector control to ensure that the motor high-speed high-torque output,
while ensuring that the motor is not lost step with over-voltage, over-current, tracking error tolerance
Main parameter :
1. Electrical indicators
|
Parameter/Vaule |
LCDA2260H |
|||
|
Minimum |
Typical |
Maximum |
Unit |
|
|
Max peak current |
- |
- |
6 |
A |
|
Input voltage |
150 |
220 |
230 |
VAC |
|
Logic input current |
7 |
10 |
16 |
mA |
|
Pulse frequency |
- |
- |
200 |
KHZ |

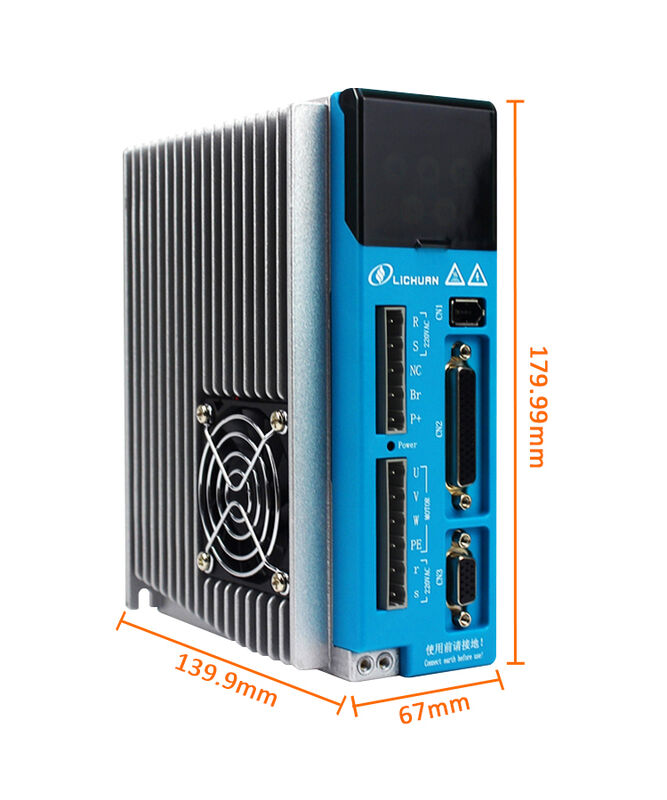

3 phase NEMA43 digital Closed-loop stepper motor driver /LCDA2260H size and wiring:
