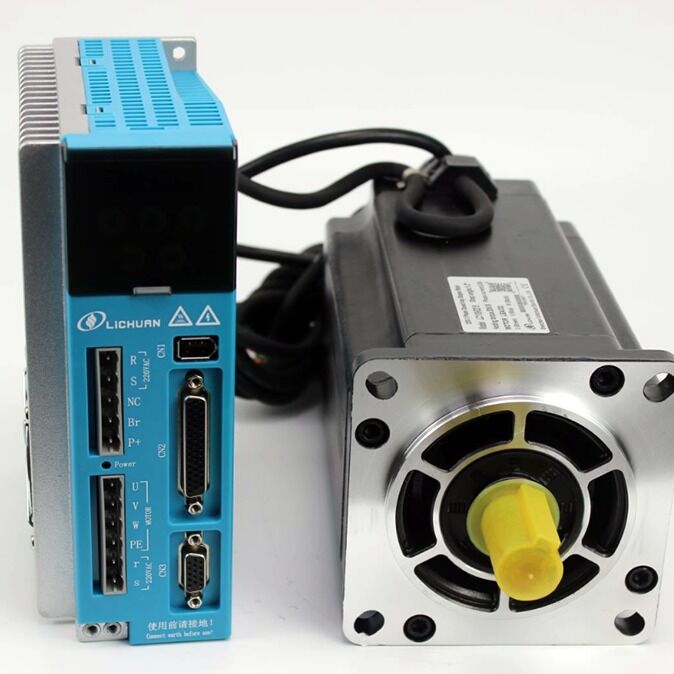

Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E

Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E

6.0A 3 phase stepper

12nm 3 phase stepper

Hybrid 3 phase stepper motor driver

Place of Origin:

Guangdong, China

Brand Name:

LICHUAN

Model Number:

LC110H3185+LCDA2260E

Contact Us
Request A Quote
Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E
Product Details
Phase:
3, 3phase
Type:
Hybrid
Current / Phase:
6A
Warranty:
3 Months ~ 1 Year
Motor Encoder:
1000ppr
Step Angle Accuracy:
+/-5%
Motor Weight:
6.6KG
Motor Shaft Diameter:
19mm
Motor Shaft Length:
40mm
Driver Peak Current:
6A
Driver Step Range:
200-51200ppr
Driver Voltage:
150-230VDC
Driver Pulse Feedback Frequency:
200Khz
Highlight:

6.0A 3 phase stepper

,

12nm 3 phase stepper

,

Hybrid 3 phase stepper motor driver

Payment & Shipping Terms
Minimum Order Quantity
2 sets
Price
$189-196.20 / set
RELATED PRODUCTS
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 10N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 7.5A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 6.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 4.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
Good price Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR online Video

Lichuan DC/AC Closed Loop Stepper Motor Drivers Kit 3.5N.m 2 Phase Nema34 DC24V～110V/AC18V～80V 6.0A 1000PPR

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description




Packing List
NO.
Product Name
Model / Description
Quantity
1
Nema 42 closed loop stepper motor
LC110H3185
1
2
Nema 42 closed loop stepper driver
LCDA2260E
1
3
Driver encoder cable
Standard (3m)
1
Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E 0
Products Description



3 phase 12NM NEMA42 Closed-loop stepper motor driver/ LC110H3185 information
LCDA2260E adopts the latest special motor control DSP chip and vector closed loop control technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption. When continuous overload of motor occurs, the Driver will timely output alarm signal, it is as reliable as AC servo system. Applies to motor installation dimensions which are fully compatible with Nema34/42 series stepper motors, is convenient for upgrading traditional stepper driversolutions and largely reduces cost.
Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E 2
Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E 4
Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E 6
Lichuan 3-phase digital Hybrid Servo Drive



Product Model
LCDA2260E
Product Size
202 x 139 x 75mm
Product Weight
1.33KG
Alarm Output
stand by
Power Range
AC:220V
Subdivision Range
Adjustable on the drive
Current Range
Peak current 6A


Pulse Forml:Pulse + direction



Drice Motor:Three-phase 86 closed-loop stepper motor



Max Pluse Response Frequency:200KHZ(Pulse Width Greater than 2.5μs)



Signal voltage:Default + V5,connected to +V12/V24 requires series resistor



Close Loop Lichuan Nema 42 Hybrid 6.0A 12nm 3 Phase Stepper CNC LC110H3185+LCDA2260E 8
3 Phase Nema 42 Closed Loop Stepper Motor




Series
Step Angle(°)
Holding Torque(N.m)
Phase Current(A)
Length (mm)
LC110H3151
1.2
12
6.0
161
LC110H3185
1.2
16
6.4
185
LC110H3219
1.2
20
6.9
219
Application Area
