LCDA606H+LC60H2127 Nema24 5.5Nm Closed Loop Stepper Servo Motor Driver With 3M Encoder

Motor LC60H2127 Information

Lichuan's LC-H2 series 2 phase closed loop stepper motors,they are are designed to match with Lichuan's 2 phase easy servo drivers including the LCDA257S,LCDA86H and LCDA606H. They are available from NEMA23 to NEMA34 (57,60mm and 86mm) with holding torque from 2Nm to 12Nm. LC60H2127 is NEMA24 5.5Nm closed loop stepper motors.1000-line optical incremental encoders,the matched drive is LCDA606H,They all have encoder feedback, high speed, high precision.

2 Phase Nema24 Closed-loop Stepper Motor Specifications

 Notes: The above is only for representative products, We can according to customer requirements to remake.

For Nema24 closed loop stepper motor, the hole distance can do 50mm and 47mm, the default will be 47mm, please make remart if 47mm needed.

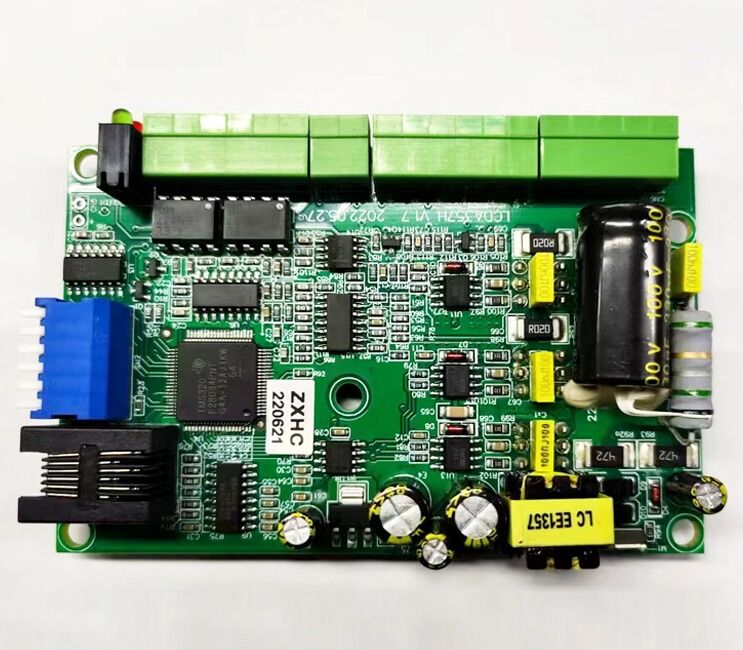

Driver LCDA606H Information

The LCDA606S uses the latest dedicated motor control DSP chip and vector closed-loop control technology to completely overcome the problem of lost loop open-circuit stepper motor. At the same time, it can significantly improve the high-speed performance of the motor, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy, and reduce machine power consumption. This driver is suitable for two-phase 86-type closed-loop stepping motor, which has the advantages of both stepping and servo.


Features

1,Electrical index

·Voltage input range:DC : 24V~50V

·Maximum output current: 7A

· Pulse form: pulse + direction, CW / CCW

· Logic input current: 10 ~ 20mA

· Impulse response frequency: 0 ~ 200kHz

· Insulation resistance: 500M

2,Environmental indicators

· Storage temperature: -20 ℃ ~ 80 ℃

· Operating temperature: 0 ℃ ~ 55 ℃

· Humidity: 90% RH (non-condensing)

· Vibration frequency: less than 0.5G (4.9m / s 2) 10Hz ~ 60Hz

(not continuous operation)

1.For sample orders ,we usually send the goods by International Business Express as above.
2.For bulk products,we will send by sea or air,customer designated forwarders is also available.

3.For  Russian  customers  generanlly send by  CDEK ,less than 20 days delivery,no tax fee and customs chearance easily.
4.   Brazil,Argentina,Peru,India  customers please give us your  tax number  after payment.

1. Before purchasing, please contact us to confirm the model number and specifications to avoid any misunderstanding.

2.About payment methods,we support   T/T(bank transfer), Paypal(0.5% paypal charges), Western Union, ALIBABA assurance order accept.

1) How can I place order?
A: You can contact us by email about your order details, or place order on line.

2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (Hong Kong Hang Seng bank) and Paypal, Western Union are the most usual ways we are using.

3) What's the order procedure?
A: First we discuss order details, production details by email or Skype. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

4)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
