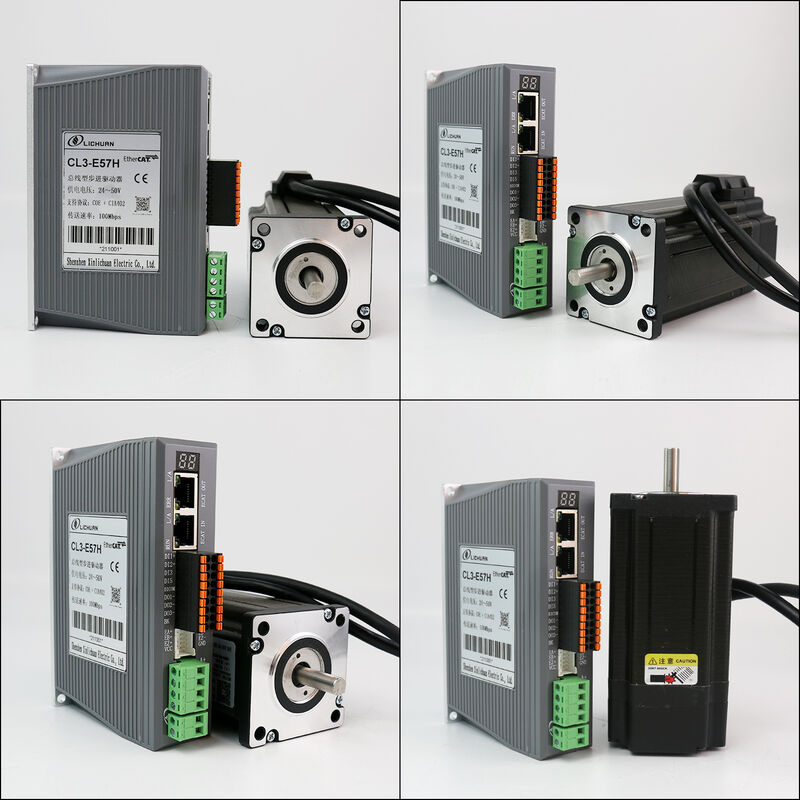

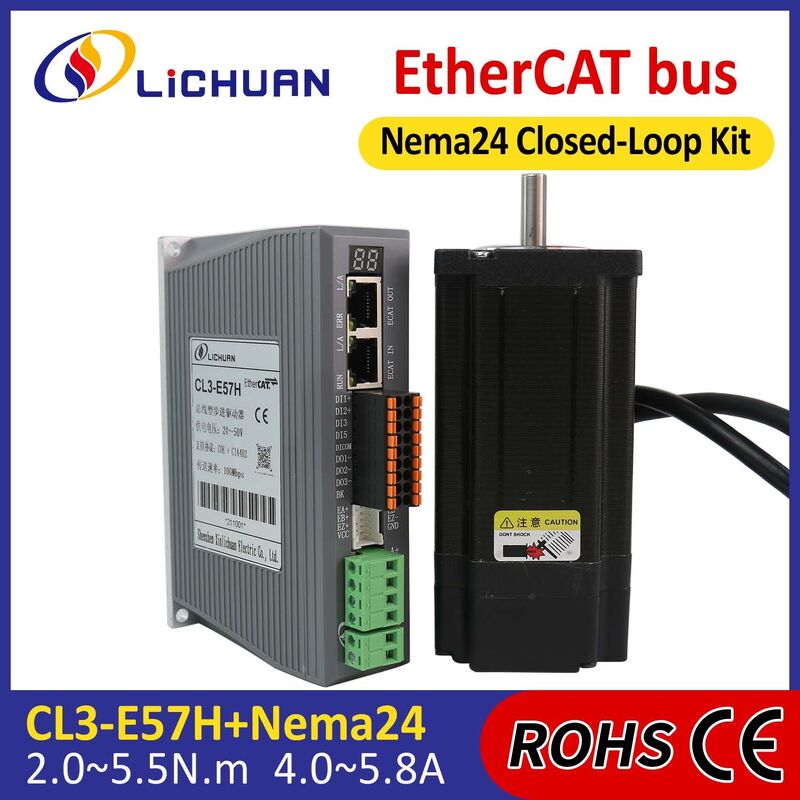

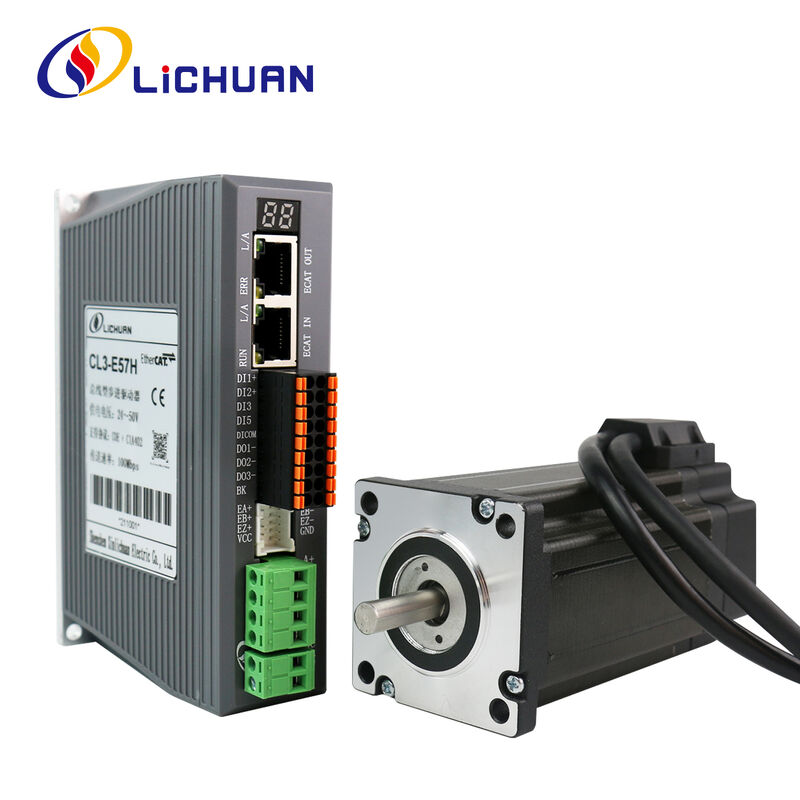

Lichuan DC Closed Loop Stepper Motor Drivers Kit 4.8N.m 2 Phase Nema24 DC24V～48V 5.8A 1000PPR
Lichuan DC Closed Loop Stepper Motor Drivers Kit – Nema24 2-Phase | 2.0–5.5N·m | DC 24–48V | 4.0–5.8A | 1000PPR
The Lichuan DC Closed Loop Stepper Motor Drivers Kit is a high-performance motion control solution designed for medium-to-heavy-duty automation equipment. Featuring Nema24 2-phase hybrid closed-loop stepper motors with torque options of 2.0N·m, 2.3N·m, 2.8N·m, 4.5N·m, 4.8N·m, and 5.5N·m, this kit ensures exceptional stability, high acceleration response, and zero-lost-step performance. Engineered for applications requiring accuracy and reliability, the Lichuan kit operates on DC 24V–48V, supports 4.0A / 4.5A / 5.0A / 5.8A, and integrates a 1000PPR encoder, delivering precise closed-loop control.
The Lichuan DC Closed Loop Stepper Motor Drivers Kit combines an advanced closed-loop driver and a high-torque Nema24 stepper motor into one compact package. This kit eliminates common stepper problems such as lost steps, vibration, and overheating through real-time encoder feedback. With its high-torque structure and industry-grade components, it offers enhanced positioning accuracy, automatic current adjustment, and smooth low-speed operation. Ideal for professional industrial users, makers, and OEM integrators.

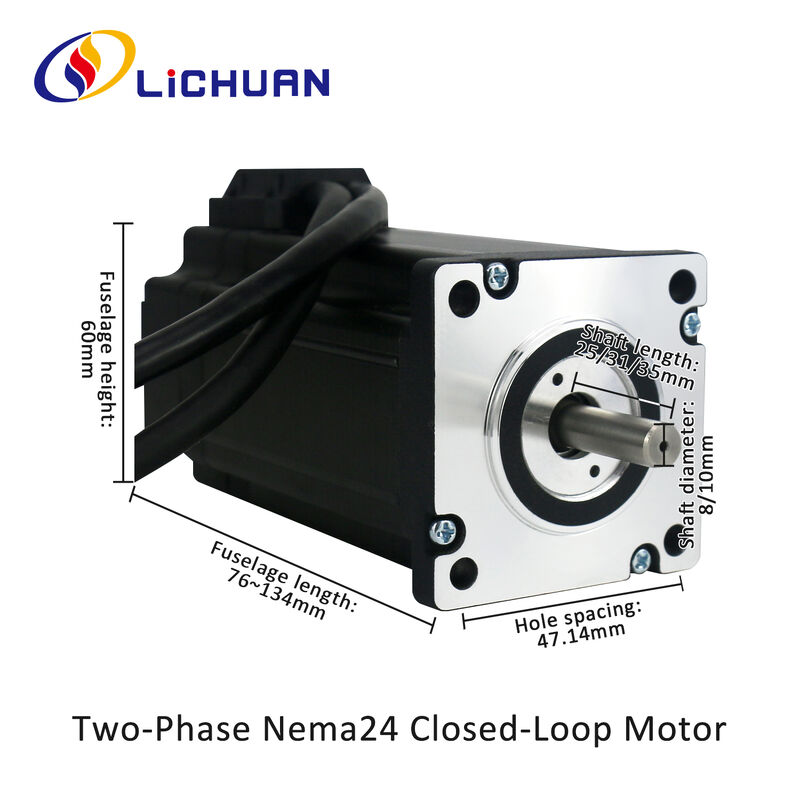

| 2PHASE NEMA24 CLOSED-LOOP MOTOR | ||||||||||

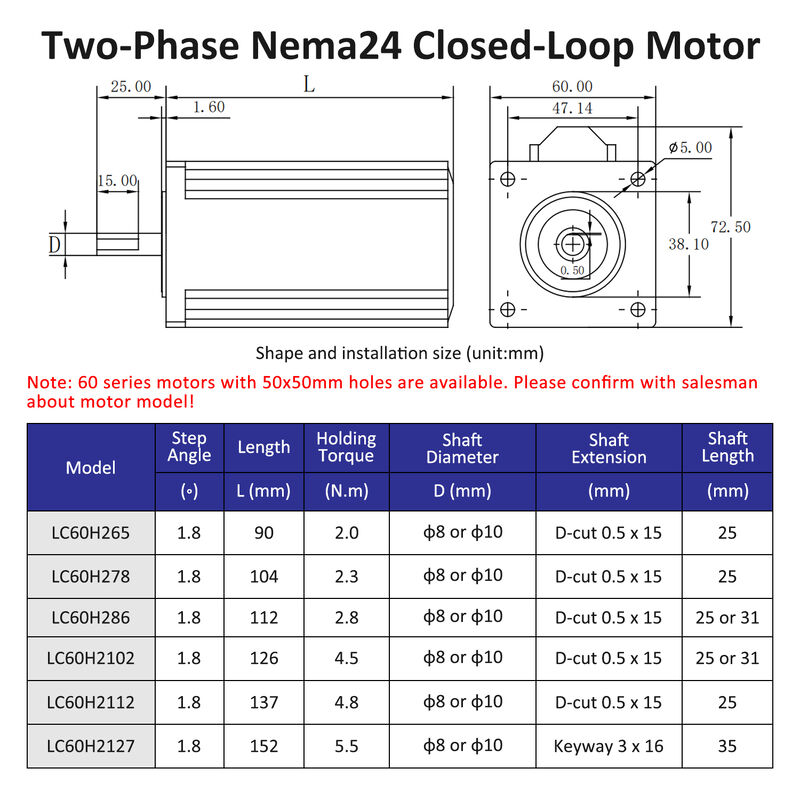

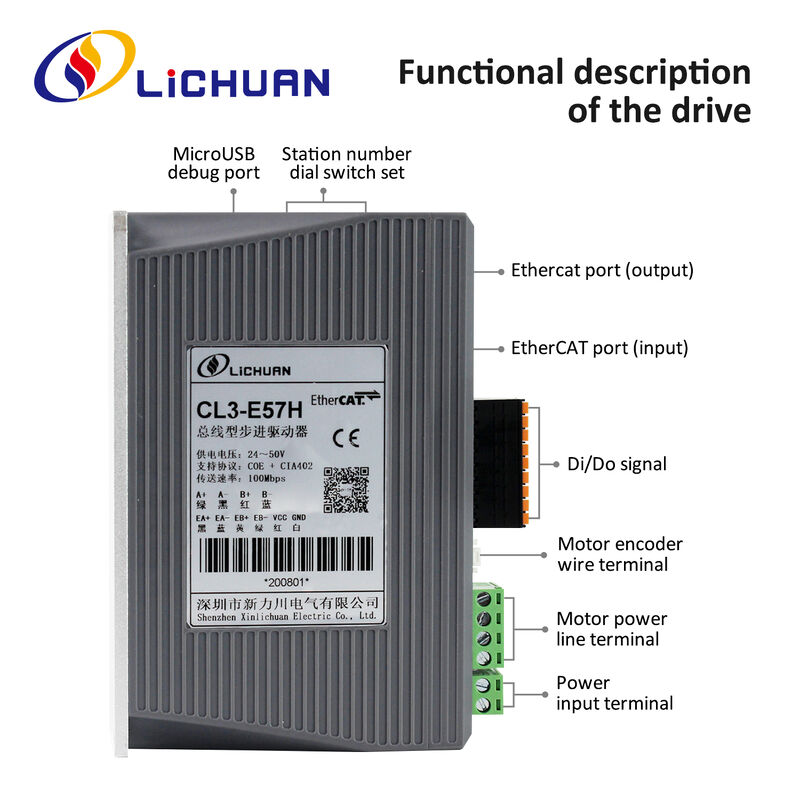

| Model | Step Angle | Motor Length | Holding Torque | Rated Current | Rotor Inertia | Motor Weight | Encoder Resolution | Shaft Diameter | Shaft Extension | Shaft Length |
| (°) | L(mm) | (N.m) | (A) | (g.cm²) | (Kg) | (PPR) | D (mm) | (mm) | (mm) | |
| LC60H265 | 1.8 | 90 | 2.0 | 4.0 | 560 | 1.0 | 1000 | 8 or 10 | D-cut 0.5x15 | 25 |
| LC60H278 | 1.8 | 104 | 2.3 | 4.0 | 570 | 1.1 | 1000 | 8 or 10 | D-cut 0.5x15 | 25 |
| LC60H286 | 1.8 | 112 | 2.8 | 4.5 | 620 | 1.45 | 1000 | 8 or 10 | D-cut 0.5x15 | 25 or 31 |
| LC60H2102 | 1.8 | 126 | 4.5 | 5.0 | 1000 | 1.87 | 1000 | 8 or 10 | D-cut 0.5x15 | 25 or 31 |
| LC60H2112 | 1.8 | 137 | 4.8 | 5.8 | 1200 | 2.1 | 1000 | 8 or 10 | D-cut 0.5x15 | 25 |
| LC60H2127 | 1.8 | 152 | 5.5 | 5.8 | 1370 | 2.45 | 1000 | 8 or 10 | Keyway 3x16 | 35 |
| Ethercat bus-type two-phase closed-loop driver | |||
| Product Model | CL3-E57H | Product Size | 133x90x34mm |
| Current Range | Peak current 5A | Product weight | 0.3KG |
| Power Range | DC24V~48V | Drive Motor | two-phase nema23 closed-loop motor |
| Junction port | RJ45 | Encoder | 1000-line incremental |
| Equipment Agreement Standard: | CiA402 Drive Profile | ||
| Communication Protocol Standard: | CoE: CANopen over EtherCAT | ||
| Transmission rate: | 2x 100 Mbps(full duplex) | ||
| Bus Address setting: | Two-bit 16-bit Rotary Code,can be used to set from the station address, addressrange 0x00~0xFF | ||
| Control Mode: |
PP (Profile Position Mode) protocol location Mode PV(Profile Velocity Mode) protocol speed Mode HM (Homing Mode) back to square one CSP (Cycle Synchronized Position Mode) Cycle synchronization Mode |
||
| Digital input: | 6 input functions, of which 4 single-ended input isolation,2 differential isolation input,differential maximum input frequency 500 Khz | ||
| Digital output: | Three signal outputs and one single -ended brake control | ||
| Alarm function: | It has over-current, over-voltage, under-voltage, over-tolerance alarm and so on | ||
Brand: Lichuan
Product Name: Lichuan DC Closed Loop Stepper Motor Drivers Kit
Motor Type: 2-Phase Nema24 Closed Loop Stepper Motor
Holding Torque Options: 2.0N·m / 2.3N·m / 2.8N·m / 4.5N·m / 4.8N·m / 5.5N·m
Voltage Range: DC 24V–48V
Current Options: 4.0A / 4.5A / 5.0A / 5.8A
Encoder Resolution: 1000PPR Incremental
Driver Type: Intelligent Closed-Loop Microstep Driver
| Model Torque (N·m) | Rated Current (A) | Voltage (V) | Encoder | Frame |
|---|---|---|---|---|
| 2.0N·m | 4.0A | 24–48V | 1000PPR | Nema24 |
| 2.3N·m | 4.5A | 24–48V | 1000PPR | Nema24 |
| 2.8N·m | 5.0A | 24–48V | 1000PPR | Nema24 |
| 4.5N·m | 5.0A | 24–48V | 1000PPR | Nema24 |
| 4.8N·m | 5.8A | 24–48V | 1000PPR | Nema24 |
| 5.5N·m | 5.8A | 24–48V | 1000PPR | Nema24 |
| Item | Specification |
|---|---|
| Input Voltage | 24–48V DC |
| Output Current | 4.0A–5.8A |
| Control Mode | PUL/DIR |
| Max Microsteps | 51200 |
| Protection | OV, OC, Encoder Error |
Frame Size: Nema24 (60mm)
Phases: 2
Torque Options: 2.0–5.5N·m
Shaft Diameter: 8 / 10mm (depending on model)
Step Angle: 1.8°
Encoder Resolution: 1000PPR
Insulation Class: B
Rotor Inertia: High-precision rotor for smooth movement
Input Voltage: DC24–48V
Output Current: 4.0A / 4.5A / 5.0A / 5.8A
Microstepping: Up to 51200 steps/rev
Control Modes: Pulse + Direction (PUL/DIR)
Protection Functions:
Over-voltage
Over-current
Encoder error
Position deviation protection
Closed Loop Features:
Automatic current adjustment
No lost steps
Real-time monitoring
High Torque Range (2.0–5.5N·m) – Suitable for both light and heavy mechanical loads.
True Closed-Loop Control – Eliminates step loss and increases reliability.
1000PPR Encoder Feedback – Ensures precise positioning accuracy.
Wide Voltage Input (24–48V DC) – Compatible with a variety of industrial power systems.
High Efficiency & Low Heating – Better than traditional open-loop stepper systems.
Plug-and-Play Lichuan Kit – Quick installation for OEMs and automation designers.
Smooth & Quiet Motion – Ideal for applications requiring accuracy and low noise.
Industrial-grade Nema24 motor design
Real-time closed-loop correction
High response speed and fast acceleration
Microstep optimization algorithm
Automatic parameter tuning
Stable under high load and continuous operation
Enhanced torque output compared to open-loop motors
The Lichuan DC Closed Loop Stepper Motor Drivers Kit integrates:
Closed-loop encoder system for feedback control
Smart driver algorithms for torque compensation
High-efficiency magnetic circuit for strong torque
Adaptive current control for reduced heat
This advanced hybrid servo system bridges the gap between stepper motors and servo motors—offering servo-like performance at an affordable cost.
The motor includes a 1000PPR incremental encoder that continuously sends position signals to the driver.
The driver compares commanded steps vs. actual rotor position and automatically adjusts current and torque output.
This ensures:
Zero lost steps
Accurate position tracking
Stable speed control
Improved efficiency
The Lichuan DC Closed Loop Stepper Motor Drivers Kit is widely used in:
CNC machinery
3D printers & industrial printing machines
Laser engraving & cutting equipment
Packaging machinery
Textile machinery
Robotics and automation
Pick-and-place systems
Conveyor and material handling systems
Automatic production lines
Precision motion control systems
Multi-axis CNC equipment
Repetitive high-load motion applications
Higher torque compared to open-loop motors
Servo-level performance at a lower cost
Reduced noise, less vibration
Automatic error correction
Long service life
Stable continuous operation
OEM/ODM customization
One-to-one technical guidance
Online installation support
Long-term spare parts supply
Fast global shipping
Q1: Is this kit suitable for CNC machines?
Yes, the Lichuan DC Closed Loop Stepper Motor Drivers Kit works perfectly for CNC routers, mills, engravers, and lathes.
Q2: Does it prevent lost steps?
Yes, thanks to encoder feedback, step loss is eliminated.
Q3: What power supply is recommended?
A regulated 24–48V DC industrial power supply.
Q4: Can I upgrade from an open-loop system?
Yes, wiring is similar and fully compatible.
High-precision CNC motor housing machining
Advanced copper-coil winding
Encoder precision calibration
Driver PCB SMT assembly
Quality testing under load and temperature
Connect the driver to a DC24–48V power supply
Connect motor and encoder cables
Configure driver parameters (PUL/DIR)
Install motor onto machine
Test and fine-tune microstepping if needed
Use only regulated DC power
Avoid incorrect encoder wiring
Do not exceed rated current
Ensure good ventilation during operation
Avoid mechanical overload
100% functional testing
Warranty on all Lichuan closed-loop stepper kits
Strict process control
24/7 online technical service
Global after-sales support
Professional motion-control engineers available
