Lichuan Integrated Servo Motors Driver

Product Introduction

The Lichuan Integrated Servo Motors Driver is an advanced all-in-one motion control solution that integrates a high-performance servo motor, servo driver, and encoder into a single compact unit. Supporting Pulse, RS485, and CANopen control modes, this Integrated Servo Motors Driver is designed for high-precision, high-reliability automation systems. With power options ranging from 200W to 1000W, it is ideal for industrial automation, robotics, AGV systems, and intelligent equipment.

Product Information

The Integrated Servo Motors Driver operates on DC24V or DC48V power supply and delivers stable torque output with a rated speed of 3000RPM. By integrating motor, driver, and feedback system, it greatly simplifies wiring, reduces installation time, and enhances overall system stability. The IP65 protection level ensures reliable operation in demanding industrial environments.

Product Description

This Lichuan Integrated Servo Motors Driver adopts advanced digital servo algorithms and closed-loop control technology. Multiple communication options including Pulse, RS485, and CANopen allow seamless integration with PLCs, motion controllers, and industrial networks. Compared with traditional separated servo motor and drive systems, the Integrated Servo Motors Driver offers lower system cost, faster commissioning, and higher reliability.

Basic Information

• Brand: Lichuan

• Product Name: Integrated Servo Motors Driver

• Power Range: 200W / 400W / 600W / 750W / 1000W

• Rated Torque: 0.637 / 1.27 / 1.91 / 2.4 / 3.2 N·m

• Rated Speed: 3000 RPM

• Rated Voltage: DC24V / DC48V

• Rated Current: 6A / 10A / 12A / 15A

• Protection Level: IP65

Application Fields

• Industrial automation systems

• Robotics and collaborative robots

• AGV and AMR mobile platforms

• CNC and special-purpose machinery

• Packaging, printing, and textile equipment

Specifications

• Integrated motor + driver + encoder design

• Closed-loop servo control system

• Pulse / RS485 / CANopen control supported

• High torque density and fast response

• Compact structure with IP65 protection

Product Selling Points

• All-in-one Integrated Servo Motors Driver reduces wiring by over 50%

• Multiple control modes for flexible system integration

• Wide power range from 200W to 1000W

• High precision encoder feedback

• Industrial-grade IP65 for harsh environments

Product Features

• Stable torque output across full speed range

• Smooth acceleration and deceleration

• Low noise and low vibration operation

• Strong overload capability

• Long service life with minimal maintenance

Product Technology

The Integrated Servo Motors Driver uses DSP-based digital control technology with advanced vector control algorithms. Real-time current, speed, and position loops ensure precise motion control, fast dynamic response, and high positioning accuracy under varying load conditions.

Product Working Principle

The Integrated Servo Motors Driver operates on a closed-loop servo principle. Encoder signals continuously feed back motor position and speed to the driver. The controller compares actual values with command signals and adjusts output current in real time, ensuring accurate motion control and stable torque performance.

Product Applications

This Integrated Servo Motors Driver is widely used in conveyor systems, robotic joints, automated assembly lines, electric drive units, and intelligent machinery requiring precise speed and position control.

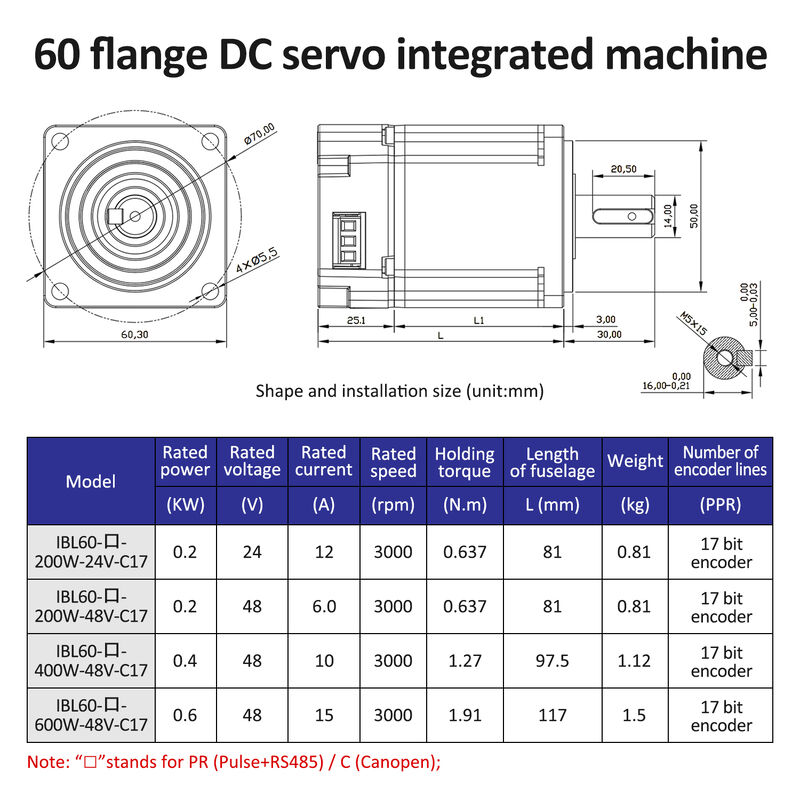

Product Parameter Table

Product Advantages

• Simplified system architecture using Integrated Servo Motors Driver

• Reduced installation, wiring, and maintenance costs

• High efficiency and stable long-term operation

• Flexible communication options for industrial networks

• Excellent performance-to-cost ratio

Product Services

• Professional product selection guidance

• OEM & ODM customization support

• Wiring, installation, and commissioning assistance

• Long-term technical support and documentation

Production Process

Each Integrated Servo Motors Driver is manufactured under strict quality control procedures, including motor winding, precision assembly, encoder calibration, functional testing, and aging tests to ensure consistent quality and reliability.

Operation Method

1. Connect the power supply according to DC24V or DC48V rating.

2. Connect control signals via Pulse, RS485, or CANopen interface.

3. Set parameters using configuration software or controller.

4. Perform test run and fine-tune settings before full operation.

Precautions

• Ensure correct voltage and wiring before powering on.

• Avoid operation beyond rated current and torque.

• Provide adequate heat dissipation and ventilation.

• Follow installation and safety guidelines strictly.

Product Certifications

• CE Certification

• RoHS Compliance

• ISO Quality Management System

Quality Assurance

Every Integrated Servo Motors Driver undergoes comprehensive inspection and performance testing before shipment. Lichuan ensures stable quality, high reliability, and long service life for all products.

Customer Service Information

• Pre-sales technical consultation

• Fast-response after-sales support

• Remote technical assistance

• Stable long-term spare parts supply

For more details about the Lichuan Integrated Servo Motors Driver, please contact our sales and technical support team.

Company Introduction

Lichuan is a professional manufacturer specializing in motion control solutions. With extensive experience in servo motor and drive technology, Lichuan delivers reliable Integrated Servo Motors Driver products to customers worldwide in automation, robotics, and intelligent equipment industries.

FAQ

Q1: What control modes does the Integrated Servo Motors Driver support?
A: It supports Pulse, RS485, and CANopen control for flexible integration.

Q2: What voltage options are available?
A: The Integrated Servo Motors Driver supports DC24V and DC48V power supply.

Q3: Is this product suitable for harsh industrial environments?
A: Yes, with IP65 protection, it is suitable for dusty and humid environments.
