Lichuan Integrated Servo Motors Driver Pulse/RS485/CANopen Control 1000W 3.2N.m DC48V 20/25A 3000RPM IP65

Lichuan Integrated Servo Motors Driver

Pulse / RS485 / CANopen Control | 200–1000W | DC24/48V | IP65

Product Description

The Lichuan Integrated Servo Motors Driver combines high-precision servo control with a rugged industrial design.
By integrating the motor and driver into one unit, this Integrated Servo Motors Driver eliminates external servo drives, reduces cabinet space, and improves system stability.

Support for multiple industrial communication protocols allows the Integrated Servo Motors Driver to connect seamlessly with PLCs, motion controllers, industrial PCs, and robotic systems.

Product Introduction

The Lichuan Integrated Servo Motors Driver is a compact, high-performance motion control solution that integrates the servo motor, driver, encoder, and control unit into a single, sealed structure.
Designed for modern industrial automation, this Integrated Servo Motors Driver supports Pulse, RS485, and CANopen control, delivering precise motion control with simplified installation and reduced wiring complexity.

With power options from 200W to 1000W, torque up to 3.2 N·m, and a rated speed of 3000 RPM, the Lichuan Integrated Servo Motors Driver is ideal for intelligent manufacturing systems requiring reliability, flexibility, and space efficiency.

Technical Specifications Table

Product Information

• Brand: Lichuan

• Product Type: Integrated Servo Motors Driver

• Control Modes: Pulse / RS485 / CANopen

• Rated Power: 200W / 400W / 600W / 750W / 1000W

• Rated Speed: 3000 RPM

• Protection Class: IP65

• Power Supply: DC24V / DC48V

The Integrated Servo Motors Driver is engineered for OEMs, automation system integrators, and industrial equipment manufacturers.

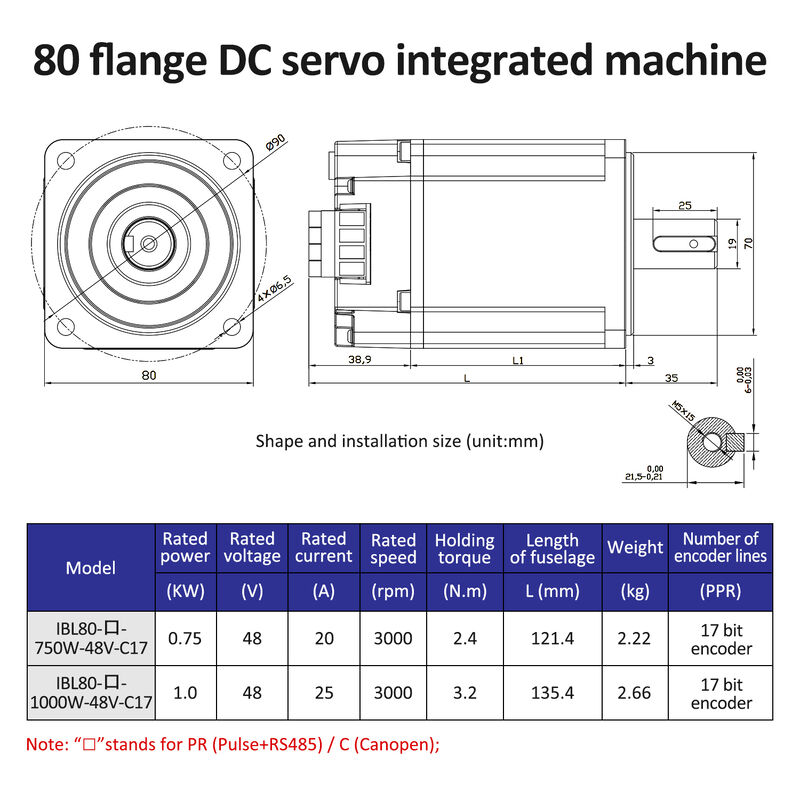

Basic Specifications

• Rated Torque:
  0.637 / 1.27 / 1.91 / 2.4 / 3.2 N·m

• Rated Current:
  6A / 10A / 12A / 15A

• Rated Speed:
  3000 RPM

• Cooling Method:
  Natural cooling

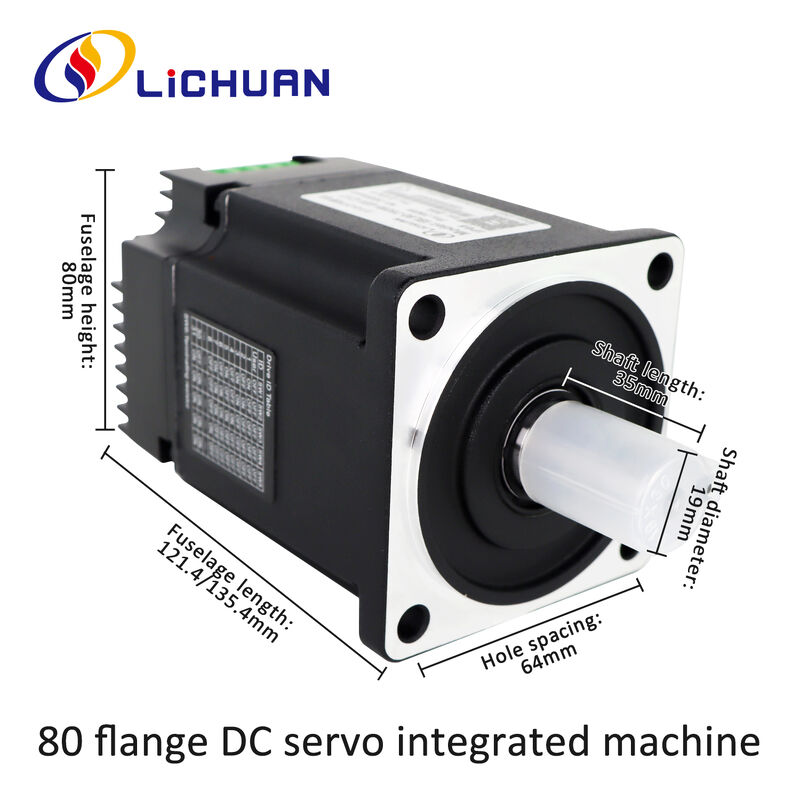

• Mounting Type:
  Flange mounting

This Integrated Servo Motors Driver delivers high power density in a compact footprint.

Key Selling Points

• All-in-One Integrated Design
  The Integrated Servo Motors Driver combines motor and drive electronics into a single compact unit, reducing wiring and installation time.

• Multiple Control Interfaces
  Supports Pulse, RS485, and CANopen for flexible system integration.

• Low-Voltage, High-Performance Output
  DC24V / DC48V supply improves operational safety while maintaining high torque and speed.

• IP65 Industrial Protection
  Suitable for dusty, humid, and harsh industrial environments.

Product Features

• High-precision closed-loop control

• Compact Integrated Servo Motors Driver structure

• High dynamic response and smooth operation

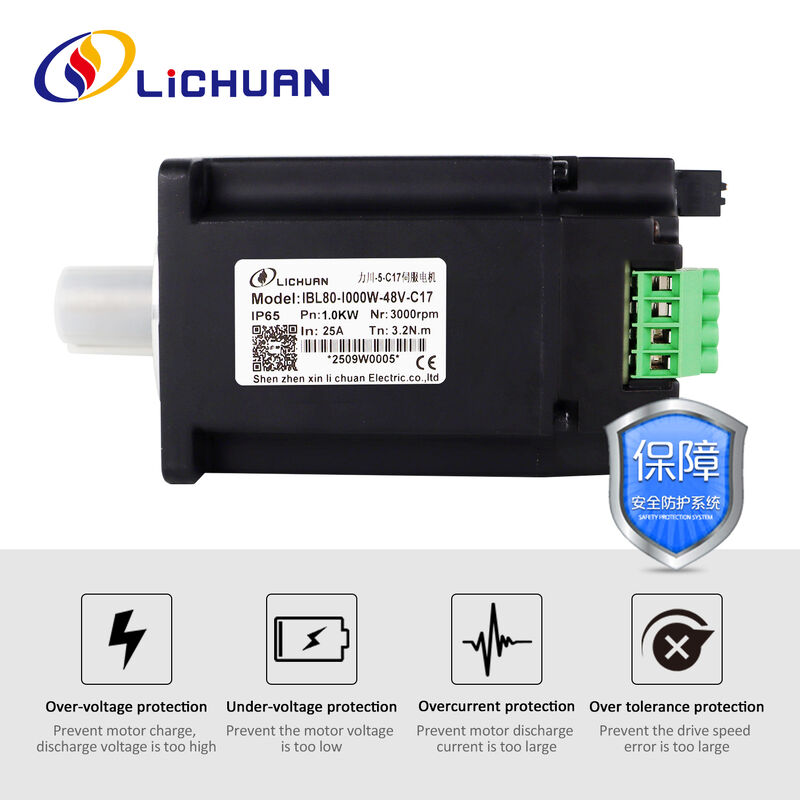

• Built-in protection against over-current, over-voltage, and over-temperature

• Industrial-grade reliability for continuous operation

Product Technology

The Lichuan Integrated Servo Motors Driver utilizes advanced FOC (Field-Oriented Control) and high-speed PWM modulation.
Real-time feedback from the integrated encoder enables precise control of current, speed, and position, ensuring stable and accurate motion even under dynamic load conditions.

Working Principle

The Integrated Servo Motors Driver operates on a fully closed-loop servo control principle:

1. Control commands are received via Pulse, RS485, or CANopen

2. The internal drive calculates optimal current output

3. The motor executes motion

4. The encoder provides real-time feedback

5. The controller corrects deviations instantly

This ensures high positioning accuracy and repeatability.

Applications

The Integrated Servo Motors Driver is widely used in:

• Industrial robots and collaborative robots

• AGV / AMR drive systems

• CNC machines and machining centers

• Packaging and labeling equipment

• Automatic assembly lines

• Logistics sorting and conveying systems

Product Uses

• Precision positioning systems

• Speed and torque control

• Multi-axis automation equipment

• Intelligent manufacturing solutions

Product Advantages

• Reduced control cabinet space

• Simplified wiring and faster commissioning

• Higher system reliability and EMI resistance

• Lower total system cost

The Integrated Servo Motors Driver is an ideal upgrade from traditional separate motor-drive systems.

Manufacturing Process

• Precision CNC machining

• Automated assembly

• Encoder calibration

• Burn-in and aging tests

• 100% functional and performance inspection

Operation Guide

1. Confirm correct input voltage and model selection

2. Connect power and control interfaces

3. Select control mode (Pulse / RS485 / CANopen)

4. Set motion parameters and run auto-tuning

5. Start operation and monitor system status

Precautions

• Do not exceed rated voltage or current

• Ensure proper grounding

• Maintain adequate ventilation during high-load operation

• Verify communication settings before operation

Certifications

• ISO 9001

• CE

• RoHS

Quality Assurance

• 100% factory testing before shipment

• Strict quality inspection standards

• Proven long-term stability and reliability

Customer Service

• Professional technical support

• Remote commissioning and parameter tuning

• OEM / ODM customization services

• 24-month warranty

Company Introduction

Lichuan specializes in the development and manufacturing of Integrated Servo Motors Driver solutions and advanced motion control products.
With strong R&D capabilities and strict quality control, Lichuan provides reliable, cost-effective servo systems for global automation markets.

FAQ

Q1: What is an Integrated Servo Motors Driver?
A: It is a servo system that integrates the motor, driver, and encoder into one compact unit.

Q2: Can it be used in multi-axis systems?
A: Yes, CANopen enables synchronized multi-axis control.

Q3: Is customization available?
A: Yes, power, voltage, communication, and encoder options can be customized.
