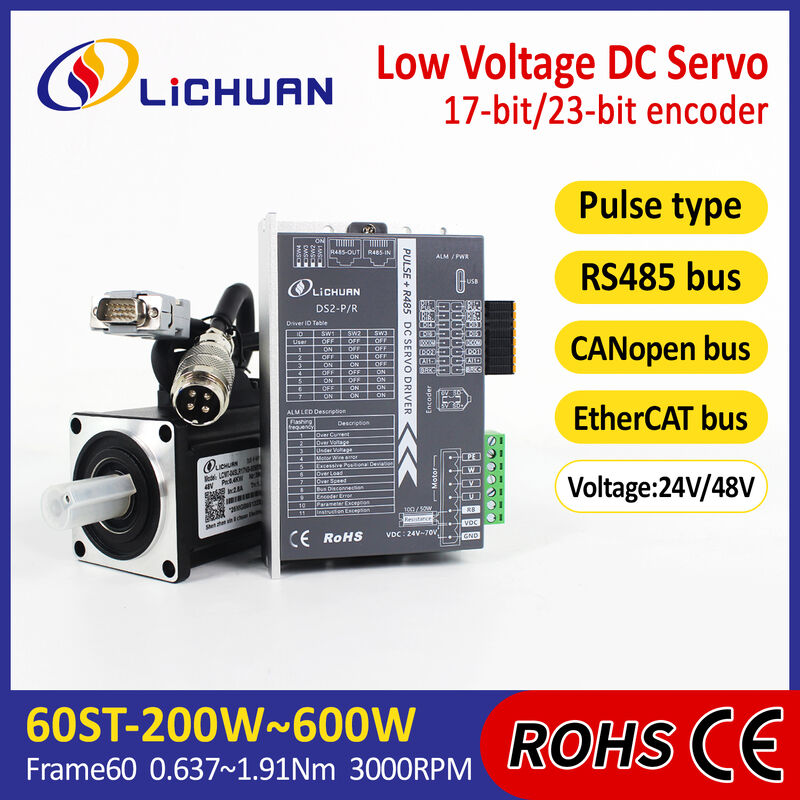

Lichuan DC Servo Motor Drivers Kit DS2-10P/R/C/E Low Voltage 1.27N.m 400W 24/48V 6/10/12/15A 3000RPM IP65

Lichuan DC Servo Motor Drivers Kit DS2-10P/R/C/E Low Voltage 1.27N.m 400W 24/48V 6/10/12/15A 3000RPM IP65

Lichuan DC Servo Motor Drivers Kit

Product Introduction

The Lichuan DC Servo Motor Drivers Kit is a high‑performance low‑voltage servo drive solution designed for precision motion control applications. Covering a wide power range from 100W to 1.5KW, this DC Servo Motor Drivers Kit integrates advanced control algorithms, robust protection functions, and industrial‑grade reliability. It is widely used in automation equipment, robotics, AGV/AMR systems, CNC accessories, and intelligent manufacturing systems.

Product Overview

The Lichuan DC Servo Motor Drivers Kit DS2‑10/20/45P/R/C/E series supports 24V / 48V DC input, multiple current ratings, and closed‑loop servo control. With compact structure and IP65 protection, it ensures stable operation even in harsh industrial environments.

Product Description

This DC Servo Motor Drivers Kit is engineered to deliver precise speed, position, and torque control for low‑voltage DC servo motors. By combining high‑efficiency power modules and intelligent feedback control, the system achieves fast dynamic response, low vibration, and high positioning accuracy. Its modular design makes installation and maintenance simple for OEM and system integrators.

Product Parameters

Basic Information

• Product Name: Lichuan DC Servo Motor Drivers Kit

• Series: DS2‑10 / DS2‑20 / DS2‑45 (P / R / C / E versions)

• Type: Low Voltage DC Servo Motor Driver

• Control Mode: Closed‑loop servo control

• Protection Level: IP65

• Application Environment: Industrial & commercial automation

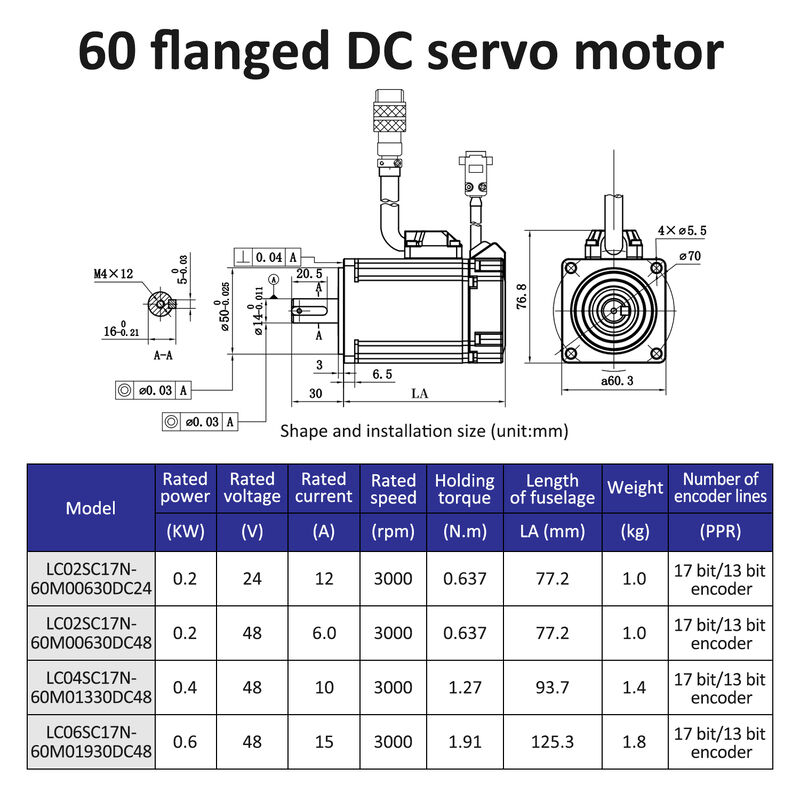

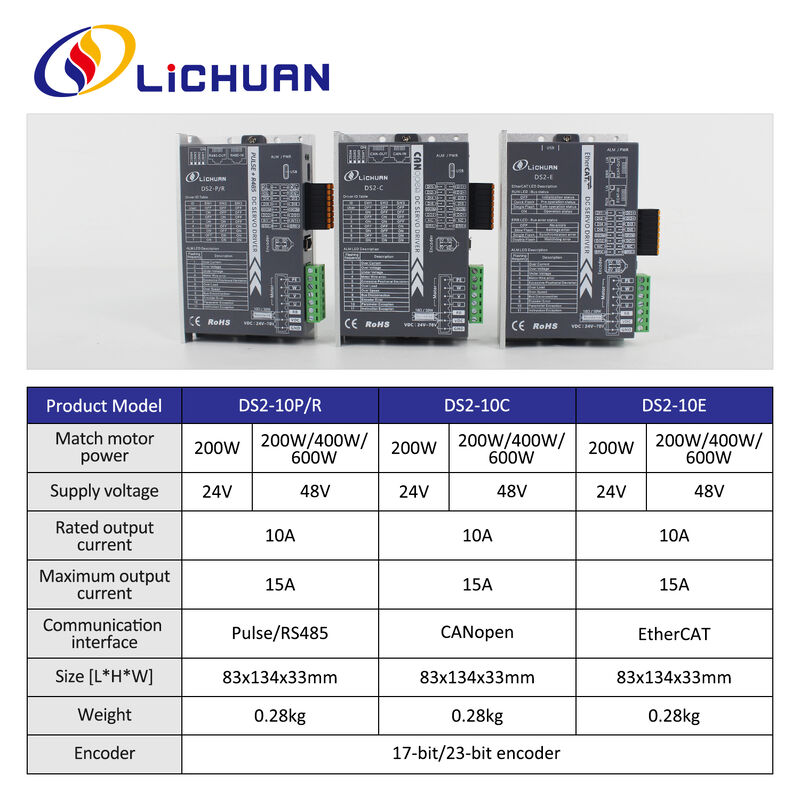

Specifications

The DC Servo Motor Drivers Kit supports a broad range of power and current options, enabling flexible selection for different load requirements.

Key Selling Points

• Wide power coverage from 100W to 1.5KW

• High‑precision closed‑loop control

• Strong overload capability and stable performance

• Industrial‑grade DC Servo Motor Drivers Kit with IP65 protection

• Suitable for OEM / ODM integration

Product Features

• Fast response and smooth motion output

• Multiple current options for different motor sizes

• Advanced protection: over‑current, over‑voltage, over‑temperature

• High compatibility with Lichuan DC servo motors

• Reliable DC Servo Motor Drivers Kit architecture for long‑term operation

Product Technology

The DC Servo Motor Drivers Kit adopts high‑frequency PWM control technology combined with digital signal processing. Real‑time current, speed, and position feedback ensure precise servo regulation while maintaining high energy efficiency and low heat generation.

Working Principle

The DC Servo Motor Drivers Kit operates based on closed‑loop feedback control. Encoder feedback continuously monitors motor position and speed, compares them with command signals, and dynamically adjusts output current and voltage to achieve accurate motion control.

Application Fields

• Industrial automation equipment

• Robots and robotic arms

• AGV / AMR mobile platforms

• CNC auxiliary systems

• Packaging and assembly machines

The DC Servo Motor Drivers Kit delivers consistent performance across all these application fields.

Product Applications

This DC Servo Motor Drivers Kit is used to drive low‑voltage DC servo motors for:

• Speed control

• Positioning control

• Torque regulation

• High‑precision motion execution

Product Advantages

• High precision and strong stability

• Wide adaptability for different servo systems

• Compact size with high power density

• Cost‑effective DC Servo Motor Drivers Kit solution

Product Services

We provide complete services for the DC Servo Motor Drivers Kit, including:

• Model selection support

• Technical consultation

• OEM / ODM customization

• After‑sales technical support

Production Process

The DC Servo Motor Drivers Kit is manufactured using standardized industrial processes, including SMT assembly, automated soldering, functional testing, and aging tests to ensure consistent quality.

Operation Guide

1. Connect power and motor cables correctly

2. Configure parameters of the DC Servo Motor Drivers Kit

3. Perform test run and fine tuning

Precautions

• Do not exceed rated voltage or current

• Ensure adequate cooling and ventilation

• Read the DC Servo Motor Drivers Kit manual before installation

Company Profile

Lichuan is a professional manufacturer specializing in motion control and drive solutions. We focus on the R&D and production of DC Servo Motor Drivers Kit, servo motors, and integrated motion systems for global markets.

Product Certificates

The DC Servo Motor Drivers Kit complies with international standards and can be supplied with CE, RoHS, and other required certifications.

Quality Assurance

All DC Servo Motor Drivers Kit products undergo strict quality inspection before shipment and are backed by a standard warranty policy.

Customer Service

We provide professional pre‑sales consultation, fast technical response, and reliable after‑sales service to ensure long‑term stable operation of the DC Servo Motor Drivers Kit in customer applications.

FAQ

Q1: Can the DC Servo Motor Drivers Kit support customization?
A: Yes, voltage, current, communication, and software parameters can be customized.

Q2: Is technical documentation provided?
A: Each DC Servo Motor Drivers Kit includes manuals, wiring diagrams, and setup guides.
