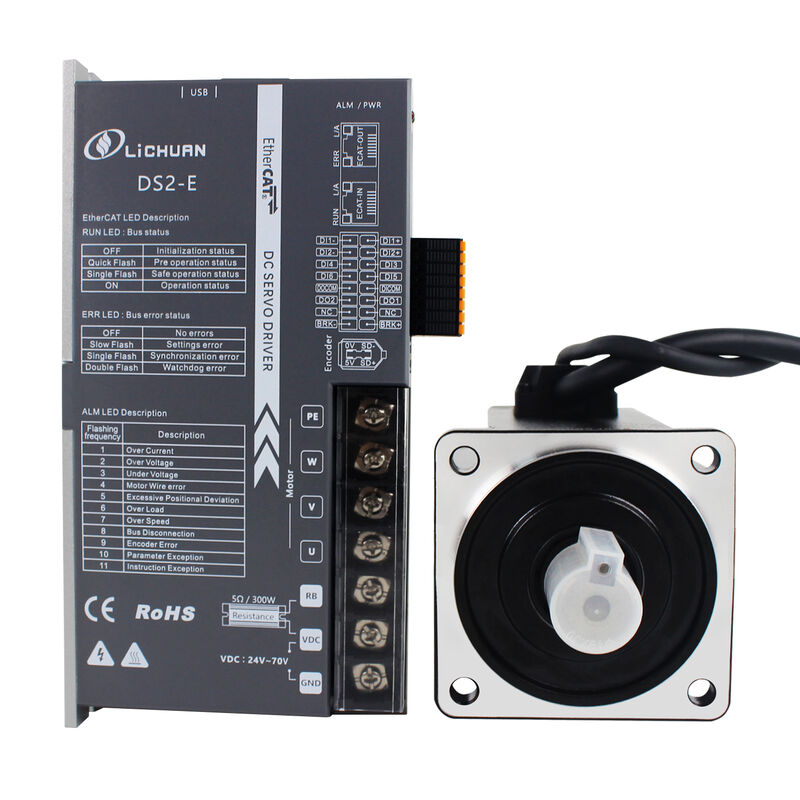

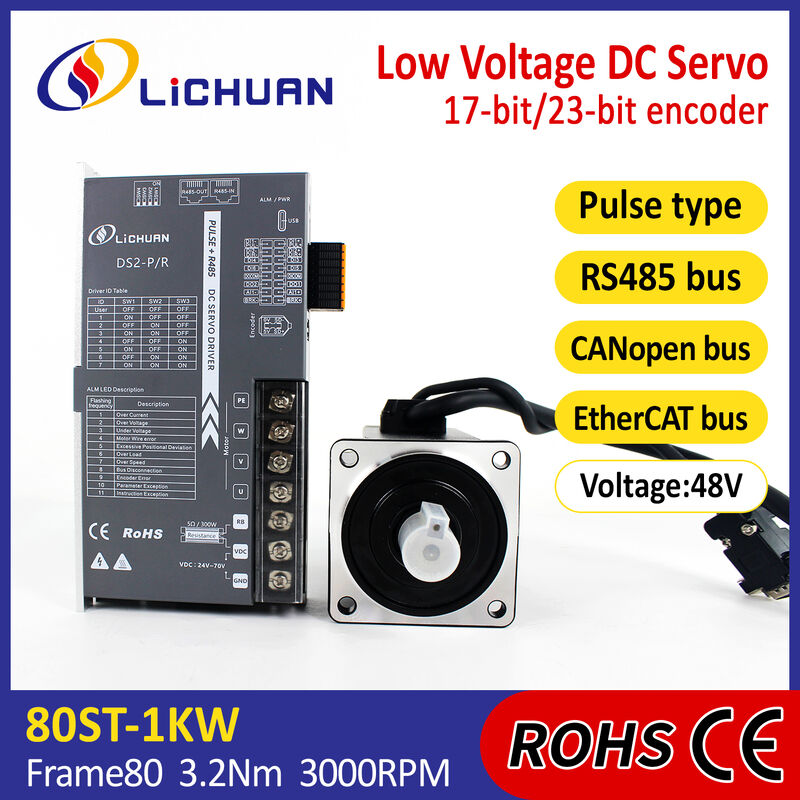

Lichuan DC Servo Motor Drivers Kit

Product Introduction

The Lichuan DC Servo Motor Drivers Kit is a high‑performance, low‑voltage motion control solution designed for industrial automation, robotics, and intelligent equipment systems. This DC Servo Motor Drivers Kit integrates advanced digital control technology with reliable power electronics to deliver precise speed, torque, and position control across a wide power range from 100W to 1.5KW.

Product Overview

The DC Servo Motor Drivers Kit DS2‑10 / DS2‑20 / DS2‑45 (P / R / C / E series) supports 24V and 48V low‑voltage systems, offering flexible current, speed, and torque configurations. It is engineered for stable operation, fast dynamic response, and long service life, making it ideal for OEMs, system integrators, and advanced end‑users.

Product Description

This DC Servo Motor Drivers Kit adopts closed‑loop servo control with encoder feedback, enabling accurate motion control even under variable load conditions. With compact design, high current capacity, and IP65 protection level options, it is suitable for demanding industrial environments and outdoor applications.

Basic Information

• Product Name: DC Servo Motor Drivers Kit

• Brand: Lichuan

• Series: DS2‑10 / DS2‑20 / DS2‑45

• Control Type: DC Servo Closed‑Loop Control

• Voltage Level: Low Voltage DC 24V / 48V

• Protection Level: IP65

Power & Performance Range

The DC Servo Motor Drivers Kit supports multiple power and torque options to cover diverse application requirements:

• Rated Power: 100W / 200W / 400W / 600W / 750W / 1000W / 1.5KW

• Rated Speed: 2500 RPM / 3000 RPM

• Rated Torque: 0.32N·m / 0.637N·m / 1.27N·m / 1.91N·m / 2.4N·m / 3.2N·m / 6N·m

Key Selling Points

• Wide power range from 100W to 1.5KW in one DC Servo Motor Drivers Kit series

• Low‑voltage safety design (24V / 48V DC)

• High torque density and fast response

• Multiple current options for flexible system matching

• IP65 protection for harsh environments

Product Features

• Closed‑loop servo control with encoder feedback

• High‑efficiency power conversion

• Compact structure for easy installation

• Multiple control interface options (Pulse / RS485 / Analog)

• Customizable parameters for different applications

Each DC Servo Motor Drivers Kit is optimized for stable and precise motor control.

Product Technology

The DC Servo Motor Drivers Kit uses advanced digital servo algorithms, high‑frequency PWM modulation, and intelligent current regulation. Real‑time feedback ensures accurate torque and speed control, improving system efficiency and reducing vibration and noise.

Working Principle

The DC Servo Motor Drivers Kit receives external control commands and compares them with encoder feedback signals. Through closed‑loop adjustment of current and voltage output, the driver precisely controls motor speed, position, and torque in real time.

Application Fields

• Industrial automation equipment

• Robots and robotic arms

• AGV and mobile robots

• CNC machines

• Packaging and printing machinery

• Logistics and conveyor systems

The DC Servo Motor Drivers Kit is widely used in applications requiring high precision and reliability.

Product Applications

This DC Servo Motor Drivers Kit is designed to drive DC servo motors in positioning systems, speed regulation systems, and torque‑controlled equipment across various industries.

Product Parameters

Product Advantages

• Complete power coverage with one DC Servo Motor Drivers Kit platform

• High reliability and long service life

• Excellent dynamic performance

• Reduced system complexity

• Competitive cost‑performance ratio

Product Services

We provide full technical support for the DC Servo Motor Drivers Kit, including model selection, parameter tuning, application design, and remote debugging support.

FAQ

Q1: Can the DC Servo Motor Drivers Kit support customization?
Yes. Power, current, interface, and software parameters can be customized.

Q2: Is technical support available?
Yes. We provide complete documentation and engineering support for each DC Servo Motor Drivers Kit.

Manufacturing Process

Each DC Servo Motor Drivers Kit is produced using automated SMT assembly, followed by functional testing, aging tests, and strict quality inspection to ensure consistent performance.

Operation Guide

1. Connect the DC power supply (24V / 48V)

2. Connect the servo motor and encoder

3. Configure parameters of the DC Servo Motor Drivers Kit

4. Connect control signals

5. Run and monitor system operation

Precautions

• Ensure the power supply voltage matches the DC Servo Motor Drivers Kit specifications

• Provide adequate ventilation and heat dissipation

• Avoid installation in high‑humidity or corrosive environments

Company Profile

Lichuan is a professional manufacturer specializing in motion control and drive solutions. We focus on providing reliable and high‑performance DC Servo Motor Drivers Kit products to customers worldwide.

Product Certifications

The DC Servo Motor Drivers Kit complies with international standards and certifications such as CE and RoHS, meeting global market requirements.

Quality Assurance

All DC Servo Motor Drivers Kit products undergo strict quality control and performance testing before shipment to ensure stable and reliable operation.

Customer Service

We offer fast and professional pre‑sales, in‑sales, and after‑sales support for every DC Servo Motor Drivers Kit, ensuring long‑term customer satisfaction.
