Lichuan DC Servo Motor Drivers Kit DS2-45P/R/C/E Low Voltage 6N.m 1.5KW/1500W 48V 45A 2500RPM IP65

Lichuan DC Servo Motor Drivers Kit DS2-45P/R/C/E Low Voltage 6N.m 1.5KW/1500W 48V 45A 2500RPM IP65

Lichuan DC Servo Motor Drivers Kit DS2 Series

Product Introduction

The Lichuan DC Servo Motor Drivers Kit DS2-10/20/45P/R/C/E Series is a high-performance low-voltage servo control solution integrating a DC servo motor, intelligent servo driver, and high-resolution encoder. Designed for industrial automation and precision motion control, this DC Servo Motor Drivers Kit supports power ranges from 100W to 1.5KW, delivering stable torque, fast response, and reliable operation under demanding conditions.

Product Information

The DC Servo Motor Drivers Kit DS2 Series adopts a compact and modular design, suitable for OEM equipment, system integrators, and automation upgrades. With low-voltage 24V/48V DC input and IP65-rated motor protection, this kit ensures high safety, energy efficiency, and long service life.

Product Description

This DC Servo Motor Drivers Kit provides precise closed-loop control for speed, position, and torque applications. Advanced digital control algorithms and encoder feedback enable smooth motion, high positioning accuracy, and excellent dynamic performance across a wide load range.

Basic Information

• Product Name: Lichuan DC Servo Motor Drivers Kit

• Series: DS2-10 / DS2-20 / DS2-45 (P / R / C / E)

• Control Type: Closed-loop DC Servo Control

• Power Supply: Low Voltage DC

• Protection Level (Motor): IP65

Specifications Overview

The DC Servo Motor Drivers Kit DS2 Series is available in multiple configurations to match different application requirements, offering flexible power, torque, and current options.

Product Highlights

• Wide power coverage from 100W to 1.5KW in one DC Servo Motor Drivers Kit platform

• Low-voltage 24V/48V DC operation for enhanced safety

• High torque density with stable output

• Multiple driver versions (P/R/C/E) for diverse control systems

• Industrial-grade reliability with IP65 motor protection

Product Features

• Rated Speed: 2500 RPM / 3000 RPM

• Precise encoder feedback for accurate motion control

• Compact structure, easy installation

• Low noise and low vibration operation

• Customizable parameters for each DC Servo Motor Drivers Kit

Product Technology

The DC Servo Motor Drivers Kit utilizes advanced PWM control, digital current loop, speed loop, and position loop algorithms. Real-time encoder feedback ensures accurate closed-loop regulation, enabling fast acceleration, deceleration, and stable holding torque.

Working Principle

The servo driver continuously monitors motor position and speed through the encoder. Based on command signals, the DC Servo Motor Drivers Kit dynamically adjusts output current to achieve precise motion control with minimal error and high repeatability.

Application Fields

• Industrial automation equipment

• CNC machines and small machining centers

• Packaging and labeling machines

• Industrial robots and robotic arms

• AGV / AMR drive systems

The DC Servo Motor Drivers Kit is ideal for applications requiring accuracy, stability, and responsiveness.

Product Applications

This DC Servo Motor Drivers Kit is widely used for positioning, speed regulation, and torque control in automated production lines, smart manufacturing systems, and precision mechanical equipment.

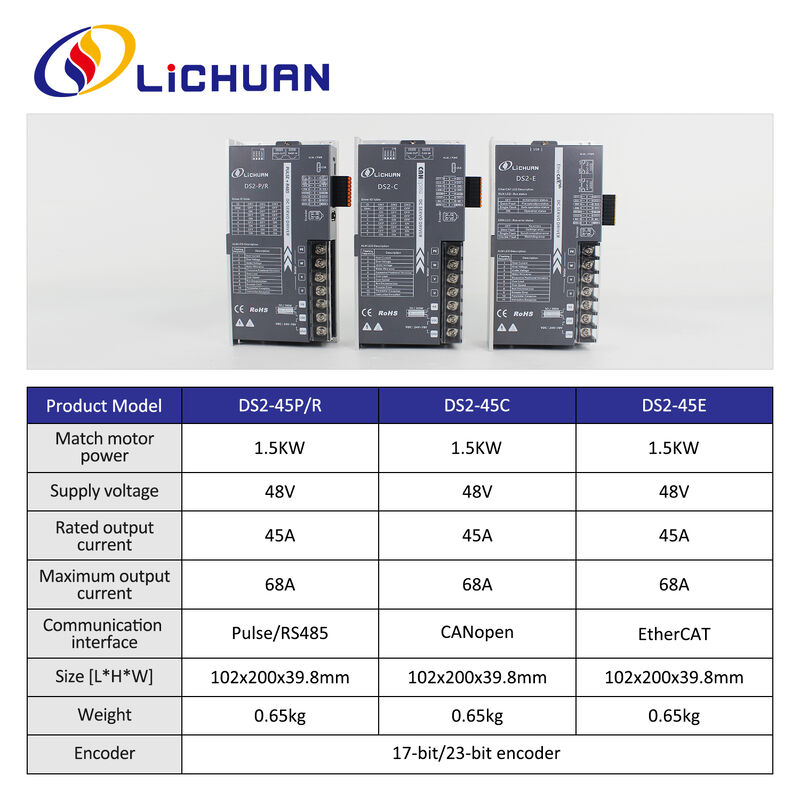

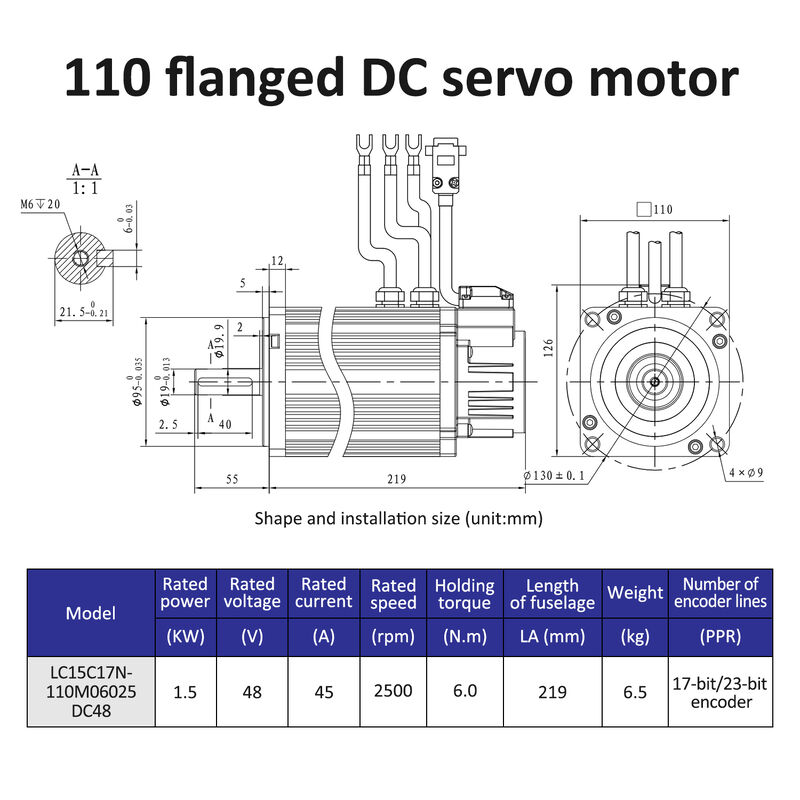

Product Parameter Table

Product Advantages

• High performance-to-cost ratio DC Servo Motor Drivers Kit

• Broad model selection for flexible system design

• Low-voltage operation improves system safety

• Excellent dynamic response and positioning accuracy

Product Services

We provide comprehensive services for the DC Servo Motor Drivers Kit, including technical consultation, parameter tuning support, and after-sales service to ensure smooth project implementation.

FAQ

Q1: Can the DC Servo Motor Drivers Kit be customized?
A: Yes. Voltage, power, encoder type, and communication protocols can be customized.

Q2: Does the kit support industrial fieldbus communication?
A: Yes. CANopen and EtherCAT are available depending on the driver model.

Production Process

Each DC Servo Motor Drivers Kit is manufactured under strict quality control processes, including motor winding, assembly, encoder calibration, driver testing, and full-load inspection.

Operation Method

1. Connect the power supply and signal cables correctly

2. Set parameters via control panel or software

3. Perform no-load testing before full operation

4. Start normal operation of the DC Servo Motor Drivers Kit

Precautions

• Ensure correct voltage input for the DC Servo Motor Drivers Kit

• Disconnect power before wiring or maintenance

• Avoid use in extreme humidity or corrosive environments

Company Profile

Lichuan specializes in motion control and automation solutions, providing high-quality DC Servo Motor Drivers Kit products to global industrial markets with stable supply and professional technical support.

Product Certifications

The DC Servo Motor Drivers Kit complies with international standards and can provide CE and RoHS certifications upon request.

Quality Assurance

All DC Servo Motor Drivers Kit products undergo strict factory testing to ensure reliability, consistency, and long-term performance.

Customer Service Information

• Technical Support: Remote and on-site support available

• After-sales Service: Fast response and professional assistance

• Supply Capability: Stable production and global delivery

The DC Servo Motor Drivers Kit DS2 Series is a reliable core component for modern industrial motion control systems.
