Product Features & Core Selling Points

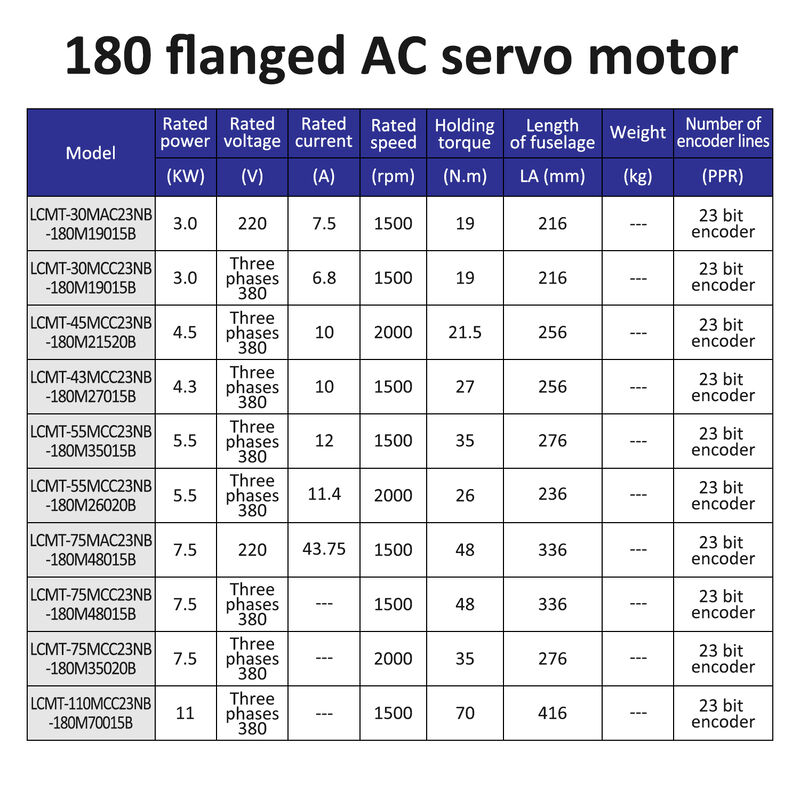

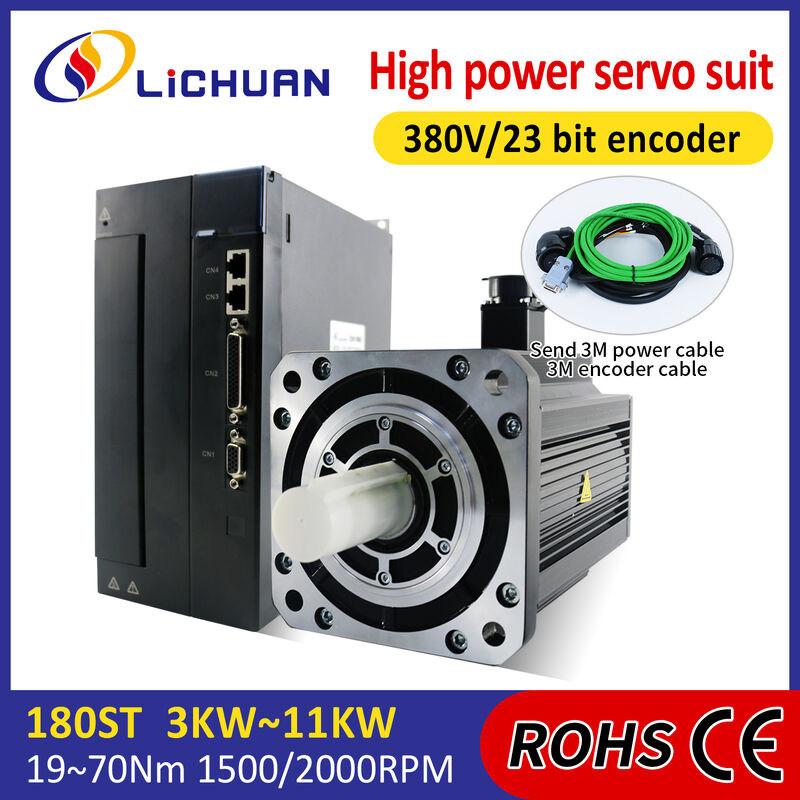

High Power & Wide Specification Range
The Lichuan AC Servo Motor Drivers Kit covers 3.0KW to 11KW power range, 19N.m to 70N.m torque range, and 1500/2000RPM speed options, suitable for heavy-duty industrial applications that require strong power output and stable performance. With AC220V/380V voltage compatibility, it can be seamlessly integrated into different industrial power systems worldwide.
Ultra-High Precision Control
Equipped with a 23-bit high-precision encoder, the AC Servo Motor Drivers Kit achieves micron-level positioning accuracy, reducing control errors by 30% compared to standard servo kits. The advanced closed-loop control system ensures real-time position and speed feedback, making it ideal for high-precision applications such as CNC machining and laser cutting.

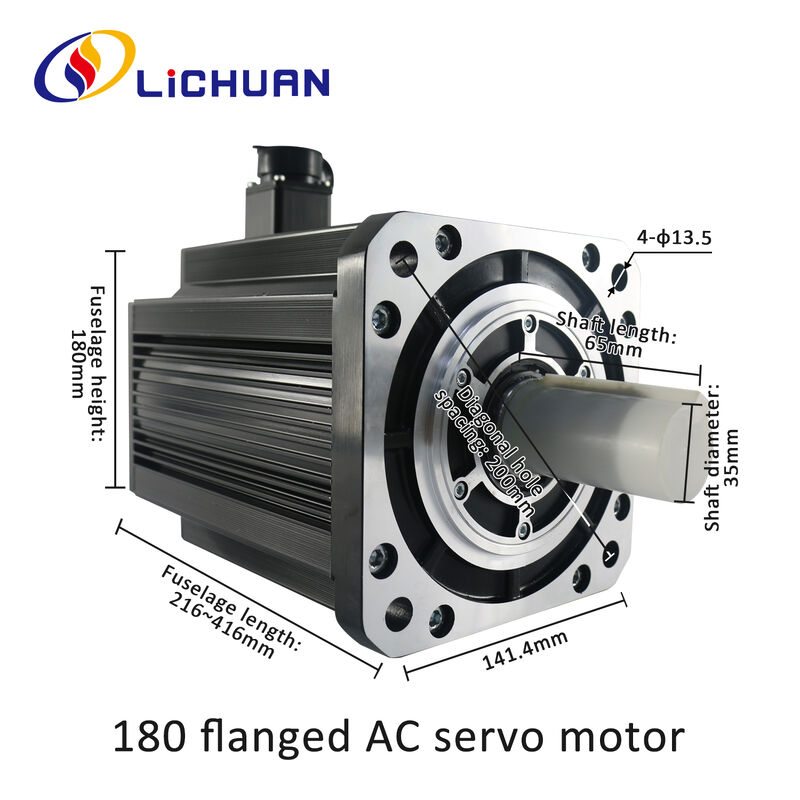

IP65 Protection & Durable Construction
With IP65 protection grade, the servo motor of the Lichuan AC Servo Motor Drivers Kit is dust-proof and water-resistant, suitable for harsh industrial environments such as workshops, factories, and outdoor equipment. The motor is made of high-quality silicon steel sheets and copper windings, ensuring low energy loss, fast heat dissipation, and a service life of over 10,000 hours under rated conditions.
Multiple Control Modes & Easy Integration
The AC Servo Motor Drivers Kit supports position, speed, torque, and hybrid control modes, compatible with PLCs, HMIs, and various industrial controllers. It also supports multiple communication protocols (EtherCAT, RS232, RS485, Canopen, Modbus), enabling seamless integration into existing automation systems with standardized interfaces and clear wiring diagrams.
Stable Performance & Fast Response
Powered by a 32-bit 168MHz digital controller, the Lichuan AC Servo Motor Drivers Kit offers fast response frequency, enabling rapid acceleration and deceleration without vibration or overshoot. The optimized vector control algorithm ensures smooth torque output across a wide speed range, even at low speeds, making it suitable for high-speed and high-precision motion control tasks.
Product Technology & Working Principle
Core Technology
-
23-Bit High-Resolution Encoder: Provides 8,388,608 pulses per revolution, enabling precise closed-loop control and real-time position correction, ensuring high positioning accuracy for industrial applications.
-
32-Bit Digital Controller: Operates at 168MHz, executing high-speed vector control and advanced algorithms to optimize motor performance, reduce energy loss, and improve response speed.
-
Field-Oriented Control (FOC): Optimizes the magnetic field distribution of the motor, maximizing efficiency and minimizing torque ripple, ensuring stable operation even at low speeds and heavy loads.
-
Advanced Heat Dissipation Design: The motor and driver adopt an optimized heat dissipation structure, ensuring stable performance under continuous high-load operation and extending the service life of the AC Servo Motor Drivers Kit.
Working Principle
The Lichuan AC Servo Motor Drivers Kit operates as a high-precision closed-loop control system, following these key steps:
-
The servo driver receives control commands (position, speed, or torque) from the upper controller (PLC, HMI, or CNC system).
-
The driver converts these commands into precise three-phase AC signals to drive the servo motor, ensuring accurate motion output.
-
The motor’s built-in 23-bit encoder collects real-time position and speed data, feeding it back to the servo driver continuously.
-
The driver compares the feedback data with the target command values, dynamically adjusting the output signals to eliminate control errors, achieving high-precision closed-loop control for theAC Servo Motor Drivers Kit.
Product Advantages
|
Advantage Aspect
|
Lichuan AC Servo Motor Drivers Kit
|
Standard Servo Kits
|
|
Power Range
|
3.0KW - 11KW (high power, meets heavy-duty needs)
|
Mostly below 3KW, unable to handle heavy loads
|
|
Torque Range
|
19N.m - 70N.m, strong torque output
|
Below 20N.m, limited torque capacity
|
|
Protection Grade
|
IP65 (dust-proof, water-resistant, suitable for harsh environments)
|
IP54 or lower, only suitable for clean environments
|
|
Encoder Resolution
|
23-bit (high precision, micron-level control)
|
17-bit or lower, low positioning accuracy
|
|
Voltage Compatibility
|
AC220V/380V, compatible with global industrial power systems
|
Single voltage (mostly AC220V), limited compatibility
|
|
Service Life
|
Over 10,000 hours (high-quality materials & heat dissipation)
|
5,000 - 8,000 hours, easy to wear out
|
Application Fields & Product Uses
The Lichuan AC Servo Motor Drivers Kit is widely used in various high-power, high-precision industrial automation applications, thanks to its wide specification range, stable performance, and IP65 protection. Key application fields include:
CNC Machine Tools
Milling machines, lathes, engraving machines, and cutting machines for metal processing, where high power and precise positioning are required to ensure processing accuracy and efficiency.
Industrial Automation Lines
Robotic arms, pick-and-place systems, assembly lines, and conveyor systems, where stable motion control and fast response are essential for improving production efficiency.
Packaging & Textile Machinery
High-speed packaging equipment, printing presses, and textile looms, where the AC Servo Motor Drivers Kit provides stable speed and torque control to ensure product quality.
Laser & 3D Printing Equipment
Laser cutting/engraving machines and high-precision 3D printers, where precise positioning and stable motion are critical for achieving high-quality results.
Logistics & Material Handling
Automated guided vehicles (AGVs), sorting machines, and conveyor systems, where the high-power AC Servo Motor Drivers Kit can handle heavy loads and ensure stable operation in harsh environments.
Operation Method & Wiring Guide

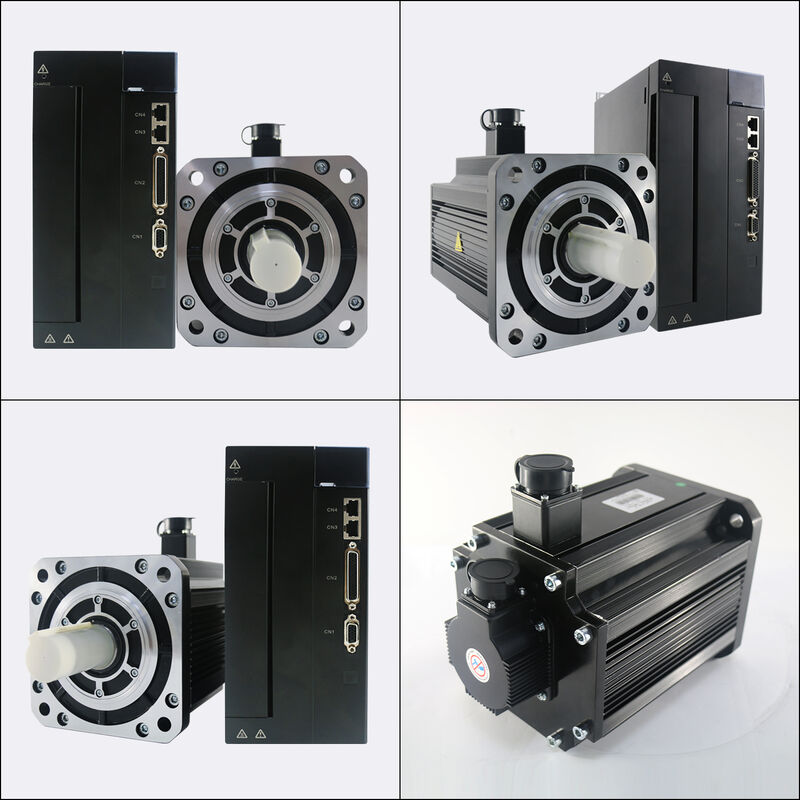

Basic Wiring Steps
-
Power Connection: Connect AC220V/380V (3-Phase) power to the driver’s L1/L2/L3 terminals. Ensure the power supply matches the rated voltage of the Lichuan AC Servo Motor Drivers Kit.
-
Motor Connection: Link the motor power cable to the driver’s motor power port (U/V/W terminals), ensuring correct wiring to avoid motor reversal.
-

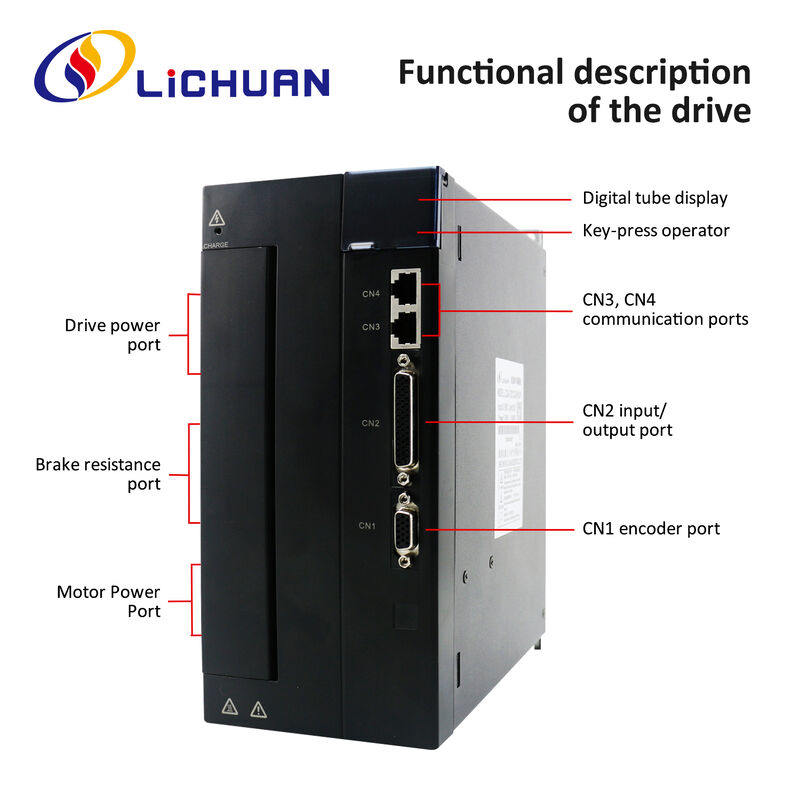

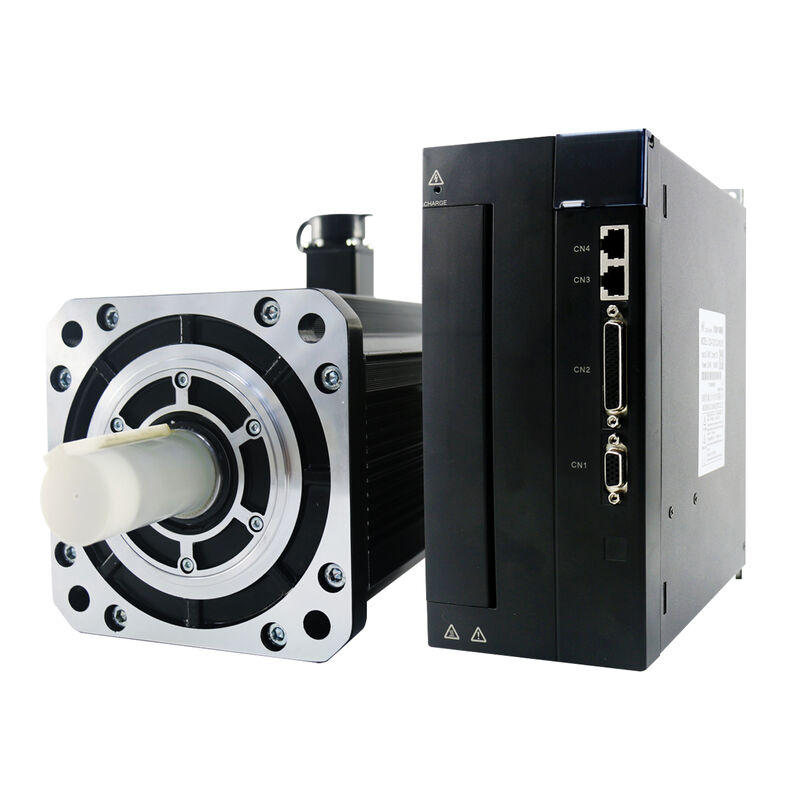

Encoder Connection: Connect the motor encoder cable to the driver’s encoder port (CN1), ensuring stable connection for real-time feedback.
-
Control Signal Connection: Wire the PLC/HMI to the driver’s I/O port (CN2) or communication ports (CN3/CN4) according to the control mode and communication protocol.
-
Brake Resistance (Optional): Connect external brake resistance to B1/B2 terminals (cut B2/B3 jumper when using external resistance) to ensure safe braking of the AC Servo Motor Drivers Kit.
Initial Setup
-
Power on the system and enter the driver’s parameter menu via the digital tube display.
-
Set motor parameters (rated power, speed, torque, encoder resolution) according to the selected model of the AC Servo Motor Drivers Kit.
-
Configure the control mode (position/speed/torque) and communication protocol (EtherCAT/Modbus/Canopen) as required by your application.
-
Perform a trial run at low speed to check for abnormal noise, vibration, or wiring errors. Adjust parameters if necessary to ensure stable operation.
Important Notes & Safety Precautions
Safety Warnings
-
The Lichuan AC Servo Motor Drivers Kit operates at high voltage (AC220V/380V). Ensure the power is completely disconnected before wiring, maintenance, or disassembly to avoid electric shock.
-
Do not touch the motor shaft, driver terminals, or wiring during operation, as they may be hot or carry high voltage.
-
Use only the specified brake resistance and cables to avoid damage to the driver or motor of the AC Servo Motor Drivers Kit.
-
Ensure proper grounding of the driver and motor to prevent electrical interference and ensure safe operation.
Operation Notes
-
The motor shaft section is not fully IP65 protected; avoid direct water contact or exposure to corrosive substances.
-
Install the driver and motor in a well-ventilated environment to ensure effective heat dissipation, preventing overheating of the AC Servo Motor Drivers Kit.
-
Calibrate the encoder and reconfigure parameters when replacing the motor or driver to ensure accurate control.
-
Regularly check the wiring connections and clean the motor/driver to avoid dust accumulation affecting performance.
FAQ (Frequently Asked Questions)
A: TheAC Servo Motor Drivers Kit supports AC220V and AC380V (3-Phase) voltage inputs, making it compatible with most industrial power systems worldwide. You can select the appropriate voltage according to your application needs.
A: Consider your application’s load torque, operating speed, and acceleration requirements. The Lichuan AC Servo Motor Drivers Kit covers 3.0KW-11KW power and 19N.m-70N.m torque. Our technical team can provide personalized selection guidance based on your equipment parameters.
A: Yes. The motor of the Lichuan AC Servo Motor Drivers Kit has an IP65 protection grade, which is dust-proof and water-resistant, making it suitable for harsh environments such as outdoor equipment, workshops, and factories with dust or moisture.
A: The driver of the AC Servo Motor Drivers Kit supports multiple communication protocols, including EtherCAT, RS232, RS485, Canopen, and Modbus, compatible with most industrial PLCs, HMIs, and CNC systems for seamless integration.
A: We provide a 12-month warranty for the AC Servo Motor Drivers Kit, covering manufacturing defects. Lifetime technical support is also available for wiring, parameter configuration, and troubleshooting.
Product Service & Customer Support
Technical Support
24/7 online technical support for wiring, parameter configuration, troubleshooting, and application guidance for the AC Servo Motor Drivers Kit.
