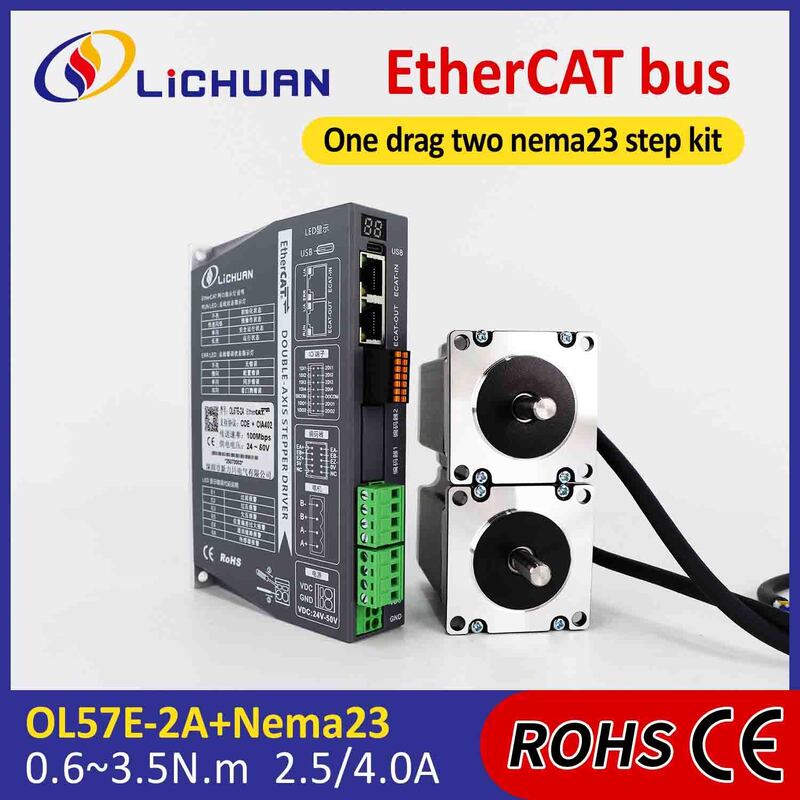

Lichuan DC Open Loop Stepper Motor Drivers Kit EtherCAT 0.6N.m 2 Phase Nema23 DC24V～50V 2.5/4.0A

Lichuan DC Open Loop Stepper Motor Drivers Kit EtherCAT – 2 Phase NEMA23, DC24V–50V, 2.5A/4.0A, 0.6–3.5N.m

Lichuan DC Open Loop Stepper Motor Drivers Kit EtherCAT combines a 2-phase NEMA23 stepper motor with EtherCAT network control, DC24V–50V operation, 2.5A/4.0A driver options and seven torque configurations from 0.6N.m to 3.5N.m for CNC, automation and multi-axis motion-control applications.

Product Introduction

The Lichuan DC Open Loop Stepper Motor Drivers Kit EtherCAT is a high-performance 2-phase NEMA23 motion-control solution designed for CNC machines, industrial automation, robotics, linear motion systems, engraving equipment, packaging machinery and other precision positioning applications.

The DC Open Loop Stepper Motor Drivers Kit integrates a NEMA23 hybrid stepper motor with a compatible digital stepper driver and EtherCAT-based network communication, providing a compact and scalable solution for multi-axis motion control.

With DC24V–50V power input, 2.5A and 4.0A driver options, and multiple motor torque configurations from 0.6N.m to 3.5N.m, the system can be matched to different machine-axis requirements and mechanical loads.

Product Overview

Intelligent EtherCAT Motion Control with NEMA23 Stepper Technology

The Lichuan DC Open Loop Stepper Motor Drivers Kit EtherCAT combines traditional open-loop stepper motor technology with modern industrial Ethernet communication.

Unlike conventional pulse-only stepper drive systems, the EtherCAT configuration allows the drive to become part of a networked multi-axis motion-control architecture. This makes it suitable for equipment manufacturers and system integrators looking for a compact, cost-effective alternative for applications that require coordinated axis control.

The product family is available in multiple torque configurations:

0.6N.m / 1.2N.m / 1.8N.m / 2.0N.m / 2.4N.m / 3.0N.m / 3.5N.m

and driver current configurations of:

2.5A / 4.0A

with a DC power input range of:

DC24V–50V

Basic Product Information

Note: Exact motor electrical characteristics, dimensions, inductance, resistance, shaft dimensions and detailed EtherCAT functions should be confirmed according to the selected motor/driver SKU and technical datasheet.

Product Description

The Lichuan DC Open Loop Stepper Motor Drivers Kit EtherCAT provides a practical solution for machine builders who need coordinated stepper-axis motion without the additional cost and complexity of a full servo system.

The NEMA23 stepper motor produces incremental rotary motion while the EtherCAT stepper driver receives motion commands through the industrial Ethernet network.

The overall architecture can be represented as:

Industrial Controller → EtherCAT Network → EtherCAT Stepper Driver → NEMA23 Stepper Motor → Mechanical Axis

This configuration allows multiple motor axes to be integrated into a centralized machine-control architecture while retaining the simplicity of an open-loop stepper system.

Product Features

EtherCAT Industrial Communication

The EtherCAT version of the DC Open Loop Stepper Motor Drivers Kit is designed for networked motion-control architectures, making it suitable for synchronized multi-axis machine systems.

NEMA23 Standard Motor Frame

The NEMA23 mechanical format provides broad compatibility with CNC machines, linear stages, ball-screw mechanisms, belt-driven axes and automation equipment.

DC24V–50V Power Supply

The wide DC input range supports flexible system power architecture and allows the kit to be integrated into different machine-control platforms.

2.5A and 4.0A Driver Options

Different current configurations allow users to select the appropriate driver according to the motor winding specification and mechanical load.

Seven Torque Configurations

The motor family provides:

0.6 / 1.2 / 1.8 / 2.0 / 2.4 / 3.0 / 3.5N.m

This provides a broader selection range for machine designers than a single fixed motor configuration.

Open-Loop Architecture

The system does not depend on an external encoder for normal operation, reducing system complexity, wiring requirements and overall component count.

Multi-Axis Automation

EtherCAT networking makes the product particularly suitable for applications that require centralized communication and coordinated motion across multiple machine axes.

Product Selling Points

1. EtherCAT + Stepper Motor Integration

Combining EtherCAT communication with open-loop NEMA23 stepper technology creates a practical solution between conventional pulse-control systems and higher-cost closed-loop servo architectures.

2. Complete Motor and Driver Solution

Customers can purchase a matched motor and driver configuration rather than independently selecting and matching components.

3. Seven Torque Options

The 0.6–3.5N.m range provides flexible system sizing for compact and medium-duty machine axes.

4. Wide DC Voltage Range

DC24V–50V allows system designers greater flexibility when selecting the power supply.

5. Industrial Automation Ready

The EtherCAT architecture makes the kit suitable for centralized machine networks, synchronized axes and modern automation equipment.

6. Cost-Effective Alternative for Suitable Applications

For applications where encoder feedback is not required, an open-loop stepper system can provide a simpler motion-control architecture than a closed-loop servo system.

EtherCAT Technology

What Is EtherCAT?

EtherCAT is an industrial Ethernet communication technology designed for high-speed, deterministic communication between industrial controllers and distributed devices.

In the Lichuan DC Open Loop Stepper Motor Drivers Kit EtherCAT, the driver acts as a networked motion device between the machine controller and the stepper motor.

A typical system structure is:

PLC / IPC / Motion Controller

↓

EtherCAT Master

↓

EtherCAT Stepper Driver

↓

NEMA23 Stepper Motor

↓

Lead Screw / Ball Screw / Belt / Mechanical Load

This architecture allows multiple drives to be connected through a common industrial communication network.

Working Principle

How the DC Open Loop Stepper Motor Drivers Kit Works

The system converts networked motion commands into controlled motor phase current.

Step 1 – Motion Command

The EtherCAT master sends motion information to the stepper driver.

Step 2 – Drive Processing

The EtherCAT driver interprets the received motion command and generates the required motor-control sequence.

Step 3 – Phase Excitation

The driver supplies controlled current to the two motor phases.

Step 4 – Rotor Movement

The magnetic field generated inside the motor causes the rotor to move incrementally.

Step 5 – Mechanical Transmission

The motor converts rotary motion into machine-axis movement through a lead screw, ball screw, belt, rack-and-pinion mechanism or other transmission system.

Open-Loop Motion Technology

The DC Open Loop Stepper Motor Drivers Kit is designed for applications where position feedback is not required for normal operation.

The controller commands the desired movement, and the motor follows the electrical excitation sequence.

The main benefits are:

Simple architecture

Reduced wiring

Lower component count

Cost-effective system design

Easy replacement and maintenance

However, open-loop operation also means that the motor should be correctly sized for the actual machine load, acceleration and operating speed.

Excessive load or acceleration may cause missed steps.

Torque Configuration

Available NEMA23 Motor Torque Options

The appropriate motor should be selected according to:

Load → Acceleration → Speed → Transmission → Friction → Safety Margin

Holding torque should not be treated as the same value as available torque during high-speed operation.

Driver Current Options

The DC Open Loop Stepper Motor Drivers Kit EtherCAT supports driver-current configurations including:

The driver should be matched with the motor's rated winding current.

Selecting a driver based only on the maximum current rating is not recommended. The motor winding specification and actual machine operating conditions should be considered together.

Product Parameter Table

Technical Specifications

Product Advantages

High Integration

The motor and EtherCAT driver are supplied as a matched motion-control solution.

Flexible Configuration

Seven torque levels and two driver-current options provide multiple combinations for different applications.

Networked Motion Control

EtherCAT makes it possible to integrate stepper axes into a centralized industrial Ethernet architecture.

Lower System Complexity

The open-loop configuration avoids the additional encoder hardware normally associated with feedback-based systems.

Suitable for Multi-Axis Machines

The architecture is particularly attractive for CNC and automation systems with multiple coordinated axes.

Easier Product Selection

Customers can specify torque, voltage and current instead of designing the entire motor-drive combination independently.

Application Areas

CNC Machines

The DC Open Loop Stepper Motor Drivers Kit EtherCAT can be used for:

• CNC routers
• Milling machines
• Cutting machines
• Engraving machines
• CNC plasma machines
• Automatic tool positioning

Industrial Automation

Typical applications include:

• Linear positioning
• Material feeding
• Indexing mechanisms
• Conveyor positioning
• Inspection equipment
• Automatic assembly systems

Robotics

Suitable for:

• Robotic axes
• Linear actuators
• Pan/tilt mechanisms
• Pick-and-place equipment
• Educational robotics

Laser and Engraving Equipment

The NEMA23 motor platform can be used for machine-axis movement in laser engraving and marking systems.

Packaging Machinery

Typical functions include:

• Feeding
• Positioning
• Indexing
• Cutting
• Label alignment

Linear Motion Systems

The system can drive:

• Lead screws
• Ball screws
• Belt-driven axes
• Linear rails
• Rotary stages

Typical Industrial Applications

CNC Router Axis Control

The driver receives network commands and controls X/Y/Z-axis motors for machining and positioning.

Automatic Production Line

Multiple stepper axes can be connected through an EtherCAT network for coordinated machine operation.

Linear Stage

A NEMA23 motor can drive a screw-based linear actuator for automated positioning.

Automatic Feeder

The motor provides controlled incremental movement for material feeding and indexing.

B2B OEM / ODM Solution

The Lichuan DC Open Loop Stepper Motor Drivers Kit EtherCAT is suitable for:

Machine Manufacturers

Automation Integrators

CNC Manufacturers

Robotics Developers

Motion-Control Distributors

Industrial Equipment OEMs

For B2B applications, customers can discuss:

• Motor torque selection
• Motor winding
• Shaft configuration
• Cable length
• Connector
• Driver configuration
• EtherCAT system requirements
• Product labeling
• Packaging
• OEM quantities
• Application-specific testing

C-End / DIY Applications

For professional makers and DIY users, the kit can be used for:

• DIY CNC routers
• Custom linear stages
• Automatic camera sliders
• Small robotic systems
• Custom engraving machines
• Experimental automation systems

Before purchasing, users should confirm:

NEMA23 compatibility + driver current + power supply + required torque + controller/EtherCAT compatibility.

How to Select the Right Model

Step 1 – Determine Machine Load

Calculate or estimate the required force or rotary load.

Step 2 – Determine Transmission

Consider whether the motor drives a:

• Ball screw
• Lead screw
• Belt
• Gear
• Direct rotary load

Step 3 – Determine Speed

Calculate the required motor RPM from the mechanical transmission.

Step 4 – Determine Torque

Select a motor with sufficient torque at the required operating speed.

Step 5 – Select Driver Current

Match the motor winding current to the 2.5A or 4.0A driver configuration.

Step 6 – Confirm Power Supply

Use a DC24–50V power supply compatible with the driver.

Step 7 – Confirm EtherCAT Compatibility

Verify that the machine controller and EtherCAT master support the required EtherCAT motion-control architecture.

Installation and Operation

Step 1

Install the NEMA23 motor securely onto the machine frame.

Step 2

Install the EtherCAT stepper driver in a properly ventilated electrical enclosure.

Step 3

Connect the DC power supply within the specified voltage range.

Step 4

Connect the motor phases according to the specific driver's wiring diagram.

Step 5

Connect the EtherCAT network between the controller and driver.

Step 6

Configure the EtherCAT device using the corresponding controller/software environment.

Step 7

Set the correct motor current and motion parameters.

Step 8

Perform a low-speed motion test.

Step 9

Check motor rotation direction, temperature, abnormal noise and machine movement.

Step 10

Gradually increase speed and acceleration until the required operating profile is reached.

Safety and Precautions

Power Safety

Disconnect power before changing motor wiring.

Voltage Safety

Do not exceed the specified DC24–50V input range.

Current Safety

Do not configure the driver above the allowable current of the connected motor.

Thermal Management

Provide adequate ventilation around the driver.

Mechanical Safety

Ensure the motor is securely mounted and the mechanical load can move freely.

Open-Loop Limitation

Because the system operates without encoder feedback, excessive load or acceleration may result in missed steps.

EtherCAT Configuration

The exact EtherCAT communication parameters should be configured according to the selected driver version and controller software.

Production Process

Motor Manufacturing

The NEMA23 stepper motor production process can include:

Magnetic material preparation → Stator assembly → Rotor assembly → Coil winding → Insulation → Shaft assembly → Bearing installation → Electrical testing → Performance testing

Driver Manufacturing

PCB component inspection → SMT/DIP assembly → Soldering → Programming → Functional testing → Communication testing → Aging → Final inspection

Complete Kit Assembly

After the motor and driver pass their individual inspections, the matched components are assembled and verified as a complete DC Open Loop Stepper Motor Drivers Kit.

Quality Control

Quality control should cover:

Incoming Material Inspection

Electrical components and mechanical parts are inspected before production.

Motor Electrical Testing

Winding resistance, insulation and operating characteristics can be checked.

Driver Functional Testing

The driver is tested for:

• Power input
• Current regulation
• Communication
• Motor control
• Protection functions

Aging Testing

Long-duration operation can be used to identify potential early failures.

Final Inspection

The complete DC Open Loop Stepper Motor Drivers Kit EtherCAT is checked before shipment.

Product Certification

For the independent website, the certification section should only display certificates corresponding to the exact model/SKU.

Suggested website copy:

Certifications & Compliance

Selected Lichuan motion-control products are available with applicable industrial certifications and compliance documentation, including CE, RoHS and ISO9001-related quality-system documentation where applicable.

Certification availability may vary according to product model, destination market and product configuration.

Please contact Lichuan for the certificate applicable to your selected DC Open Loop Stepper Motor Drivers Kit EtherCAT configuration.

This wording prevents the website from incorrectly implying that every torque and driver configuration has exactly the same certificate set.

Quality Guarantee

Stable Manufacturing

Lichuan focuses on industrial automation and motion-control products, including stepper motors, stepper drives, integrated motors and servo systems.

Product Testing

Finished products should undergo functional inspection before shipment.

Application Support

For B2B customers, technical support can be provided for model selection, system configuration, wiring and commissioning.

OEM Quality Control

For volume projects, production batches can be managed according to agreed specifications and inspection requirements.

Customer Service

Pre-Sales Support

Our engineers can help select the appropriate:

Torque + Driver Current + Voltage + EtherCAT Configuration + Motor Size

Technical Support

Support can include:

• Product selection
• Wiring
• EtherCAT connection
• Parameter configuration
• Current setting
• Motion tuning
• Troubleshooting
• Application matching

B2B Purchasing Support

We can assist with:

• Samples
• Bulk orders
• OEM requirements
• Packaging
• Product labeling
• Technical documents
• Shipping coordination

FAQ

What is a DC Open Loop Stepper Motor Drivers Kit?

A DC Open Loop Stepper Motor Drivers Kit combines a DC-powered digital stepper driver with a compatible stepper motor to provide a complete motion-control solution.

Does this Lichuan kit support EtherCAT?

Yes. This product configuration is designed with EtherCAT communication for networked industrial motion-control applications.

What motor frame does the kit use?

The motor is a 2-phase NEMA23 hybrid stepper motor.

What voltage is supported?

The driver is designed for DC24V–50V input.

What current options are available?

The available driver current configurations are 2.5A and 4.0A.

What torque options are available?

The product family includes:

0.6N.m, 1.2N.m, 1.8N.m, 2.0N.m, 2.4N.m, 3.0N.m and 3.5N.m.

Is this a closed-loop stepper motor?

No. This configuration is an open-loop stepper system. It does not require encoder feedback for standard operation.

Can it be used for CNC?

Yes. The NEMA23 motor format and EtherCAT motion architecture are suitable for many CNC and automation applications, subject to system matching.

Can it be used for multi-axis motion control?

Yes. EtherCAT is designed for networked industrial control, making the configuration suitable for multi-axis systems when used with a compatible EtherCAT master.

How do I choose between 2.5A and 4.0A?

The driver current should be selected according to the motor's rated winding current and the actual application requirements.

How do I choose the motor torque?

Select the motor according to load, acceleration, transmission ratio, target speed and required safety margin.

Does the kit include the power supply?

The power supply configuration depends on the specific order/package. Please confirm the BOM before purchasing.

Does the kit support OEM customization?

OEM/ODM options can be discussed according to order quantity, application and product configuration.

Recommended Product Comparison Table

NEMA23 EtherCAT Stepper Motor Configuration

Note: Actual application suitability must be verified using the machine's load, speed and acceleration requirements.

Company Introduction

About Lichuan

Lichuan is a motion-control manufacturer focused on industrial automation solutions, including stepper motors, stepper motor drivers, integrated stepper systems, closed-loop stepper systems, servo products and related automation components.

The company's product portfolio supports applications across CNC machinery, industrial automation, robotics, positioning systems and other motion-control equipment.

For international B2B customers, Lichuan provides product selection, technical support, OEM/ODM cooperation and motion-control application assistance.

Why Choose Lichuan?

Dedicated Motion-Control Product Portfolio

Lichuan focuses on motion-control products rather than treating stepper motors as a single standalone product.

Complete Motor and Driver Solutions

Customers can source compatible motors and drivers from the same supplier.

Multiple Torque Configurations

Seven torque choices allow machine designers to build product families around different machine sizes.

EtherCAT Capability

Networked motion control provides a modern integration option for industrial automation systems.

B2B Technical Support

Engineering support helps customers select and configure suitable solutions for specific machinery.

Final Website CTA

Build Your Next Motion-Control System with Lichuan

Looking for the right DC Open Loop Stepper Motor Drivers Kit EtherCAT for your CNC machine, linear motion system or industrial automation project?

Send us your:

Application + Motor Torque + Voltage + Driver Current + Controller + Required Quantity

Our team can recommend a suitable Lichuan NEMA23 stepper motor and EtherCAT driver configuration for your application.

Request a Quote

Get Technical Datasheet

Talk to a Motion-Control Engineer
