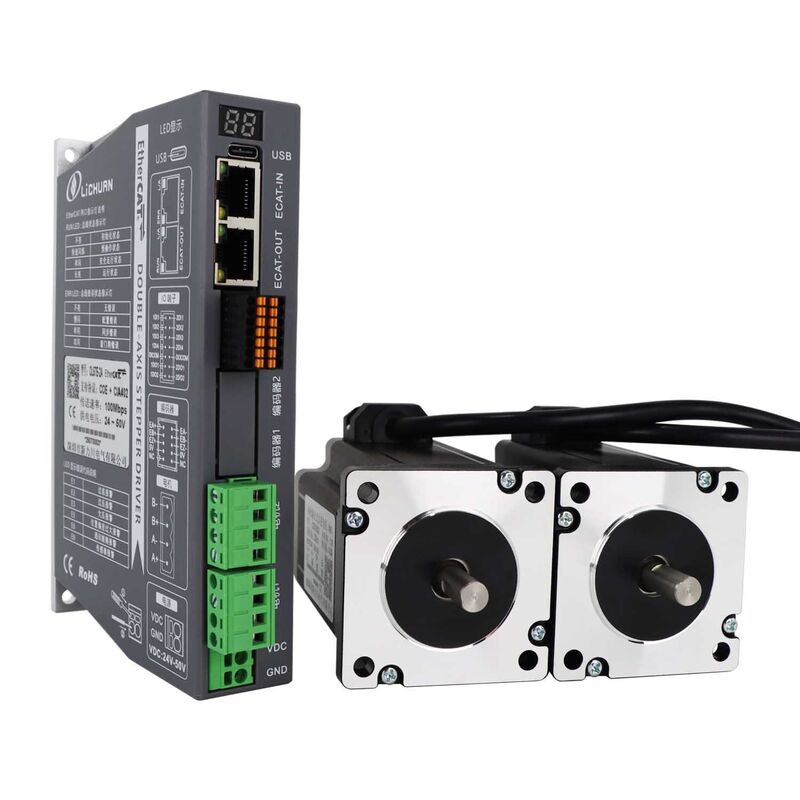

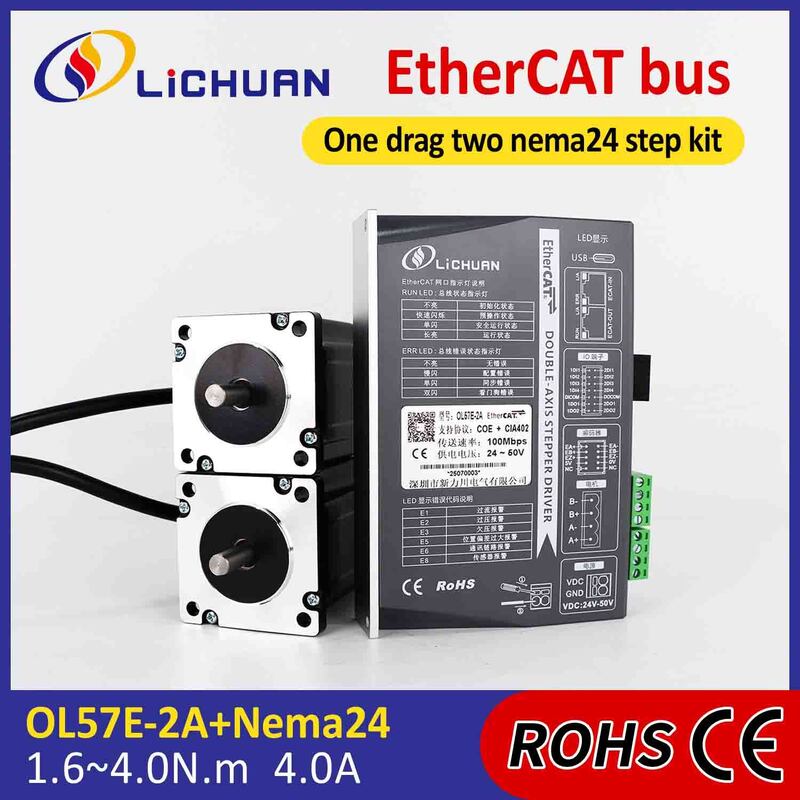

Lichuan DC Open Loop Stepper Motor Drivers Kit EtherCAT 1.6N.m 2 Phase Nema24 DC24V～50V 4.0A
The Lichuan DC Open Loop Stepper Motor Drivers Kit is an EtherCAT-based motion control solution combining a high-torque 2-phase NEMA24 stepper motor with a digital stepper motor driver.
Designed for industrial automation, CNC machinery, positioning equipment and multi-axis motion applications, this DC Open Loop Stepper Motor Drivers Kit offers multiple holding torque options from 1.6 N·m to 4.0 N·m, with a DC24V–50V power supply range and 4.0A drive current configuration.
By combining NEMA24 mechanical performance with EtherCAT network communication, the system is designed to provide a practical, scalable and cost-effective solution for machine builders, OEM manufacturers, automation integrators and professional users.
The Lichuan DC Open Loop Stepper Motor Drivers Kit is developed for applications requiring reliable incremental motion, high holding torque and EtherCAT-based multi-axis communication.
Compared with conventional pulse-only stepper systems, an EtherCAT architecture can simplify multi-axis system integration and provide centralized communication between the motion controller and individual drives.
The NEMA24 stepper motor platform offers higher torque capacity than many compact NEMA17 or NEMA23 systems, making this kit suitable for applications where stronger mechanical output is required without moving immediately to a servo system.
The product is available in several torque configurations:
1.6 N·m / 2.1 N·m / 2.5 N·m / 3.0 N·m / 3.5 N·m / 4.0 N·m
| Item | Specification |
|---|---|
| Product Name | DC Open Loop Stepper Motor Drivers Kit |
| Brand | LICHUAN |
| Motor Type | 2-Phase Open Loop Stepper Motor |
| Motor Frame | NEMA24 |
| Communication | EtherCAT |
| Input Voltage | DC24V–50V |
| Drive Current | 4.0A |
| Holding Torque | 1.6 / 2.1 / 2.5 / 3.0 / 3.5 / 4.0 N·m |
| Motor Configuration | 2-Phase |
| Control Architecture | Open Loop |
| Driver Type | Digital EtherCAT Stepper Driver |
| Typical System | Multi-Axis Motion Control |
| Main Applications | CNC, Automation, Positioning, Robotics |
| Target Customers | OEMs, Integrators, Distributors, Machine Builders |
The DC Open Loop Stepper Motor Drivers Kit is designed for EtherCAT-based motion-control systems.
EtherCAT communication allows multiple drives to be connected within the same industrial network, making the solution suitable for coordinated multi-axis applications.
For machine builders and automation engineers, this architecture can simplify control-system design compared with large numbers of individual point-to-point motion signal connections.
The NEMA24 motor provides a larger mechanical platform for applications requiring higher torque than smaller stepper motor sizes.
With available holding torque up to 4.0 N·m, the system is suitable for medium- to higher-load positioning applications.
The DC Open Loop Stepper Motor Drivers Kit is available in six torque levels:
| Torque | Typical Application Direction |
|---|---|
| 1.6 N·m | Light to medium positioning |
| 2.1 N·m | General automation |
| 2.5 N·m | Medium-load machinery |
| 3.0 N·m | CNC and industrial positioning |
| 3.5 N·m | Higher-load motion applications |
| 4.0 N·m | High-torque NEMA24 applications |
Actual motor selection should consider speed, acceleration, load inertia, transmission ratio, screw lead and duty cycle rather than holding torque alone.
The kit is designed for a DC24V–50V power supply architecture, providing flexibility for different industrial control-panel power configurations.
The 4.0A driver configuration is designed to provide the current required by the corresponding high-torque NEMA24 stepper motor configuration.
Current settings should always be matched to the selected motor specification.
The system operates as an open-loop stepper solution without encoder feedback for continuous position correction.
This makes the system simpler and more economical than encoder-based solutions for applications that do not require closed-loop error correction.
EtherCAT communication makes the system suitable for machine architectures involving multiple synchronized motion axes.
Typical applications include XYZ positioning systems, CNC equipment, automated assembly machinery and industrial linear-motion equipment.
| Parameter | Specification |
|---|---|
| Product Type | DC Open Loop Stepper Motor Drivers Kit |
| Stepper Motor | 2-Phase Hybrid Stepper Motor |
| Frame Size | NEMA24 |
| Holding Torque | 1.6 / 2.1 / 2.5 / 3.0 / 3.5 / 4.0 N·m |
| Driver Current | 4.0A |
| Supply Voltage | DC24V–50V |
| Communication | EtherCAT |
| Control Mode | Open Loop |
| Motor Phase | 2 Phase |
| Motor Driver | Digital EtherCAT Stepper Driver |
| Motion Application | Positioning / Speed / Coordinated Motion |
| Typical Equipment | CNC, Automation Equipment, Robotics, Positioning Systems |
| Installation | Industrial Equipment / Control Cabinet Integration |
Technical details such as rated current, peak current, inductance, resistance, speed-torque characteristics, dimensions, connector definition and protection functions should be confirmed against the datasheet of the selected motor-driver configuration.
The DC Open Loop Stepper Motor Drivers Kit converts digital motion commands into controlled motor rotation through a sequence of electrical phase currents.
The basic control chain is:
EtherCAT Motion Command → Stepper Driver → Phase Current Control → NEMA24 Motor → Mechanical Motion
The EtherCAT controller sends the required motion information to the driver.
The digital driver processes the command and controls the current supplied to the two motor phases.
The resulting electromagnetic field causes the stepper motor rotor to move in controlled increments.
The motor then transfers the rotary motion to the machine through a lead screw, ball screw, belt drive, rack-and-pinion mechanism or other mechanical transmission.
A PLC, industrial PC or EtherCAT motion controller generates the required position, speed or motion command.
The motion command is transmitted through the EtherCAT network to the designated stepper driver.
The driver processes the command and controls the motor phase current according to its configured operating parameters.
The two-phase NEMA24 motor converts electrical energy into incremental rotary motion.
The motor shaft drives the connected mechanical transmission and generates linear or rotary machine movement.
This open-loop architecture is particularly appropriate for applications where high holding torque, repeatability and economical motion control are more important than encoder-based feedback.
Choosing the correct DC Open Loop Stepper Motor Drivers Kit should begin with the actual mechanical load rather than the motor's maximum torque value.
| Required Torque Range | Suggested Configuration |
|---|---|
| Up to 1.6 N·m | 1.6 N·m |
| Around 2.0 N·m | 2.1 N·m |
| Around 2.5 N·m | 2.5 N·m |
| Around 3.0 N·m | 3.0 N·m |
| Around 3.5 N·m | 3.5 N·m |
| Up to 4.0 N·m | 4.0 N·m |
For engineering selection, always account for acceleration, target speed, transmission efficiency, load inertia and safety margin.
The high-torque NEMA24 platform is suitable for:
The DC Open Loop Stepper Motor Drivers Kit can be integrated into:
Typical applications include:
The system is also suitable for selected:
For OEM manufacturers and machine builders, the DC Open Loop Stepper Motor Drivers Kit can simplify the selection of motor and driver components for new machine designs.
Machine Builders
For integrating motion axes into complete equipment.
Automation Integrators
For multi-axis industrial automation projects.
CNC Manufacturers
For feed-axis and positioning systems.
Equipment OEMs
For standardized motion platforms across multiple machine models.
Industrial Distributors
For stocking a family of torque-based NEMA24 EtherCAT motion products.
Engineering Companies
For prototype development and system integration.
The NEMA24 form factor provides a practical solution for applications requiring more torque than smaller compact stepper systems.
Six torque options make it possible to build a product family for different machine loads without changing the overall NEMA24 platform.
The network-based communication architecture is well suited to multi-axis motion systems.
For suitable applications, an open-loop configuration can provide a simpler and more economical alternative to servo-based motion control.
The DC24V–50V supply range accommodates a wide range of industrial DC control architectures.
The 4.0A configuration is designed for the corresponding high-torque NEMA24 motor solutions.
The DC Open Loop Stepper Motor Drivers Kit is also suitable for technically experienced CNC builders, makers and automation enthusiasts who need higher torque and EtherCAT communication.
The kit provides:
Before purchase, users should confirm that their controller or EtherCAT master supports the required communication and drive configuration.
A reliable DC Open Loop Stepper Motor Drivers Kit depends on stable motor manufacturing, electronic assembly and final testing.
The motor production process typically includes:
The digital driver production process typically includes:
The motor-driver combination is inspected against the relevant product specifications before shipment.
Key inspection areas may include electrical parameters, communication stability, mechanical quality and operating performance.
Before installation, confirm:
Install the NEMA24 motor on a rigid and accurately aligned mounting surface.
Avoid excessive shaft loads or mechanical misalignment.
Connect the DC power supply according to the driver wiring diagram.
Verify voltage and polarity before power-up.
Connect the two motor phases according to the manufacturer's wiring definition.
Connect the EtherCAT communication network between the controller and driver.
Set the required communication and motion parameters according to the controller and driver documentation.
Run the motor at low speed first.
Check:
After confirming stable operation, gradually increase the required speed and acceleration.
Use only the recommended DC24V–50V operating range for the applicable product configuration.
Do not exceed the rated current of the selected NEMA24 motor.
Always check motor phase wiring and power polarity before energizing the system.
Maintain adequate ventilation and heat dissipation around the driver.
Do not exceed the motor's effective torque capability at the required operating speed.
An open-loop system does not continuously verify actual rotor position through encoder feedback. Applications with high external disturbance, extreme acceleration or strict position-error monitoring may require a closed-loop or servo solution.
| Feature | Open-Loop Stepper | Closed-Loop Stepper | Servo |
|---|---|---|---|
| Encoder | No | Yes | Yes |
| Position Feedback | No | Yes | Yes |
| System Cost | Lower | Medium | Higher |
| Control Complexity | Lower | Medium | Higher |
| Holding Torque | High | High | Application dependent |
| Missed-Step Correction | No | Yes | Yes |
| EtherCAT Available | Selected Models | Selected Models | Common |
| Typical Use | Cost-Effective Motion | Higher-Control Motion | High-Performance Motion |
The DC Open Loop Stepper Motor Drivers Kit is best suited to applications where the advantages of stepper motor technology meet the required positioning and load-performance requirements without requiring closed-loop feedback.
Quality control should cover the complete product chain from raw material and motor assembly through PCB production, firmware configuration and final system testing.
Recommended quality-control checkpoints include:
For B2B customers, quality documents, test reports and applicable certificates should be supplied according to the actual product model and order requirements.
Depending on the exact product configuration and target market, available compliance documentation may include:
Certificate availability should be confirmed for the exact NEMA24 motor and EtherCAT driver configuration before making SKU-specific compliance claims.
We can assist customers with:
Support may include:
For OEMs, system integrators and distributors, services can include:
A DC Open Loop Stepper Motor Drivers Kit is a matched motor-and-driver motion-control solution using a DC-powered digital stepper driver and an open-loop stepper motor.
This product is designed around a 2-phase NEMA24 stepper motor.
The product is available in:
1.6 N·m, 2.1 N·m, 2.5 N·m, 3.0 N·m, 3.5 N·m and 4.0 N·m.
The specified operating voltage is DC24V–50V.
The specified driver current is 4.0A.
Yes. The product is designed as an EtherCAT DC Open Loop Stepper Motor Drivers Kit for industrial motion-control applications.
No. This product uses an open-loop stepper control architecture and does not rely on encoder feedback for continuous position correction.
Yes. The high-torque NEMA24 platform is well suited to CNC, engraving, positioning and other automated machinery.
Consider load torque, operating speed, acceleration, transmission ratio, screw lead, friction and safety margin. The highest holding-torque model is not always the best choice for every axis.
Yes. EtherCAT communication is particularly suitable for networked multi-axis machine architectures, provided that the EtherCAT master/controller is compatible with the selected driver.
Not automatically. The controller must provide compatible EtherCAT master functionality and support the communication and motion profile required by the selected driver.
Please provide:
LICHUAN focuses on industrial motion-control products and solutions for automation, CNC, positioning and machine-building applications.
The product portfolio is designed to address different levels of machine motion requirements, from stepper motor control to networked and industrial motion-control systems.
For customers looking for a DC Open Loop Stepper Motor Drivers Kit, LICHUAN combines motor selection, driver matching and industrial communication into a practical motion-control product family.
Our objective is to help OEMs, distributors, integrators and technical users reduce component-selection complexity and build reliable motion-control systems more efficiently.
Choose from 1.6 N·m to 4.0 N·m NEMA24 torque configurations with DC24V–50V input and 4.0A drive current.
Send us your application requirements and we can help evaluate the appropriate motor-driver configuration for your machine.
Request a Quote
Contact Our Engineers
Ask for the Datasheet
