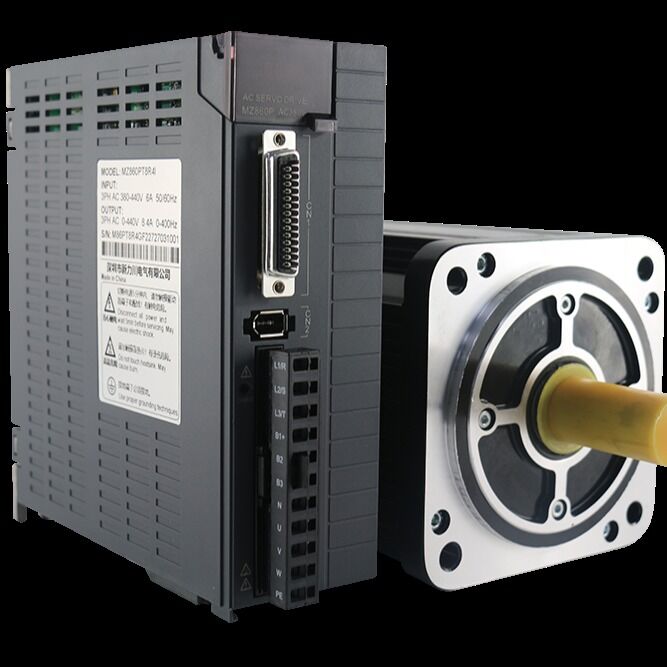

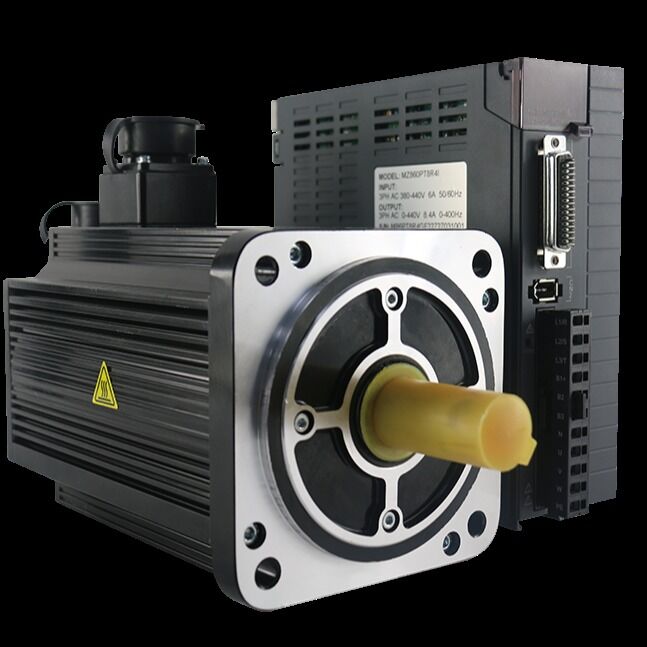

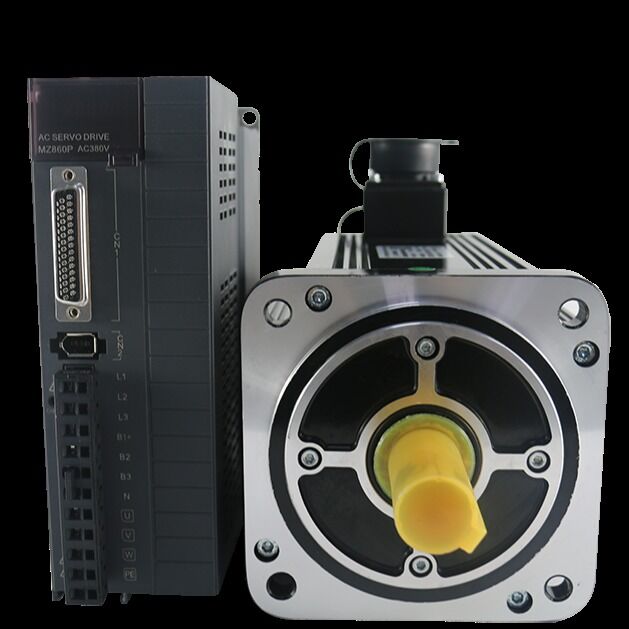

380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM

380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM

380V 3 phase ac servo motor

130mm 3 phase ac servo motor

10Nm 3 phase servo motor

Place of Origin:

GUA

Brand Name:

LICHUAN

Model Number:

LCMT-26MCC23NB-130M10025B+LCDA-2608C23-M1534P

Contact Us
Request A Quote
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM
Product Details
AC Voltage:
380V
Phase:
Three-Phase
Efficiency:
IE 2
Frequency:
2500RPM
Protect Feature:
Waterproof
Type:
Servo Motor
Warranty:
3 Months ~ 1 Year
Product Name:
3Phase Servo Motor With Drive Kit
Rated Voltage(V):
380V
Rated Power(KW):
2.6KW
Rated Current (A):
10
Rated Speed(rpm):
2500
Holding Torque(N.m):
10
Peak Torque(N.m):
25
Bit:
23 Bit Incremental
Weight(Kg):
11.5
Safety Class:
IP66
Highlight:

380V 3 phase ac servo motor

,

130mm 3 phase ac servo motor

,

10Nm 3 phase servo motor

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$395.10-459 / set
RELATED PRODUCTS
Good price Lichuan AC Servo Motor Driver 600W 0.6KW 1.91N.M 220V 3.3A 3000RPM IP65 online Video

Lichuan AC Servo Motor Driver 600W 0.6KW 1.91N.M 220V 3.3A 3000RPM IP65

Get Best Price
Good price Lichuan AC Servo Motor Driver 400W 0.4KW 1.27N.M 220V 2.5A 3000RPM IP65 online Video

Lichuan AC Servo Motor Driver 400W 0.4KW 1.27N.M 220V 2.5A 3000RPM IP65

Get Best Price
Good price Lichuan 1000W 1.0KW AC Servo Motor Driver 4.0N.M 220V 4.6A 2500RPM IP65 online Video

Lichuan 1000W 1.0KW AC Servo Motor Driver 4.0N.M 220V 4.6A 2500RPM IP65

Get Best Price
Good price Lichuan AC Servo Motor Drivers Kit A5 LC10P 750W 0.75KW 2.39N.m 220V 4.5A 3000RPM IP65 online Video

Lichuan AC Servo Motor Drivers Kit A5 LC10P 750W 0.75KW 2.39N.m 220V 4.5A 3000RPM IP65

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description





Packing List
NO.
Product Name
Model / Description
Quantity
1
Lichuan 2.6KW 130M10025B Servo Motor
130M10025B
1
2
Lichuan 2.6KW AC Servo Driver
LCDA-2608C23-M1534P
1
3
Motor Cable
Standard (3m)
1
4
Encoder Cable
Standard (3m)
1
5
Servo Driver Instruction Book
Standard
1
Products Description
Product Name
3 Phase Servo Motor Drive Kit
Type
130M10025B+LCDA-2608C23-M1534P
Rated power(KW)
2.6
Rated voltage(V)
380V
Rated current (A)
10
Rated speed(rpm)
2500
Holding torque(N.m)
10
Weight(Kg)
11.5
Bit
23 bit incremental
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 0
Lichuan 130 series AC servo motor contains 1KW,1.3KW,1.5KW, 2KW, 2.3KW, 2.6KW, 3.8KW power specifications, the motor adopts Japan Tamagawa 2500 cable encoder, advanced magnetic circuit design and high temperature permanent magnet material , Servo motor running smoothly, the noise is very small, suitable for a variety of industrial automation equipment, high precision control applications.
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 2
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 4
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 6
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 8
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 10
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 12
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 14
Application Area
380V 2.6KW 10Nm 23bit 130mm 3 Phase AC Servo Motor With Drive 130M10025B+M1534P 2500RPM 16
