Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66

Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66

2.6KW AC servo motor driver

AC220V servo motor kit with warranty

IP66 rated servo motor 10N.m

Place of Origin:

China

Brand Name:

Lichuan

Certification:

ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321

Model Number:

LC30P-2.6KW

Document:

Lichuan AC Servo Motor Driv...rs.pdf

Contact Us
Request A Quote
Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66
Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66
Product Details
Made By:
Lichuan
Power Supply:
Single-phase AC220v
Motor Tyle:
AC Servo Motor Frame130
Holding Torque:
10N.m
Rated Speed:
1500/2500RPM
Encoder Type:
Absolute/ Incremental
MODBUS RJ45:
Support
Installation Method:
Vertical
Power And Encoder Cable:
3M Standard, Longer Cable Available
Applicable:
All Kinds Of Automation Control Machine
Highlight:

2.6KW AC servo motor driver

,

AC220V servo motor kit with warranty

,

IP66 rated servo motor 10N.m

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Eco-friendly paper packaging
Delivery Time
15 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
1~5Set 7Days/ 6~100Set 12Days/ ≥101Set Contact Supplier
RELATED PRODUCTS
Good price Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 1.5KW 1500W AC220V 7.5A/6A/10A 1500/2500RPM IP66 online Video

Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 1.5KW 1500W AC220V 7.5A/6A/10A 1500/2500RPM IP66

Get Best Price
Good price Lichuan AC Servo Motor Drivers Kit A5 Series 7.7N.m 2KW 2000W AC220V 7.5A/6A/10A 1500/2500RPM IP66 online Video

Lichuan AC Servo Motor Drivers Kit A5 Series 7.7N.m 2KW 2000W AC220V 7.5A/6A/10A 1500/2500RPM IP66

Get Best Price
Good price Lichuan AC Servo Motor Drivers Kit A5 Series 15N.m 2.3KW 2300W AC220V 9.5A 1500RPM IP66 online Video

Lichuan AC Servo Motor Drivers Kit A5 Series 15N.m 2.3KW 2300W AC220V 9.5A 1500RPM IP66

Get Best Price
Good price Lichuan AC Servo Motor Drivers Kit LC10E Series EtherCAT 1.27N.m 400W 0.4KW AC220V 1.1A/1.6A/2.5A/3.3A 3000RPM IP65 online Video

Lichuan AC Servo Motor Drivers Kit LC10E Series EtherCAT 1.27N.m 400W 0.4KW AC220V 1.1A/1.6A/2.5A/3.3A 3000RPM IP65

Get Best Price
CONTACT US
13613049632
rony@xlichuan.com
Contact Now
Product Description
Lichuan AC Servo Motor Drivers Kit A5 Series
High Torque Industrial Servo Solution

The Lichuan AC Servo Motor Drivers Kit LC30P Series is a high-torque, industrial-grade motion control solution designed for demanding automation applications. This integrated system combines a powerful AC servo motor with a high-performance digital servo drive, delivering precise control, fast response, and long-term operational stability.

Product Overview

Available in multiple configurations to meet diverse industrial requirements:

  • Rated Torque: 7.7N·m / 10N·m
  • Rated Power: 1.5KW / 2.0KW / 2.6KW
  • Rated Voltage: AC 220V
  • Rated Current: 6A / 7.5A / 10A
  • Rated Speed: 1500RPM / 2500RPM
  • Protection Class: IP66 (Motor)
Technical Specifications
Item Specification
Product Name AC Servo Motor Drivers Kit
Series LC30P
Rated Voltage AC 220V
Rated Power 1.5KW / 2.0KW / 2.6KW
Rated Torque 7.7N·m / 10N·m
Rated Current 6A / 7.5A / 10A
Rated Speed 1500RPM / 2500RPM
Control Mode Position / Speed / Torque
Encoder Type Incremental / Absolute
Protection Level IP66 (Motor)
Key Features & Advantages
  • Advanced DSP digital control technology
  • High-torque design for heavy-load applications
  • Fast dynamic response and precise positioning
  • IP66 protection for harsh industrial environments
  • Strong overload capability (up to 300%)
  • Low vibration and noise operation
  • Easy integration with PLC, CNC, and automation systems
  • Excellent cost-performance ratio

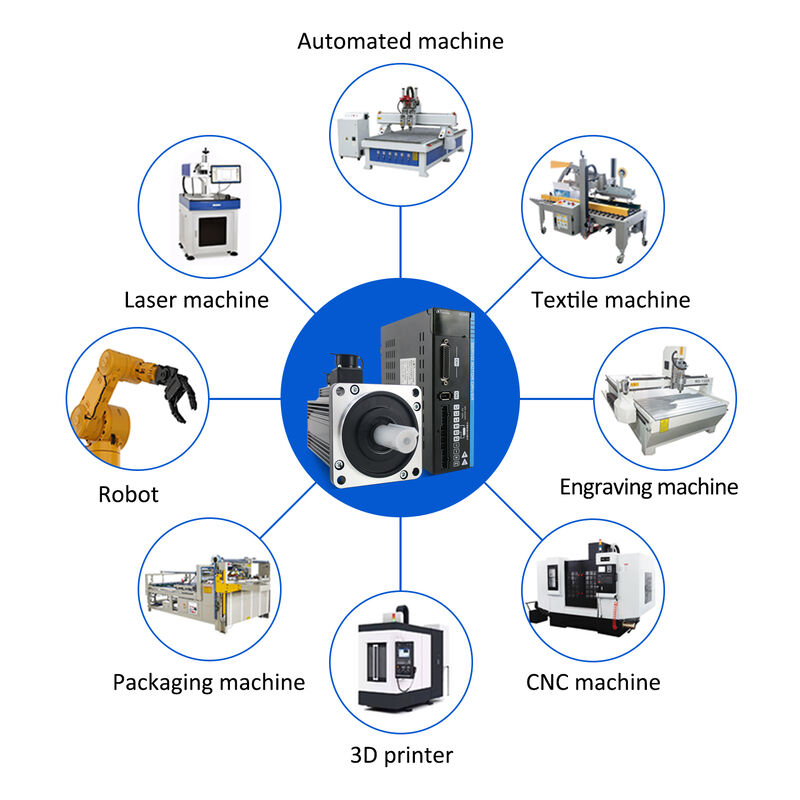

Application Fields

Ideal for applications requiring high-precision positioning and stable speed control:

  • CNC machine tools
  • Industrial robots
  • Packaging and filling machinery
  • Printing and labeling equipment
  • Textile and woodworking machinery
  • Automated production lines
Operation & Safety

Operation Steps:

  1. Install the servo motor securely

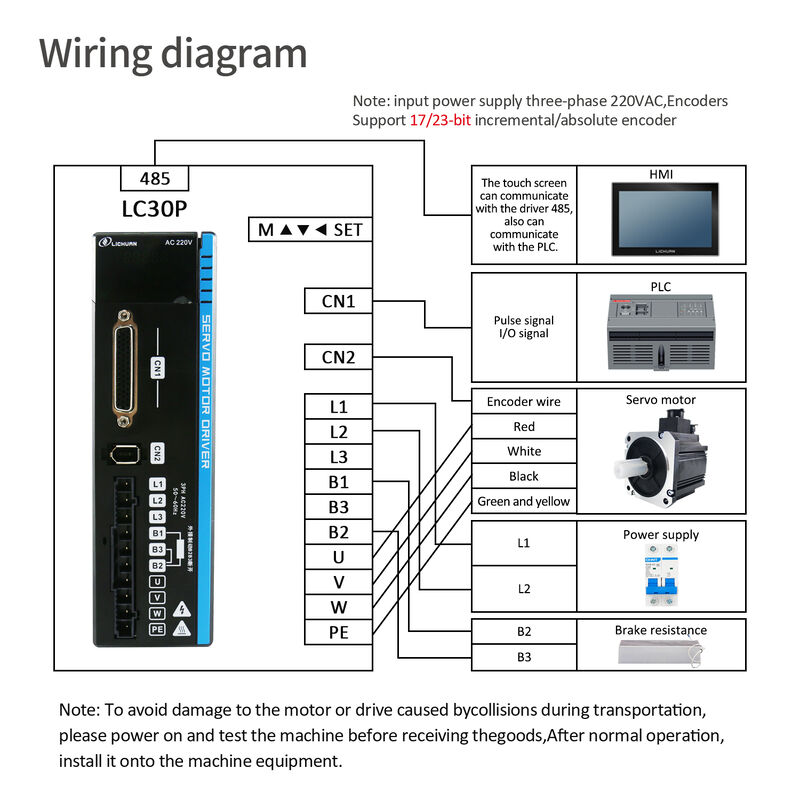

  2. Connect power and control cables correctly
  3. Configure basic parameters via drive panel or software
  4. Perform auto-tuning
  5. Start operation

Precautions:

  • Ensure correct wiring before power-on
  • Do not exceed rated voltage and current
  • Maintain proper grounding
  • Avoid operation in high-humidity or corrosive environments
Quality & Certifications
  • CE Certification
  • RoHS Compliance
  • ISO 9001 Quality Management System
  • 100% functional testing before delivery
  • Strict quality control for consistent performance
Frequently Asked Questions
Q: Is the LC30P AC Servo Motor Drivers Kit suitable for heavy-load applications?
A: Yes, it is specifically designed for high-torque and heavy-load industrial systems.
Q: Can this AC Servo Motor Drivers Kit work with PLC systems?
A: Yes, it supports standard industrial control signals and PLC integration.
Q: Is customization available?
A: OEM and parameter customization are available for the AC Servo Motor Drivers Kit.
Product Gallery
Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 0 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 1 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 2 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 3 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 4 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 5 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 6 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 7 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 8 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 9 Lichuan AC Servo Motor Drivers Kit A5 Series 10N.m 2.6KW 2600W AC220V 7.5A/6A/10A 1500/2500RPM IP66 10
