Place of Origin:
Guangdong, China
Brand Name:
LICHUAN
Model Number:
LC31332+LC3722A
Video
Video
Video
Video

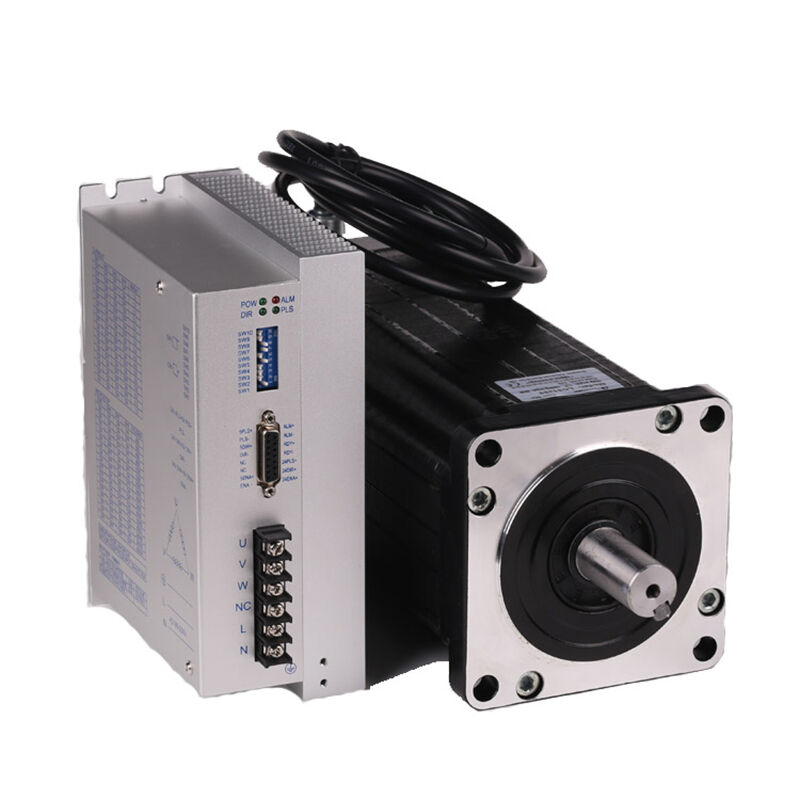

3 phase 130mm frame Nema51 50N.M LC31332+LC3722A hybrid stepper motor and drive kit
Nema51 3 Phase hybrid Stepper motor specification:
Three-phase 130 series hybrid stepping motor, the selection of high-quality raw materials and high-standard permanent magnet silicon steel, with high positioning accuracy, output torque, fast response, low noise operation, more stable operation and other characteristics, quality and reliable. Motor length between 154mm ~ 311mm, torque range: 15N.m ~ 50N.m, motor shaft diameter 24mm.
Electrical Specifications
|
Motor model |
Step/angle |
Length |
Holding torque |
Current |
Resistance |
Inductance |
Rotor inertia |
Matched Driver |
Lead wire |
Weight |
|
° |
mm |
N.M |
A |
Ω |
MH |
g.cm2 |
Model |
NO. |
Kg |
|
|
LC31315 |
1.2 |
154 |
15 |
6.9 |
0.88 |
3.7 |
20000 |
LC3722A |
3 |
11 |
|
LC31318 |
1.2 |
183 |
20 |
6.9 |
1.1 |
4.9 |
26700 |
LC3722A |
3 |
14.1 |
|
LC31322 |
1.2 |
215 |
28 |
6.9 |
2.8 |
17.9 |
33970 |
LC3722A |
3 |
17.2 |
|
LC31325 |
1.2 |
247 |
35 |
6.9 |
3.3 |
21.52 |
41240 |
LC3722A |
3 |
19.8 |
|
LC31332 |
1.2 |
311 |
50 |
6.9 |
4.2 |
28.9 |
55780 |
LC3722A |
3 |
26 |
Notes: The above is only for representative products, We can according to customer requirements to remake.
Huge frequency characteristic curve
Dimension for Nema51 hybrid stepper motor :
Pictures for Nema51 hybrid stepper motor :
Matched Stepper drive :
1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver and planetary reducer for more then 10 years in China. Lichuan is our registered brand.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/EMS), by sea and by air, also accept customer
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
7. How about warranty?
One year warranty, technical support available, we always try our best to help customers to solve problems
