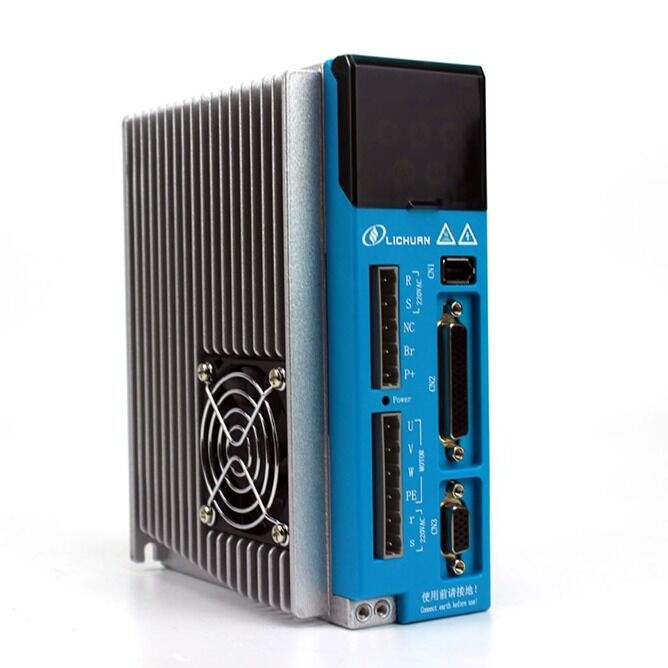

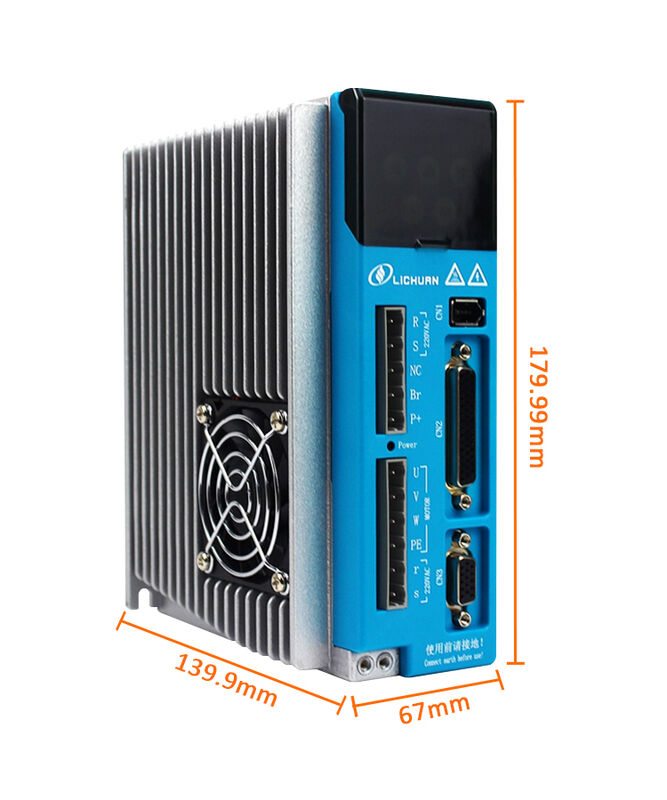

Lichuan LCDA2260E 3Phase Nema42 Stepper Driver Digital AC Servo Motor Driver for CNC Machine

Product Name: LCDA2260H 3 Phase Nema42 stepper digital servo driver
LCDA2260H using the latest dedicated motor control DSP chip and vector closed-loop control technology, completely overcome the open-loop stepper motor stepped the problem, while significantly enhance the motor high-speed performance, reduce motor heating and reduce motor vibration, improve machine processing speed and accuracy, Machine energy consumption. This drive is suitable for motor mounting size compatible with 86/110 series stepper motor, to facilitate the traditional step-by-step drive program upgrade, significantly reduce costs.

Features:

1. Voltage input range: 150 ~ 230VAC
2. Quiescent current and dynamic current can be set at 0 ~ 6A
3. Closed-loop vector control to ensure that the motor high-speed high-torque output, while ensuring the motor does not lose step
4. Built-in sub-sub-low-speed low-level operation can also be very smooth
5. Parameter automatic setting function
6. Current dynamic control greatly reduces the motor heat, ultra-low vibration noise
7. External digital debugging panel for easy parameter setting and monitoring
8. Sub-adjustable range of 200 ~ 51200ppr, impulse response frequency up to 200KHZ
9. Serial communication function, current, subdivision can be adjusted, signal edge, alarm output logic and other functions adjustable
10. Closed-loop vector control to ensure that the motor high-speed high-torque output,while ensuring that the motor is not lost step with over-voltage, over-current, tracking error tolerance

1. Electrical Specifications

2.Interface definition

1) Power terminal definition

2) Driver encoder CN3 terminal definition (LCDA2260H encoder signal terminal with 15Pin DP header, pin defined as follows :)

3) Driver control terminal definition (44 pin DB plug)

Suitable for all kinds of small and medium-sized automation equipment and equipment, such as: engraving machine, stripping machine, marking machine, cutting machine, laser machine, medical equipment, CNC machine tools, automatic assembly equipment, electronic processing equipment. In the user expectations of low noise, high speed equipment in the application of special results

1. Are you factory?
Yes, we are facotry, and we produce stepper motor/driver, Servo motor/driver and planetary reducer for more then 10 years in China. Lichuan is our registered brand.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/EMS), by sea and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
7. How about warranty?
One year warranty, technical support available, we always try our best to help customers to solve problems in time.
8. What are payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), Western Union, ALIBABA assurance order accept
