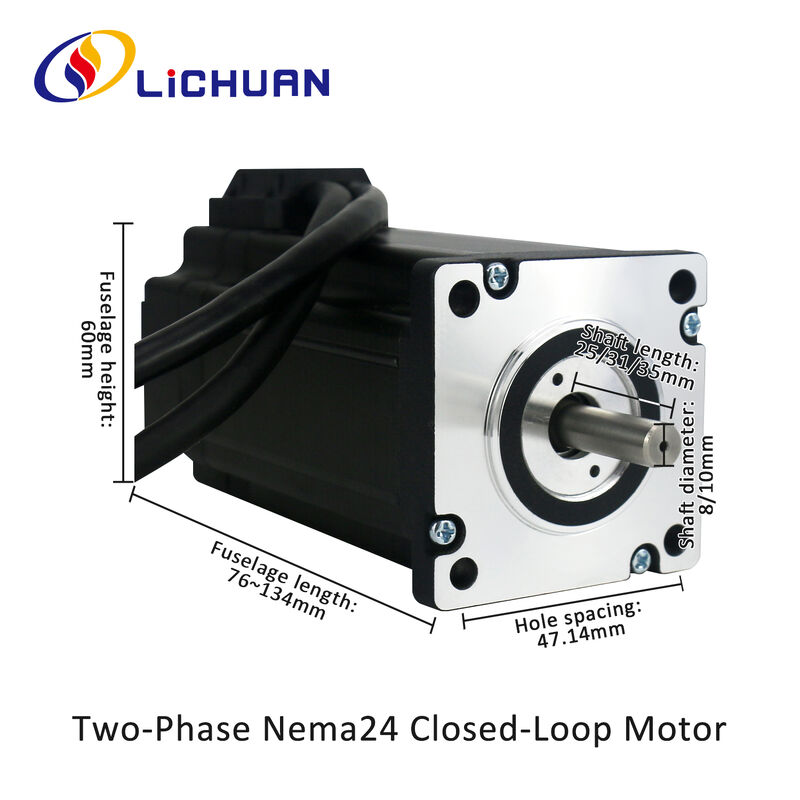

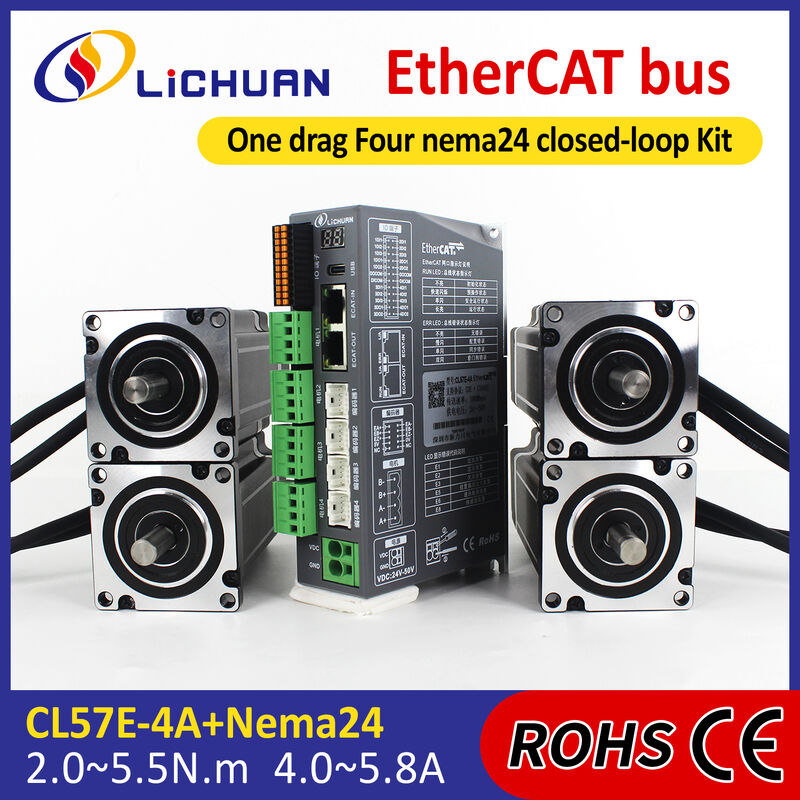

Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit 2.3N.m 2Phase Nema24 DC24V~50V 4.0/4.5/5.0/5.8A 1000PPR

Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit

2.0/2.3/2.8/4.5/4.8/5.5N.m Nema24 DC24-50V 2-Phase Stepper Motor System

Product Information

Product Description

The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit integrates high-torque Nema24 closed-loop stepper motors with intelligent digital drivers. Each motor features an integrated 1000PPR incremental encoder that provides accurate feedback to the driver, enabling closed-loop control.

This 4-Axis DC Closed Loop Stepper Motor Drivers Kit supports input voltage from DC24V to DC50V, ensuring compatibility with most industrial power systems. The system offers multiple current options including 4.0A, 4.5A, 5.0A, and 5.8A, allowing flexible configuration for different machine requirements.

With advanced DSP control algorithms and microstepping technology, the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit provides smooth motion, reduced vibration, and excellent torque performance across the entire speed range.

Product Introduction

The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit is a professional multi-axis motion control solution designed for CNC machines, automation equipment, robotics, and intelligent manufacturing systems. This integrated 4-Axis DC Closed Loop Stepper Motor Drivers Kit includes four high-performance Nema24 closed-loop stepper motors, advanced digital drivers, and encoder feedback technology for precise and reliable motion control.

Compared with traditional open-loop stepper motors, the 4-Axis DC Closed Loop Stepper Motor Drivers Kit uses a 1000PPR encoder feedback system to continuously monitor motor position and correct errors in real time. This significantly improves positioning accuracy, eliminates step loss, and ensures smooth motor operation even under heavy loads.

With torque options ranging from 2.0N.m to 5.5N.m, the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit delivers powerful performance and high stability, making it ideal for industrial automation and precision motion control applications.

Basic Information

Specifications

Motor Torque Options

The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit offers multiple torque configurations:

These configurations allow the 4-Axis DC Closed Loop Stepper Motor Drivers Kit to meet different load requirements in industrial equipment.

Electrical Specifications

Product Selling Points

Closed Loop Control Technology

The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit uses encoder feedback technology to ensure accurate position control and eliminate step loss.

High Torque Output

Torque options from 2.0N.m to 5.5N.m provide strong power for demanding industrial applications.

Smooth Motion Performance

Advanced microstepping technology ensures smooth motor movement and reduces vibration and noise.

Wide Voltage Range

The 4-Axis DC Closed Loop Stepper Motor Drivers Kit supports DC24V–50V, making it compatible with a wide range of automation systems.

Reliable Multi-Axis Control

Designed for synchronized motion control, the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit supports complex multi-axis machinery.

Product Features

• High-performance 4-Axis DC Closed Loop Stepper Motor Drivers Kit

• Integrated 1000PPR encoder feedback

• High torque Nema24 stepper motors

• Advanced DSP digital control

• Anti-resonance technology

• Microstepping precision control

• Overcurrent protection

• Overvoltage protection

These features ensure that the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit delivers reliable performance in industrial automation environments.

Product Technology

The 4-Axis DC Closed Loop Stepper Motor Drivers Kit uses advanced motion control technology including:

• Digital Signal Processing (DSP)

• Closed-loop feedback control

• Microstepping motion technology

• Encoder position monitoring

• Intelligent error correction algorithms

These technologies allow the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit to achieve high-precision motion control and stable operation.

Working Principle

The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit operates through a closed-loop control system.

Operation Process

1. Motion controller sends pulse signals to the driver

2. Driver controls the stepper motor rotation

3. Encoder monitors the motor position

4. Feedback data is transmitted to the driver

5. The driver corrects position errors automatically

This feedback loop ensures that the 4-Axis DC Closed Loop Stepper Motor Drivers Kit maintains accurate positioning and reliable motion performance.

Application Areas

The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit is widely used in:

• CNC Router Machines

• Laser Engraving Machines

• Plasma Cutting Machines

• Robotics Systems

• Industrial Automation Equipment

• Packaging Machinery

• Semiconductor Equipment

• Automated Assembly Lines

Its precise motion control capability makes the 4-Axis DC Closed Loop Stepper Motor Drivers Kit ideal for multi-axis industrial machines.

Product Uses

Typical applications include:

• CNC multi-axis control systems

• Automated robotic movement

• Precision positioning systems

• Intelligent manufacturing equipment

• Industrial automation production lines

Product Parameter Table

Product Advantages

The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit offers several advantages:

• High positioning accuracy

• No step loss during operation

• Strong torque performance

• Reduced vibration and noise

• Energy-efficient motor control

• Easy integration with CNC controllers

These benefits make the 4-Axis DC Closed Loop Stepper Motor Drivers Kit an ideal motion control solution for modern industrial machinery.

Product Services

We provide comprehensive services for the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit including:

• OEM and ODM manufacturing

• Custom motor configuration

• Motion control engineering support

• Global logistics and shipping

• Professional technical consultation

FAQ

What is a 4-Axis DC Closed Loop Stepper Motor Drivers Kit?

A 4-Axis DC Closed Loop Stepper Motor Drivers Kit is a multi-axis motion control system that integrates stepper motors, drivers, and encoder feedback technology for precise motor positioning.

What is the advantage of closed-loop stepper motors?

Closed-loop stepper motors eliminate step loss, improve efficiency, and provide higher positioning accuracy.

What controllers are compatible with this system?

The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit supports:

• CNC controllers

• PLC systems

• Arduino controllers

• Industrial motion control platforms

What industries use this product?

Industries include CNC machining, robotics, electronics manufacturing, and automated production systems.

Production Process

The Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit is produced through strict manufacturing procedures:

1. Raw material inspection

2. Motor winding process

3. Encoder installation

4. Driver PCB assembly

5. Functional testing

6. Performance calibration

7. Quality inspection

8. Packaging and shipment

Operation Method

Installation Steps

1. Mount the stepper motors on the machine frame

2. Connect the drivers to the motors

3. Connect power supply (DC24-50V)

4. Connect control signals from CNC controller

5. Configure driver parameters

6. Test the motion system

Precautions

When using the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit, please follow these guidelines:

• Ensure correct wiring before powering on

• Use recommended voltage range

• Avoid overload operation

• Ensure proper heat dissipation

• Regularly inspect cable connections

Product Certificates

Our Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit complies with international standards:

• CE Certification

• RoHS Certification

• ISO9001 Quality Management System

• EMC Compliance

Quality Assurance

Each 4-Axis DC Closed Loop Stepper Motor Drivers Kit undergoes strict quality testing including:

• 100% functional testing

• Motor torque testing

• Encoder signal verification

• Long-term burn-in testing

Customer Service

We provide complete support for the Lichuan 4-Axis DC Closed Loop Stepper Motor Drivers Kit including:

• Technical support within 24 hours

• Installation and configuration guidance

• Application engineering consultation

• Warranty service

• Global after-sales support

Company Introduction

Lichuan is a professional manufacturer specializing in motion control products including:

• Servo motors

• Stepper motors

• Closed-loop stepper systems

• Motor drivers

• Motion control solutions

We provide high-quality 4-Axis DC Closed Loop Stepper Motor Drivers Kit products for global industrial automation markets.
