Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Controller Kit 2.3N.m 2Phase Nema24 DC24V~50V 4.0/4.5/5.0/5.8A 1000PPR

Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit Nema24 DC24V–50V 4.0–5.8A 1000PPR

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit from Lichuan is a high-performance motion control solution designed for CNC machinery, automation systems, robotics, and precision positioning equipment. This 2-Axis DC Closed Loop Stepper Motor Drivers Kit integrates advanced digital signal processing technology with encoder feedback to ensure high accuracy, stable torque output, and reliable motion control.

With multiple torque options including 2.0N.m, 2.3N.m, 2.8N.m, 4.5N.m, 4.8N.m, and 5.5N.m, the 2-Axis DC Closed Loop Stepper Motor Drivers Kit provides flexible solutions for various industrial applications. Compared with traditional open-loop stepper systems, this 2-Axis DC Closed Loop Stepper Motor Drivers Kit effectively eliminates step loss, reduces vibration, and improves overall efficiency.

Product Overview – 2-Axis DC Closed Loop Stepper Motor Drivers Kit

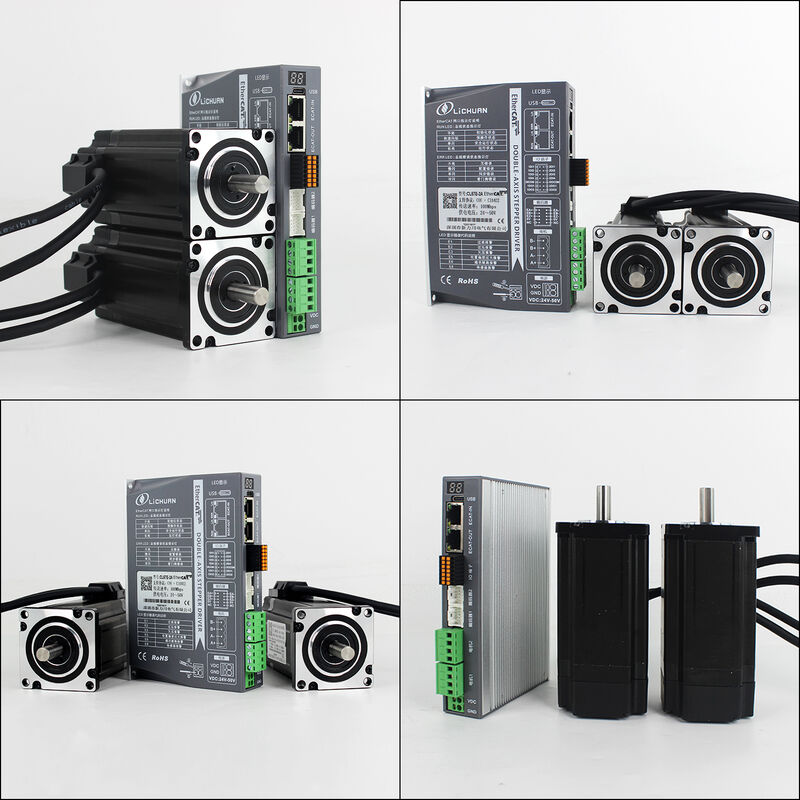

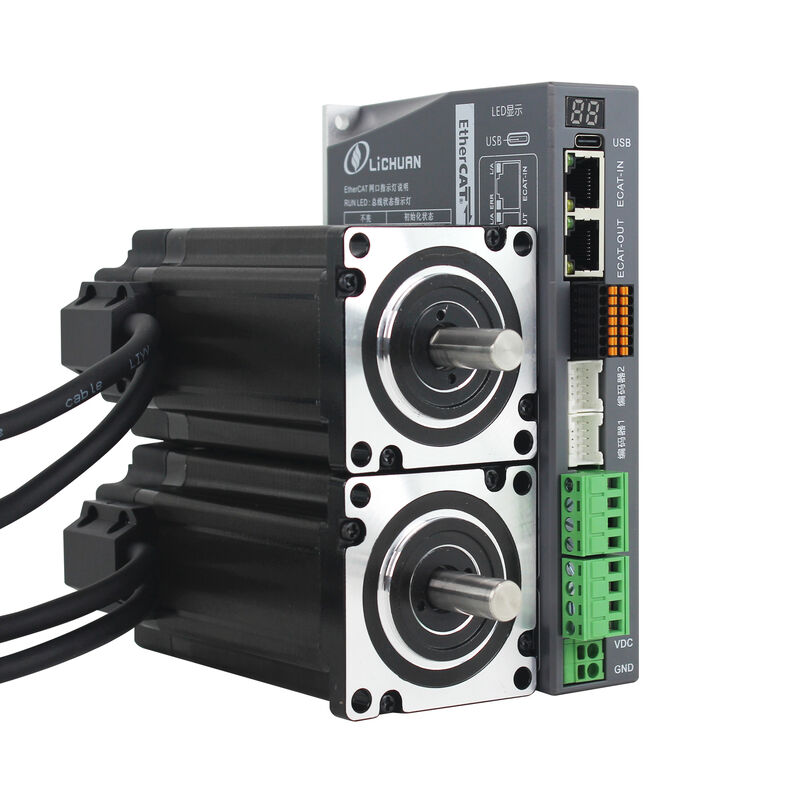

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit is a professional two-axis motion control system that includes closed-loop stepper drivers and Nema24 hybrid stepper motors equipped with high-resolution encoders.

This 2-Axis DC Closed Loop Stepper Motor Drivers Kit operates with a DC24V–50V power supply and supports adjustable current levels of 4.0A, 4.5A, 5.0A, and 5.8A, providing stable performance across a wide range of automation systems.

Thanks to the integrated 1000PPR encoder feedback, the 2-Axis DC Closed Loop Stepper Motor Drivers Kit continuously monitors motor position and automatically compensates for deviations, ensuring precise positioning and smooth motion.

Product Description – Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit

The Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit combines the reliability of stepper motors with the accuracy of servo control. By using closed-loop encoder feedback technology, the 2-Axis DC Closed Loop Stepper Motor Drivers Kit can detect and correct positional errors in real time.

Unlike traditional stepper motor systems that may experience step loss under heavy load, this 2-Axis DC Closed Loop Stepper Motor Drivers Kit maintains stable performance even during high-speed or high-torque operation. The system provides high efficiency, improved energy utilization, and reduced motor heating.

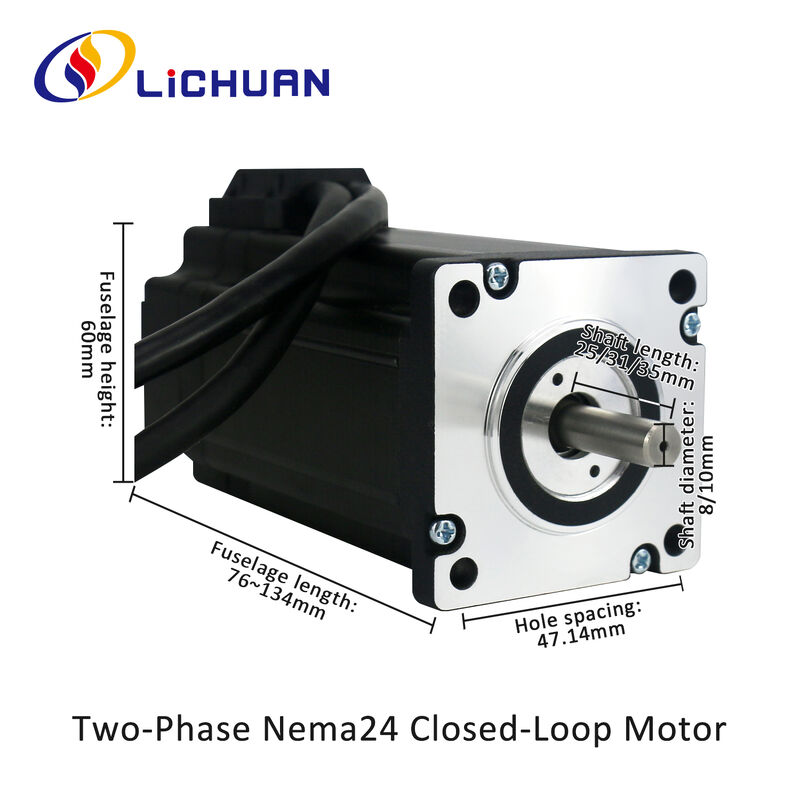

With a Nema24 two-phase hybrid stepper motor design, the 2-Axis DC Closed Loop Stepper Motor Drivers Kit delivers powerful torque output and precise motion control for industrial automation.

Application Fields

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit is widely used in various industrial automation systems.

Typical applications include:

• CNC engraving machines

• Laser cutting machines

• Automatic packaging equipment

• Robotics systems

• Semiconductor machinery

• Textile machines

• Electronic manufacturing equipment

• Pick-and-place machines

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit provides reliable motion control in high-precision industrial environments.

Basic Product Information

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit is optimized for high-precision motion control in industrial environments.

Technical Specifications – 2-Axis DC Closed Loop Stepper Motor Drivers Kit

This 2-Axis DC Closed Loop Stepper Motor Drivers Kit ensures stable operation and accurate positioning.

Key Features – 2-Axis DC Closed Loop Stepper Motor Drivers Kit

Closed Loop Encoder Feedback

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit uses 1000PPR encoder feedback to ensure accurate motor positioning.

High Torque Output

Torque options up to 5.5N.m make the 2-Axis DC Closed Loop Stepper Motor Drivers Kit suitable for heavy-load industrial applications.

No Step Loss

Real-time feedback allows the 2-Axis DC Closed Loop Stepper Motor Drivers Kit to correct motion errors automatically.

Smooth Operation

The advanced control algorithm reduces vibration and noise in the 2-Axis DC Closed Loop Stepper Motor Drivers Kit.

Product Technology

The Lichuan 2-Axis DC Closed Loop Stepper Motor Drivers Kit incorporates advanced motion control technologies:

• Digital Signal Processing (DSP)

• Encoder feedback control

• Vector current control

• Intelligent torque optimization

• Micro-stepping control technology

These technologies enable the 2-Axis DC Closed Loop Stepper Motor Drivers Kit to achieve high efficiency and precise motion control.

Working Principle – Closed Loop Motion Control

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit works through a closed-loop feedback mechanism.

Operation process:

1. The controller sends pulse and direction signals.

2. The driver converts the signals into motor current.

3. The motor rotates according to the command.

4. The encoder detects the actual motor position.

5. The driver compares the commanded position with feedback.

6. Any deviation is automatically corrected.

This process ensures that the 2-Axis DC Closed Loop Stepper Motor Drivers Kit maintains precise positioning and stable operation.

Product Advantages

Advantages of the 2-Axis DC Closed Loop Stepper Motor Drivers Kit include:

• High positioning accuracy

• Closed-loop feedback control

• High torque performance

• No step loss

• Low vibration and noise

• Long service life

• Easy integration with CNC and PLC systems

These advantages make the 2-Axis DC Closed Loop Stepper Motor Drivers Kit ideal for modern automation systems.

Production Process

Each 2-Axis DC Closed Loop Stepper Motor Drivers Kit undergoes strict manufacturing procedures:

1. Motor stator winding

2. Rotor assembly and magnetization

3. Encoder installation

4. Driver PCB SMT assembly

5. Firmware programming

6. Dynamic balance testing

7. Aging test

8. Final quality inspection

This production process ensures high reliability for the 2-Axis DC Closed Loop Stepper Motor Drivers Kit.

Installation and Operation

Basic installation steps for the 2-Axis DC Closed Loop Stepper Motor Drivers Kit:

1. Connect DC24V–50V power supply.

2. Connect motor phase wires.

3. Connect encoder cable.

4. Connect pulse and direction signals.

5. Configure current and micro-step settings.

6. Perform motion testing.

Proper installation ensures optimal performance of the 2-Axis DC Closed Loop Stepper Motor Drivers Kit.

Precautions

When using the 2-Axis DC Closed Loop Stepper Motor Drivers Kit, please follow these guidelines:

• Ensure correct wiring before powering on.

• Use a stable DC power supply.

• Avoid excessive mechanical load.

• Maintain adequate cooling.

• Use shielded signal cables.

Quality Assurance

Our 2-Axis DC Closed Loop Stepper Motor Drivers Kit undergoes strict quality control including:

• 100% functional testing

• Load testing

• Encoder accuracy testing

• Electrical safety testing

• Aging testing

Product Certifications

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit can meet international standards such as:

• CE Certification

• RoHS Certification

• ISO Quality Management

These certifications ensure that the 2-Axis DC Closed Loop Stepper Motor Drivers Kit meets global safety and environmental requirements.

Customer Service

We provide comprehensive service for the 2-Axis DC Closed Loop Stepper Motor Drivers Kit, including:

• Professional technical support

• OEM and ODM customization

• Fast global shipping

• After-sales service

• Application engineering assistance

FAQ – 2-Axis DC Closed Loop Stepper Motor Drivers Kit

What motors are included in the kit?

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit includes Nema24 two-phase hybrid stepper motors with torque options from 2.0N.m to 5.5N.m.

What power supply is required?

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit operates with a DC24V–50V power supply.

What encoder resolution is used?

The 2-Axis DC Closed Loop Stepper Motor Drivers Kit uses a 1000PPR incremental encoder for precise feedback.

Is it compatible with CNC controllers?

Yes, the 2-Axis DC Closed Loop Stepper Motor Drivers Kit supports pulse and direction signals compatible with PLC, CNC controllers, and microcontrollers.
