Place of Origin:
China
Brand Name:
Lichuan
Certification:
ISO9001 CE RoHS EPR EMC LVD IEC/EN60034-1 IEC62321
Model Number:
A5LC10P20P+400W
Document:
Video
Video

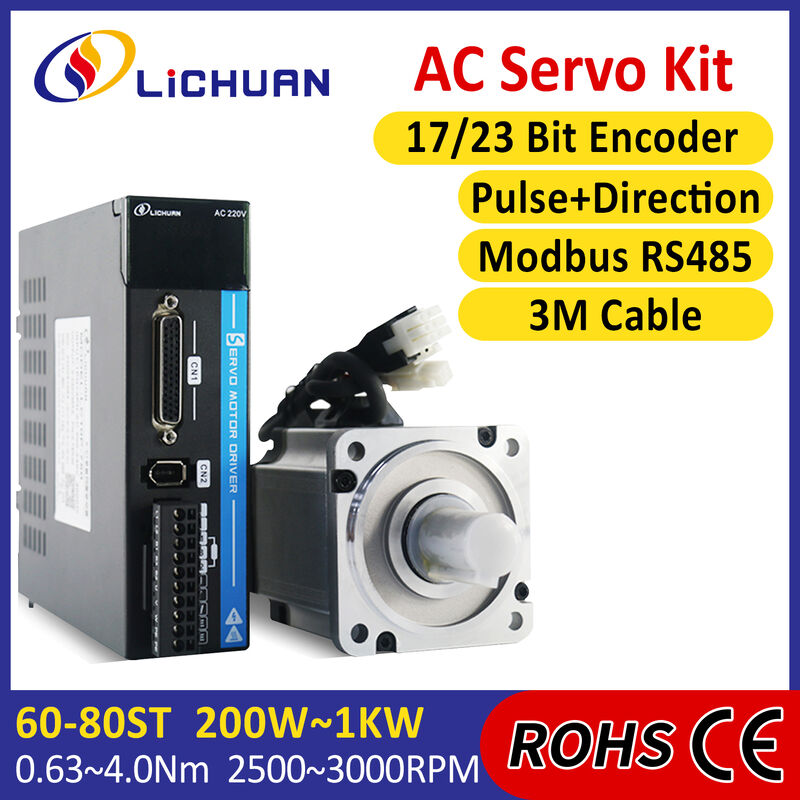

Lichuan AC Servo Motor Drivers Kit A5 LC10P 400W 0.4KW 1.27N.m 220V 2.5A 3000RPM IP65
Built for demanding motion-control applications, the Lichuan A5 High Accuracy AC Servo Motor Drivers Kit provides precise positioning, rapid acceleration, low noise output, and high reliability. The kit supports multiple feedback modes, communication interfaces, and real-time control, offering exceptional compatibility with industrial PLCs, CNC controllers, and automation systems.
The Lichuan A5 High Accuracy AC Servo Motor Drivers Kit is a next-generation motion-control solution designed for industrial automation, CNC machinery, robotics, packaging, and high-precision manufacturing environments. Engineered for fast response, smooth motion, and high-efficiency control, this servo kit delivers outstanding performance across different power levels including 200W, 400W, 600W, 750W, and 1000W.
The Lichuan A5 High Accuracy AC Servo Motor Drivers Kit integrates advanced servo algorithms, intelligent drive technology, and strong torque output. It includes a matched servo motor and servo driver, ensuring seamless compatibility and improved stability for both dynamic and static operations.
| 60 FLANGED MOTOR | |||
| Motor Moddel | LCMT-02SLC17-60M00630B | LCMT-04SLC17-60M01330B | LCMT-06SLC17-60M01930B |
| Rated Power (KW) | 0.2 | 0.4 | 0.6 |
| Rated Voltage (V) | 220 | 220 | 220 |
| Rated Current (A) | 1.6 | 2.5 | 3.3 |
| Rated Speed (rpm) | 3000 | 3000 | 3000 |
| Rated Torque (N.m) | 0.637 | 1.27 | 1.91 |
| Peak Torque (N.m) | 1.92 | 3.81 | 5.73 |
| Voltage Constant(V/1000r/min) | 29.3 | 31.2 | 34.5 |
| Torque Coefficient(N.m/A) | 0.4 | 0.5 | 0.75 |
| Rated Inertia (kg.m²) | 0.3X10-4 | 0.53X10-4 | 0.58X10-4 |
| Resistance (Ω) | 8.9 | 3.5 | 3.4 |
| Inductance (mH) | 13.5 | 5.8 | 6.4 |
| Electrical Time (Ms) | 1.52 | 1.66 | 1.88 |
| Product Weight (kg) | 0.72 | 1.06 | 1.2 |
| LA (Body Length) | 72 | 90 | 97 |
| LA (Body length with Brake) | None | 120 | 130 |
| Encoder Line Number (PPR) | 17/23-bit incremental,17/23-bit absolute encoder | ||
| Motor Insulation Grade | CLASS F | ||
| Protection Level | IP65 | ||
| 80 FLANGED MOTOR | |||
| Motor Moddel | LCMT-07SLC17-80M02430B | LCMT-10SLC17-80M03230B | LCMT-10SLC17-80M04025B |
| Rated Power (KW) | 0.75 | 1.0 | 1.0 |
| Rated Voltage (V) | 220 | 220 | 220 |
| Rated Current (A) | 4.5 | 5.8 | 4.6 |
| Rated Speed (rpm) | 3000 | 3000 | 2500 |
| Rated Torque (N.m) | 2.39 | 3.2 | 4.0 |
| Peak Torque (N.m) | 7.17 | 7.96 | 11.46 |
| Voltage Constant(V/1000r/min) | 32.8 | 32.5 | 50.8 |
| Torque Coefficient(N.m/A) | 0.53 | 0.55 | 0.83 |
| Rated Inertia (kg.m²) | 1.5X10-4 | 1.55X10-4 | 2.2X10-4 |
| Resistance(Ω) | 1.2 | 1.17 | 2.3 |
| Inductance (mH) | 4.2 | 3.9 | 9.6 |
| Electrical Time (Ms) | 3.5 | 3.33 | 4.2 |
| Product Weight (kg) | 2.05 | 2.15 | 2.75 |
| LA (Body Length) | 96 | 111 | 116 |
| LA (Body length with Brake) | 133 | 133 | none |
| Encoder Line Number (PPR) | 17/23-bit incremental/17-bit absolute encoder | ||
| Motor Insulation Grade | CLASS F | ||
| Protection Level | IP65 | ||
| Item | Description |
|---|---|
| Product Name | Lichuan A5 High Accuracy AC Servo Motor Drivers Kit |
| Power Options | 200W / 400W / 600W / 750W / 1000W |
| Voltage | AC 220V |
| Motor Type | AC Servo Motor (High Torque & High Precision) |
| Driver Type | Digital AC Servo Driver (A5 Series) |
| Encoder | 2500ppr / 17-bit absolute encoder |
| Control Mode | Position / Speed / Torque |
| Brand | Lichuan |
| Application | Industrial Automation |
| Model | Power | Rated Torque | Rated Speed | Peak Torque | Encoder |
|---|---|---|---|---|---|
| A5-200W | 200W | 0.64 Nm | 3000 rpm | 1.9 Nm | 2500ppr / 17-bit |
| A5-400W | 400W | 1.27 Nm | 3000 rpm | 3.8 Nm | 2500ppr / 17-bit |
| A5-600W | 600W | 1.91 Nm | 3000 rpm | 5.7 Nm | 2500ppr / 17-bit |
| A5-750W | 750W | 2.39 Nm | 3000 rpm | 7.2 Nm | 2500ppr / 17-bit |
| A5-1000W | 1000W | 3.18 Nm | 3000 rpm | 9.5 Nm | 2500ppr / 17-bit |
The Lichuan A5 High Accuracy AC Servo Motor Drivers Kit uses:
Advanced vector control algorithm
Real-time torque compensation
High-speed communication pulses
Automatic resonance suppression
High-voltage IGBT technology
Intelligent thermal management
The Lichuan A5 High Accuracy AC Servo Motor Drivers Kit adopts a high-resolution encoder, vector control, auto-tuning, and multi-mode switching to achieve precise motion control and enhanced system stability.
High precision, low vibration
Fast dynamic response
Intelligent driver protection
Multiple power levels for various industries
Stable operation in continuous duty cycles
Optimized for CNC, robotics, factory automation
Lichuan A5 High Accuracy AC Servo Motor Drivers Kit for global buyers
High Accuracy: 17-bit encoder ensuring extreme positioning precision.
Smooth Operation: Low-cogging torque motor design.
Multi-Functional Driver: Position, speed, and torque modes.
Wide Compatibility: Supports PLCs, CNC, EtherCAT, Modbus, pulse signals.
Smart Auto-Tuning: Automatic gain adjustment for optimized control.
Full Power Coverage: 200W–1000W for diverse applications.
This servo system works by converting control signals into precise mechanical motion. The Lichuan A5 High Accuracy AC Servo Motor Drivers Kit reads encoder feedback continuously and adjusts torque, speed, and position through a closed-loop control algorithm, ensuring accurate movement with minimal error.
CNC machine tools
Robotics and automation
3D printers & laser cutting
Industrial packaging machinery
Conveyors and production lines
Electronics assembly equipment
All fields benefit significantly from the Lichuan A5 High Accuracy AC Servo Motor Drivers Kit for stable, high-accuracy motion.
Precision cutting
Repetitive positioning
High-speed assembly
Lifting and conveying
Automated motion tasks
High cost-performance ratio
Stable and durable
Supports multiple communication protocols
Easy installation and wiring
Lower maintenance cost
Fully compatible with OEM and custom projects
Lichuan A5 High Accuracy AC Servo Motor Drivers Kit for maximum online exposure
24/7 online support
Technical guidance and wiring assistance
Customized solutions for automation lines
Fast delivery and OEM branding available
A: Servo motor, AC servo driver, encoder, wiring cables, manual.
A: Yes. It supports PLC, CNC, Modbus, EtherCAT, pulse inputs, and more.
A: Absolutely. It’s optimized for CNC retrofitting and precision machining.
A:
200W for small mechanisms
400W–600W for medium loads
750W–1000W for heavy-duty motors
A: Yes, the driver features smart auto-tuning for improved performance.
High-precision motor winding
Encoder alignment calibration
Driver PCB manufacturing
Firmware upload & functional testing
Full load aging test
Packaging and final inspection

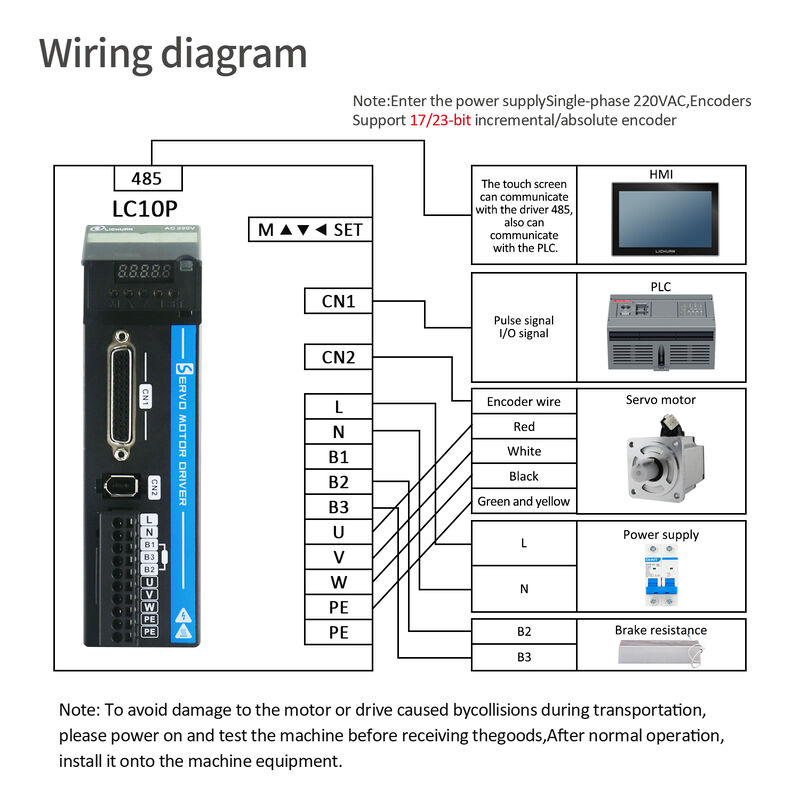

Connect power supply and grounding
Wire encoder and motor cables
Configure driver parameters
Select control mode (P/S/T)
Perform auto-tuning
Test run and adjust parameters
Ensure correct wiring polarity
Avoid moisture and dust
Provide ventilation for heat dissipation
Use surge protection
Do not overload the motor
Follow installation manual carefully
Lichuan is a leading manufacturer specializing in automation control systems. With a strong engineering team and global distribution, Lichuan focuses on providing high-precision servo solutions such as the Lichuan A5 High Accuracy AC Servo Motor Drivers Kit for various industries including CNC machining, robotics, and industrial automation.
CE Certification
ISO9001 Quality Management
RoHS Compliance
High-Temperature and Vibration Testing Reports
100% factory testing
One-year warranty
Lifetime technical support
Strict component sourcing and QC procedures
Global after-sales service
Email & online technical support
Remote debugging guidance
Installation and configuration documents
