Lichuan Open Loop / Closed Loop Integrated Stepper Motors Driver

Product Introduction

The Lichuan Open Loop / Closed Loop Integrated Stepper Motors Driver is a compact and reliable motion control solution that integrates a stepper motor, driver, and optional encoder into a single unit. Supporting Pulse and RS485 control, this Open Loop/Closed Loop Integrated Stepper Motors Driver is designed for industrial automation, intelligent equipment, and precision positioning systems, offering simplified wiring, high reliability, and stable performance.

Product Information

This Open Loop/Closed Loop Integrated Stepper Motors Driver series covers a wide torque range from 0.09 N·m to 4.3 N·m, supporting 2‑phase motors in NEMA11 / NEMA14 / NEMA17 / NEMA23 / NEMA24 frame sizes. With DC 20–30 V input and 0.7 A / 1.0 A current options, it meets diverse automation requirements from light-duty to medium-load applications.

Product Description

The Lichuan Open Loop / Closed Loop Integrated Stepper Motors Driver combines advanced driver electronics with high-quality stepper motors. Open-loop models provide cost-effective and stable operation, while closed-loop models use a 1000 PPR encoder to eliminate lost steps, improve accuracy, and enhance dynamic response. This Open Loop/Closed Loop Integrated Stepper Motors Driver is ideal for OEM integration and long-term industrial use.

Product Parameters

Basic Information

• Brand: Lichuan

• Product Name: Open Loop / Closed Loop Integrated Stepper Motors Driver

• Motor Type: 2‑Phase Stepper Motor

• Control Mode: Pulse / RS485

• Feedback (Closed Loop): 1000 PPR Encoder

• Rated Voltage: DC 20–30 V

• Rated Current: 0.7 A / 1.0 A

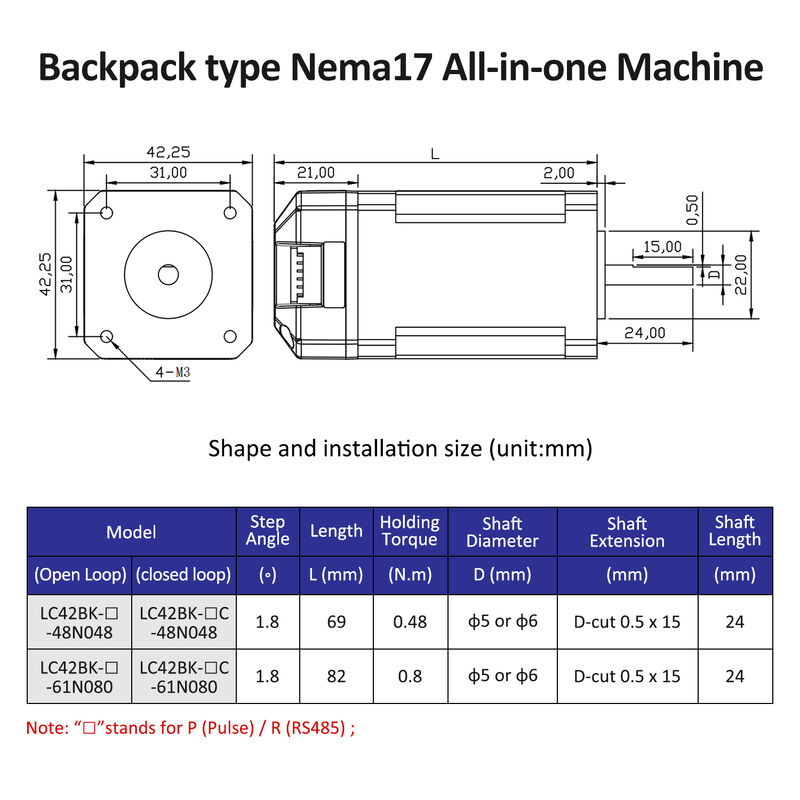

Specifications

The Open Loop/Closed Loop Integrated Stepper Motors Driver is available in multiple torque levels and frame sizes, allowing flexible selection according to application load and precision requirements.

Product Selling Points

• Integrated motor, driver, and optional encoder

• Pulse & RS485 dual control support

• Wide torque range from 0.09 N·m to 4.3 N·m

• Compact structure for space-saving designs

• Optimized for Open Loop/Closed Loop Integrated Stepper Motors Driver applications

Product Features

The Open Loop/Closed Loop Integrated Stepper Motors Driver features precise micro‑stepping, smooth motion, low noise, and strong anti‑interference capability. Closed-loop versions automatically correct position errors, ensuring accurate positioning even under load changes.

Product Technology

The Open Loop/Closed Loop Integrated Stepper Motors Driver adopts advanced digital control algorithms and optimized current regulation technology. Intelligent driver design reduces vibration, improves torque utilization, and extends motor service life.

Working Principle

The Open Loop/Closed Loop Integrated Stepper Motors Driver converts pulse or RS485 commands into precise motor rotation. In closed-loop models, the 1000 PPR encoder continuously feeds back position and speed data, enabling real-time correction and preventing step loss.

Application Fields

The Open Loop/Closed Loop Integrated Stepper Motors Driver is widely used in:

• Industrial automation equipment

• CNC and engraving machines

• Packaging and labeling machines

• 3D printers

• Robotics and intelligent devices

Product Applications

Typical applications of the Open Loop/Closed Loop Integrated Stepper Motors Driver include linear modules, conveyors, pick‑and‑place systems, inspection equipment, and precision positioning platforms.

Product Advantages

Compared with traditional separate motor and driver solutions, the Open Loop/Closed Loop Integrated Stepper Motors Driver offers simpler wiring, lower system cost, higher reliability, and easier installation and maintenance.

Product Services

We provide professional pre‑sales consultation, model selection support, and customized solutions for every Open Loop/Closed Loop Integrated Stepper Motors Driver project.

Production Process

Each Open Loop/Closed Loop Integrated Stepper Motors Driver is produced through precision machining, winding, assembly, aging tests, and strict quality inspection to ensure consistent performance.

Operating Method

• Connect power and control signals according to the wiring diagram

• Set parameters for the Open Loop/Closed Loop Integrated Stepper Motors Driver

• Perform a test run before full operation

Precautions

• Ensure correct DC 20–30 V power supply

• Avoid moisture, dust, and excessive vibration

• Follow installation and wiring guidelines for the Open Loop/Closed Loop Integrated Stepper Motors Driver

Company Introduction

Lichuan is a professional manufacturer specializing in Open Loop/Closed Loop Integrated Stepper Motors Driver solutions, serving global automation and motion control markets with stable and reliable products.

Product Certificates

The Open Loop/Closed Loop Integrated Stepper Motors Driver complies with CE and RoHS standards, meeting international safety and environmental requirements.

Quality Assurance

Every Open Loop/Closed Loop Integrated Stepper Motors Driver undergoes 100% functional testing before shipment to ensure stable quality and long service life.

Customer Service

We provide fast technical support, comprehensive after‑sales service, and long‑term cooperation for all Open Loop/Closed Loop Integrated Stepper Motors Driver customers worldwide.

FAQ

Q1: What is the difference between open loop and closed loop models?
A: Open-loop models operate without feedback, while closed-loop models use a 1000 PPR encoder to ensure higher accuracy and no lost steps.

Q2: What control methods are supported?
A: The Open Loop/Closed Loop Integrated Stepper Motors Driver supports Pulse and RS485 control.
