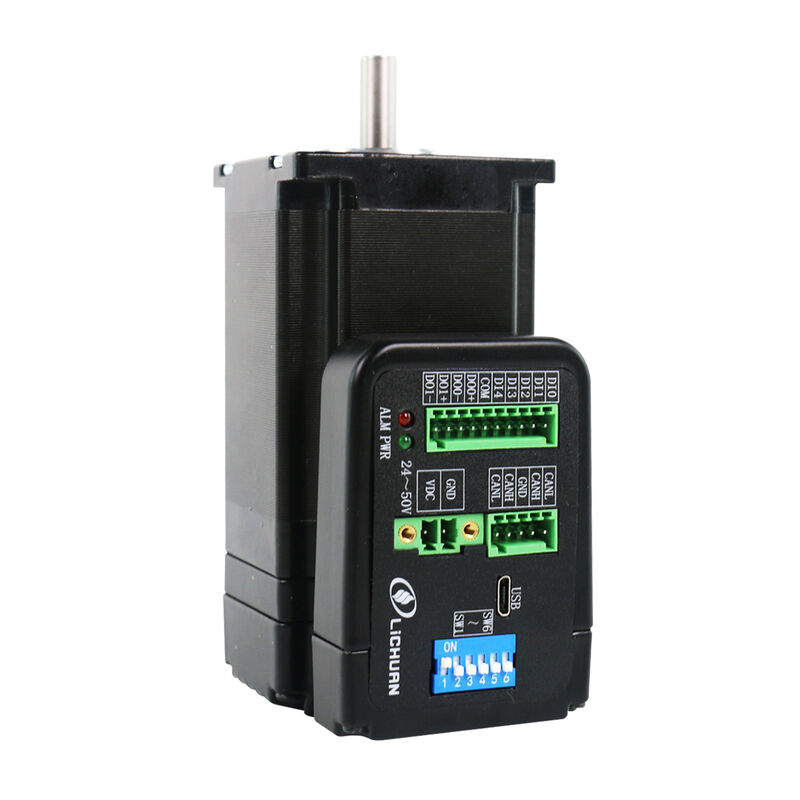

Lichuan Closed Loop Integrated Stepper Motors Driver 3.0N.m 2Phase Nema24 36V 4.0A 1000PPR

Lichuan Closed Loop Integrated Stepper Motors Driver 3.0N.m 2Phase Nema24 36V 4.0A 1000PPR

Lichuan L Shaped Closed Loop & Open Loop Integrated Stepper Motors Driver

Product Introduction

The Lichuan L Shaped Closed Loop Integrated Stepper Motors Driver series is a compact, high-performance motion control solution integrating a stepper motor, driver, and optional encoder feedback into one unit. Supporting both closed loop and open loop modes, this product range delivers stable torque, precise positioning, and simplified wiring, making it ideal for industrial automation and intelligent machinery.

Product Information

The Closed Loop Integrated Stepper Motors Driver series covers a wide torque range from 0.4N.m to 12N.m, available in NEMA17, NEMA23, NEMA24, and NEMA34 frame sizes. With multiple voltage and current options, it meets diverse global automation requirements while maintaining high efficiency and reliability.

Product Description

This L Shaped Closed Loop Integrated Stepper Motors Driver adopts an integrated structure combining motor, driver, and optional 1000PPR encoder. Compared with traditional open-loop stepper systems, it significantly reduces step loss, vibration, and noise while improving positioning accuracy and system stability. The L-shaped housing design optimizes space utilization inside control cabinets and equipment.

Basic Information

• Brand: Lichuan

• Product Type: Closed Loop / Open Loop Integrated Stepper Motors Driver

• Motor Type: 2-Phase Stepper Motor

• Encoder Resolution: 1000PPR (Closed Loop)

• Keyword Focus: Closed Loop Integrated Stepper Motors Driver

Specifications

The Closed Loop Integrated Stepper Motors Driver supports multiple electrical and mechanical configurations:

• Rated Voltage: 24V / 36V / 48V

• Rated Current: 2.5A / 4.0A / 6.0A

• Control Mode: Pulse / RS485 (optional)

Product Selling Points

• Wide torque coverage from 0.4N.m to 12N.m

• Closed loop and open loop optional configurations

• Integrated driver reduces wiring and installation cost

• Servo-like performance at stepper motor cost

• Optimized Closed Loop Integrated Stepper Motors Driver design

Product Features

• L-shaped compact integrated structure

• Real-time encoder feedback (closed loop version)

• Anti-step-loss and overload protection

• Low vibration and low noise operation

• High torque output at low speed

Product Technology

The Closed Loop Integrated Stepper Motors Driver uses advanced DSP control algorithms combined with current vector control and encoder feedback. This technology dynamically adjusts motor current based on load changes, ensuring stable operation and precise motion control.

Working Principle

In closed loop mode, the encoder continuously feeds rotor position data to the Closed Loop Integrated Stepper Motors Driver. When position deviation occurs, the driver automatically compensates to eliminate step loss. In open loop mode, the motor operates as a traditional stepper with optimized current control.

Application Fields

• Industrial automation equipment

• CNC machines and engraving systems

• Packaging and labeling machinery

• Robotics and AGV/AMR systems

• Textile, printing, and medical automation

All above applications benefit from Closed Loop Integrated Stepper Motors Driver solutions.

Product Applications

• Linear motion modules

• Pick-and-place machines

• Conveyor positioning systems

• Automatic inspection equipment

• Smart manufacturing production lines

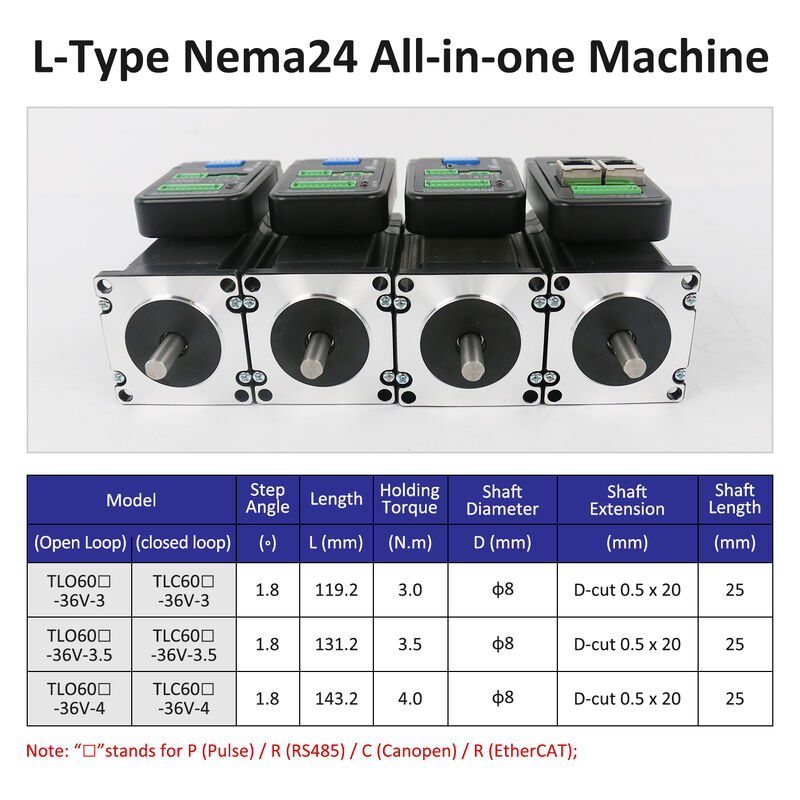

Product Parameter Table

Product Advantages

• Higher positioning accuracy than open-loop stepper motors

• Reduced system complexity and wiring

• Improved torque utilization and efficiency

• Lower cost compared with servo systems

• Long service life of Closed Loop Integrated Stepper Motors Driver

Product Services

• Professional pre-sales technical consultation

• OEM & ODM customization support

• Fast sample delivery

• Comprehensive after-sales service for Closed Loop Integrated Stepper Motors Driver

FAQ

Q1: What torque options are available?
A: The Closed Loop Integrated Stepper Motors Driver supports torque from 0.4N.m up to 12N.m.

Q2: Can I choose open loop instead of closed loop?
A: Yes, both open loop and closed loop configurations are available.

Q3: What encoder resolution is used?
A: Standard closed loop versions use a 1000PPR encoder.

Production Process

• Precision motor winding

• Encoder installation and calibration

• Driver PCB assembly

• Integrated system assembly

• Load testing and aging test

Each Closed Loop Integrated Stepper Motors Driver is strictly inspected before shipment.

Operation Method

1. Connect power supply and control signals

2. Set voltage and current parameters

3. Perform no-load test

4. Install into mechanical system and run test

Precautions

• Ensure correct voltage and current settings

• Avoid excessive axial or radial load

• Provide sufficient cooling conditions

• Use shielded cables for encoder signals

Company Introduction

Lichuan is a professional manufacturer of motion control products, specializing in Closed Loop Integrated Stepper Motors Driver, integrated servo motors, and automation solutions. With strong R&D capability and strict quality management, Lichuan serves global industrial customers.

Product Certifications

• CE Certification

• RoHS Compliance

• ISO9001 Quality Management System

Quality Assurance

All Closed Loop Integrated Stepper Motors Driver products undergo comprehensive testing for performance, durability, and reliability. A complete warranty and traceability system ensures consistent quality.

Customer Service Information

• 24-hour technical support response

• Global logistics and delivery support

• Long-term spare parts supply

• Dedicated service team for Closed Loop Integrated Stepper Motors Driver customers
