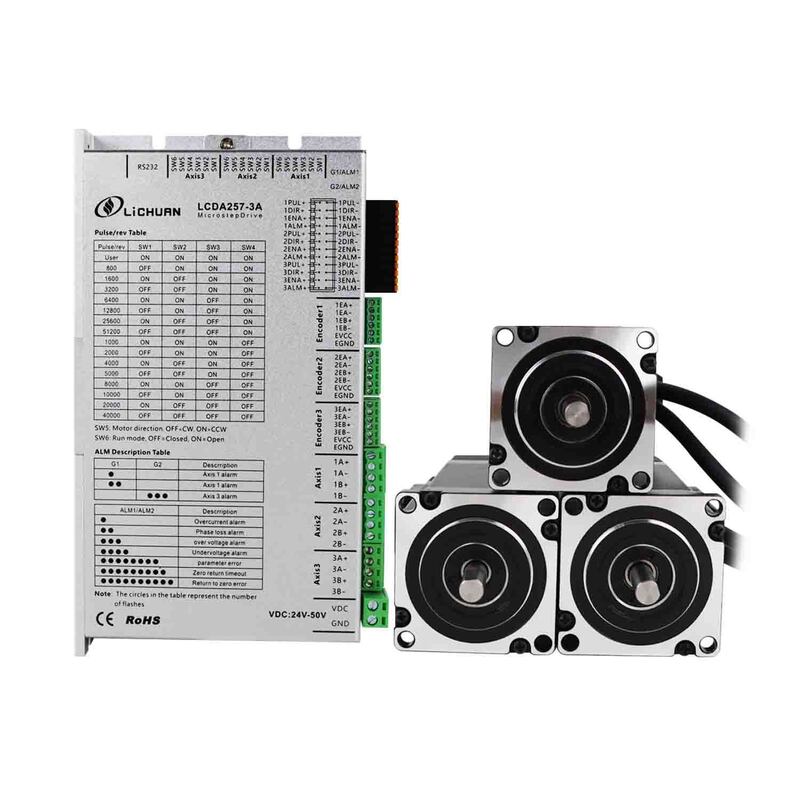

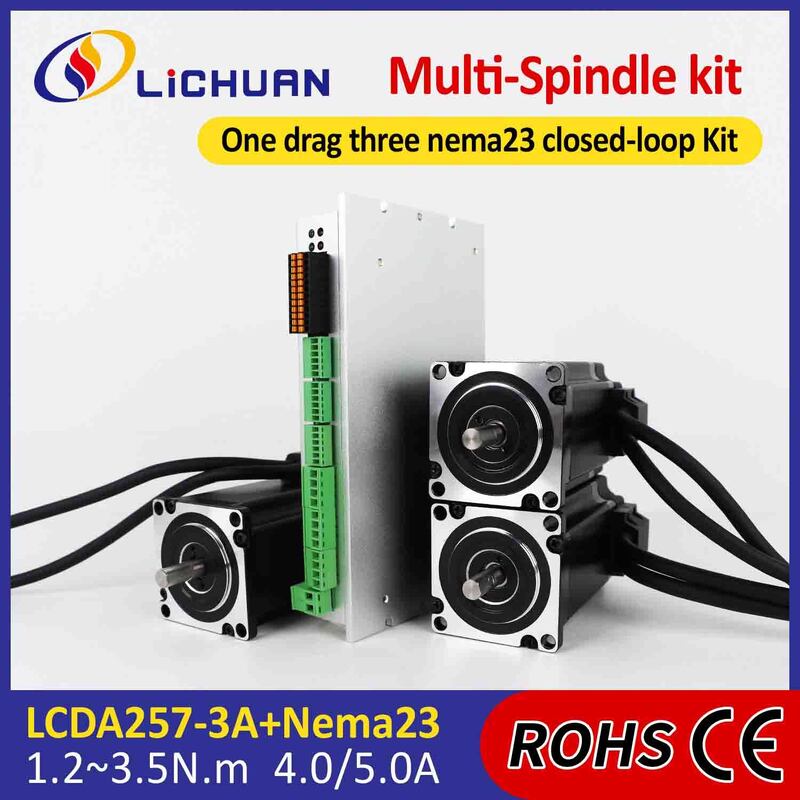

Lichuan DC Closed Loop Stepper Motor Drivers Kit 2.4N.m 2 Phase Nema23 DC24V～50V 4.0/5.0A 1000PPR
The Lichuan DC Closed Loop Stepper Motor Drivers Kit is a high-performance motion control solution engineered for precision-driven industrial applications. This kit integrates advanced 2-phase Nema23 closed-loop stepper motors with intelligent digital drivers and a 1000PPR incremental encoder feedback system, delivering accuracy and reliability that traditional open-loop systems cannot match.
With torque options spanning 1.2N.m to 3.5N.m and current configurations of 4.0A or 5.0A, this DC Closed Loop Stepper Motor Drivers Kit offers exceptional flexibility for a wide range of automation requirements. The system operates on a DC24V–50V power supply, making it compatible with most industrial power environments.
Unlike conventional stepper systems that lose steps under load, this DC Closed Loop Stepper Motor Drivers Kit uses real-time encoder feedback to continuously monitor motor position and automatically correct any deviation. The result is zero step loss, smooth operation, and positioning accuracy approaching that of servo systems—at a fraction of the cost.
Whether you are building a CNC router, upgrading an automation line, or developing a robotic system, the Lichuan DC Closed Loop Stepper Motor Drivers Kit delivers industrial-grade performance for both professional manufacturers and DIY enthusiasts.
| Item | Details |
|---|---|
| Product Name | Lichuan DC Closed Loop Stepper Motor Drivers Kit |
| Brand | LICHUAN |
| Model Number | CL57E Series + LC57H Series |
| Motor Type | 2-Phase Hybrid Stepper Motor |
| Frame Size | Nema23 (57×57mm) |
| Step Angle | 1.8° |
| Origin | Guangdong, China |
| Manufacturer | Shenzhen Xinlichuan Electric Co., Ltd. |
Kit Configurations Available:
Single-Axis Kit – 1 motor + 1 driver
2-Axis Kit – 2 motors + 2 drivers
4-Axis Kit – 4 motors + 4 drivers
Each kit includes closed-loop stepper motors, matched drivers, 1000PPR encoders, and connection cables—ready for plug-and-play installation.

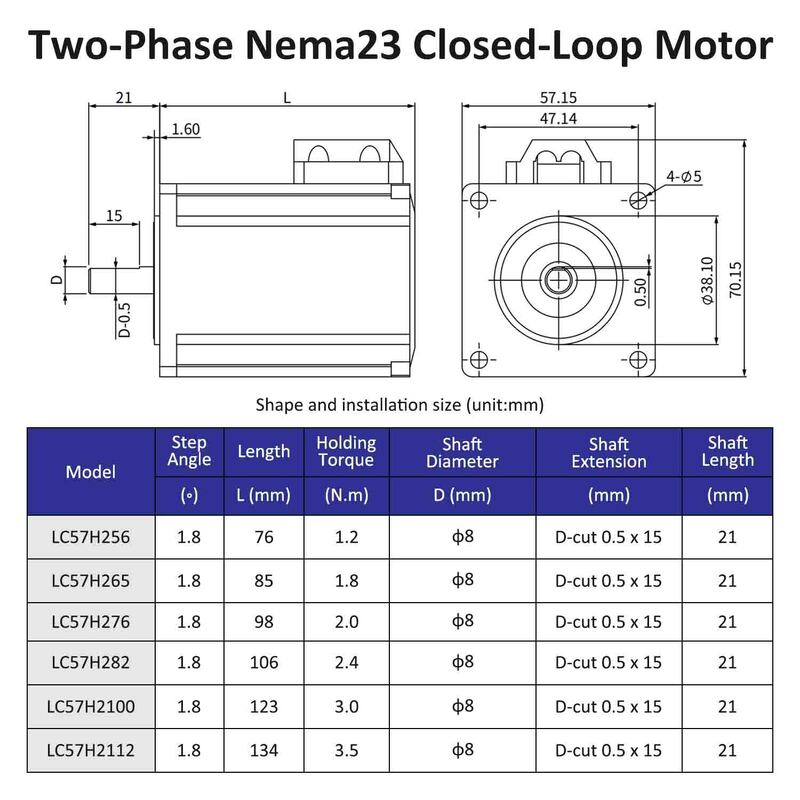

| Model | Holding Torque | Rated Current | Body Length | Phase Resistance | Inductance | Weight |
|---|---|---|---|---|---|---|
| LC57H256 | 1.0 N.m | 3.0A | 76mm | 0.4Ω | 1.2mH | 0.78 kg |
| LC57H265 | 1.5 N.m | 3.0A | 85mm | 0.4Ω | 1.2mH | 1.18 kg |
| LC57H276 | 2.0 N.m | 3.0A | 98mm | 0.5Ω | 1.8mH | 1.2 kg |
| LC57H280 | 2.2 N.m | 4.0A | 102mm | 0.55Ω | 2.2mH | 1.5 kg |
| LC57H2100 | 3.0 N.m | 4.0A | 123mm | 0.55Ω | 1.8mH | 1.7 kg |
| LC57H2112 | 3.5 N.m | 4.0A | 134mm | 0.55Ω | 1.8mH | 1.8 kg |
Common Specifications:
Step Angle: 1.8°
Encoder Resolution: 1000 PPR (Pulses Per Revolution)

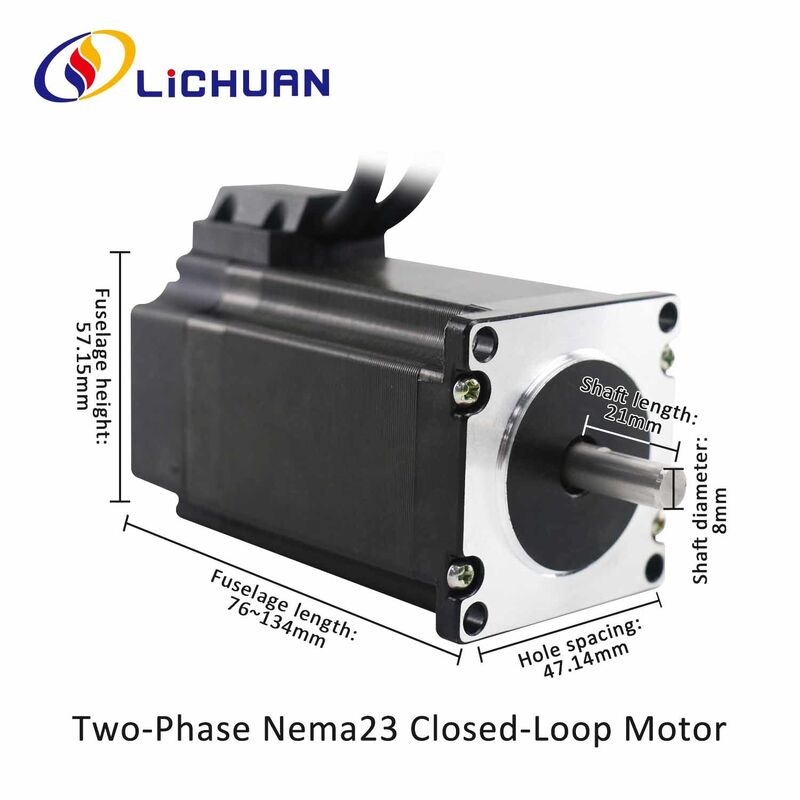

Shaft Diameter: 8mm
Shaft Length: 21mm
Shaft Extension: D-cut 0.5×15mm

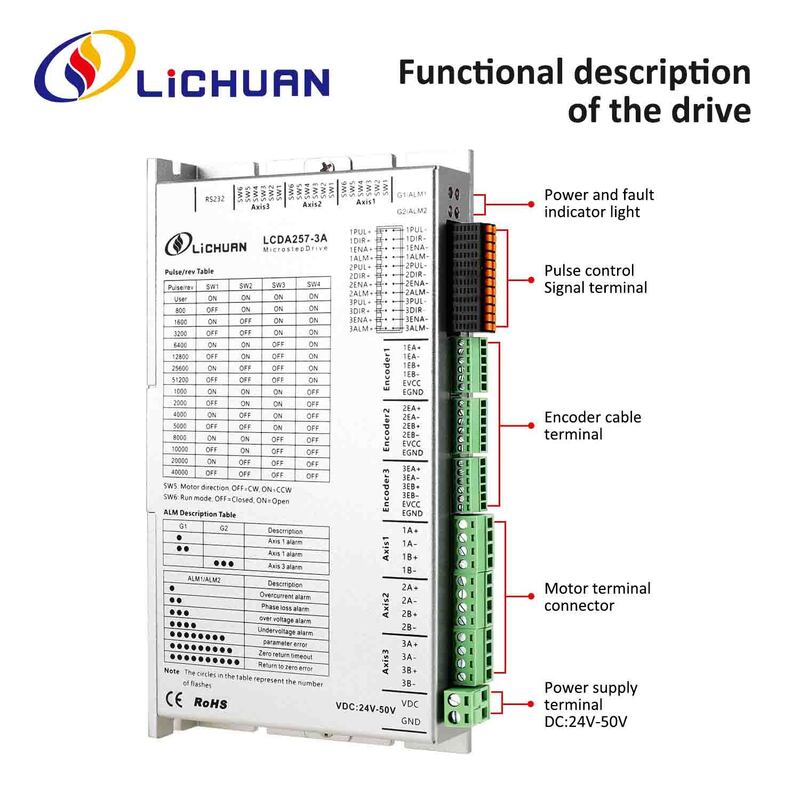

| Parameter | Specification |
|---|---|
| Input Voltage | DC24V – 50V |
| Phase Current | 3.0A / 4.0A / 5.0A (configurable) |
| Peak Current | Up to 5.6A |
| Driver Model | CL57E Series / CL3-E57H |
| Control Modes | Pulse/Direction, RS485, EtherCAT (select models) |
| Pulse Input Frequency | Up to 200KHz |
| Subdivision Range | 200 – 51200 PPR |
| Protection Features | Over-voltage, Over-current, Tracking error protection |
The Lichuan DC Closed Loop Stepper Motor Drivers Kit operates on a closed-loop feedback principle that distinguishes it from conventional open-loop systems:
Step 1 – Command Input: The host controller (CNC controller, PLC, or motion control card) sends pulse/direction signals or serial commands to the driver, specifying target position and speed.
Step 2 – Motor Actuation: The driver energizes the motor phases according to the command, rotating the motor in precise 1.8° steps.
Step 3 – Real-Time Feedback: The 1000PPR incremental encoder mounted on the motor rear shaft continuously monitors actual rotor position and speed, feeding this data back to the driver.
Step 4 – Error Correction: The driver compares the encoder feedback against the commanded position. If any deviation is detected—due to load changes, resonance, or other disturbances—the driver instantly adjusts output current and phase timing to correct the error.
Step 5 – Stable Operation: This correction loop runs thousands of times per second, ensuring the motor maintains precise positioning even under varying loads, delivering servo-grade performance.
| Aspect | Open-Loop Stepper | Lichuan DC Closed Loop Stepper Motor Drivers Kit |
|---|---|---|
| Position Feedback | None | 1000PPR encoder real-time feedback |
| Step Loss Risk | High under load | Zero – automatically corrected |
| High-Speed Performance | Torque drops significantly | Maintains high torque output |
| Positioning Accuracy | Open-loop dependent | Closed-loop high precision |
| Heat Generation | Higher | Optimized – reduces heat |
| Vibration | Higher | Reduced vibration |
| Cost | Low | Moderate (far below servo) |
| Parameter | Specification |
|---|---|
| Minimum Order Quantity | 1 Set |
| Packaging | Eco-friendly paper box |
| Delivery Time | 15 working days |
| Supply Ability | 1–5 Sets: 7 Days / 6–100 Sets: 12 Days / ≥101 Sets: Negotiable |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
Zero Step Loss – The 1000PPR encoder provides real-time feedback, and the closed-loop system automatically corrects position deviations, completely eliminating the missed-step problem common in open-loop systems.
Servo-Like Precision at Stepper Cost – This DC Closed Loop Stepper Motor Drivers Kit delivers positioning accuracy approaching that of servo systems, but at a significantly lower cost.
Wide Torque Selection – Choose from 1.2N.m to 3.5N.m torque options to match your specific load requirements.
Flexible Current Configuration – Available in 4.0A and 5.0A current ratings for optimal power delivery.
Broad Voltage Compatibility – DC24V–50V wide input range adapts to various industrial power supplies.
Multiple Communication Options – Supports Pulse/Direction, RS485, and EtherCAT (select models) for seamless integration.
International Certifications – ISO9001, CE, RoHS, EPR, EMC, LVD, IEC/EN60034-1, IEC62321.
Exceptional Value – High-performance closed-loop system at an affordable price point.
At the heart of this DC Closed Loop Stepper Motor Drivers Kit is a sophisticated closed-loop control architecture. Each motor is equipped with a 1000PPR incremental encoder that continuously transmits real-time position data to the driver. The driver compares actual position against the commanded position and instantly adjusts current and phase to correct any deviation.
The Nema23 frame delivers up to 3.5N.m of holding torque in a compact 57×57mm package, providing exceptional power-to-size ratio for space-constrained applications.
Built around a dedicated motor control DSP chip, the driver employs vector closed-loop control technology that significantly improves high-speed performance, reduces heat generation and vibration, and decreases overall power consumption.
Pulse/Direction – Standard step and direction control
RS485 Communication – Serial communication for parameter adjustment and monitoring
EtherCAT – CiA402 Drive Profile compliant, CoE (CANopen over EtherCAT) protocol
Over-voltage, over-current, and tracking error protection functions ensure reliable operation and protect both the driver and motor from damage.
External digital debugging panel allows for simple parameter setting and real-time monitoring.
The Lichuan DC Closed Loop Stepper Motor Drivers Kit is versatile enough for a wide range of industrial and hobbyist applications:
CNC Routers and Milling Machines
CNC Laser Cutters and Engravers
Stone and Ceramic Processing Equipment
Woodworking and Advertising Engraving Machines
Automated Production and Assembly Lines
Packaging and Printing Machinery
Textile and Garment Equipment
Electronics Manufacturing and Lithium Battery Production Equipment
Industrial Robots and Collaborative Robots
AGV (Automated Guided Vehicles)
Medical and Dental Equipment
Laboratory and Testing Instruments
3D Printers
Laser Marking Machines and Plotters
Pick-and-Place Equipment
Wire Stripping and Cutting Machines
Zero Step Loss – 1000PPR encoder feedback ensures perfect positioning every time
High Positioning Accuracy – Closed-loop control delivers servo-like precision
High Torque Output – Up to 3.5N.m holding torque for demanding applications
Superior High-Speed Performance – Maintains torque at higher speeds
Exceptional Cost-Performance Ratio – Stepper motor pricing with near-servo performance
Integrated Design – Motor + driver + encoder in one package reduces system complexity
Energy Efficient – Load-adaptive current control reduces power consumption and heat
Extended Equipment Life – Lower vibration and heat generation prolong motor and mechanical life
Plug-and-Play – Complete kit with pre-matched components for hassle-free installation
Multiple Control Options – Compatible with Pulse/Direction, RS485, and EtherCAT
Wide Voltage Range – DC24–50V adapts to various industrial power environments
Comprehensive Technical Support – Manuals, drawings, 3D models, and software available
Shenzhen Xinlichuan Electric Co., Ltd. (LICHUAN) provides comprehensive pre-sales, in-sales, and after-sales support:
Product selection consulting and technical solution design
Sample testing support
Customization requirement evaluation
Fast Delivery: 1–5 sets in 7 days, 6–100 sets in 12 days
Professional Packaging: Eco-friendly paper box packaging ensures safe transport
Real-Time Order Tracking
Product manuals, drawings, 3D models, and software downloads
Professional technical engineer online support
Free repair or replacement within warranty period
Continuous product upgrades and technical updates
Q1: What is the difference between this DC Closed Loop Stepper Motor Drivers Kit and a regular open-loop stepper system?
A: This kit uses a 1000PPR encoder for real-time position feedback. The closed-loop system continuously monitors motor position and automatically corrects any deviation, completely eliminating step loss. Open-loop systems have no feedback and will lose steps when loads change. The closed-loop system also performs significantly better at high speeds and under heavy loads.
Q2: What control methods does this kit support?
A: Supports Pulse/Direction control, RS485 serial communication, and EtherCAT (select models with CL3-E57H driver). The EtherCAT version complies with CiA402 Drive Profile and uses CoE (CANopen over EtherCAT) protocol.
Q3: What torque options are available?
A: Available in 1.0N.m, 1.5N.m, 2.0N.m, 2.2N.m, 3.0N.m, and 3.5N.m configurations.
Q4: What current ratings are available?
A: Available in 3.0A, 4.0A, and 5.0A configurations to match different power requirements.
Q5: What is the encoder resolution?
A: 1000 PPR (Pulses Per Revolution) incremental encoder.
Q6: What certifications does this product have?
A: ISO9001, CE, RoHS, EPR, EMC, LVD, IEC/EN60034-1, IEC62321.
Q7: What is the minimum order quantity and delivery time?
A: MOQ is 1 set. Delivery time is 15 working days, with 1–5 sets shipping in 7 days.
Q8: What applications is this kit suitable for?
A: Widely used in CNC routers/mills/laser cutters, industrial automation lines, packaging and printing machinery, industrial robots, AGVs, 3D printers, medical equipment, and more.
Q9: How do I get technical support or product manuals?
A: Visit the Lichuan official website (www.lichuanservo.com) to download product manuals, drawings, 3D models, and software. You can also contact Shenzhen Xinlichuan Electric Co., Ltd. technical support engineers directly.
Q10: What protection features does the driver include?
A: Over-voltage protection, over-current protection, and tracking error protection.
