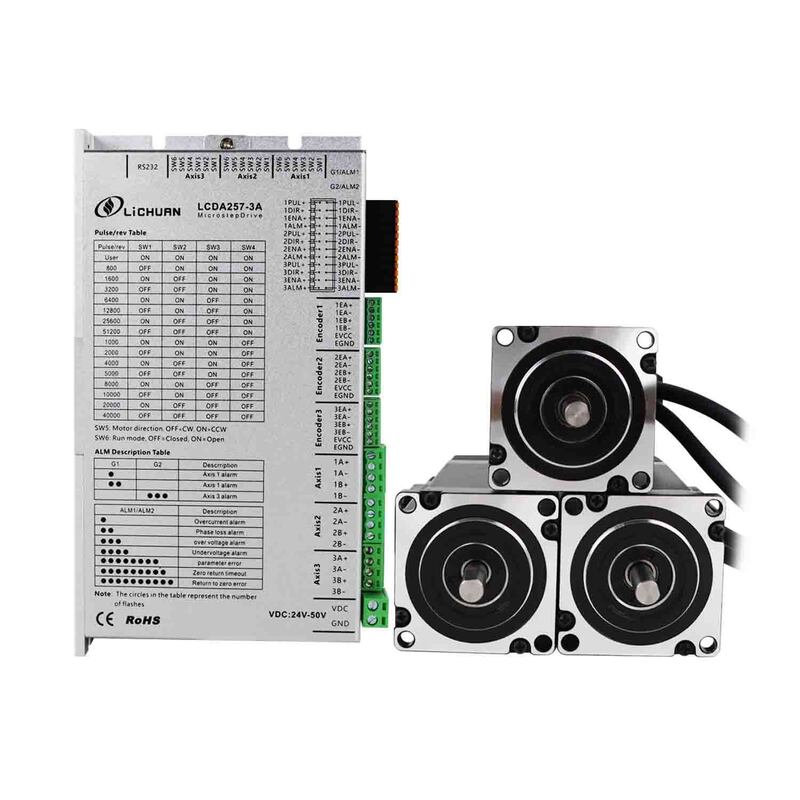

Lichuan DC Closed Loop Stepper Motor Drivers Kit 3.0N.m 2 Phase Nema23 DC24V～50V 4.0/5.0A 1000PPR

Lichuan DC Closed Loop Stepper Motor Drivers Kit – Nema23 Series

Product Overview

The Lichuan DC Closed Loop Stepper Motor Drivers Kit is a high-performance motion control solution engineered for precision-driven industrial applications. This kit integrates advanced 2-phase Nema23 closed-loop stepper motors with intelligent digital drivers and a 1000PPR incremental encoder feedback system, delivering accuracy and reliability that traditional open-loop systems cannot match.

With torque options spanning 1.2N.m to 3.5N.m and current configurations of 4.0A or 5.0A, this DC Closed Loop Stepper Motor Drivers Kit offers exceptional flexibility for a wide range of automation requirements. The system operates on a DC24V–50V power supply, making it compatible with most industrial power environments.

Unlike conventional stepper systems that lose steps under load, this DC Closed Loop Stepper Motor Drivers Kit uses real-time encoder feedback to continuously monitor motor position and automatically correct any deviation. The result is zero step loss, smooth operation, and positioning accuracy approaching that of servo systems—at a fraction of the cost.

Whether you are building a CNC router, upgrading an automation line, or developing a robotic system, the Lichuan DC Closed Loop Stepper Motor Drivers Kit delivers industrial-grade performance for both professional manufacturers and DIY enthusiasts.

Product Information

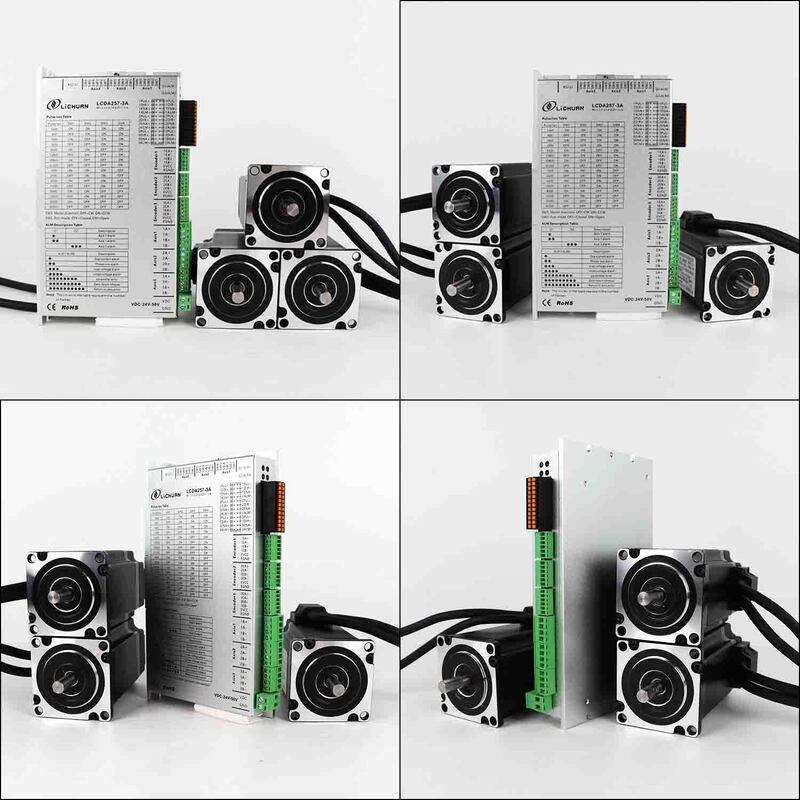

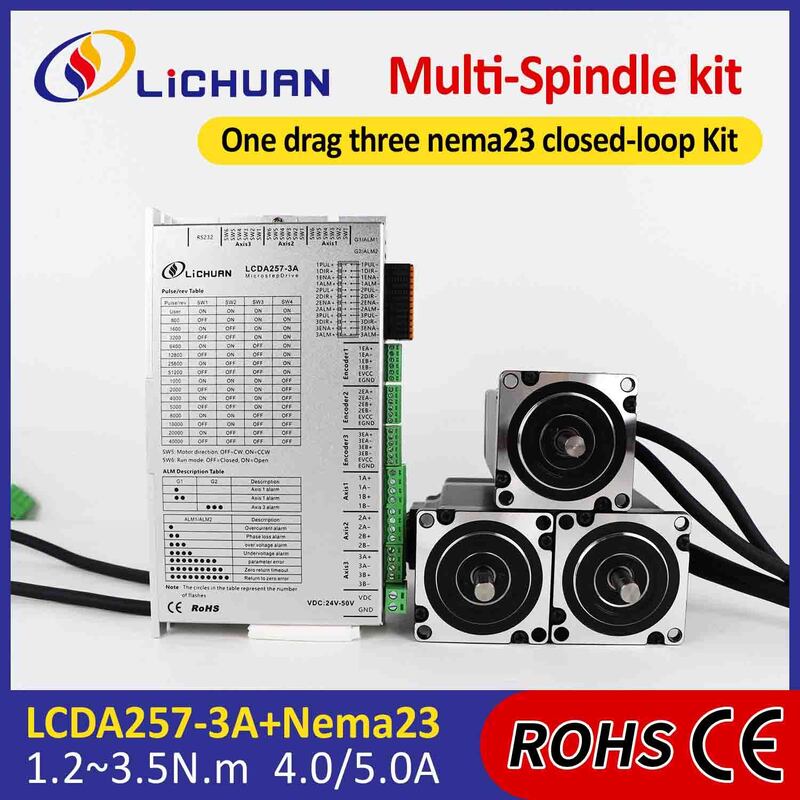

Kit Configurations Available:

• Single-Axis Kit – 1 motor + 1 driver

• 2-Axis Kit – 2 motors + 2 drivers

• 4-Axis Kit – 4 motors + 4 drivers

Each kit includes closed-loop stepper motors, matched drivers, 1000PPR encoders, and connection cables—ready for plug-and-play installation.

Specifications & Technical Data

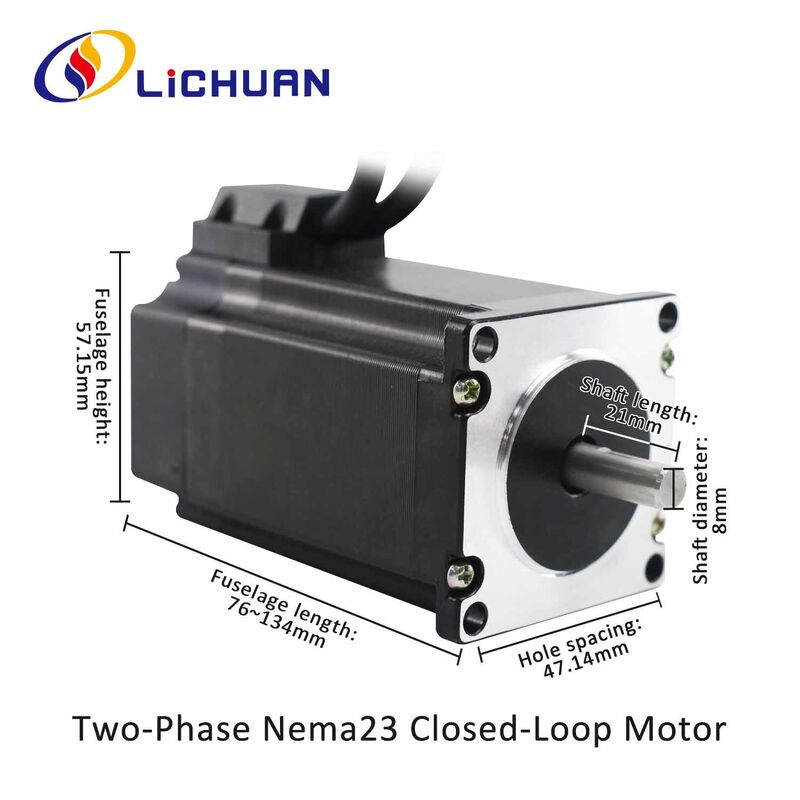

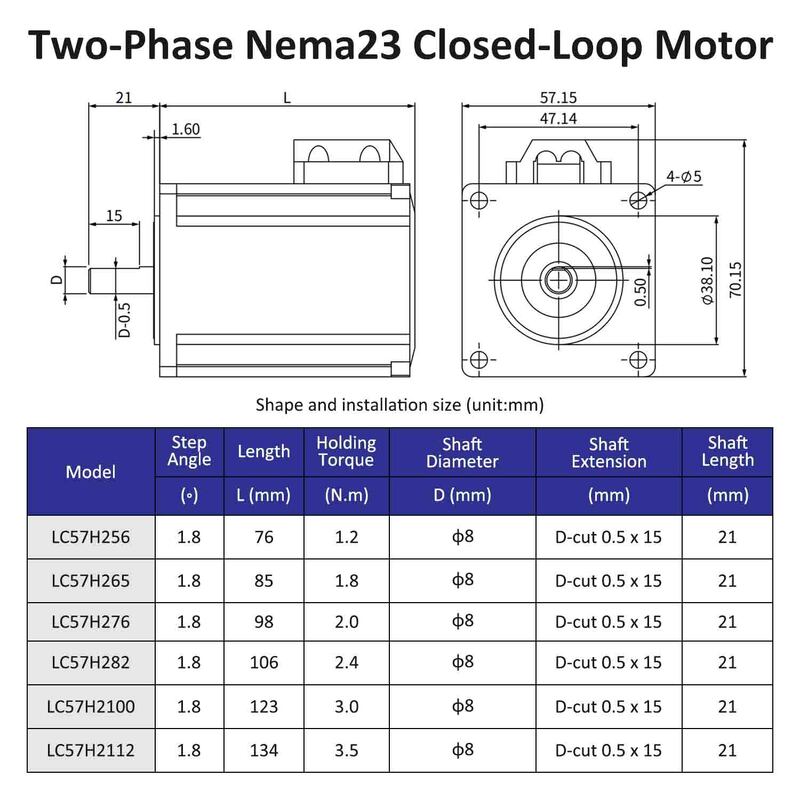

Motor Specifications

Common Specifications:

• Step Angle: 1.8°

• Encoder Resolution: 1000 PPR (Pulses Per Revolution)

• Shaft Diameter: 8mm

• Shaft Length: 21mm

• Shaft Extension: D-cut 0.5×15mm

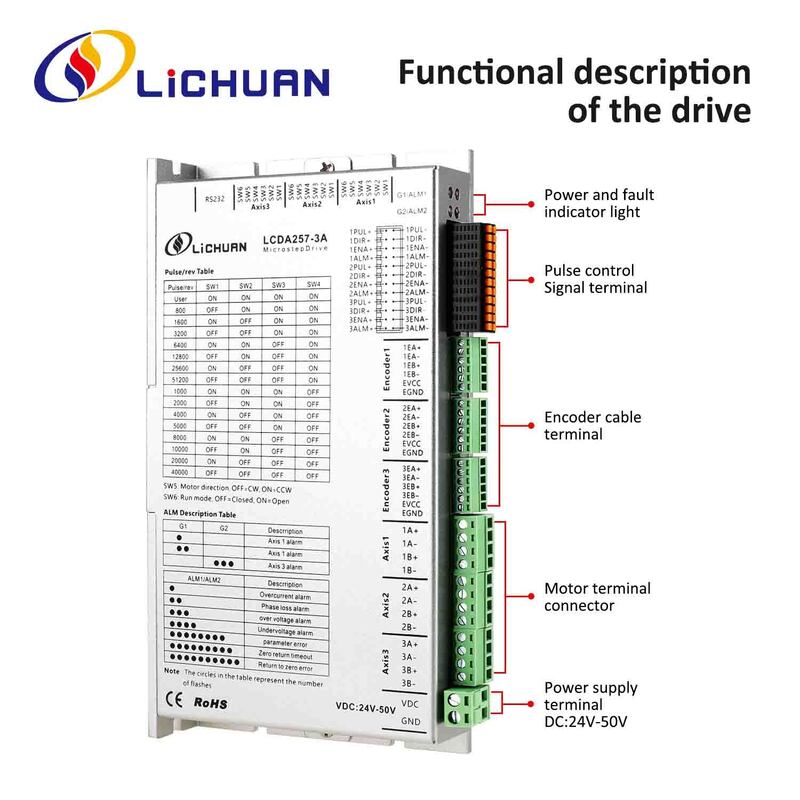

Driver Specifications

General Specifications

Key Selling Points

1. Zero Step Loss – The 1000PPR encoder provides real-time feedback, and the closed-loop system automatically corrects position deviations, completely eliminating the missed-step problem common in open-loop systems.

2. Servo-Like Precision at Stepper Cost – This DC Closed Loop Stepper Motor Drivers Kit delivers positioning accuracy approaching that of servo systems, but at a significantly lower cost.

3. Wide Torque Selection – Choose from 1.2N.m to 3.5N.m torque options to match your specific load requirements.

4. Flexible Current Configuration – Available in 4.0A and 5.0A current ratings for optimal power delivery.

5. Broad Voltage Compatibility – DC24V–50V wide input range adapts to various industrial power supplies.

6. Multiple Communication Options – Supports Pulse/Direction, RS485, and EtherCAT (select models) for seamless integration.

7. International Certifications – ISO9001, CE, RoHS, EPR, EMC, LVD, IEC/EN60034-1, IEC62321.

8. Exceptional Value – High-performance closed-loop system at an affordable price point.

Product Features

1 Closed-Loop Feedback Technology

At the heart of this DC Closed Loop Stepper Motor Drivers Kit is a sophisticated closed-loop control architecture. Each motor is equipped with a 1000PPR incremental encoder that continuously transmits real-time position data to the driver. The driver compares actual position against the commanded position and instantly adjusts current and phase to correct any deviation.

2 High Torque Density

The Nema23 frame delivers up to 3.5N.m of holding torque in a compact 57×57mm package, providing exceptional power-to-size ratio for space-constrained applications.

3 Advanced DSP Control

Built around a dedicated motor control DSP chip, the driver employs vector closed-loop control technology that significantly improves high-speed performance, reduces heat generation and vibration, and decreases overall power consumption.

4 Multiple Control Interfaces

• Pulse/Direction – Standard step and direction control

• RS485 Communication – Serial communication for parameter adjustment and monitoring

• EtherCAT – CiA402 Drive Profile compliant, CoE (CANopen over EtherCAT) protocol

5 Comprehensive Protection

Over-voltage, over-current, and tracking error protection functions ensure reliable operation and protect both the driver and motor from damage.

6 Easy Configuration

External digital debugging panel allows for simple parameter setting and real-time monitoring.

Product Technology & Working Principle

1 How It Works

The Lichuan DC Closed Loop Stepper Motor Drivers Kit operates on a closed-loop feedback principle that distinguishes it from conventional open-loop systems:

Step 1 – Command Input: The host controller (CNC controller, PLC, or motion control card) sends pulse/direction signals or serial commands to the driver, specifying target position and speed.

Step 2 – Motor Actuation: The driver energizes the motor phases according to the command, rotating the motor in precise 1.8° steps.

Step 3 – Real-Time Feedback: The 1000PPR incremental encoder mounted on the motor rear shaft continuously monitors actual rotor position and speed, feeding this data back to the driver.

Step 4 – Error Correction: The driver compares the encoder feedback against the commanded position. If any deviation is detected—due to load changes, resonance, or other disturbances—the driver instantly adjusts output current and phase timing to correct the error.

Step 5 – Stable Operation: This correction loop runs thousands of times per second, ensuring the motor maintains precise positioning even under varying loads, delivering servo-grade performance.

2 Technology Comparison

Applications & Use Cases

The Lichuan DC Closed Loop Stepper Motor Drivers Kit is versatile enough for a wide range of industrial and hobbyist applications:

1 CNC Machining

• CNC Routers and Milling Machines

• CNC Laser Cutters and Engravers

• Stone and Ceramic Processing Equipment

• Woodworking and Advertising Engraving Machines

2 Industrial Automation

• Automated Production and Assembly Lines

• Packaging and Printing Machinery

• Textile and Garment Equipment

• Electronics Manufacturing and Lithium Battery Production Equipment

3 Robotics

• Industrial Robots and Collaborative Robots

• AGV (Automated Guided Vehicles)

4 Precision Instruments

• Medical and Dental Equipment

• Laboratory and Testing Instruments

• 3D Printers

5 Other Applications

• Laser Marking Machines and Plotters

• Pick-and-Place Equipment

• Wire Stripping and Cutting Machines

Product Advantages

1 Performance Advantages

• Zero Step Loss – 1000PPR encoder feedback ensures perfect positioning every time

• High Positioning Accuracy – Closed-loop control delivers servo-like precision

• High Torque Output – Up to 3.5N.m holding torque for demanding applications

• Superior High-Speed Performance – Maintains torque at higher speeds

2 Economic Advantages

• Exceptional Cost-Performance Ratio – Stepper motor pricing with near-servo performance

• Integrated Design – Motor + driver + encoder in one package reduces system complexity

• Energy Efficient – Load-adaptive current control reduces power consumption and heat

• Extended Equipment Life – Lower vibration and heat generation prolong motor and mechanical life

3 User Advantages

• Plug-and-Play – Complete kit with pre-matched components for hassle-free installation

• Multiple Control Options – Compatible with Pulse/Direction, RS485, and EtherCAT

• Wide Voltage Range – DC24–50V adapts to various industrial power environments

• Comprehensive Technical Support – Manuals, drawings, 3D models, and software available

Product Services

Shenzhen Xinlichuan Electric Co., Ltd. (LICHUAN) provides comprehensive pre-sales, in-sales, and after-sales support:

1 Pre-Sales Service

• Product selection consulting and technical solution design

• Sample testing support

• Customization requirement evaluation

2 In-Sales Service

• Fast Delivery: 1–5 sets in 7 days, 6–100 sets in 12 days

• Professional Packaging: Eco-friendly paper box packaging ensures safe transport

• Real-Time Order Tracking

3 After-Sales Service

• Product manuals, drawings, 3D models, and software downloads

• Professional technical engineer online support

• Free repair or replacement within warranty period

• Continuous product upgrades and technical updates

FAQ

Q1: What is the difference between this DC Closed Loop Stepper Motor Drivers Kit and a regular open-loop stepper system?

A: This kit uses a 1000PPR encoder for real-time position feedback. The closed-loop system continuously monitors motor position and automatically corrects any deviation, completely eliminating step loss. Open-loop systems have no feedback and will lose steps when loads change. The closed-loop system also performs significantly better at high speeds and under heavy loads.

Q2: What control methods does this kit support?

A: Supports Pulse/Direction control, RS485 serial communication, and EtherCAT (select models with CL3-E57H driver). The EtherCAT version complies with CiA402 Drive Profile and uses CoE (CANopen over EtherCAT) protocol.

Q3: What torque options are available?

A: Available in 1.0N.m, 1.5N.m, 2.0N.m, 2.2N.m, 3.0N.m, and 3.5N.m configurations.

Q4: What current ratings are available?

A: Available in 3.0A, 4.0A, and 5.0A configurations to match different power requirements.

Q5: What is the encoder resolution?

A: 1000 PPR (Pulses Per Revolution) incremental encoder.

Q6: What certifications does this product have?

A: ISO9001, CE, RoHS, EPR, EMC, LVD, IEC/EN60034-1, IEC62321.

Q7: What is the minimum order quantity and delivery time?

A: MOQ is 1 set. Delivery time is 15 working days, with 1–5 sets shipping in 7 days.

Q8: What applications is this kit suitable for?

A: Widely used in CNC routers/mills/laser cutters, industrial automation lines, packaging and printing machinery, industrial robots, AGVs, 3D printers, medical equipment, and more.

Q9: How do I get technical support or product manuals?

A: Visit the Lichuan official website (www.lichuanservo.com) to download product manuals, drawings, 3D models, and software. You can also contact Shenzhen Xinlichuan Electric Co., Ltd. technical support engineers directly.

Q10: What protection features does the driver include?

A: Over-voltage protection, over-current protection, and tracking error protection.

Manufacturing Process

Shenzhen Xinlichuan Electric Co., Ltd. operates its own manufacturing facility and has been serving the industrial automation market since 2009.

1 Core Manufacturing Capabilities

• Motor Production: High-quality silicon steel laminations and pure copper windings with precision winding and assembly processes. Each motor undergoes rigorous electrical and mechanical performance testing before shipment.

• Driver Manufacturing: Based on 32-bit DSP digital control technology with SMT surface-mount assembly and automated production lines. Key components sourced from leading international brands.

• Encoder Assembly: 1000PPR incremental encoders with high-precision optical code discs and precision assembly processes ensure accurate and reliable position feedback.

• System Integration: Motors, drivers, and encoders are fully integrated and tested as complete systems. Every DC Closed Loop Stepper Motor Drivers Kit undergoes comprehensive system tuning and burn-in testing before shipment.

2 Quality Control

• IQC (Incoming Quality Control): 100% inspection of all components

• IPQC (In-Process Quality Control): SPC statistical process control at critical stations

• FQC (Final Quality Control): 100% functional testing and performance verification

• OQC (Outgoing Quality Control): Simulated actual working condition burn-in testing

Operating Instructions

1 Installation Steps

1. Mechanical Mounting: Securely mount the Nema23 motor to your equipment using the standard mounting holes. Ensure the mounting surface is flat and tightening torque is appropriate.

2. Electrical Connections:

   • Connect DC24V–50V power supply to the driver

   • Connect motor winding wires to the driver terminals

   • Connect the 1000PPR encoder cable to the driver encoder interface

   • Connect pulse/direction signal wires or RS485 communication lines

3. Parameter Configuration: Set phase current (3.0A/4.0A/5.0A) and micro-step subdivision using DIP switches or PC software.

4. System Testing: Power on and perform initial run tests to verify motor rotation direction, speed, and positioning accuracy.

2 Tuning Tips

• Start with low speed and gradually increase to operating speed

• Observe motor operation for smoothness and unusual noise or vibration

• Monitor position error via encoder feedback to ensure closed-loop control is functioning properly

3 EtherCAT Configuration (Select Models)

• Identify the CL3-E57H driver through EtherCAT master configuration tool

• Configure PDO mapping and operating parameters

• Access advanced parameters via SDO (maximum current, etc.)

Safety Precautions

1 Electrical Safety

• Power Supply: Use only stable DC power within the DC24V–50V range. Ensure power ripple is within acceptable limits.

• Polarity Check: Verify positive and negative connections before powering on. Reverse polarity may damage the driver.

• Grounding: The system must be properly grounded to prevent static electricity and electromagnetic interference.

2 Installation Environment

• Operating Temperature: Use within the rated temperature range. Avoid high-temperature environments that may cause overheating.

• Ventilation: Ensure adequate heat dissipation space around the driver during installation.

• Dust and Moisture: Avoid using in excessively dusty or humid environments.

3 Operational Guidelines

• Parameter Matching: Set phase current to match the motor's rated current. Excessively high current may cause motor overheating.

• Load Control: Ensure load torque does not exceed the motor's rated holding torque.

• Encoder Protection: The encoder is a precision component. Avoid impact and cable拉扯 during installation and wiring.

4 Troubleshooting

• If the motor exhibits abnormal noise or vibration, first check power supply and wiring connections.

• If positioning deviation occurs, check encoder connections and closed-loop parameter settings.

• If the driver overheats, verify current settings are appropriate and cooling is adequate.

Product Certifications & Quality Assurance

1 International Certifications

The Lichuan DC Closed Loop Stepper Motor Drivers Kit and its manufacturer have obtained the following international certifications:

2 Quality Assurance

• 100% Factory Testing: Every DC Closed Loop Stepper Motor Drivers Kit undergoes complete electrical, mechanical, and functional testing before shipment.

• Burn-In Testing: All products undergo simulated actual working condition burn-in testing to ensure long-term operational reliability.

• Raw Material Control: Key components are sourced from leading international brands to ensure quality from the source.

• Process Control: Strict quality control systems are implemented throughout the entire production process.

Customer Service Information

Service Commitment

• Rapid Response: Supplier online response typically within 46 hours

• Flexible Payment: L/C, D/A, D/P, T/T, Western Union

• On-Time Delivery: Strict adherence to 15-working-day standard delivery

• Quality Guarantee: Products certified with multiple international certifications

• Ongoing Support: Comprehensive service including manuals, drawings, software, and technical consultation

Company Profile

Shenzhen Xinlichuan Electric Co., Ltd. (Brand: LICHUAN) is a high-tech enterprise specializing in the research, development, manufacturing, and sales of industrial automation control systems.

Company Facts

Product Portfolio

• Closed-Loop Stepper Drives (2-Phase / 3-Phase)

• Open-Loop Stepper Drives (2-Phase)

• AC Servo Drives

• Integrated Stepper Motors

• PLC Programmable Logic Controllers

Market Coverage

Products are widely used in textile machinery, packaging machinery, milling machines, CNC equipment, laser machinery, engraving machines, printing machinery, advertising equipment, garment machinery, cutting/stone machinery, ceramic machinery, medical equipment, robotics, AGVs, automatic doors and windows, and more.

Corporate Philosophy

LICHUAN is committed to the research and innovation of industrial automation control systems, with the mission of "providing high-cost-performance automation solutions" and continuously creating value for global customers.
