Place of Origin:
Guangdong, China
Brand Name:
LICHUAN
Certification:
ce
Model Number:
LC110H3219+LCDA2260H
Video
Video

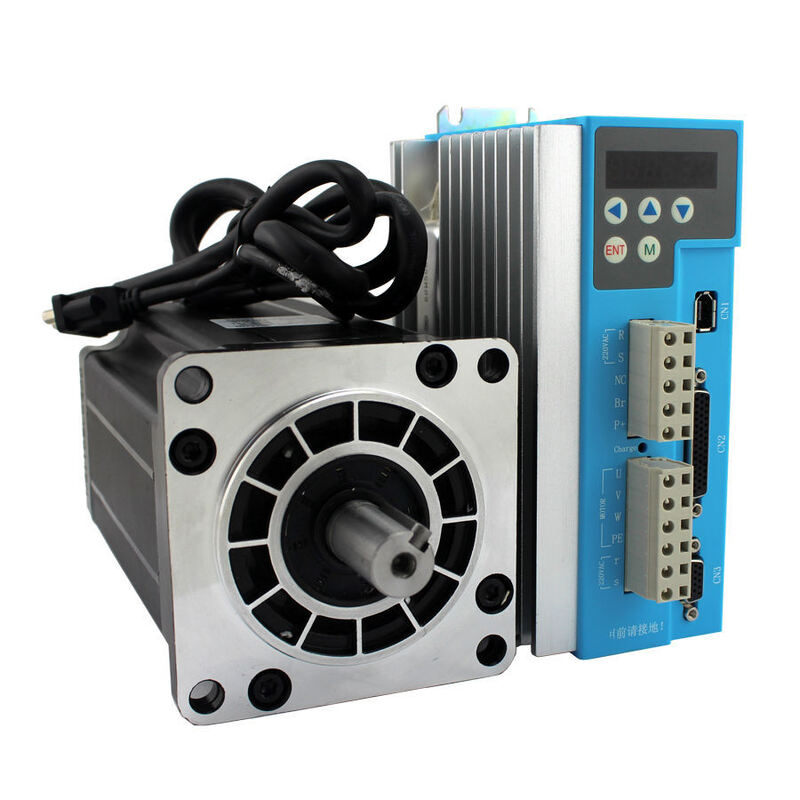

Nema42 3ph AC 220V 20N.M Digital Display Closed Loop Stepper motor drive kit
Packing list for motor and drive with cable :
| 110 Nema42 servo closed loop motor one set | Qty | ||||
| Nema41 closed loop hybrid servo stepper motor | LC110H3219 | 1pcs | |||
| Matched servo digital stepper driver | LCDA2260H | 1pcs | |||
| With 3M Encoder cable line ,if you need more longer ,pls contact us . | |||||
|
Parameter/Vaule |
LCDA2260H |
|||
|
Minimum |
Typical |
Maximum |
Unit |
|
|
Max peak current |
- |
- |
6 |
A |
|
Input voltage |
150 |
220 |
230 |
VAC |
|
Logic input current |
7 |
10 |
16 |
mA |
|
Pulse frequency |
- |
- |
200 |
KHZ |
2. Interface definition:
| Symbol | Name | Explanation |
| R |
Power input terminal |
150V~230VAC |
| S | ||
| NC | Empty terminal | |
| BR1 | External braking resistor | External braking resistor is connected between BR1 and P + |
| P+ | Linear bus voltage |
|
Symbol |
Name |
Explanation |
|
U |
Motor U phase winding |
- |
|
V |
Motor V phase winding |
- |
|
W |
Motor W phase winding |
- |
|
PE |
Ground terminal |
- |
|
R S |
Control power input |
150V~230VAC |
(2)Driver encoder CN3 terminal definition
(LCDA2260H encoder signal terminal with 15Pin DP header, pin defined as follows :)
|
Pin |
Symbol |
Color |
Name |
|
2 |
EB+ |
Yellow |
Motor encoder B phase positive input |
|
12 |
EB- |
Green |
Motor encoder B phase negative input |
|
1 |
EA+ |
Black |
Motor encoder A phase positive input |
|
11 |
EA- |
Blue |
Motor encoder A phase negative input |
|
13 |
VCC |
Red |
Encoder + 5V input |
|
3 |
EGND |
White |
Encoder power ground |
(3) Driver control terminal definition (44 pin DB plug)
|
Name |
Explanation |
|
PUL+ |
Pulse input signal: pulse effective edge adjustable, the default pulse rising edge is valid; in order to reliably respond to the pulse signal, the pulse width should be greater than 1.2μs. Such as the use of +12 V or +24 V when the need to string 3K resistance |
|
PUL- |
|
|
DIR+ |
Direction input signal: high / low level signal, in order to ensure reliable reversing of the motor, the direction of the signal should be preceded by pulse signal at least 5μs to establish, such as the use of +12 V or +24 V string 3K resistor. |
|
DIR- |
|
|
ENA+ |
Enable control signal: This input signal is used to enable or disable. When ENA +, ENA- have input, the drive will cut off the motor phase to make the motor in a free state. When this function is not required, the terminal can be left floating. |
|
ENA- |
|
|
Pend+ |
Positioning completion signal positive side |
|
Pend- |
Positioning completion signal negative |
|
ALM+ |
Alarm output positive terminal |
|
ALM- |
Alarm output negative termina |
Lichuan Driver LCDA2260H Panel Instruction :
Products Certification :
