3 Phase 16N.m Nema51 LC110H3185+LCDA2260E step servo closed loop stepper motor with driver
Packing list for LC110H3185+LCDA2260E
| NO | Product | Qty |
| 1 | LC110H3185+LCDA2260E | 1 |
| 2 | Motor power cable 3 meter | 1 |
| 3 | Driver encoder cable 3 meter | 1 |
Nema51 Step closed servo motor Specification :
|
Motor mode |
Step/angle |
Length |
Holding torque |
Current |
Resistance |
Inductance |
Rotor inertia |
Matched Driver |
Lead wire |
Weight |
|
° |
mm |
N.m |
A |
Ω |
MH |
g.cm2 |
Model |
NO. |
Kg |
|
|
LC110H3151 |
1.2 |
151 |
12 |
6.0 |
1.89 |
8.34 |
9720 |
LCDA2260H |
3 |
6.6 |
|
LC110H3185 |
1.2 |
185 |
16 |
6.4 |
1.89 |
8.73 |
13560 |
LCDA2260H |
3 |
9.0 |
|
LC110H3219 |
1.2 |
219 |
20 |
6.9 |
1.859 |
7.26 |
17400 |
LCDA2260H |
3 |
11.1 |
Motor Driver LCDA2260E Products information :
|
Parameter/Vaule |
LCDA2260H |
|||
|
Minimum |
Typical |
Maximum |
Unit |
|
|
Max peak current |
- |
- |
6 |
A |
|
Input voltage |
150 |
220 |
230 |
VAC |
|
Logic input current |
7 |
10 |
16 |
mA |
|
Pulse frequency |
- |
- |
200 |
KHZ |

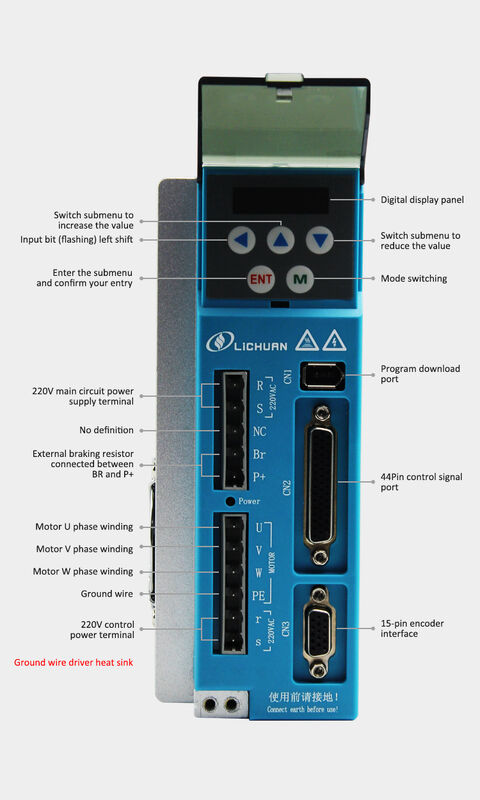

| Symbol | Name | Explanation |
| R |
Power input terminal |
150V~230VAC |
| S | ||
| NC | Empty terminal | |
| BR1 | External braking resistor | External braking resistor is connected between BR1 and P + |
| P+ | Linear bus voltage |
|
Symbol |
Name |
Explanation |
|
U |
Motor U phase winding |
- |
|
V |
Motor V phase winding |
- |
|
W |
Motor W phase winding |
- |
|
PE |
Ground terminal |
- |
|
R S |
Control power input |
150V~230VAC |

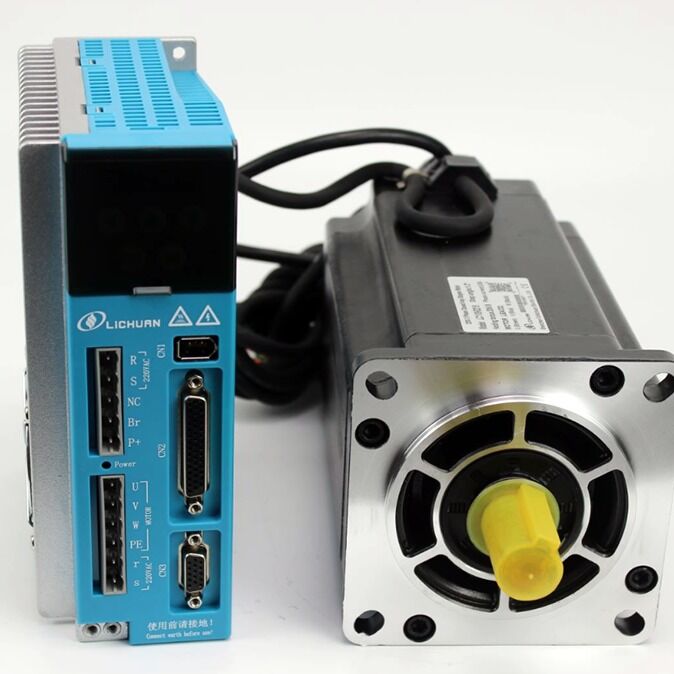

Motor Nema51 step servo motor and Driver pictures:
