Place of Origin:
Guangdong, China
Brand Name:
Lichuan
Certification:
ce
Model Number:
LCDA2260E+LC110H3185
Video
Video
|
NO.
|
Product Name
|
Model / Description
|
Quantity
|
|
1
|

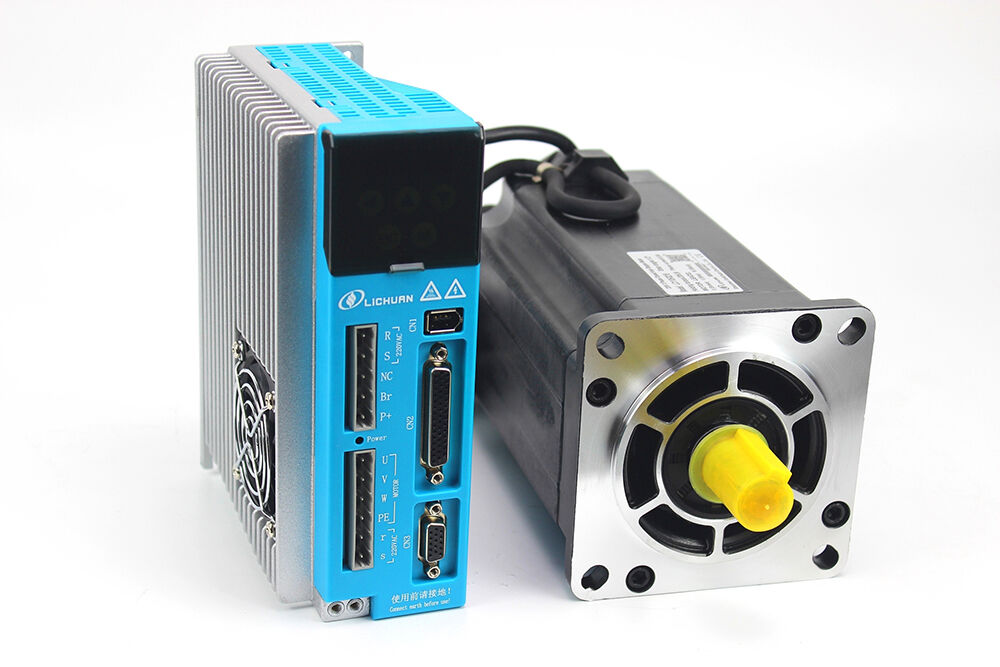

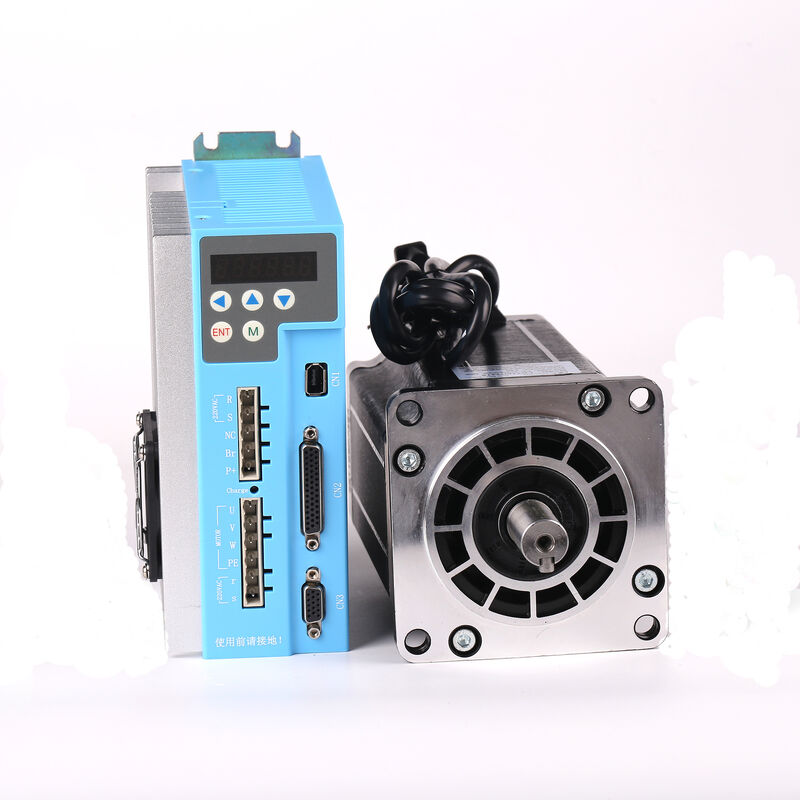

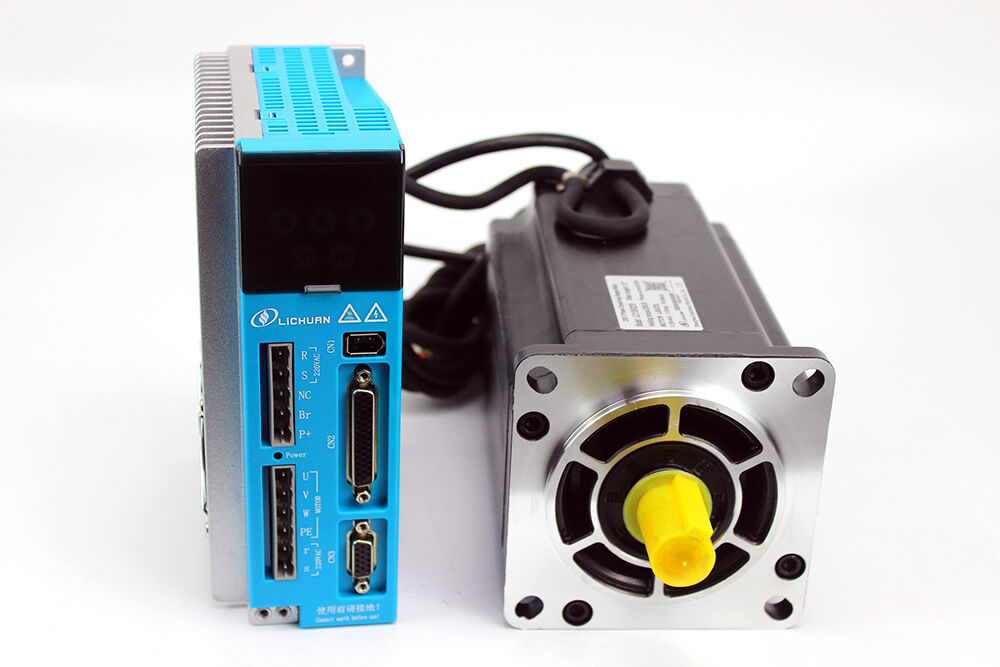

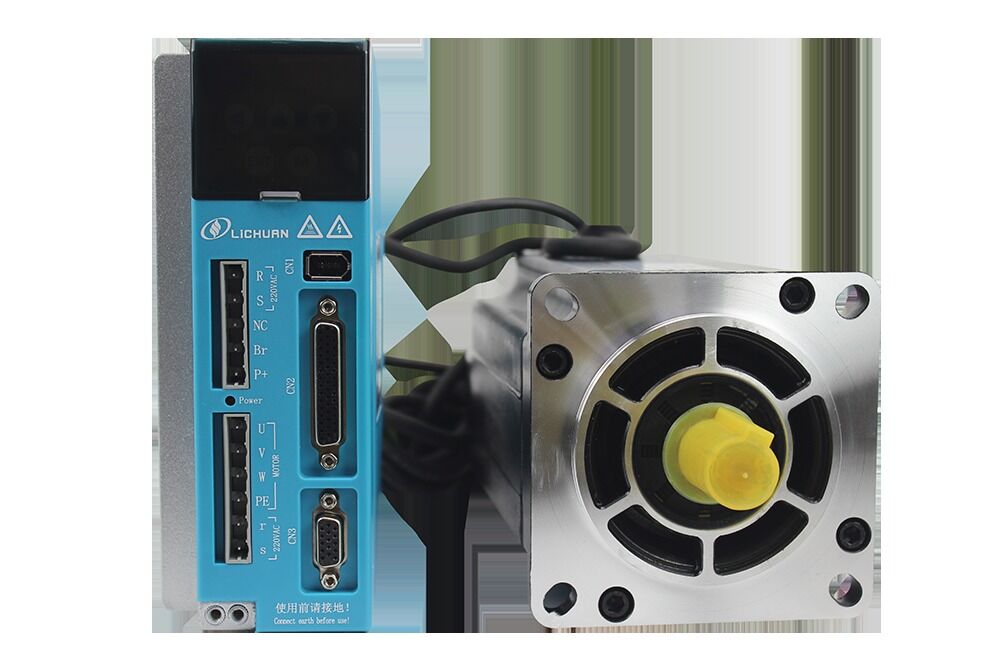

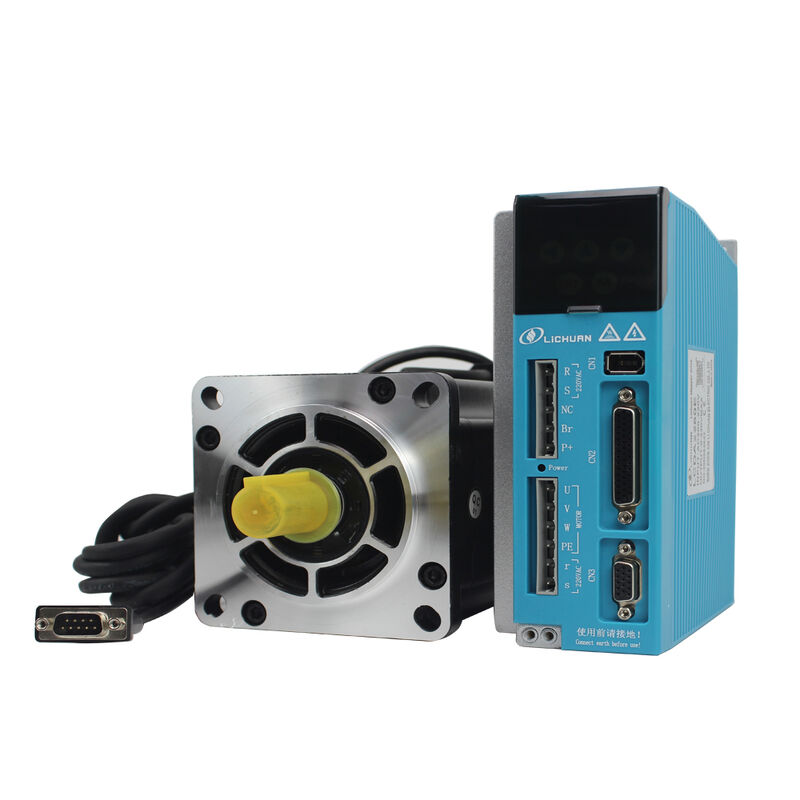

Lichuan 3ph Nema42 closed loop stepper motor
|
LC110H3185
|
1
|
|
2
|
Lichuan 3phase closed loop stepper drive
|
LCDA2260E
|
1
|
|
3
|
Encoder Cable
|
Standard (3m)
|
1
|
|

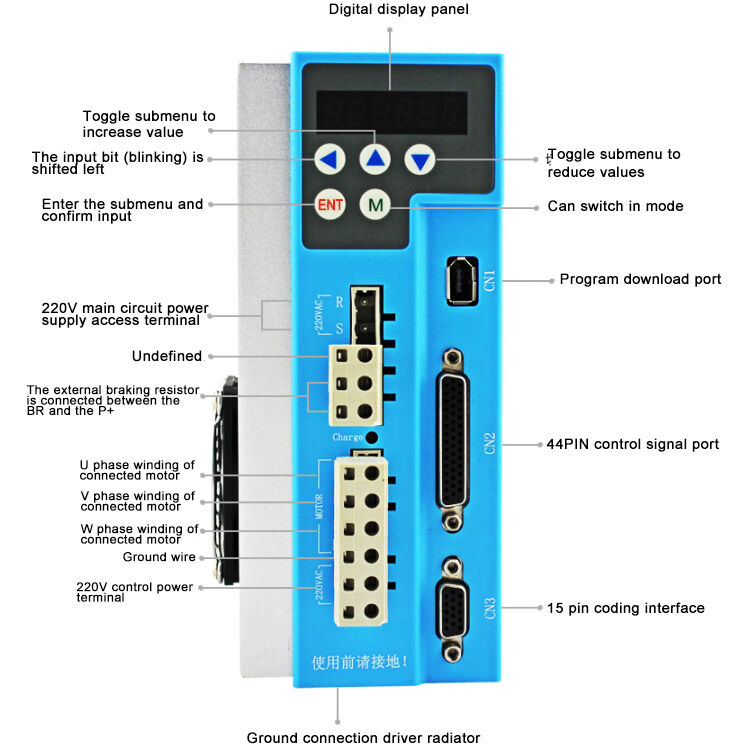

Lichuan 3-phase digital Hybrid Servo Drive
|
|
|
|
|||
|
Product Model
|
LCDA2260E
|
Product Size
|
202 x 139 x 75mm
|
|||
|
Product Weight
|
1.33KG
|
Alarm Output
|
stand by
|
|||
|
Power Range
|
AC:220V
|
Subdivision Range
|
Adjustable on the drive
|
|||
|
Current Range
|
Peak current 6A
|
|
|
|||
|
Pulse Forml:Pulse + direction
|
|
|
|
|||
|
Drice Motor:Three-phase 86 closed-loop stepper motor
|
|
|
|
|||
|
Max Pluse Response Frequency:200KHZ(Pulse Width Greater than 2.5μs)
|
|
|
|
|||
|
Signal voltage:Default + V5,connected to +V12/V24 requires series resistor
|
|
|
|
|||
|
Three-phase 110mm closed-loop stepper motor
|
|
|
|
Model
|
LC110H3185
|
|
|
Weight(kg)
|
9KG
|
|
|
Length(mm)
|
185mm
|
|
|
Holding Torque(N.m)
|
16N.m
|
|
|
Phase Current(A)
|
6.4A
|
|
|
Rotational Inertia(g.cm²)
|
13560
|
|
|
Phase Resistance(Ω)
|
1.89
|
|
|
Step Angle(°)
|
1.2
|
|
|
Shaft Diameter(mm)
|
φ19
|
|
|
Shaft Extension(mm)
|
Keyway 6 x 30
|
|
|
Shaft Length(mm)
|
40mm
|
|
|
Phase Inductance(mH)
|
8.73
|
|
|
Lead wire(No.)
|
3
|
|
