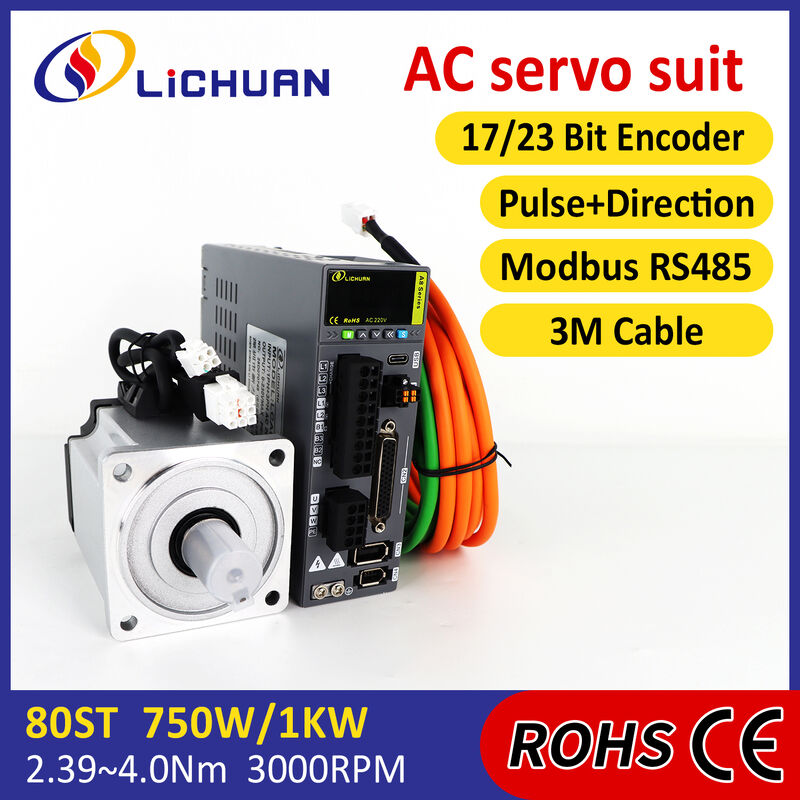

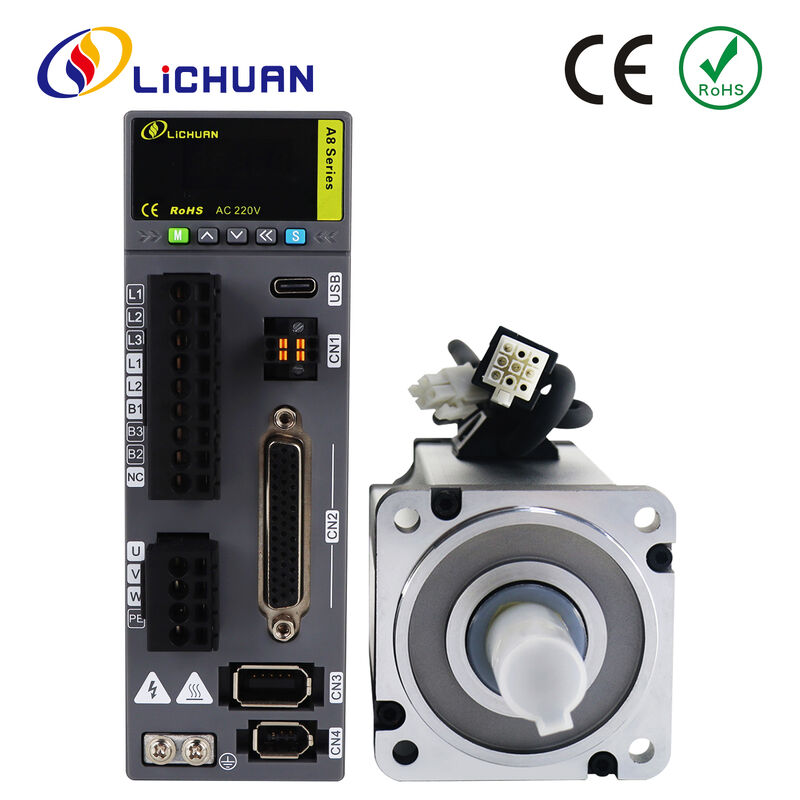

Lichuan AC Servo Motor Drivers Kit A8 High Accuracy STO ABZ 1001W 1KW 4.0N.m 220V 4.6A 2500/3000RPM IP65
Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit — Product Overview
Lichuan A8 series Servo Motor Driver advantages:
Highlights:
1.Can be equipped with linear motors, achieving accuracy up to 1 micron
2.Standard STO safety function
3.Optional dynamic braking function for safety and reliability
4.Supports ABZ quadrature pulse full closed-loop control
Functions:
1.Supports 17-bit and 23-bit incremental and absolute encoders.
2.Supports 7 control modes: position, speed, torque, position/torque, position/speed, speed/torque, and position/speed/torque.
3.Internal 24V voltage output: Can power the DI and Pulse ports, eliminating the need for an external 24V power supply.
4.Supports ABZ phase pulse frequency division feedback.
5.16 virtual DI ports and 16 virtual D0 ports: No need to worry about insufficient DI or D0 ports when using communication control.
6.16 internal speed and 16 internal position segments: Automatic cycle operation is available, making 485 communication control more flexible.
7.Supports motor self-learning: Can be used with motors from different manufacturers.
8.Supports 485 bus communication, using the standard MODBUS RTU protocol.
9.Analog signal control, support input 2 analog inputs, 12-bit resolution, input range -10 to +10V.
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit integrates high-performance AC servo motors with advanced A8 series servo drivers. Featuring STO dual-channel safety protection and ABZ encoder feedback, the system delivers exceptionally precise positioning and speed control.
Its intelligent control algorithms ensure smooth operation, enhanced torque stability, and rapid dynamic response, supporting demanding industrial environments requiring high reliability.
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit is an advanced industrial-grade servo control solution designed for high-precision motion, stable torque output, real-time feedback, and intelligent protection. Built with STO security, ABZ encoder feedback, and high-speed AC servo control, this kit ensures accuracy, durability, and reliability across industrial automation applications.
Its compact structure, powerful performance, and wide compatibility make the Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit ideal for OEM manufacturers, production lines, robotics, CNC machines, and automated equipment.
Product Name: Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit
Brand: Lichuan
Function: High-precision servo control with STO & ABZ encoder
Power Supply: AC input
Core Features: Safety torque-off (STO), ABZ pulse output, high accuracy, stable performance
Application Level: Industrial automation, robotics, CNC systems
SEO Keyword Integration: Included across content for optimal Google AI indexing

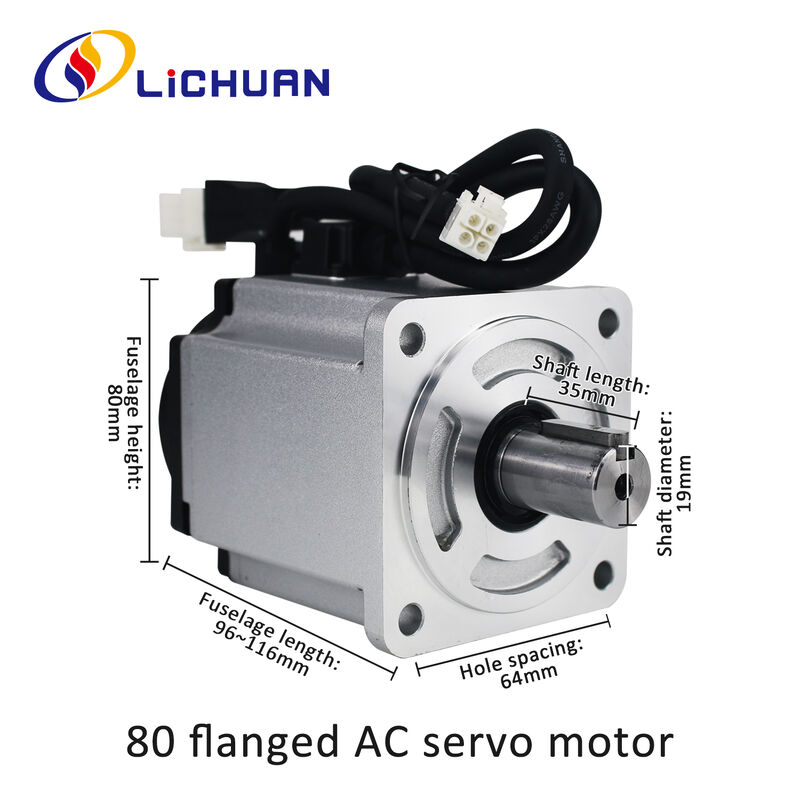

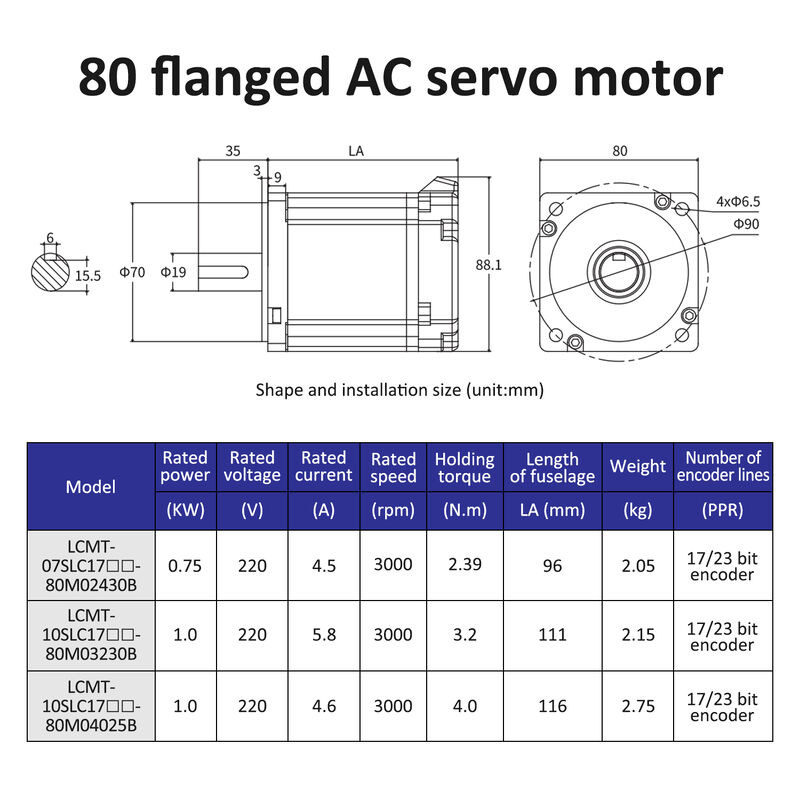

| 80 FLANGED MOTOR | |||
| Motor Moddel | LCMT-07SLC17-80M02430B | LCMT-10SLC17-80M03230B | LCMT-10SLC17-80M04025B |
| Rated Power (KW) | 0.75 | 1.0 | 1.0 |
| Rated voltage (V) | 220 | 220 | 220 |
| Rated Current (A) | 4.5 | 5.8 | 4.6 |
| Rated Speed (rpm) | 3000 | 3000 | 2500 |
| Rated Torque (N.m) | 2.39 | 3.2 | 4.0 |
| Peak Torque (N.m) | 7.17 | 7.96 | 11.46 |
| Voltage Constant(V/1000r/min) | 32.8 | 32.5 | 50.8 |
| Torque Coefficient(N.m/A) | 0.53 | 0.55 | 0.83 |
| Rated Inertia (kg.m²) | 1.5X10-4 | 1.55X10-4 | 2.2X10-4 |
| Resistance (Ω) | 1.2 | 1.17 | 2.3 |
| Inductance (mH) | 4.2 | 3.9 | 9.6 |
| Electrical Time (Ms) | 3.5 | 3.33 | 4.2 |
| Product Weight (kg) | 2.05 | 2.15 | 2.75 |
| Encoder Line Number (PPR) | 17/23-bit incremental, 17/23-bit absolute encoder | ||
| Motor Insulation Grade | CLASS F | ||
| Protection Level | IP65 | ||

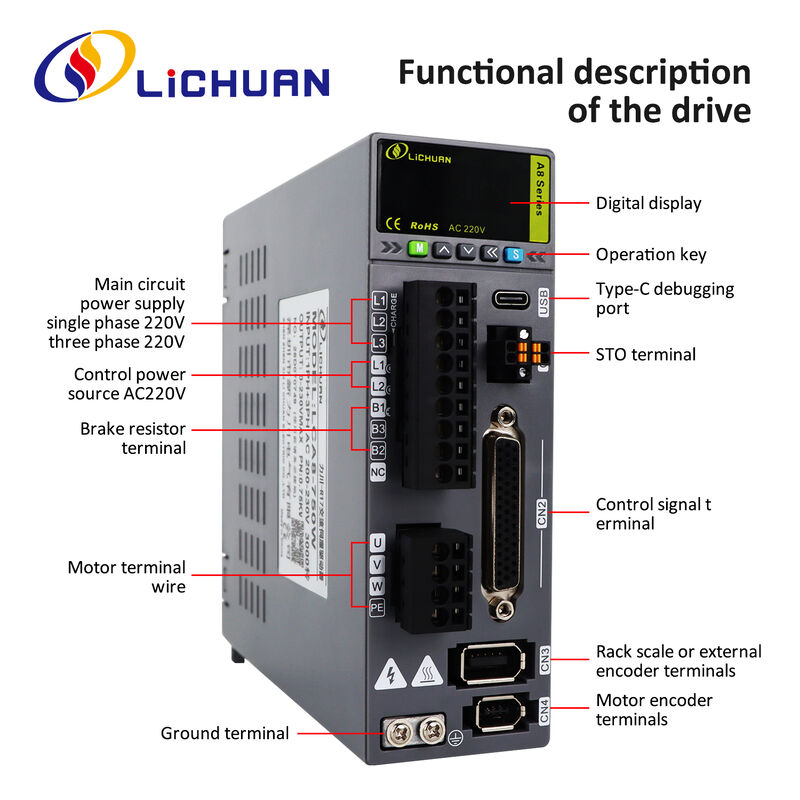

| A8 High-performance AC servo drive | |||
| Product weight | 1.05KG | Product dimensions | 161x158.81x50mm |
| Pulse width | More than 2.5 us | Response frequency | Pulse MAX 200 khz |
| Current range | 20A | Power supply area | Single Phase 220VAC |
| Encoder wire | 17/23 line absolute encoder lin | Drive motor | AC servo motor (750W/1KW) |
| Signal voltage | 5V-24V | Control mode | Support 7 control modes |
| Baud rate range | 9.6kbps~115.2kbps | Communication function | RS485 communication, ModbusRTU protocol |
| CAN protocol | Support 485 bus, can support simultaneous mount up to 32 axis for motion control | ||
Model: A8
System Type: AC servo drive + motor kit
Encoder Type: ABZ pulse encoder feedback
Safety Function: STO (Safety Torque-Off)
Accuracy Level: High-precision industrial grade
Control Mode: Position / Speed / Torque
Industry Standard: Industrial automation grade
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit includes a complete servo system with the following specifications:
AC voltage input
Integrated STO protection dual-channel
ABZ precise pulse feedback
High-speed response < 2 ms
Adjustable torque parameters
Multi-mode input/output signals
Intelligent adaptive tuning
Powered by ABZ feedback and an A8 servo algorithm, the Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit achieves ultra-stable and accurate positioning.
Built-in Safety Torque-Off (STO) ensures reliable shutdown during emergencies and meets industrial safety requirements.
Designed for immediate torque output and rapid speed correction in high-performance industries.
Optimized for long-term operation under heavy load and continuous duty cycles.
Driver + motor matching improves installation convenience and system compatibility.
Precision ABZ encoder
STO dual-channel security
High accuracy control algorithm
Stable torque output
Low noise operation
Long service life
Multi-protocol compatibility
Intelligent parameter tuning
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit uses a digital-signal-processor (DSP)-based AC servo driver, combined with a high-sensitivity ABZ encoder motor.
Key advantages include:
DSP real-time processing
High-speed pulse interpolation
Adaptive filter control
Current loop + speed loop + position loop optimization
Anti-vibration control technology
Driver Receives Command Signals
(Pulse, analog, digital, or internal programming)
ABZ Encoder Provides Real-Time Feedback
Ensuring accurate position tracking
A8 Driver Calculates Output Torque + Speed
Using advanced servo control algorithms
Motor Executes High-Precision Movement
STO Safety Circuit Interrupts Power When Required
Protecting equipment + operators
The Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit is widely used in:
CNC machinery
Robotics
Packaging machines
Textile machinery
3C electronics assembly
Conveyor systems
Printing machines
Automatic dispensing lines
Industrial automation plants
High-accuracy positioning
Automated motion control
Speed-sensitive operations
Repetitive high-precision tasks
High-speed assembly lines
Multi-axis motion systems
| Parameter | Value |
|---|---|
| Product | Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit |
| Motor Type | AC Servo Motor |
| Driver Series | A8 |
| Encoder Type | ABZ Feedback |
| Safety Feature | STO Dual-Channel |
| Control Mode | Position / Speed / Torque |
| Voltage | AC Input |
| Precision | High-Accuracy Industrial Grade |
| Applications | CNC, robotics, automation, packaging |
Ultra-stable accuracy
High reliability
Low maintenance
Excellent speed-torque consistency
High safety level
Widely compatible
Long lifespan
OEM & ODM customization
Technical support
System integration
Global shipping
Remote debugging assistance
After-sales service & warranty
Q1: What is included in the Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit?
A: Motor + A8 driver + cables + ABZ encoder system.
Q2: Does it support emergency stop?
A: Yes, the built-in STO dual-channel ensures safe power-off.
Q3: Is it easy to install?
A: Yes, plug-and-play wiring with standard connectors.
Q4: Which machines does it support?
A: CNC, automation lines, packaging machines, robotics, etc.
Precision machining
Encoder calibration
Driver testing
Assembly + inspection
Vibration + load testing
Safety verification (STO)
Packaging & logistics
Connect AC input
Wire motor + encoder
Configure A8 driver parameters
Test motor direction
Set speed/position mode
Begin operation
Do not operate in high humidity/oil environments
Ensure proper grounding
Avoid overload conditions
Check encoder cable connection regularly
Enable STO only for safety shutdown
100% full inspection
Driver + motor matching test
Encoder stability verification
Long-term continuous load testing
One-year standard warranty
24/7 technical support
Lifetime maintenance consulting
Spare parts supply
Online remote debugging
Dedicated after-sales engineers
CE Certification
ISO Manufacturing Standards
Industrial Safety Compliance
STO Safety Verification
Lichuan is a professional manufacturer specializing in servo motors, servo drivers, and motion-control systems. With strong R&D capability, global distribution networks, and industrial-grade reliability, Lichuan delivers high-performance automation components such as the Lichuan A8 High Accuracy STO ABZ AC Servo Motor Drivers Kit to global markets.
